Instrument and Console Panels - IP Trimmed Panels of Aston Martin Aston Martin GT VANQUISH (2013-2018)

すべて見る

Aston Martin GT VANQUISH (2013-2018) - Instrument and Console Panels - IP Trimmed Panels

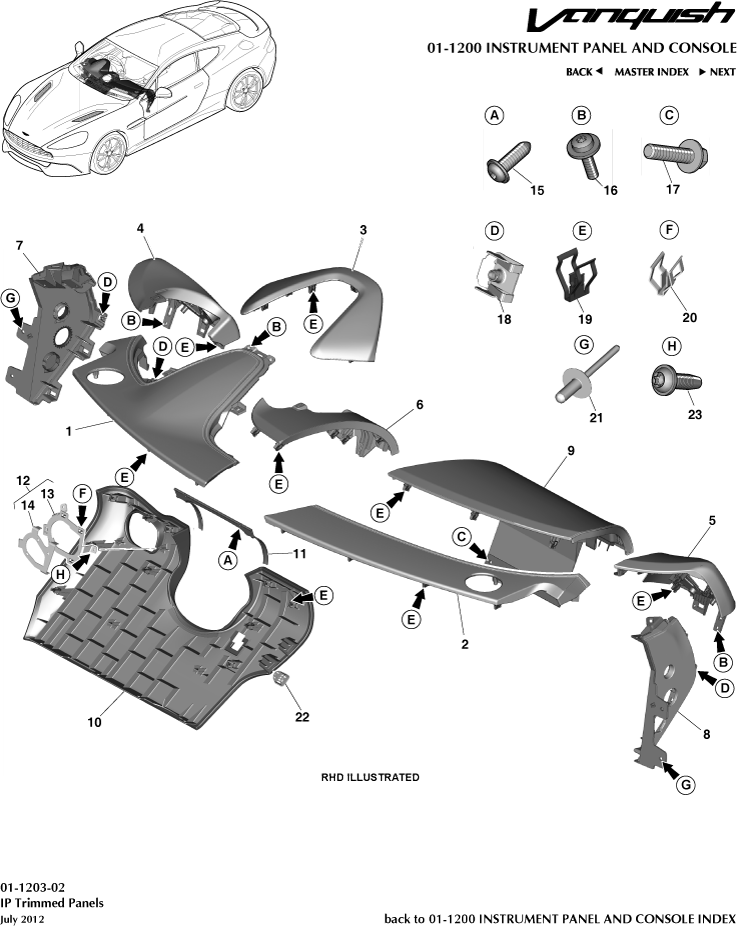

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	CD33C043C54ACW	TRIM PANEL, DRIVERS SIDE,UPPER	CD33C043C54ACW TRIM PANEL, DRIVERS SIDE,UPPER Includes Items 18 and 19	$1,457.15	1
-	CD33C043C54CCW	TRIM PANEL, PASSENGERSIDE, UPPER	CD33C043C54CCW TRIM PANEL, PASSENGERSIDE, UPPER Includes Item 19	$1,096.51	1
-	CD33C04606BBW	TRIM PANEL, CLUSTER TOPTRIM	CD33C04606BBW TRIM PANEL, CLUSTER TOPTRIM Includes Item 19	$569.33	1
-	CD33C04635ABW	Panel Assy, IP Upper, Passenger Side, LHD	CD33C04635ABW Panel Assy, IP Upper, Passenger Side, LHD Includes Item 19	-	1	Enquire
-	CD33C04634ACW	TRIM PANEL, DRIVERS SIDE,OUTER	CD33C04634ACW TRIM PANEL, DRIVERS SIDE,OUTER Includes Item 19	$535.54	1
-	CD3302695ACW	TRIM PANEL, DRIVERS SIDE,INNER	CD3302695ACW TRIM PANEL, DRIVERS SIDE,INNER Includes Item 19	$495.77	1
-	CD33C044H58AEW	TRIM PANEL & DOORASSEMBLY, AIRBAG	CD33C044H58AEW TRIM PANEL & DOORASSEMBLY, AIRBAG Includes Item 19	$1,205.14	1
-	CD33C04325ADW	TRIM PANEL, DRIVERS SIDE,LOWER	CD33C04325ADW TRIM PANEL, DRIVERS SIDE,LOWER Includes Items 19 and 21	$1,017.69	1
-	DD332C356AB	BRACKET ASSEMBLY, MASTERLIGHT SWITCH	DD332C356AB BRACKET ASSEMBLY, MASTERLIGHT SWITCH Includes Item 20	-	1	Enquire
-	DD3311A678BC	SUPPORT BRACKET, MASTERLIGHT SWITCH	DD3311A678BC SUPPORT BRACKET, MASTERLIGHT SWITCH -	$279.02	1
-	DD3311A678DB	BRACKET, MASTER LIGHTSWITCH	DD3311A678DB BRACKET, MASTER LIGHTSWITCH -	-	1	Enquire
1	CD33C043C54BCW	TRIM PANEL, DRIVERS SIDE,UPPER	CD33C043C54BCW TRIM PANEL, DRIVERS SIDE,UPPER Includes Items 18 and 19	$929.10	1
2	CD33C043C54DCW	TRIM PANEL, PASSENGERSIDE, UPPER	CD33C043C54DCW TRIM PANEL, PASSENGERSIDE, UPPER Includes Item 19	$1,096.51	1
3	CD33C04606DBW	TRIM PANEL, CLUSTER TOPTRIM	CD33C04606DBW TRIM PANEL, CLUSTER TOPTRIM Includes Item 19	$569.33	1
4	CD33C04634BCW	TRIM PANEL, DRIVERS SIDE,OUTER	CD33C04634BCW TRIM PANEL, DRIVERS SIDE,OUTER Includes Item 19	$649.26	1
5	CD33C04635BCW	TRIM PANEL, PASSENGERSIDE, OUTER	CD33C04635BCW TRIM PANEL, PASSENGERSIDE, OUTER Includes Item 19	$586.68	1
6	CD3302695BCW	TRIM PANEL, DRIVERS SIDE,INNER	CD3302695BCW TRIM PANEL, DRIVERS SIDE,INNER Includes Item 19	$416.32	1
7	DD3304316AAW	END PANEL ASSEMBLY, RH	DD3304316AAW END PANEL ASSEMBLY, RH Includes Item 18	$502.79	1
8	DD3304317AAW	END PANEL ASSEMBLY, LH	DD3304317AAW END PANEL ASSEMBLY, LH Includes Item 18	$502.79	1
9	CD33C044H58BEW	TRIM PANEL & DOORASSEMBLY, AIRBAG	CD33C044H58BEW TRIM PANEL & DOORASSEMBLY, AIRBAG Includes Item 19	$1,388.94	1
10	CD33C04325BDW	TRIM PANEL, DRIVERS SIDE,LOWER	CD33C04325BDW TRIM PANEL, DRIVERS SIDE,LOWER Includes Items 19 and 21	$1,303.70	1
11	DD33-3T501-ACW	COVER, STEERING COLUMNUPPER SHROUD	DD33-3T501-ACW COVER, STEERING COLUMNUPPER SHROUD -	-	1	Enquire
12	DD332C356BC	BRACKET ASSEMBLY, MASTERLIGHT SWITCH	DD332C356BC BRACKET ASSEMBLY, MASTERLIGHT SWITCH Includes Item 20	$69.55	1
13	DD3311A678AC	SUPPORT BRACKET, MASTERLIGHT SWITCH	DD3311A678AC SUPPORT BRACKET, MASTERLIGHT SWITCH -	$279.02	1
14	DD3311A678CC	BRACKET, MASTER LIGHTSWITCH	DD3311A678CC BRACKET, MASTER LIGHTSWITCH -	-	1	Enquire
15	705464	Screw, M4 x 9.5	705464 Screw, M4 x 9.5 -	$0.18	2
16	701573	Screw and Washer assy, M4x16 Pan hd	701573 Screw and Washer assy, M4x16 Pan hd -	$0.41	13
17	703025	Bolt, flg M6 x 25	703025 Bolt, flg M6 x 25 -	$0.34	3
18	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING -	$3.90	3
19	W700970S307	Clip, Push-on, 8.5x16.0x1.7	W700970S307 Clip, Push-on, 8.5x16.0x1.7 -	-	45	Enquire
21	4G4317A873AA	POP RIVET, 4.8x12.0	4G4317A873AA POP RIVET, 4.8x12.0 -	$1.89	4
22	4G43R8200AA	GRILLE ASSEMBLY	4G43R8200AA GRILLE ASSEMBLY -	-	1	Enquire
23	701447	Screw M4x12 Pan collar	701447 Screw M4x12 Pan collar -	$0.55	3
