Sound & Heat Control - Noise Insulation, Coupe of Aston Martin Aston Martin GT VANQUISH (2013-2018)

すべて見る

Aston Martin GT VANQUISH (2013-2018) - Sound & Heat Control - Noise Insulation, Coupe

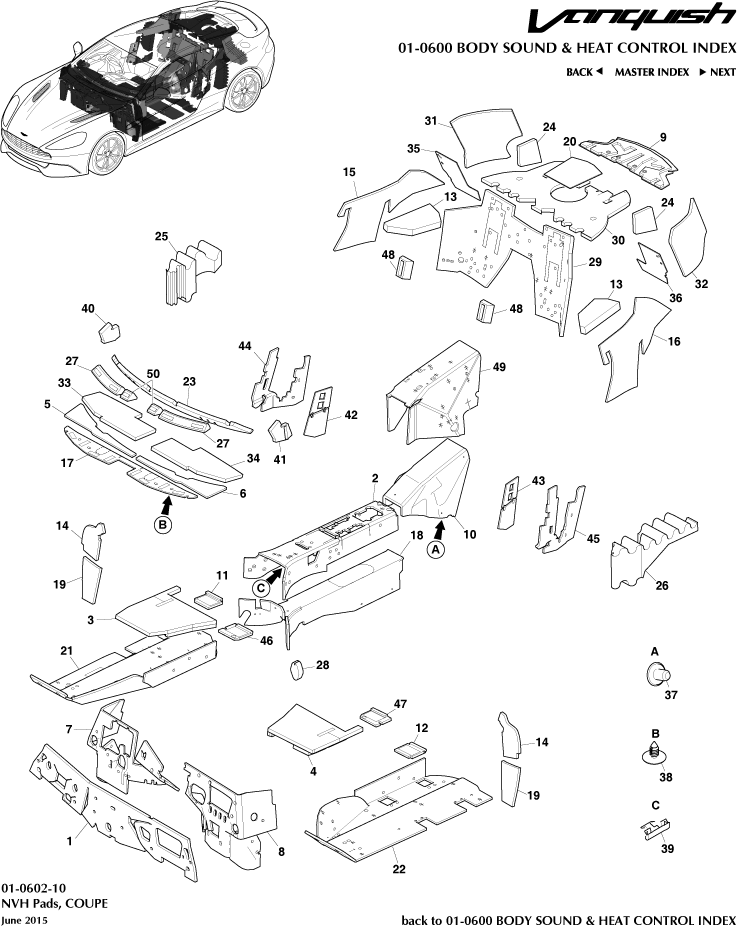

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	6G33102B00AD	Sound Insulation, Engine Housing	6G33102B00AD Sound Insulation, Engine Housing LHD	-	1	Enquire
-	4G4311455BH	Insulation Assy, front floor pan sound, RH, LHD	4G4311455BH Insulation Assy, front floor pan sound, RH, LHD LHD	$67.93	1
-	4G4311455AH	Insulation Assy, front floor pan sound, LH, LHD	4G4311455AH Insulation Assy, front floor pan sound, LH, LHD LHD	$68.23	1
-	DD33002K05AC	NVH, Dash Inner, RH	DD33002K05AC NVH, Dash Inner, RH LHD	$63.24	1
-	DD33015A23AD	BAFFLE, FRONT PANEL, LH	DD33015A23AD BAFFLE, FRONT PANEL, LH LHD	$99.34	1
-	ED335416AC	カバー、リアトンネル	ED335416AC カバー、リアトンネル 14.5MY	$35.68	1
1	6G33102B00BD	Sound Insulation, Engine Housing	6G33102B00BD Sound Insulation, Engine Housing RHD	-	1	Enquire
2	DD3311446AD	NVH, TUNNEL, INTERIOR	DD3311446AD NVH, TUNNEL, INTERIOR -	$43.07	1
3	4G4311454BH	Insulation Assy, front floor pan sound, RH, RHD	4G4311454BH Insulation Assy, front floor pan sound, RH, RHD RHD	$66.84	1
4	4G4311454AH	Insulation Assy, front floor pan sound, LH, RHD	4G4311454AH Insulation Assy, front floor pan sound, LH, RHD RHD	$66.84	1
5	4G4302292AB	NVH, IP COWL, RH	4G4302292AB NVH, IP COWL, RH -	$14.33	1
6	4G4302293AB	NVH, IP COWL, LH	4G4302293AB NVH, IP COWL, LH -	$14.33	1
7	DD33-002K06-AC	NVH, Dash Inner, RH	DD33-002K06-AC NVH, Dash Inner, RH RHD	-	1	Enquire
8	DD33-015A22-AD	NVH, Dash Inner, LH	DD33-015A22-AD NVH, Dash Inner, LH RHD	-	1	Enquire
9	DD3342775AA	Hush Panel	DD3342775AA Hush Panel -	-	1	Enquire
10	4G437Z309AC	NVH, EXTERIOR,TRANSMISSION	4G437Z309AC NVH, EXTERIOR,TRANSMISSION -	$81.46	1
11	6G33114B32AB	Foam Insert, Outer, RH	6G33114B32AB Foam Insert, Outer, RH -	$5.85	1
12	6G33114B33AB	Foam Insert, Outer, LH	6G33114B33AB Foam Insert, Outer, LH -	$5.85	1
13	4G43F310A26AA	NVH, REAR QUARTER, INNER	4G43F310A26AA NVH, REAR QUARTER, INNER -	$17.79	2
14	DD3328112AA	NVH, FENDER, UPPER	DD3328112AA NVH, FENDER, UPPER -	$56.66	2
15	DD3327746AB	NVH, SIDE, RH	DD3327746AB NVH, SIDE, RH -	$46.16	1
16	DD3327747AB	NVH, SIDE, LH	DD3327747AB NVH, SIDE, LH -	$46.16	1
17	DD3300152AB	NVH, PLENUM, ENGINE BAY	DD3300152AB NVH, PLENUM, ENGINE BAY -	-	1	Enquire
18	4G43114B26AH	NVH, TUNNEL	4G43114B26AH NVH, TUNNEL -	$108.11	1
19	DD3328110AB	NVH, FENDER, LOWER	DD3328110AB NVH, FENDER, LOWER -	$46.84	2
20	DD33403D42AA	NVH, PACKAGE TRAY, CENTRE	DD33403D42AA NVH, PACKAGE TRAY, CENTRE -	$14.78	1
21	DD3354751AD	バッフル、フロア、右側	DD3354751AD バッフル、フロア、右側 -	$48.26	1
22	DD3354752AB	バッフル、フロア、左側	DD3354752AB バッフル、フロア、左側 -	$48.19	1
23	CG43-02139-AA	BAFFLE, TOP COWL	CG43-02139-AA BAFFLE, TOP COWL -	-	1	Enquire
24	DD33111A30AA	NVH, LOAD COMPARTMENT	DD33111A30AA NVH, LOAD COMPARTMENT -	-	2	Enquire
25	DD33C27746AA	BAFFLE, REAR QUARTER, RH	DD33C27746AA BAFFLE, REAR QUARTER, RH -	$35.60	1
26	DD33C27747AA	BAFFLE, REAR QUARTER, LH	DD33C27747AA BAFFLE, REAR QUARTER, LH -	$32.41	1
27	AD43-68066-AC	NVH, Dash Foam, Under Side Cavity	AD43-68066-AC NVH, Dash Foam, Under Side Cavity 2x Only When Pedestrian Impact System Fitted	-	3	Enquire
28	8G4304564AA	NVH, CLUTCH PEDAL	8G4304564AA NVH, CLUTCH PEDAL -	$0.93	1
29	DD33C311K66AE	NVH, REAR BULKHEAD	DD33C311K66AE NVH, REAR BULKHEAD -	$48.55	1
30	DD33C56158AA	Insulation, Package Trim	DD33C56158AA Insulation, Package Trim 2+2 Seating	-	1	Enquire
31	DD3345636AA	NVH, LOAD COMPARTMENT, RH	DD3345636AA NVH, LOAD COMPARTMENT, RH -	$16.51	1
32	DD3345637AA	NVH, LOAD COMPARTMENT, LH	DD3345637AA NVH, LOAD COMPARTMENT, LH -	$26.62	1
33	8G4348182AB	FOAM PAD, IP COWL, RH	8G4348182AB FOAM PAD, IP COWL, RH -	$22.11	1
34	8G4348181AB	FOAM PAD, IP COWL, LH	8G4348181AB FOAM PAD, IP COWL, LH -	$22.11	1
35	DD33-454A12-AA	NVH, Wheel Arch, RH	DD33-454A12-AA NVH, Wheel Arch, RH -	-	1	Enquire
36	DD33-454A13-AA	NVH, Wheel Arch, LH	DD33-454A13-AA NVH, Wheel Arch, LH -	-	1	Enquire
37	702212	SNAPSAC, 6.8mm, PUSH-ON	702212 SNAPSAC, 6.8mm, PUSH-ON -	$0.57	A/R
38	697648	Fastener, Firtree	697648 Fastener, Firtree -	$1.52	A/R
39	6G3334983AB	クリップ	6G3334983AB クリップ -	$0.93	3
40	CG43-310A60-AA	NVH, BODY SIDE, UPPER, RH	CG43-310A60-AA NVH, BODY SIDE, UPPER, RH -	-	1	Enquire
41	CG43-310A59-AA	NVH, BODY SIDE, UPPER, LH	CG43-310A59-AA NVH, BODY SIDE, UPPER, LH -	-	1	Enquire
42	CG43-D1160-AC	NVH, REAR QUARTER TRIM,RH	CG43-D1160-AC NVH, REAR QUARTER TRIM,RH -	-	1	Enquire
43	CG43D1161AC	NVH, REAR QUARTER TRIM,LH	CG43D1161AC NVH, REAR QUARTER TRIM,LH -	$13.09	1
44	DD33L27746AB	NVH, B-PILLAR, RH	DD33L27746AB NVH, B-PILLAR, RH -	-	1	Enquire
45	DD33L27747AB	NVH, B-PILLAR, LH	DD33L27747AB NVH, B-PILLAR, LH -	-	1	Enquire
46	6G33114A42AB	Foam Insert, Inner, RH	6G33114A42AB Foam Insert, Inner, RH -	$5.85	1
47	6G33114A43AB	Foam Insert, Inner, LH	6G33114A43AB Foam Insert, Inner, LH -	$5.85	1
48	CG43-C311K70-AA	NVH, REAR SEAT, LOWER	CG43-C311K70-AA NVH, REAR SEAT, LOWER 2+2 Seating	-	2	Enquire
49	DD335416AB	カバー、リアトンネル	DD335416AB カバー、リアトンネル -	-	1	Enquire
50	DG43-68066-AA	NVH, Dash Foam, Small, Under Side Cavity	DG43-68066-AA NVH, Dash Foam, Small, Under Side Cavity When Pedestrian Impact System Fitted	-	2	Enquire
