Volante Roof - Volante Roof Assembly of Aston Martin Aston Martin GT VANQUISH (2013-2018)

すべて見る

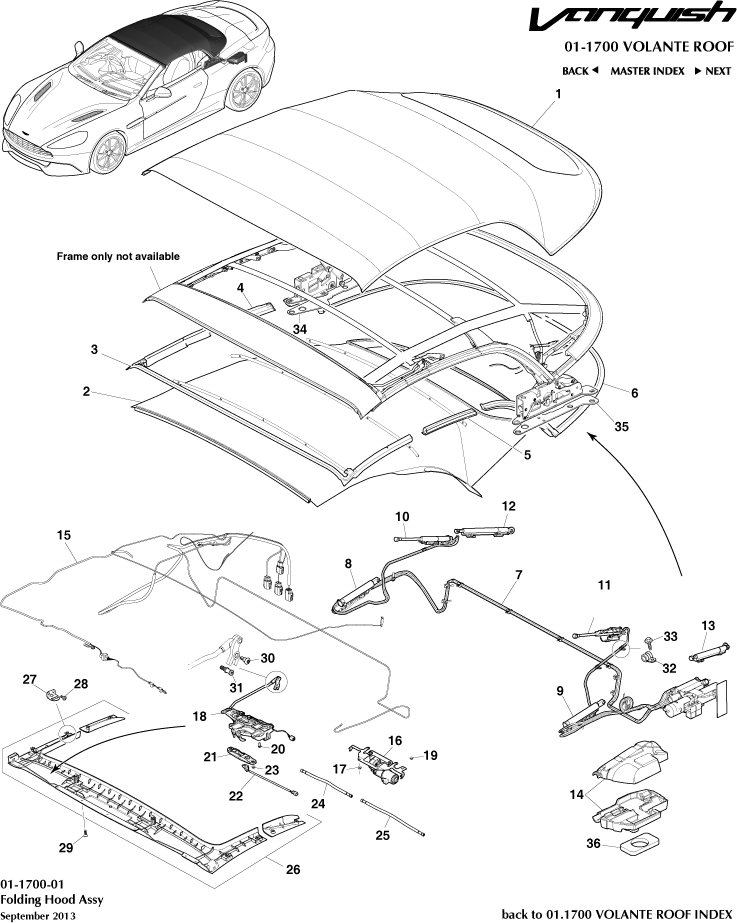

Aston Martin GT VANQUISH (2013-2018) - Volante Roof - Volante Roof Assembly

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	ED3376501B00CA	CONVERTIBLE ROOF ASSEMBLY	ED3376501B00CA CONVERTIBLE ROOF ASSEMBLY -	$28,446.85	1
-	ED3376501B10CA	CONVERTIBLE ROOF ASSEMBLY	ED3376501B10CA CONVERTIBLE ROOF ASSEMBLY -	$24,261.99	1
-	9G4370351BA	KIT, OUTER CANOPY	9G4370351BA KIT, OUTER CANOPY -	$8,629.28	1
-	9G4370351CA	KIT, OUTER CANOPY	9G4370351CA KIT, OUTER CANOPY -	$8,629.30	1
-	9G4370351DA	KIT, OUTER CANOPY	9G4370351DA KIT, OUTER CANOPY -	$8,629.30	1
-	9G4370351EA	KIT, OUTER CANOPY	9G4370351EA KIT, OUTER CANOPY -	$8,629.32	1
-	9G4370351FA	KIT, OUTER CANOPY	9G4370351FA KIT, OUTER CANOPY -	$14,557.20	1
-	9G4370351GA	KIT, OUTER CANOPY	9G4370351GA KIT, OUTER CANOPY -	$14,557.20	1
-	9G4370351HA	Canopy Cover Kit, Grenadine Red	9G4370351HA Canopy Cover Kit, Grenadine Red -	$13,592.21	1
-	9G4370352BB	KIT, INNER LINING	9G4370352BB KIT, INNER LINING -	$2,700.40	1
-	9G4370352CB	KIT, INNER LINING	9G4370352CB KIT, INNER LINING -	$2,700.40	1
-	9G4370352DB	KIT, INNER LINING	9G4370352DB KIT, INNER LINING -	$2,700.40	1
-	9G4370352EB	KIT, INNER LINING	9G4370352EB KIT, INNER LINING -	$2,700.40	1
-	707855	Inner Lining-Special Order	707855 Inner Lining-Special Order Confirm Colour When Ordering	$3,497.74	1
-	4G4375999AA	シムワッシャー	4G4375999AA シムワッシャー Seal Kit Attach	$40.44	6
-	9G4353390AB	Hydraulic Hose, Main Cylinder, RH	9G4353390AB Hydraulic Hose, Main Cylinder, RH NSS. Part of 4G43-9G803-AD	-	1	Enquire
-	9G4353391AB	Hydraulic cylinder, tonneau, LH	9G4353391AB Hydraulic cylinder, tonneau, LH NSS. Part of 4G43-9G803-AD	-	1	Enquire
-	4G43L51260AA	KIT, AUTOMATIC LATCHING,LH	4G43L51260AA KIT, AUTOMATIC LATCHING,LH -	$820.98	1
-	4G43765011AE	Striker, Header, LH	4G43765011AE Striker, Header, LH -	-	1	Enquire
-	4G439310614	TRIM COVER SET	4G439310614 TRIM COVER SET -	$1,568.60	1
-	4G439310615	TRIM COVER SET	4G439310615 TRIM COVER SET -	$1,568.60	1
-	4G439310616	TRIM COVER SET	4G439310616 TRIM COVER SET -	$1,568.60	1
-	9G43F502D42AA	Belt, Tension, RH	9G43F502D42AA Belt, Tension, RH -	-	2	Enquire
-	9G43F502D41AA	Belt, Tension, LH	9G43F502D41AA Belt, Tension, LH -	-	2	Enquire
-	4G43A502D41AA	Cable, Tension	4G43A502D41AA Cable, Tension -	$42.45	2
-	4G4310D916AA	Strap, Control	4G4310D916AA Strap, Control Hydraulic Pipe Protection	$29.85	2
-	4G4356051AA	カバー、プラグホール	4G4356051AA カバー、プラグホール Obsidian black	$87.86	1
-	4G4356051BA	カバー、プラグホール	4G4356051BA カバー、プラグホール Ivory	$87.86	1
-	4G4356051CA	カバー、プラグホール	4G4356051CA カバー、プラグホール Moon shadow	$71.40	1
-	4G4356051DA	カバー、プラグホール	4G4356051DA カバー、プラグホール Tailors grey	$71.40	1
1	9G4370351AA	KIT, OUTER CANOPY	9G4370351AA KIT, OUTER CANOPY -	$8,629.28	1
2	9G4370352AB	KIT, INNER LINING	9G4370352AB KIT, INNER LINING -	$2,700.40	1
3	4G43L51210AB	KIT, FRONT SEAL ASSEMBLY	4G43L51210AB KIT, FRONT SEAL ASSEMBLY -	$1,181.50	1
4	4G43L51221AA	KIT, MID SEAL, RH	4G43L51221AA KIT, MID SEAL, RH -	$630.80	1
5	4G43L51220AA	KIT, MID SEAL, LH	4G43L51220AA KIT, MID SEAL, LH -	$630.80	1
6	4G43L51230AB	KIT, REAR SEAL ASSEMBLY	4G43L51230AB KIT, REAR SEAL ASSEMBLY -	$1,035.80	1
7	9G439G803AA	HYDRAULIC PUMP, PIPES &CYLINDERS ASSEMBLY	9G439G803AA HYDRAULIC PUMP, PIPES &CYLINDERS ASSEMBLY Includes Cylinders and Hoses	$4,455.40	1
8	4G4350638AB	HYDRAULIC CYLINDER, MAIN,RH	4G4350638AB HYDRAULIC CYLINDER, MAIN,RH -	$1,322.99	1
9	4G4350639AC	HYDRAULIC CYLINDER, MAIN,LH	4G4350639AC HYDRAULIC CYLINDER, MAIN,LH -	$675.71	1
10	4G43539A78AA	HYDRAULIC CYLINDER,TENSION BOW, RH	4G43539A78AA HYDRAULIC CYLINDER,TENSION BOW, RH -	$1,508.52	1
11	4G43539A79AA	HYDRAULIC CYLINDER,TENSION BOW, LH	4G43539A79AA HYDRAULIC CYLINDER,TENSION BOW, LH -	$1,508.52	1
12	NSS	ウォッシャー	NSS ウォッシャー Use Item 7	-	1	Enquire
13	NSS	ウォッシャー	NSS ウォッシャー Use Item 7	-	1	Enquire
14	9G439311486	Enclosure, Pump Assembly	9G439311486 Enclosure, Pump Assembly -	$131.18	1
16	4G43L51240AA	LATCH MOTOR ASSEMBLY KIT	4G43L51240AA LATCH MOTOR ASSEMBLY KIT -	$365.40	1
17	4G431001991AA	ナット、六角	4G431001991AA ナット、六角 -	$1.43	4
18	4G43L51270AA	KIT, AUTOMATIC LATCHING,RH	4G43L51270AA KIT, AUTOMATIC LATCHING,RH -	$830.43	1
19	4G4369832AA	ナット、六角	4G4369832AA ナット、六角 -	$1.41	6
20	4G431004048AA	Screw, M6 Pan Hd	4G431004048AA Screw, M6 Pan Hd -	$1.50	2
21	4G43765010AF	Striker, Header, RH	4G43765010AF Striker, Header, RH -	$107.29	1
22	4G43765013AE	Sensor, Latching Striker assy (RH only)	4G43765013AE Sensor, Latching Striker assy (RH only) -	-	1	Enquire
23	702944	Nut, M6 flg	702944 Nut, M6 flg -	$1.82	4
26	4G439310617	TRIM COVER SET	4G439310617 TRIM COVER SET -	$1,568.60	1
27	4G43515A50AA	Cover, bracket trim	4G43515A50AA Cover, bracket trim -	$1.96	8
29	4G431004355AA	ネジ、セルフカット	4G431004355AA ネジ、セルフカット -	$1.41	8
30	4G431013271AA	SCREW. PIVOT HOOK	4G431013271AA SCREW. PIVOT HOOK -	-	2	Enquire
31	4G4350641AA	Over Centre Pin	4G4350641AA Over Centre Pin -	$7.88	1
33	702839PK	Screw and Washer M6x20 Hex	702839PK Screw and Washer M6x20 Hex Pack of 10	$6.81	3
34	ED33-76501B20-AB	FULL BEARING BRACKETSHIM, RH	ED33-76501B20-AB FULL BEARING BRACKETSHIM, RH -	-	1	Enquire
35	ED33-76501B21-AB	FULL BEARING BRACKETSHIM, LH	ED33-76501B21-AB FULL BEARING BRACKETSHIM, LH -	-	1	Enquire
36	ED3316C954AA	ガタ防止パッド	ED3316C954AA ガタ防止パッド -	$12.28	1
