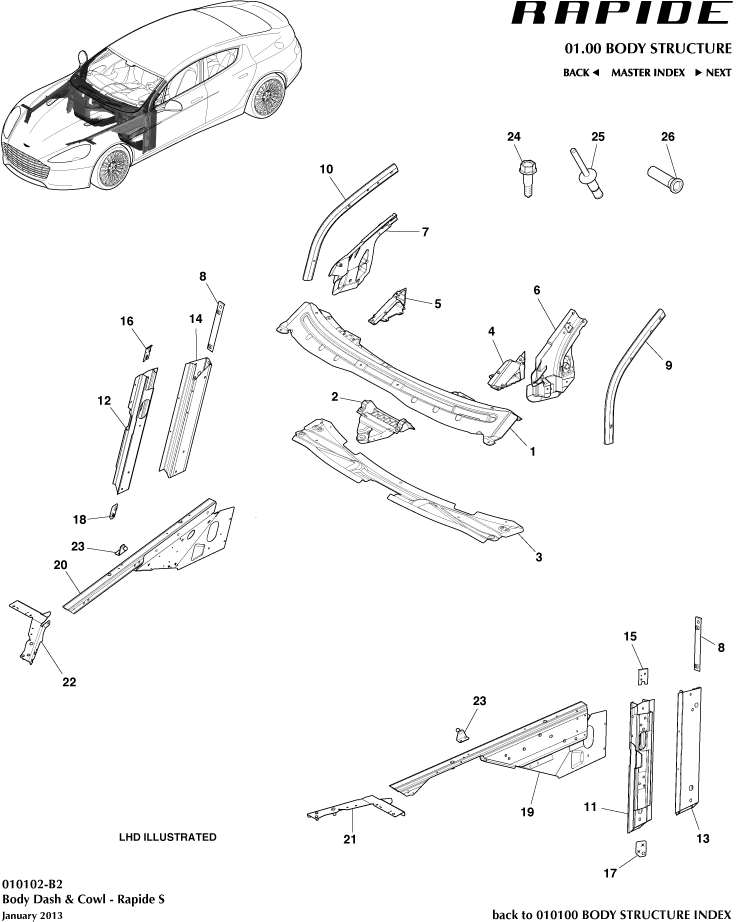

Aston Martin GT RAPIDE (2010-2019) - Body Structure - Body Dash & Cowl, 'S'

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	DD43-F292821-AD	Plenum Upper Casting	DD43-F292821-AD Plenum Upper Casting Structural Cat. A Only	-	1	Enquire
2	GODD4371023AE	CASTING, COWLREINFORCEMENT	GODD4371023AE CASTING, COWLREINFORCEMENT Structural Cat. A Only	-	1	Enquire
3	GODD43-F292650-AC	Plenum Lower	GODD43-F292650-AC Plenum Lower Structural Cat. A Only	-	1	Enquire
4	GOAD43F8875AA	Plenum Interface Casting, LH	GOAD43F8875AA Plenum Interface Casting, LH Structural Cat. A Only	$146.68	1
5	GOAD43F8874AA	Plenum Interface Casting, RH	GOAD43F8874AA Plenum Interface Casting, RH Structural Cat. A Only	$140.41	1
6	AD43A02571AB	Casting, A Pillar Lower, LH	AD43A02571AB Casting, A Pillar Lower, LH Structural Cat. A Only	$1,729.77	1
7	AD43A02570AB	Casting, A Pillar Lower, RH	AD43A02570AB Casting, A Pillar Lower, RH Structural Cat. A Only	$1,729.77	1
8	6G33486226AA	ナットプレート、M8	6G33486226AA ナットプレート、M8 Structural Cat. A Only	$9.50	2
9	GOAD43F02527AC	補強パーツ、フロントピラー、左側	GOAD43F02527AC 補強パーツ、フロントピラー、左側 Structural Cat. A Only	$203.48	1
10	GOAD43F02526AC	補強パーツ、フロントボディピラー、右側	GOAD43F02526AC 補強パーツ、フロントボディピラー、右側 Structural Cat. A Only	$193.11	1
11	GOAD43F02661AA	Pillar, Front Body Lower, LH	GOAD43F02661AA Pillar, Front Body Lower, LH Structural Cat. A Only	$200.17	1
12	GOAD43F02660AA	Pillar, Front Body Lower, RH	GOAD43F02660AA Pillar, Front Body Lower, RH Structural Cat. A Only	$191.32	1
13	GOAD43F02663AA	Pillar, External Front Body Lower, LH	GOAD43F02663AA Pillar, External Front Body Lower, LH Structural Cat. A Only	$114.09	1
14	GOAD43F02662AA	Pillar, External Front Body Lower, RH	GOAD43F02662AA Pillar, External Front Body Lower, RH Structural Cat. A Only	$105.11	1
15	AD43-F71491-AA	Nutplate, A Post Hinge Upper, LH	AD43-F71491-AA Nutplate, A Post Hinge Upper, LH Structural Cat. A Only	-	1	Enquire
16	AD43F71490AA	Nutplate, A Post Hinge Upper, RH	AD43F71490AA Nutplate, A Post Hinge Upper, RH Structural Cat. A Only	$16.22	1
17	6G33-15111-AB	Nutplate M8, â??Aâ?? post hinge, lower, LH	6G33-15111-AB Nutplate M8, â??Aâ?? post hinge, lower, LH Structural Cat. A Only	-	1	Enquire
18	6G3315110AB	Nutplate M8, â??Aâ?? post hinge, lower, RH	6G3315110AB Nutplate M8, â??Aâ?? post hinge, lower, RH Structural Cat. A Only	$13.10	1
19	DD4316B247AA	Fender Front Upper Assy, LH	DD4316B247AA Fender Front Upper Assy, LH Service Assembly,Structural Cat. A Only	$601.34	1
20	DD4316B246AA	Fender Front Upper Assy, RH	DD4316B246AA Fender Front Upper Assy, RH Service Assembly,Structural Cat. A Only	$269.10	1
21	DG4316431AA	REINFORCEMENT, BONNETSTRIKER PLATE, LH	DG4316431AA REINFORCEMENT, BONNETSTRIKER PLATE, LH Structural Cat. A Only	$48.81	1
22	DG4316430AA	REINFORCEMENT, BONNETSTRIKER PLATE, RH	DG4316430AA REINFORCEMENT, BONNETSTRIKER PLATE, RH Structural Cat. A Only	$60.04	1
23	DG4318178BA	ブラケット、ガスダンパー取り付け	DG4318178BA ブラケット、ガスダンパー取り付け Structural Cat. A Only	$34.26	2
24	6G33375732AB	Screw 5.5 x 19	6G33375732AB Screw 5.5 x 19 -	$0.38	4
25	6G33-68676-ACA	Rivet, Structural, 6.5 x 14, Blind	6G33-68676-ACA Rivet, Structural, 6.5 x 14, Blind -	-	A/R	Enquire
26	GOAD43F025B06AB	SLEEVE, A-PILLAR	GOAD43F025B06AB SLEEVE, A-PILLAR -	$10.11	4
