Instrument and Console Panels - Centre Stack Trim Panel, 'S' 16MY of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

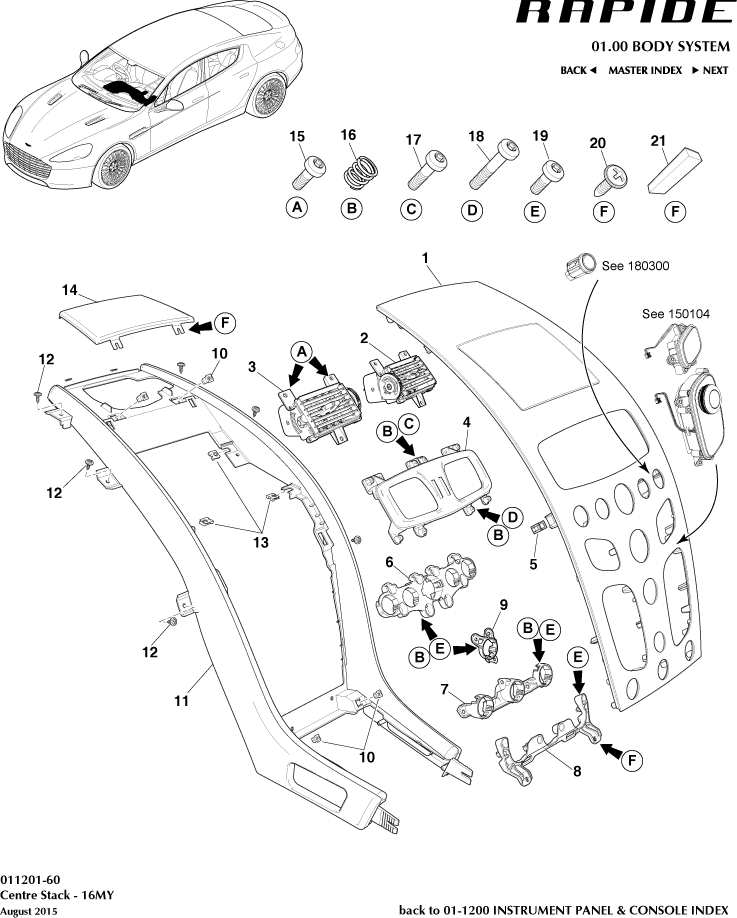

Aston Martin GT RAPIDE (2010-2019) - Instrument and Console Panels - Centre Stack Trim Panel, 'S' 16MY

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	GD43045J10BB	Bezel, Centre Stack	GD43045J10BB Bezel, Centre Stack Mahogany, With Damping Switch	-	1	Enquire
-	GD43045J10CB	Bezel, Centre Stack	GD43045J10CB Bezel, Centre Stack Piano Black, With Damping Switch	-	1	Enquire
-	GD43045J10DB	Bezel, Centre Stack	GD43045J10DB Bezel, Centre Stack Ice Mocha, With Damping Switch	$3,070.47	1
-	GD43045J10EB	Bezel, Centre Stack	GD43045J10EB Bezel, Centre Stack Carbon 2x2 Twill, With Damping Switch	$3,851.20	1
-	GD43045J10FB	Bezel, Centre Stack	GD43045J10FB Bezel, Centre Stack Carbon Cuprum, With Damping Switch	$7,252.63	1
-	GD43045J10GB	Bezel, Centre Stack	GD43045J10GB Bezel, Centre Stack Iridium, With Damping Switch	$3,594.46	1
-	GD43045J10JB	Bezel, Centre Stack	GD43045J10JB Bezel, Centre Stack Walnut, Less Damping Switch	$4,903.80	1
-	GD43045J10KB	Bezel, Centre Stack	GD43045J10KB Bezel, Centre Stack Mahogany, Less Damping Switch	$4,716.41	1
-	GG33045J10AB	Bezel, Centre Stack	GG33045J10AB Bezel, Centre Stack Piano Black, Less Damping Switch	-	1	Enquire
-	GG33045J10BB	Bezel, Centre Stack	GG33045J10BB Bezel, Centre Stack Carbon 2x2 Twill, Less Damping Switch	$3,576.40	1
-	GG33045J10CB	Bezel, Centre Stack	GG33045J10CB Bezel, Centre Stack Carbon Cuprum, Less Damping Switch	$6,930.52	1
-	GG3319F648CB	Bezel, Air Register	GG3319F648CB Bezel, Air Register Piano Black	$377.89	1
-	GG3319F648DB	Bezel, Air Register	GG3319F648DB Bezel, Air Register Ice Mocha	$568.31	1
-	9D33C046A26AC	Grille assy, Centre Speaker, IP	9D33C046A26AC Grille assy, Centre Speaker, IP Bang and Olufsen, Black	$521.80	1
1	GD43045J10AB	Bezel, Centre Stack	GD43045J10AB Bezel, Centre Stack Walnut, With Damping Switch	-	1	Enquire
2	CD33046B30AB	AIR REGISTER , RH	CD33046B30AB AIR REGISTER , RH RH	$79.81	1
3	CD33046B31AB	AIR REGISTER, LH	CD33046B31AB AIR REGISTER, LH LH	$111.07	1
4	GG3319F648BB	Bezel, Air Register	GG3319F648BB Bezel, Air Register Iridium	$568.31	1
5	702520PK	CLIP, 8.5x16x1.7, TRIMPUSH-IN IN STOCK	702520PK CLIP, 8.5x16x1.7, TRIMPUSH-IN Pack of 20 IN STOCK	$22.71	6
6	GG3314A462AB	Carrier, Switches, Upper	GG3314A462AB Carrier, Switches, Upper -	$35.60	1
7	GG3314A462BA	Carrier, Switches, Lower	GG3314A462BA Carrier, Switches, Lower -	$35.96	1
8	GG33-044N19-BA	Brace, Centre Stack	GG33-044N19-BA Brace, Centre Stack -	-	1	Enquire
9	GD4315C581AA	Carrier, Hazard Switch	GD4315C581AA Carrier, Hazard Switch -	$21.04	1
10	704764	NUT, M4.2x1.41, PUSH-ON	704764 NUT, M4.2x1.41, PUSH-ON -	$1.17	4
11	GG3355210AAW	Panel Assembly, Centre	GG3355210AAW Panel Assembly, Centre -	$1,130.08	1
12	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	6
13	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type - IN STOCK	$2.17	3
14	GD43-C046A26-AA	Grille, Speaker	GD43-C046A26-AA Grille, Speaker ASK, Grey	-	2	Enquire
15	702959	SCREW, M4x12, PAN HD TORX IN STOCK	702959 SCREW, M4x12, PAN HD TORX - IN STOCK	$1.38	1
16	DD3311A090AB	圧縮スプリング	DD3311A090AB 圧縮スプリング -	$0.83	20
17	DD330838AA	SCREW, M4x16, PATCH LOCKW	DD330838AA SCREW, M4x16, PATCH LOCKW -	$0.81	2
18	DD330816AA	SCREW, M4X20, PATCH LOCK	DD330816AA SCREW, M4X20, PATCH LOCK -	$1.31	2
19	DD330863AA	SCREW, M4X12, PATCH LOCK	DD330863AA SCREW, M4X12, PATCH LOCK -	$0.54	20
20	706346	Screw, ST 4.8 x 19	706346 Screw, ST 4.8 x 19 -	$0.22	4
21	CD3303836AA	Spacer, Rubber, 3mm	CD3303836AA Spacer, Rubber, 3mm -	$2.60	2
