Instrument and Console Panels - Rear Console of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

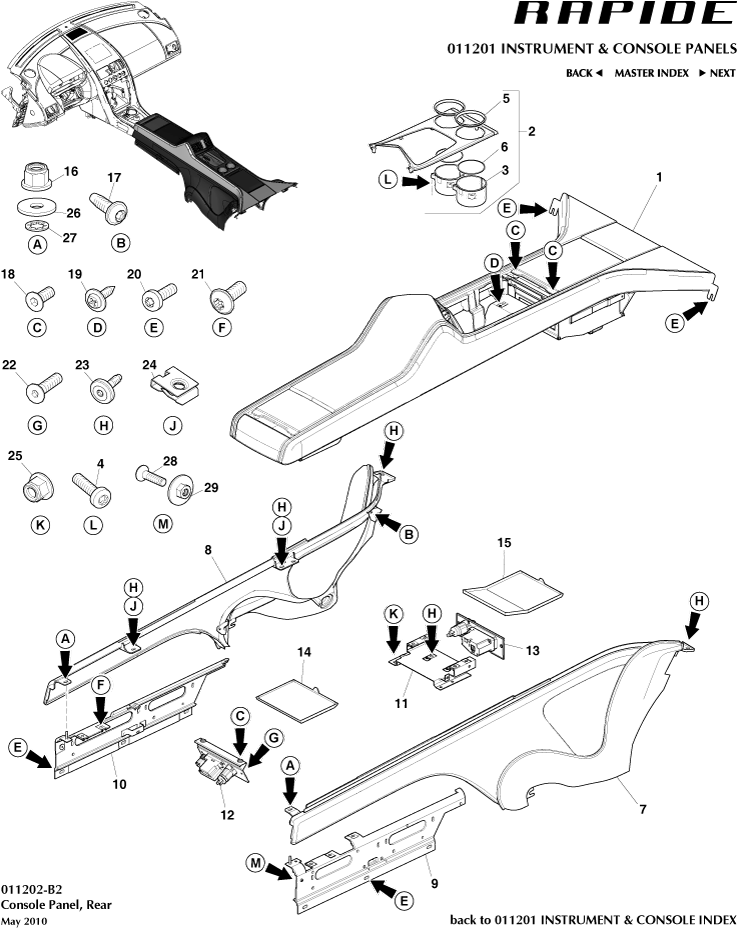

Aston Martin GT RAPIDE (2010-2019) - Instrument and Console Panels - Rear Console

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	FD43045C76AAW	Console Assembly, Upper Compartment	FD43045C76AAW Console Assembly, Upper Compartment Piano Black Air Vent	$6,441.89	1
-	FD43045C76BAW	Console Assembly, Upper Compartment	FD43045C76BAW Console Assembly, Upper Compartment Ice Mocha Air Vent	-	1	Enquire
-	HY53130B14BA	BRACKET, CABIN CARPET	HY53130B14BA BRACKET, CABIN CARPET Roll 50m	$31.10	A/R
-	FD43-046A57-AB	Bracket Assembly, Console Front LH	FD43-046A57-AB Bracket Assembly, Console Front LH From 15MY	-	1	Enquire
-	FD43046A56AB	Bracket Assembly, Console Front RH	FD43046A56AB Bracket Assembly, Console Front RH From 15MY	$301.42	1
1	AD43045C76AHW	Console Assembly, Upper Compartment	AD43045C76AHW Console Assembly, Upper Compartment Iridium Air Vent	$7,356.79	1
2	AD4304463AAW	Plate Assembly, Console Panel	AD4304463AAW Plate Assembly, Console Panel -	$4,833.25	1
3	CD4313560AAW	カップホルダーアッセンブリー	CD4313560AAW カップホルダーアッセンブリー -	$322.88	2
4	6G33104101BA	SCREW, M4x9, THREADFORMING IN STOCK	6G33104101BA SCREW, M4x9, THREADFORMING 3 per Cup Holder IN STOCK	$0.86	6
5	AD4329745AA	Bezel, Cupholder Finisher	AD4329745AA Bezel, Cupholder Finisher -	$90.29	2
6	AD43040K60AA	Base Insert, Cup Holder	AD43040K60AA Base Insert, Cup Holder -	$41.69	2
7	AD43047K63AEW	Console Assembly, Lower Side LH	AD43047K63AEW Console Assembly, Lower Side LH -	$1,374.28	1
8	AD43047K64AEW	Console Assembly, Lower Side RH	AD43047K64AEW Console Assembly, Lower Side RH -	$1,374.28	1
9	AD43046A57AF	Bracket Assembly, Console Front LH	AD43046A57AF Bracket Assembly, Console Front LH Up To 15MY	$274.58	1
10	AD43046A56AF	Bracket Assembly, Console Front RH	AD43046A56AF Bracket Assembly, Console Front RH Up To 15MY	$274.58	1
11	AD43-044G67-AC	ブラケット、コンソールセンター	AD43-044G67-AC ブラケット、コンソールセンター -	-	1	Enquire
12	AD43045L26AD	Plate Assembly, Console Panel Front	AD43045L26AD Plate Assembly, Console Panel Front Less Switches	$95.35	1
13	AD43-044E96-BA	Plate Assembly, Console Panel with AUX input	AD43-044E96-BA Plate Assembly, Console Panel with AUX input -	-	1	Enquire
14	AD43047A03AB	Insert, Console Stowage Front	AD43047A03AB Insert, Console Stowage Front -	$43.81	1
15	AD43-046C18-AA	インサート、コンソール収納リア	AD43-046C18-AA インサート、コンソール収納リア -	-	1	Enquire
16	702840	Nut & Washer M6 Hex Flg	702840 Nut & Washer M6 Hex Flg -	$0.36	8
17	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar - IN STOCK	$0.56	2
18	703725	SCREW, M4x10, FLAT CSK	703725 SCREW, M4x10, FLAT CSK -	$1.51	4
19	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 - IN STOCK	$3.07	2
20	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D -	$0.22	8
21	703149	ねじ M6X16 六角穴付き IN STOCK	703149 ねじ M6X16 六角穴付き - IN STOCK	$1.28	4
22	4G43103081BA	Screw, M4x16, Countersunk, Stainless Black IN STOCK	4G43103081BA Screw, M4x16, Countersunk, Stainless Black Black IN STOCK	$1.24	4
23	6G33FA0115AB	Screw and Washer M6x19 Pan Int	6G33FA0115AB Screw and Washer M6x19 Pan Int -	-	10	Enquire
25	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic -	$0.79	8
26	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.98	8
27	704620	Washer M6, star	704620 Washer M6, star -	-	8	Enquire
28	4G433L657AA	Screw M5x20 Csk Skt SS Blk	4G433L657AA Screw M5x20 Csk Skt SS Blk -	$0.38	2
29	W715351-S437	Nut and Washer, M5	W715351-S437 Nut and Washer, M5 -	-	2	Enquire
