Rear Bumper of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

Aston Martin GT RAPIDE (2010-2019) - リアバンパー

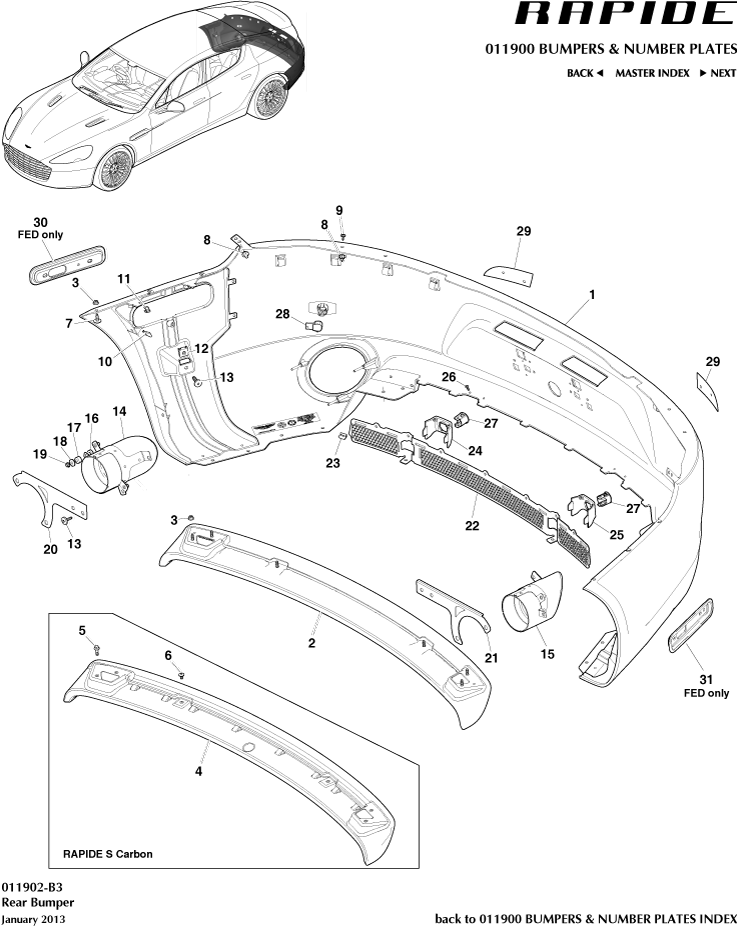

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	AD4317K835BG	Cover Assembly, Rear Bumper, PDC, FED	AD4317K835BG Cover Assembly, Rear Bumper, PDC, FED -	$2,699.80	1
-	AD4317K835CB	Cover Assembly, Rear Bumper, Reversing Camera, ROW	AD4317K835CB Cover Assembly, Rear Bumper, Reversing Camera, ROW -	$2,633.91	1
-	AD4317K835DB	Cover Assembly, Rear Bumper, Reversing Camera, FED	AD4317K835DB Cover Assembly, Rear Bumper, Reversing Camera, FED -	$2,633.91	1
-	DD4317K835AA	Cover Assembly, Rear Bumper, PDC, ROW	DD4317K835AA Cover Assembly, Rear Bumper, PDC, ROW Rapide S	$2,686.63	1
-	DD4317K835BA	Cover Assembly, Rear Bumper, PDC, FED	DD4317K835BA Cover Assembly, Rear Bumper, PDC, FED Rapide S	$2,686.63	1
-	DD4317K835CA	Cover Assembly, Rear Bumper, PDC with Reversing Camera, ROW	DD4317K835CA Cover Assembly, Rear Bumper, PDC with Reversing Camera, ROW Rapide S	$2,753.80	1
-	DD4317K835DA	Cover Assembly, Rear Bumper, PDC with Reversing Camera, FED	DD4317K835DA Cover Assembly, Rear Bumper, PDC with Reversing Camera, FED Rapide S	$2,686.63	1
-	FD435K238BA	Finisher, Exhaust, RH	FD435K238BA Finisher, Exhaust, RH Black	$974.04	1
-	FD435K239BA	Finisher, Exhaust, LH	FD435K239BA Finisher, Exhaust, LH Black	$974.04	1
1	AD4317K835AG	Cover Assembly, Rear Bumper, PDC, ROW	AD4317K835AG Cover Assembly, Rear Bumper, PDC, ROW -	$2,633.91	1
2	AD4333612AC	Diffuser Rear Assembly, Body Colour	AD4333612AC Diffuser Rear Assembly, Body Colour -	$766.68	1
3	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg - IN STOCK	$1.83	6
4	DD4333612AA	Diffuser Rear Assy, Carbon	DD4333612AA Diffuser Rear Assy, Carbon Rapide S Option	$8,328.17	1
5	703750	SCREW, M6x20, HEX FLD IN STOCK	703750 SCREW, M6x20, HEX FLD Rapide S Option IN STOCK	$3.09	4
6	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0 Rapide S Option	$1.90	2
8	701656PK	Nut, plastic low cut	701656PK Nut, plastic low cut -	$3.22	6
9	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 - IN STOCK	$3.07	4
10	702511PK	J Nut IN STOCK	702511PK J Nut - IN STOCK	$8.59	4
11	702520PK	CLIP, 8.5x16x1.7, TRIMPUSH-IN IN STOCK	702520PK CLIP, 8.5x16x1.7, TRIMPUSH-IN - IN STOCK	$22.71	4
12	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 - IN STOCK	$12.50	2
13	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 - IN STOCK	$24.50	10
14	AD435K238AE	Finisher, Exhaust, RH	AD435K238AE Finisher, Exhaust, RH Bright	$565.25	1
15	AD435K239AE	Finisher, Exhaust, LH	AD435K239AE Finisher, Exhaust, LH Bright	$565.25	1
16	6G335K239BAPK	SPACER, CERAMIC, INNER IN STOCK	6G335K239BAPK SPACER, CERAMIC, INNER - IN STOCK	$70.45	6
17	6G335K239CAPK	SPACER, CERAMIC, OUTER IN STOCK	6G335K239CAPK SPACER, CERAMIC, OUTER - IN STOCK	$102.57	6
18	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black -	$22.98	6
19	702295	Nut M5 Hex flng pc8 IN STOCK	702295 Nut M5 Hex flng pc8 - IN STOCK	$0.18	6
20	AD435N203AA	Bracket, Exhaust Mounting, RH	AD435N203AA Bracket, Exhaust Mounting, RH -	$82.60	1
21	AD435N202KA	Bracket, Exhaust Mounting, LH	AD435N202KA Bracket, Exhaust Mounting, LH -	$80.93	1
22	AD4301950AC	Mesh, Rear Lower Assembly	AD4301950AC Mesh, Rear Lower Assembly -	$572.56	1
23	4G4317F773AB	リテーナー、バンパー	4G4317F773AB リテーナー、バンパー -	-	12	Enquire
24	AD4315A861AA	Retainer, Park Aid Sensor Bracket Inner, RH	AD4315A861AA Retainer, Park Aid Sensor Bracket Inner, RH -	$41.46	1
25	AD4315A864AA	Retainer, Park Aid Sensor Bracket Inner, LH	AD4315A864AA Retainer, Park Aid Sensor Bracket Inner, LH -	$41.46	1
26	4G43-50340-AA	Screw, M4x10	4G43-50340-AA Screw, M4x10 -	-	4	Enquire
27	8D333710004	Bracket, parking aid sensor, inner IN STOCK	8D333710004 Bracket, parking aid sensor, inner - IN STOCK	$4.31	2
29	AD4317A849AA	Plinth, Reflector	AD4317A849AA Plinth, Reflector -	$1.40	2
30	TBC	Rivnut, M8, low profile	TBC Rivnut, M8, low profile -	-	1	Enquire
31	TBC	Rivnut, M8, low profile	TBC Rivnut, M8, low profile -	-	1	Enquire
