Rear Bumper, 'AMR' of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

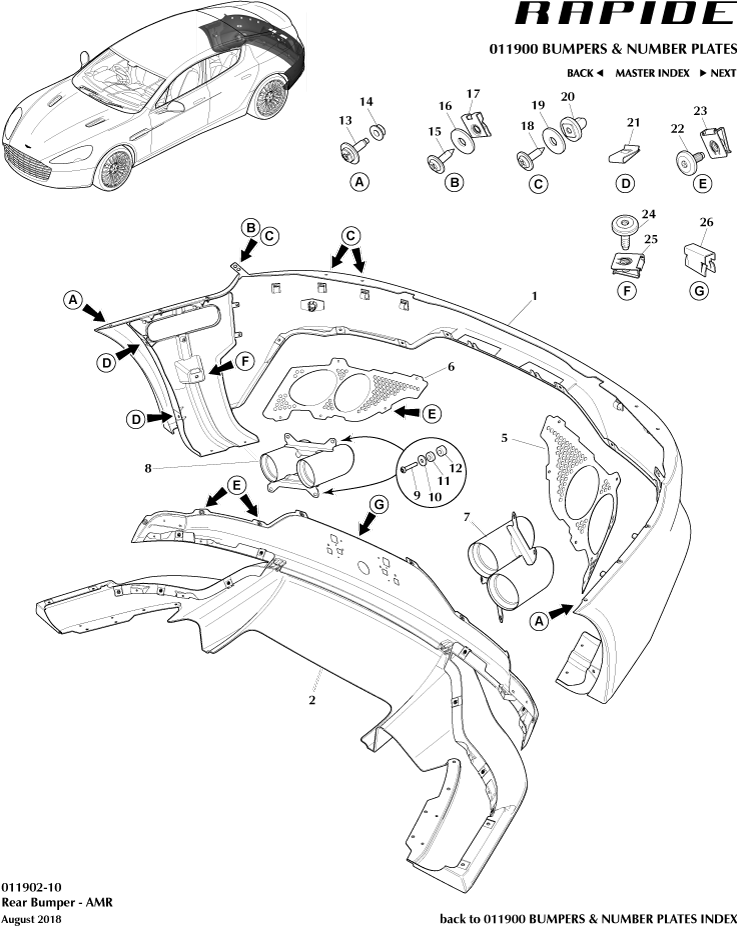

Aston Martin GT RAPIDE (2010-2019) - Rear Bumper, 'AMR'

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	KD4317K835BB	Cover Assembly, Rear Bumper	KD4317K835BB Cover Assembly, Rear Bumper Federal	$15,791.81	1
-	KD4317E955BB	Diffuser Rear Assembly	KD4317E955BB Diffuser Rear Assembly With Graphic	$20,782.84	1
1	KD4317K835AB	Cover Assembly, Rear Bumper	KD4317K835AB Cover Assembly, Rear Bumper RoW	$10,415.11	1
2	KD4317E955AC	Diffuser Rear Assembly	KD4317E955AC Diffuser Rear Assembly -	$20,782.84	1
5	KD4301949AA	Mesh, Rear LH	KD4301949AA Mesh, Rear LH -	$447.27	1
6	KD4301948AA	Mesh, Rear RH	KD4301948AA Mesh, Rear RH -	$544.34	1
7	KD435K239BA	Finisher, Exhaust Quad, LH	KD435K239BA Finisher, Exhaust Quad, LH Black	$3,366.23	1
8	KD435K238BA	Finisher, Exhaust Quad, RH	KD435K238BA Finisher, Exhaust Quad, RH Black	$3,366.23	1
9	KD43-N100115-AA	Screw, M5, Patch Lock	KD43-N100115-AA Screw, M5, Patch Lock -	-	8	Enquire
10	8G438979AA	WASHER, M5x20x1.5THK,BLACK IN STOCK	8G438979AA WASHER, M5x20x1.5THK,BLACK - IN STOCK	$0.75	8
11	6G335K239BAPK	SPACER, CERAMIC, INNER IN STOCK	6G335K239BAPK SPACER, CERAMIC, INNER Pack of 10 IN STOCK	$70.45	8
12	6G335K239CAPK	SPACER, CERAMIC, OUTER IN STOCK	6G335K239CAPK SPACER, CERAMIC, OUTER Pack of 10 IN STOCK	$102.57	8
13	703743	SCREW/WASHER, M6x18	703743 SCREW/WASHER, M6x18 -	-	2	Enquire
14	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg - IN STOCK	$1.83	2
15	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	2
16	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.98	2
17	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type - IN STOCK	$2.17	2
18	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	2
19	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.98	2
20	701656PK	Nut, plastic low cut	701656PK Nut, plastic low cut Pack of 10	$3.22	2
21	702511PK	J Nut IN STOCK	702511PK J Nut Pack of 10 IN STOCK	$8.59	4
22	702514	Screw, flg, M6 x 16 torx IN STOCK	702514 Screw, flg, M6 x 16 torx - IN STOCK	$2.87	10
23	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	10
24	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	2
25	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	2
26	8D3360302BB	Edge clip, 8.7 x 12.7 a/con	8D3360302BB Edge clip, 8.7 x 12.7 a/con -	$0.84	5
