Occupant Restraining Devices - Front Seat Belts of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

Aston Martin GT RAPIDE (2010-2019) - Occupant Restraining Devices - Front Seat Belts

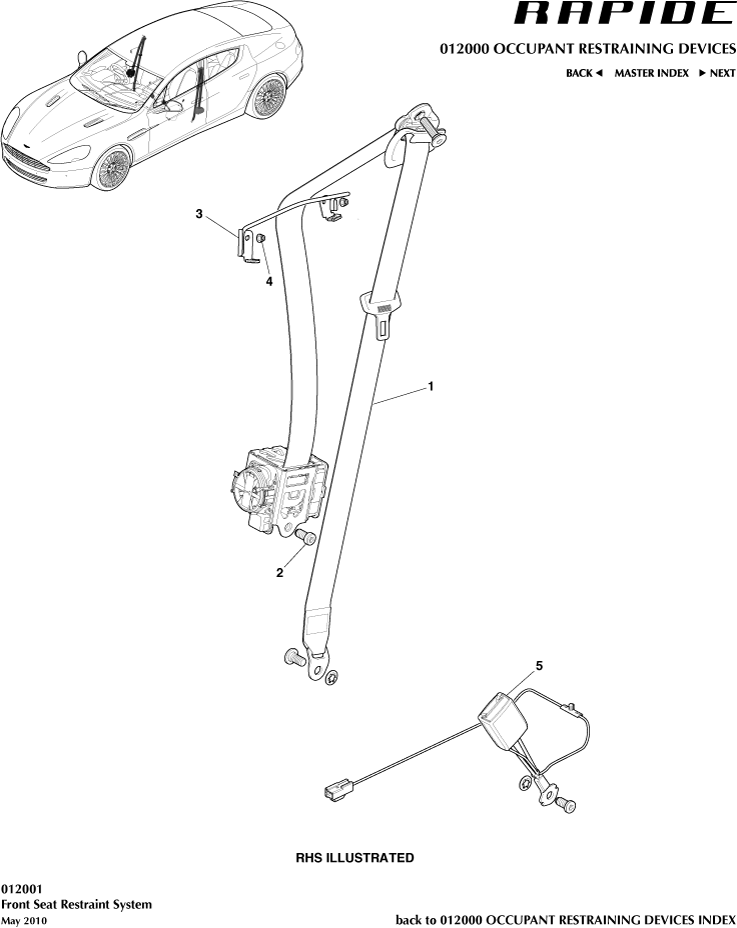

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	FD43611B71AAW	Belt and Restraint Assy, RHD, RH	FD43611B71AAW Belt and Restraint Assy, RHD, RH From 15MY, Warm charcoal	$1,137.51	1
-	AD43611B71BDW	Belt and Restraint Assy, RHD, RH	AD43611B71BDW Belt and Restraint Assy, RHD, RH Up To 15MY, Flint	-	1	Enquire
-	FD43611B71BBW	Belt and Restraint Assy, RHD, RH	FD43611B71BBW Belt and Restraint Assy, RHD, RH From 15MY, Flint	$659.80	1
-	KD43611B71AAW	Belt and Restraint Assy, RHD, RH	KD43611B71AAW Belt and Restraint Assy, RHD, RH From 19MY, AMR	$1,137.64	1
-	AD43611B70ADW	Belt and Restraint Assy, LHD, LH	AD43611B70ADW Belt and Restraint Assy, LHD, LH Up To 15MY, Warm charcoal	-	1	Enquire
-	FD43611B70AAW	Belt and Restraint Assy, LHD, LH	FD43611B70AAW Belt and Restraint Assy, LHD, LH From 15MY, Warm charcoal	-	1	Enquire
-	AD43611B70BDW	Belt and Restraint Assy, LHD, LH	AD43611B70BDW Belt and Restraint Assy, LHD, LH Up To 15MY, Flint	-	1	Enquire
-	FD43611B70BBW	Belt and Restraint Assy, LHD, LH	FD43611B70BBW Belt and Restraint Assy, LHD, LH From 15MY, Flint	$659.80	1
-	KD43-611B70-AAW	Belt and Restraint Assy, LHD, LH	KD43-611B70-AAW Belt and Restraint Assy, LHD, LH From 19MY, AMR	-	1	Enquire
-	AD43611B69ADW	Belt and Restraint Assy, RHD, LH	AD43611B69ADW Belt and Restraint Assy, RHD, LH Up To 15MY, Warm charcoal	-	1	Enquire
-	FD43611B69ABW	Belt and Restraint Assy, RHD, LH	FD43611B69ABW Belt and Restraint Assy, RHD, LH From 15MY, Warm charcoal	$543.37	1
-	AD43611B69BDW	Belt and Restraint Aassy, RHD, LH	AD43611B69BDW Belt and Restraint Aassy, RHD, LH Up To 15MY, Flint	$1,137.51	1
-	FD43611B69BAW	Belt and Restraint Assy, RHD, LH	FD43611B69BAW Belt and Restraint Assy, RHD, LH From 15MY, Flint	$546.25	1
-	KD43611B69AAW	Belt and Restraint Assy, RHD, LH	KD43611B69AAW Belt and Restraint Assy, RHD, LH From 19MY, AMR	$1,201.10	1
-	AD43611B68ADW	Belt and Restraint Assy, LHD, RH	AD43611B68ADW Belt and Restraint Assy, LHD, RH Up To 15MY, Warm charcoal	-	1	Enquire
-	FD43611B68AAW	Belt and Restraint Assy, LHD, RH	FD43611B68AAW Belt and Restraint Assy, LHD, RH From 15MY, Warm charcoal	-	1	Enquire
-	AD43611B68BDW	Belt and Restraint Assy, LHD, RH	AD43611B68BDW Belt and Restraint Assy, LHD, RH Up To 15MY, Flint	-	1	Enquire
-	FD43611B68BAW	Belt and Restraint Assy, LHD, RH	FD43611B68BAW Belt and Restraint Assy, LHD, RH From 15MY, Flint	$1,137.51	1
-	KD43-611B68-AAW	Belt and Restraint Assy, LHD, RH	KD43-611B68-AAW Belt and Restraint Assy, LHD, RH From 19MY, AMR	-	1	Enquire
-	AD4361042AA	Int Seatbelt Guide, LH	AD4361042AA Int Seatbelt Guide, LH -	$33.14	1
1	AD43611B71ADW	Belt and Restraint Assy, RHD, RH	AD43611B71ADW Belt and Restraint Assy, RHD, RH Up To 15MY, Warm charcoal	-	1	Enquire
2	AD43-100179-AA	ボルト、7/16UNF X 22MM トルクスヘッド	AD43-100179-AA ボルト、7/16UNF X 22MM トルクスヘッド -	-	1	Enquire
3	AD4361043AA	Int Seatbelt Guide, RH	AD4361043AA Int Seatbelt Guide, RH -	$33.14	1
4	703165	Nut, M05 IN STOCK	703165 Nut, M05 - IN STOCK	$0.34	2
5	AD43613K22AC	Buckle Assy, Front Seatbelt	AD43613K22AC Buckle Assy, Front Seatbelt -	-	2	Enquire
