Interior Trim & Ornamentation - Rear Door Trim Panel of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

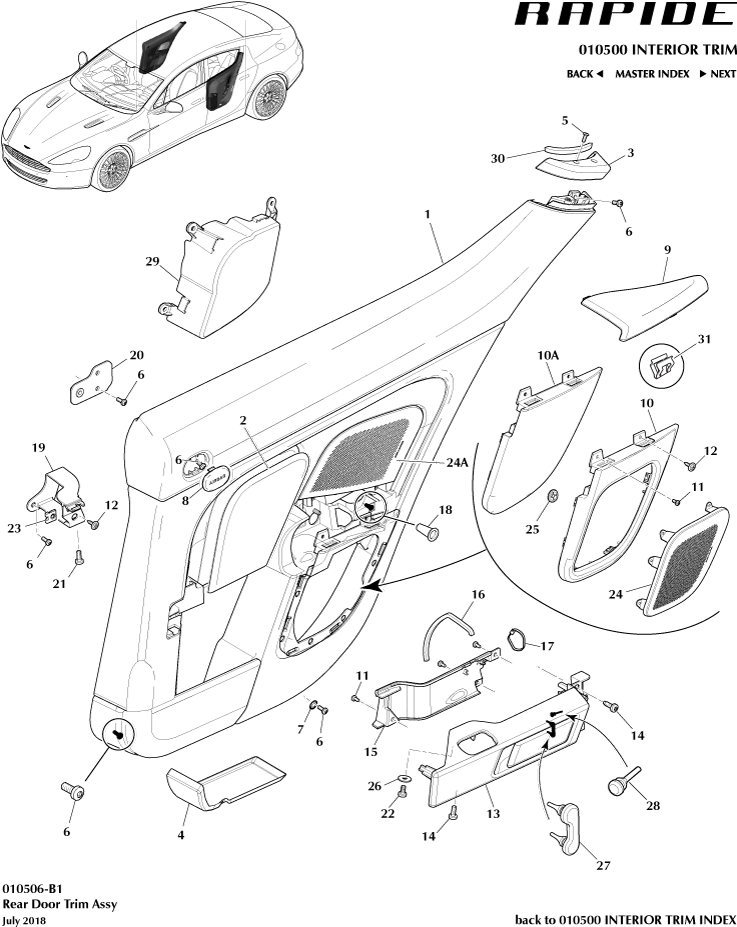

Aston Martin GT RAPIDE (2010-2019) - Interior Trim & Ornamentation - Rear Door Trim Panel

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	AD4323949ADW	Panel Assembly, Rear Door Trim Complete LH	AD4323949ADW Panel Assembly, Rear Door Trim Complete LH With Leather Insert (Item 2)	$6,678.61	1
-	AD4323948BBW	Panel Assembly, Rear Door Trim RH	AD4323948BBW Panel Assembly, Rear Door Trim RH Less Wood Insert (Item 2)	$4,110.56	1
-	AD4323949BBW	Panel Assembly, Rear Door Trim LH	AD4323949BBW Panel Assembly, Rear Door Trim LH Less Wood Insert (Item 2)	$3,134.58	1
-	KD4323948AAW	Panel Assembly, Rear Door Trim RH	KD4323948AAW Panel Assembly, Rear Door Trim RH 19MY, AMR	$2,725.06	1
-	KD4323949AAW	Panel Assembly, Rear Door Trim LH	KD4323949AAW Panel Assembly, Rear Door Trim LH 19MY, AMR	$3,316.48	1
-	AD438710078	Upper Insert Kit, 2 pieces (Rear Doors)	AD438710078 Upper Insert Kit, 2 pieces (Rear Doors) Piano Black Veneer	$1,230.22	1
-	AD438710080	Upper Insert Kit, 2 pieces (Rear Doors)	AD438710080 Upper Insert Kit, 2 pieces (Rear Doors) Mahogany Veneer	$579.86	1
-	AD438710082	Upper Insert Kit, 2 pieces (Rear Doors)	AD438710082 Upper Insert Kit, 2 pieces (Rear Doors) Tamo Ash Veneer	$622.29	1
-	AD438710084	Upper Insert Kit, 2 pieces (Rear Doors)	AD438710084 Upper Insert Kit, 2 pieces (Rear Doors) Bamboo Veneer	$579.86	1
-	FD438710153	Upper Insert Kit, 2 pieces (Rear Doors)	FD438710153 Upper Insert Kit, 2 pieces (Rear Doors) From 15MY, Carbon Twill	$1,115.40	1
-	GD43-87-10169	Upper Insert Kit, 2 pieces (Rear Doors)	GD43-87-10169 Upper Insert Kit, 2 pieces (Rear Doors) From 15MY, Carbon Cuprum	-	1	Enquire
-	FD43-87-10155	Upper Insert Kit, 2 pieces (Rear Doors)	FD43-87-10155 Upper Insert Kit, 2 pieces (Rear Doors) From 15MY, Piano Ice Mocha	-	1	Enquire
-	AD4323887AAW	Upper Insert, LH	AD4323887AAW Upper Insert, LH Leather Trimmed	$196.63	1
-	AD4323886AAW	Upper Insert, RH	AD4323886AAW Upper Insert, RH Leather Trimmed	$196.63	1
-	KD43-23786-BA	Finisher, Upper RH, Panel Assembly	KD43-23786-BA Finisher, Upper RH, Panel Assembly AMR	-	1	Enquire
-	AD4323787AB	Finisher, Upper LH, Panel Assembly	AD4323787AB Finisher, Upper LH, Panel Assembly -	$446.01	1
-	KD43-23787-BA	Finisher, Upper LH, Panel Assembly	KD43-23787-BA Finisher, Upper LH, Panel Assembly AMR	-	1	Enquire
-	AD43-101383-AA	Mat, Rear Door Pocket LH	AD43-101383-AA Mat, Rear Door Pocket LH -	-	1	Enquire
-	KD43-N811862-AA	Screw, M4x12 Flat Csk socket, Black	KD43-N811862-AA Screw, M4x12 Flat Csk socket, Black AMR	-	2	Enquire
-	KD4324006AAW	Pad, Door Armrest Rear RH	KD4324006AAW Pad, Door Armrest Rear RH 19MY, AMR	$322.61	1
-	AD4324007AAW	Pad, Door Armrest Rear LH	AD4324007AAW Pad, Door Armrest Rear LH -	$122.93	1
-	KD4324007AAW	Pad, Door Armrest Rear LH	KD4324007AAW Pad, Door Armrest Rear LH 19MY, AMR	$265.09	1
-	KD4324004AAW	Pad, Door Armrest, Inner, Rear, RH	KD4324004AAW Pad, Door Armrest, Inner, Rear, RH Bang and Olufsen. 19MY, AMR	$323.30	1
-	AD43-24005-ADW	Pad, Door Armrest, Inner, Rear, LH	AD43-24005-ADW Pad, Door Armrest, Inner, Rear, LH Bang and Olufsen	-	1	Enquire
-	KD4324005AAW	Pad, Door Armrest, Inner, Rear, LH	KD4324005AAW Pad, Door Armrest, Inner, Rear, LH Bang and Olufsen. 19MY, AMR	$265.63	1
-	GD43-24005-CBW	Pad, Door Armrest Inner Rear LH	GD43-24005-CBW Pad, Door Armrest Inner Rear LH ASK Audio	-	1	Enquire
-	703756	Washer, Spacer	703756 Washer, Spacer Not Drawn, 2 per Fixing.	-	8	Enquire
-	AD43J489BA	Retaining Washer, Lexan	AD43J489BA Retaining Washer, Lexan Not Drawn, 1 per Fixing	$2.34	4
-	DD4322616AA	Inner Rear Release Handle Assembly, RH	DD4322616AA Inner Rear Release Handle Assembly, RH Piano Black	$868.93	1
-	FD4322616CD	Inner Rear Release Handle Assembly, RH	FD4322616CD Inner Rear Release Handle Assembly, RH Ice Mocha	-	1	Enquire
-	AD4322617AD	Inner Rear Release Handle Assembly, LH	AD4322617AD Inner Rear Release Handle Assembly, LH Iridium	-	1	Enquire
-	DD4322617AA	Inner Rear Release Handle Assembly, LH	DD4322617AA Inner Rear Release Handle Assembly, LH Piano Black	-	1	Enquire
-	FD4322617CD	Inner Rear Release Handle Assembly, LH	FD4322617CD Inner Rear Release Handle Assembly, LH Ice Mocha	-	1	Enquire
-	AD4324245AB	Insert Assembly, Rear Door Grab Handle LH	AD4324245AB Insert Assembly, Rear Door Grab Handle LH -	-	1	Enquire
-	AD4314C927AA	Bracket, Mounting Assembly, Rear Door Grab Front LH	AD4314C927AA Bracket, Mounting Assembly, Rear Door Grab Front LH -	$70.53	1
-	AD4312A957AA	Bracket, Mounting, Rear LH	AD4312A957AA Bracket, Mounting, Rear LH -	$13.49	1
-	DD4318994DA	Grille Assembly, Rear Door Speaker, RH, Piano Black	DD4318994DA Grille Assembly, Rear Door Speaker, RH, Piano Black With B&O	$717.07	1
-	AD4318995AB	Grille Assembly, Rear Door Speaker, LH, Iridium	AD4318995AB Grille Assembly, Rear Door Speaker, LH, Iridium With B&O	$831.57	1
-	DD4318995DA	Grille Assembly, Rear Door Speaker, LH, Piano Black	DD4318995DA Grille Assembly, Rear Door Speaker, LH, Piano Black With B&O	$717.07	1
-	KD43-18981-CA	Grille Assembly, Rear Door Speaker, LH, Black	KD43-18981-CA Grille Assembly, Rear Door Speaker, LH, Black With ASK, 19MY on	-	1	Enquire
-	GD43238A49AB	Insert, LH	GD43238A49AB Insert, LH ASK Audio	$38.73	1
1	AD4323948ADW	Panel Assembly, Rear Door Trim Complete RH	AD4323948ADW Panel Assembly, Rear Door Trim Complete RH With Leather Insert (Item 2)	$6,678.61	1
2	AD438710076	Upper Insert Kit, 2 pieces (Rear Doors)	AD438710076 Upper Insert Kit, 2 pieces (Rear Doors) Walnut Veneer	$721.20	1
3	AD4323786AB	Finisher, Upper RH, Panel Assembly	AD4323786AB Finisher, Upper RH, Panel Assembly -	$438.63	1
4	AD43-101382-AA	Mat, Rear Door Pocket RH	AD43-101382-AA Mat, Rear Door Pocket RH -	-	1	Enquire
5	704779	SCREW, M4x12, FLAT SKTCSK	704779 SCREW, M4x12, FLAT SKTCSK -	$0.29	2
6	702084	Screw M5x12 Pan	702084 Screw M5x12 Pan per Door panel	$0.11	8
7	6G33100063AA	Push fix M6	6G33100063AA Push fix M6 per Door panel	-	1	Enquire
8	AD4323747AAW	SRS Insert Assembly	AD4323747AAW SRS Insert Assembly per Door panel	$218.48	1
9	AD43-24006-AAW	Pad, Door Armrest Rear RH	AD43-24006-AAW Pad, Door Armrest Rear RH -	-	1	Enquire
10	AD43-24004-ADW	Pad, Door Armrest, Inner, Rear, RH	AD43-24004-ADW Pad, Door Armrest, Inner, Rear, RH Bang and Olufsen	-	1	Enquire
10A	GD43-24004-CBW	Pad, Door Armrest, Inner, Rear, RH	GD43-24004-CBW Pad, Door Armrest, Inner, Rear, RH ASK Audio	-	1	Enquire
11	703178	Screw M4 x 8 Pan Head Torx	703178 Screw M4 x 8 Pan Head Torx per Door panel	$0.38	4
12	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 per Door panel IN STOCK	$3.07	1
13	AD4322616AD	Inner Rear Release Handle Assembly, RH	AD4322616AD Inner Rear Release Handle Assembly, RH Iridium	-	1	Enquire
14	702294	Screw, M6x16 Pan Hd 6 lobe IN STOCK	702294 Screw, M6x16 Pan Hd 6 lobe 2 per Door panel IN STOCK	$0.27	4
15	AD4324244AB	Insert Assembly, Rear Door Grab Handle RH	AD4324244AB Insert Assembly, Rear Door Grab Handle RH -	-	1	Enquire
16	4G4318D404CA	SEAL, AIR DUCT	4G4318D404CA SEAL, AIR DUCT per Door panel	$2.53	1
17	3790075	CABLE TIE, 290mm x 3.5mm IN STOCK	3790075 CABLE TIE, 290mm x 3.5mm per Door panel IN STOCK	$0.18	1
18	AD43-23942-AA	クリップ、チューブ	AD43-23942-AA クリップ、チューブ per Door panel	-	1	Enquire
19	AD43-14C926-AA	Bracket, Mounting Assembly, Rear Door Grab Front RH	AD43-14C926-AA Bracket, Mounting Assembly, Rear Door Grab Front RH -	-	1	Enquire
20	AD4312A956AA	Bracket, Mounting, Rear RH	AD4312A956AA Bracket, Mounting, Rear RH -	$10.51	1
21	702294	Screw, M6x16 Pan Hd 6 lobe IN STOCK	702294 Screw, M6x16 Pan Hd 6 lobe per Door panel IN STOCK	$0.27	1
22	702293	BOLT, M6x12, TX HD IN STOCK	702293 BOLT, M6x12, TX HD per Door panel IN STOCK	$0.45	1
23	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type per Door panel IN STOCK	$2.17	1
24	AD4318994AB	Grille Assembly, Rear Door Speaker, RH, Iridium	AD4318994AB Grille Assembly, Rear Door Speaker, RH, Iridium With B&O	$831.57	1
24A	KD43-18980-CA	Grille Assembly, Rear Door Speaker, RH, Black	KD43-18980-CA Grille Assembly, Rear Door Speaker, RH, Black With ASK, 19MY on	-	1	Enquire
25	4G43103021AB	FIXER, PUSH-ON IN STOCK	4G43103021AB FIXER, PUSH-ON per Door panel IN STOCK	$1.87	7
26	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black 2 per Door panel, Pack of 20	$22.98	4
27	ED43226A28AA	BUMPSTOP, TWIN	ED43226A28AA BUMPSTOP, TWIN 1 per handle	$4.33	2
28	4G436910112	Bump Stop, Single, Door Handle	4G436910112 Bump Stop, Single, Door Handle 1 Per Handle	$1.83	2
29	GD43238A48AB	Insert, RH	GD43238A48AB Insert, RH ASK Audio	$38.73	1
30	8D3319H474AA	ANTI-RATTLE HOLDER	8D3319H474AA ANTI-RATTLE HOLDER -	$0.61	2
31	706114	Clip - Door Trim Pads	706114 Clip - Door Trim Pads -	$11.41	A/R
