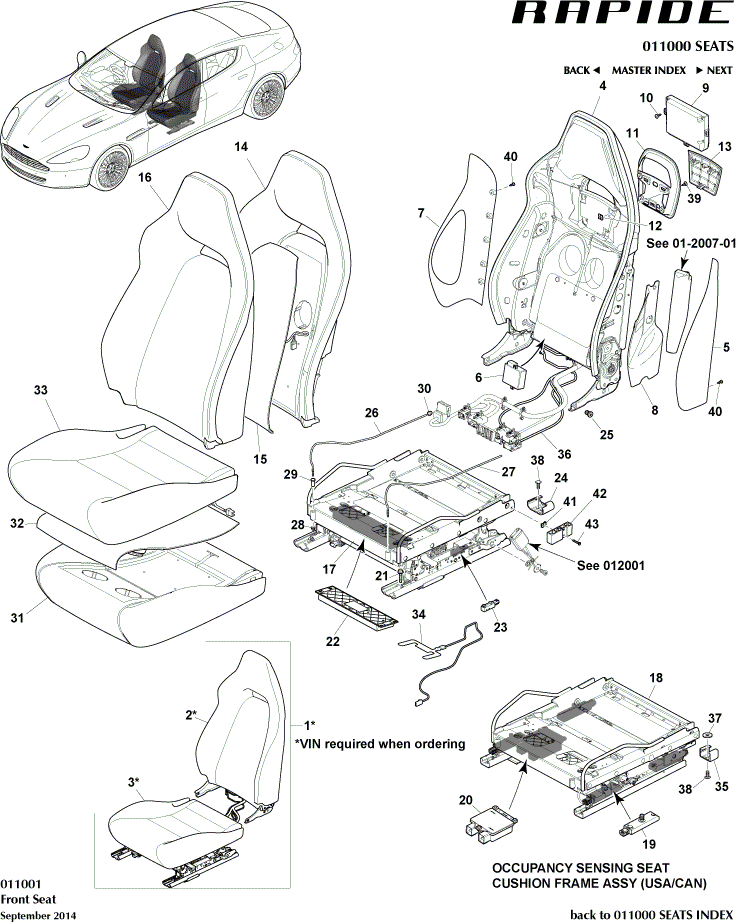

Aston Martin GT RAPIDE (2010-2019) - フロントシート

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	FD4360009AAW	Seat Assembly, Front, LH	FD4360009AAW Seat Assembly, Front, LH From 15MY. VIN Required For Order	$11,885.30	1
-	AD4360008AEW	Seat Assembly, Front, RH	AD4360008AEW Seat Assembly, Front, RH Up To 15MY. VIN Required For Order	$13,776.04	1
-	FD4360008AAW	Seat Assembly, Front, RH	FD4360008AAW Seat Assembly, Front, RH From 15MY. VIN Required For Order	$11,885.30	1
-	FD43-60137-AAW	Squab Assembly, LH	FD43-60137-AAW Squab Assembly, LH From 15MY, VIN Required For Order	-	1	Enquire
-	AD43-60136-AEW	Squab Assembly, RH	AD43-60136-AEW Squab Assembly, RH Up To 15MY. VIN Required For Order	-	1	Enquire
-	FD43-60136-AAW	Squab Assembly, RH	FD43-60136-AAW Squab Assembly, RH From 15MY. VIN Required For Order	-	1	Enquire
-	FD43-60051-AAW	Cushion Assembly, LH, Height Adjustable	FD43-60051-AAW Cushion Assembly, LH, Height Adjustable From 15MY. VIN Required For Order	-	1	Enquire
-	FD43-60050-AAW	Cushion Assembly, RH, Height Adjustable	FD43-60050-AAW Cushion Assembly, RH, Height Adjustable From 15MY. VIN Required For Order	-	1	Enquire
-	AD43-60050-BAW	Cushion Assembly, Fixed Height.	AD43-60050-BAW Cushion Assembly, Fixed Height. VIN Required For Order	-	1	Enquire
-	AD437410197	Squab Frame Assembly	AD437410197 Squab Frame Assembly Less Rear Seat Entertainment	$5,521.97	1
-	AD43-110002-BA	Panel, Seat Back, LH, RH Seat	AD43-110002-BA Panel, Seat Back, LH, RH Seat -	-	1	Enquire
-	AD43110002AA	Panel, Seat Back, RH, RH Seat	AD43110002AA Panel, Seat Back, RH, RH Seat -	$24.83	1
-	AD43-M2D455-BA	Moulding, Seat Airbag, RH	AD43-M2D455-BA Moulding, Seat Airbag, RH -	-	1	Enquire
-	ED43-044H12-AAW	Finisher Assembly, Seat Back Panel	ED43-044H12-AAW Finisher Assembly, Seat Back Panel From 14.5MY, Leather Wrapped	-	2	Enquire
-	ED43-600E68-AAW	Finisher, Inner, Seat Back Panel	ED43-600E68-AAW Finisher, Inner, Seat Back Panel From 14.5MY	-	2	Enquire
-	AD434D9513BA	FOAM ASSEMBLY, SQUAB	AD434D9513BA FOAM ASSEMBLY, SQUAB Full Climate Control	$1,140.87	1
-	AD43600B70AC	Cooling Assembly, Squab	AD43600B70AC Cooling Assembly, Squab Full Climate Control	$490.15	1
-	AD4364573BBW	Cover Assembly, Squab, LH	AD4364573BBW Cover Assembly, Squab, LH Up To 15MY, Full Climate Control, Perforated	$6,030.04	1
-	FD4364573AAW	Cover Assembly, Squab, LH	FD4364573AAW Cover Assembly, Squab, LH From 15MY, VIN Required For Order	$3,335.04	1
-	AD43-64572-ADW	Cover Assembly, Squab, RH	AD43-64572-ADW Cover Assembly, Squab, RH Up To 15MY, Standard	-	1	Enquire
-	AD4364572BBW	Cover Assembly, Squab, RH	AD4364572BBW Cover Assembly, Squab, RH Up To 15MY, Full Climate Control, Perforated	$6,030.04	1
-	FD4364572AAW	Cover Assembly, Squab, RH	FD4364572AAW Cover Assembly, Squab, RH From 15MY, VIN Required For Order	$3,335.04	1
-	CD3314C249AE	Module, Front Seat	CD3314C249AE Module, Front Seat Rapide S	$364.63	1
-	AD439515AC	フォーム、クッション	AD439515AC フォーム、クッション From 15MY, Standard	$125.59	1
-	AD439515BB	フォーム、クッション	AD439515BB フォーム、クッション Up To 15MY, Full Climate Control	-	1	Enquire
-	AD439515BC	フォーム、クッション	AD439515BC フォーム、クッション From 15MY, Full Climate Control	$1,140.87	1
-	AD43600B68AD	Unit, Cooling and Heating, Cushion	AD43600B68AD Unit, Cooling and Heating, Cushion Full Climate Control	$1,320.82	1
-	AD4362900BAW	Cover, Cushion	AD4362900BAW Cover, Cushion Up To 15MY, Full Climate Control, Perforated	$6,741.02	1
-	FD4362901AAW	Cover, Cushion	FD4362901AAW Cover, Cushion From 15MY, LH, VIN Required For Order	$3,320.09	1
-	FD4362900AAW	Cover, Cushion	FD4362900AAW Cover, Cushion From 15MY, RH, VIN Required For Order	$3,320.09	1
1	AD4360009ADW	Seat Assembly, Front, LH	AD4360009ADW Seat Assembly, Front, LH Up To 15MY. VIN Required For Order	$14,464.87	1
2	AD43-60137-AEW	Squab Assembly, LH	AD43-60137-AEW Squab Assembly, LH Up To 15MY. VIN Required For Order	-	1	Enquire
3	AD43-60050-ABW	Cushion Assembly, Height Adjustable	AD43-60050-ABW Cushion Assembly, Height Adjustable Up To 15MY. VIN Required For Order	-	1	Enquire
4	AD437410196	Squab Frame Assembly	AD437410196 Squab Frame Assembly With Rear Seat Entertainment	$5,256.01	1
5	AD43-110003-AA	Panel, Seat Back, LH, LH Seat	AD43-110003-AA Panel, Seat Back, LH, LH Seat -	-	1	Enquire
6	AD43600B66AA	ECU, CLIMATE	AD43600B66AA ECU, CLIMATE 1 per Seat	$435.77	2
7	AD43-110003-BA	Panel, Seat Back, RH, LH Seat	AD43-110003-BA Panel, Seat Back, RH, LH Seat -	-	1	Enquire
8	AD43-M2D456-BA	Moulding, Seat Airbag, LH	AD43-M2D456-BA Moulding, Seat Airbag, LH -	-	1	Enquire
9	5H32045M80AB	Screen, RSE, 6.5 inch	5H32045M80AB Screen, RSE, 6.5 inch With Rear Seat Entertainment	$2,164.74	1
10	W502670S442	Screw st4x13	W502670S442 Screw st4x13 3 per Seat	$0.38	6
11	AD43644B20AD	Finisher Assembly, Seat Back Panel	AD43644B20AD Finisher Assembly, Seat Back Panel Up To 14.5MY, Bright Chrome	$143.55	1
12	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type - IN STOCK	$2.17	4
13	AD43-600E68-AAW	Finisher, Inner, Seat Back Panel	AD43-600E68-AAW Finisher, Inner, Seat Back Panel Up To 14.5MY	-	1	Enquire
14	AD434D9513AA	FOAM ASSEMBLY, SQUAB	AD434D9513AA FOAM ASSEMBLY, SQUAB Standard	$105.29	1
15	AD4314D696AB	HEATER PAD, SEAT CUSHION	AD4314D696AB HEATER PAD, SEAT CUSHION Standard	$97.74	1
16	AD43-64573-ADW	Cover Assembly, Squab, LH	AD43-64573-ADW Cover Assembly, Squab, LH Up To 15MY, Standard	-	1	Enquire
17	AD43L60344AC	FRAME ASSEMBLY, HEIGHTADJUST	AD43L60344AC FRAME ASSEMBLY, HEIGHTADJUST Height Adjustable	$4,067.74	1
18	AD43L60344BC	FRAME ASSEMBLY,NON-HEIGHT ADJUST	AD43L60344BC FRAME ASSEMBLY,NON-HEIGHT ADJUST Fixed Height	$3,995.09	1
19	7G43625B02BA	Sensor, Weight IN STOCK	7G43625B02BA Sensor, Weight OCS, Occupant Sensing IN STOCK	$400.58	4
21	DD43W705113AA	Bolt, M8 x 38mm 10.9	DD43W705113AA Bolt, M8 x 38mm 10.9 -	$6.02	8
22	AD4314C249AA	Module, Front Seat	AD4314C249AA Module, Front Seat -	-	1	Enquire
24	AD43629B03AB	End Cap, Seat Track, 6 way	AD43629B03AB End Cap, Seat Track, 6 way Height Adjustable	$8.86	2
25	AD4361538AA	BOLT, SEAT BACK toCUSHION	AD4361538AA BOLT, SEAT BACK toCUSHION -	$6.07	4
26	AD4363602AB	Wire Retainer, Cushion Cover, RH	AD4363602AB Wire Retainer, Cushion Cover, RH -	$34.81	1
27	AD4363603AB	Wire Retainer, Cushion Cover, LH	AD4363603AB Wire Retainer, Cushion Cover, LH -	$34.81	1
28	703165	Nut, M05 IN STOCK	703165 Nut, M05 2 per Seat IN STOCK	$0.34	4
29	AD4334388AA	バス	AD4334388AA バス -	$2.17	2
30	699684	グロメット	699684 グロメット -	$1.26	2
31	AD43-9515-AB	フォーム、クッション	AD43-9515-AB フォーム、クッション Up To 15MY, Standard	-	1	Enquire
32	AD4314D698AC	Element, Cushion Heating	AD4314D698AC Element, Cushion Heating Standard	$195.63	1
33	AD4362900AAW	Cover, Cushion	AD4362900AAW Cover, Cushion Up To 15MY, Standard	$6,282.69	1
34	AD4314C288AA	センサー、助手席ベルトリマインダー	AD4314C288AA センサー、助手席ベルトリマインダー -	$47.21	1
35	AD43-629B01-AB	ランエンドキャップ、2ウェイ	AD43-629B01-AB ランエンドキャップ、2ウェイ Fixed Height Frame	-	2	Enquire
36	AD4314B549AB	Wire Assembly, RSE Display Unit	AD4314B549AB Wire Assembly, RSE Display Unit With Rear Seat Entertainment	$306.97	1
37	4G4316C694ABPK	Washer, M6 Nylon IN STOCK	4G4316C694ABPK Washer, M6 Nylon Pack of 10 IN STOCK	$12.59	2
38	4G43RTC222AA	Fixing, Firtree, Black, 12mm	4G43RTC222AA Fixing, Firtree, Black, 12mm -	$0.20	A/R
39	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	8
40	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX 10 per Seat	$0.25	20
41	FD3337523AA	J Nut, M5	FD3337523AA J Nut, M5 -	$1.40	2
42	FD3360434BA	プッシャーブロック	FD3360434BA プッシャーブロック From 15MY	$96.18	2
43	703177	SCREW, M5x30, PAN HEAD TX	703177 SCREW, M5x30, PAN HEAD TX -	$1.53	2
