Interior Trim & Ornamentation - Main Floor Trim, LHD of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

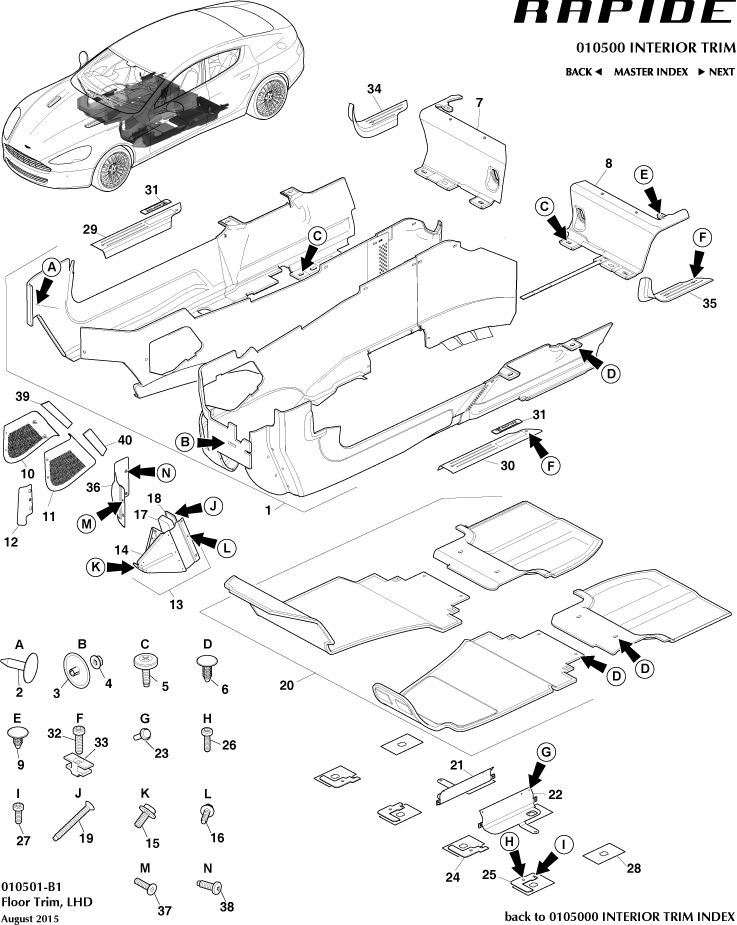

Aston Martin GT RAPIDE (2010-2019) - Interior Trim & Ornamentation - Main Floor Trim, LHD

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	FD43281B11ABW	Kit Assembly, Side Carpet, LHD	FD43281B11ABW Kit Assembly, Side Carpet, LHD From 15MY	$4,112.92	1
-	FD43281B11GA	Kit Assembly, Side Carpet, LHD	FD43281B11GA Kit Assembly, Side Carpet, LHD Black. From 17.5MY	$4,112.92	1
-	AD43-130A34-GA	Carpet Assembly, Floor Rear, RH	AD43-130A34-GA Carpet Assembly, Floor Rear, RH Black. From 17.5MY	-	1	Enquire
-	AD43-130A35-GA	Carpet Assembly, Floor Rear, LH	AD43-130A35-GA Carpet Assembly, Floor Rear, LH Black. From 17.5MY	-	1	Enquire
-	GD43311A76CC	Speaker Grille Assembly, Footwell, RH	GD43311A76CC Speaker Grille Assembly, Footwell, RH with fixings, ASK	$722.85	1
-	HD43311A76CA	Speaker Grille Assembly, Footwell, RH	HD43311A76CA Speaker Grille Assembly, Footwell, RH with fixings, Black. 17MY on	$205.76	1
-	GD43311A77CC	Speaker Grille Assembly, Footwell, LH	GD43311A77CC Speaker Grille Assembly, Footwell, LH with fixings, ASK	$722.85	1
-	HD43311A77CA	Speaker Grille Assembly, Footwell, LH	HD43311A77CA Speaker Grille Assembly, Footwell, LH with fixings, Black. 17MY on	$205.76	1
-	CD3312020CA	COVER PLATE, FOOTREST	CD3312020CA COVER PLATE, FOOTREST Rapide S Option	$129.49	1
-	AD43281B13GA	Kit Assembly, Floor Carpet, LHD	AD43281B13GA Kit Assembly, Floor Carpet, LHD Black. From 17.5MY	$3,247.49	1
-	KD43-132A12-AA	スカッフプレート、フロントドアシル、右側	KD43-132A12-AA スカッフプレート、フロントドアシル、右側 AMR	-	1	Enquire
-	KD43-132A13-AA	Scuff Plate, front door sill, LHS	KD43-132A13-AA Scuff Plate, front door sill, LHS AMR	-	1	Enquire
-	AD438010005	Name Plate, Personalised	AD438010005 Name Plate, Personalised -	$513.10	2
-	BD43132A51AA	Name Plate, Lux, Standard	BD43132A51AA Name Plate, Lux, Standard -	$282.91	2
-	DD43-132A51-AA	Name Plate, Standard	DD43-132A51-AA Name Plate, Standard Rapide S	-	2	Enquire
-	ED43132A51AA	Name Plate, Sterling Silver	ED43132A51AA Name Plate, Sterling Silver Rapide S, Centenary Edition	$2,306.32	2
-	GD43-132A51-AA	Name Plate, Rapide	GD43-132A51-AA Name Plate, Rapide 16MY, Rapide	-	2	Enquire
-	GD43-132A51-BA	Name Plate, Rapide	GD43-132A51-BA Name Plate, Rapide 16MY, Rapide, China Edition	-	2	Enquire
-	HDA3132A51CA	Name Plate, Shadow Edition	HDA3132A51CA Name Plate, Shadow Edition Rapide S 17.5MY Shadow Edition	-	2	Enquire
-	KD43132A51AA	Name Plate, Shadow Edition	KD43132A51AA Name Plate, Shadow Edition Rapide AMR 19MY	$757.58	2
-	KD43-132A48-AB	Scuff Plate, Rear Door, RHS	KD43-132A48-AB Scuff Plate, Rear Door, RHS AMR	-	1	Enquire
-	KD43-132A49-AB	スカッフプレート、リアドア、左側	KD43-132A49-AB スカッフプレート、リアドア、左側 AMR	-	1	Enquire
-	6G3303837AA	Bumpon, Square Block	6G3303837AA Bumpon, Square Block Lower console to carpet	$0.80	A/R
1	AD43281B11ACW	Kit Assembly, Side Carpet, LHD	AD43281B11ACW Kit Assembly, Side Carpet, LHD Up To 15MY	$3,084.68	1
2	4G43STC3710AAPK	Fastener, fir tree 8mm	4G43STC3710AAPK Fastener, fir tree 8mm -	$12.71	3
3	6G3313925AA	Screw, M5x36	6G3313925AA Screw, M5x36 -	$1.27	2
4	702295	Nut M5 Hex flng pc8	702295 Nut M5 Hex flng pc8 -	$0.18	2
6	AD43-MXC1800-AA	Fastener, Firtree, Button Head	AD43-MXC1800-AA Fastener, Firtree, Button Head -	-	24	Enquire
7	AD43130A34ACW	Carpet Assembly, Floor Rear, RH	AD43130A34ACW Carpet Assembly, Floor Rear, RH -	$765.16	1
8	AD43130A35ACW	Carpet Assembly, Floor Rear, LH	AD43130A35ACW Carpet Assembly, Floor Rear, LH -	$765.16	1
9	AD43-MXC1800-AA	Fastener, Firtree, Button Head	AD43-MXC1800-AA Fastener, Firtree, Button Head -	-	5	Enquire
10	AD43311A76BA	Speaker Grille Assembly, Footwell, RH	AD43311A76BA Speaker Grille Assembly, Footwell, RH with fixings, B&O	$761.20	1
11	AD43311A77BA	Speaker Grille Assembly, Footwell, LH	AD43311A77BA Speaker Grille Assembly, Footwell, LH with fixings, B&O	$761.20	1
12	9D33201A49AA	Shield, Speaker Grille Protector	9D33201A49AA Shield, Speaker Grille Protector -	$18.06	1
13	9G4312020BA	Pad assy, foot rest	9G4312020BA Pad assy, foot rest -	$371.30	1
14	4G433N328BE	Foot rest assy, LHD	4G433N328BE Foot rest assy, LHD -	$142.17	1
15	703151	Nut/washr, M6	703151 Nut/washr, M6 -	$0.89	1
16	703026	Screw M5x16 Hex flg hd	703026 Screw M5x16 Hex flg hd -	$0.34	3
17	4G43-9661-BA	Energy Absorber, Footrest, LHD	4G43-9661-BA Energy Absorber, Footrest, LHD -	-	1	Enquire
18	9G4312020BA	Pad assy, foot rest	9G4312020BA Pad assy, foot rest -	$371.30	1
19	6G33E801202AA	Screw, M5 x 36 Countersunk Head Capscrew	6G33E801202AA Screw, M5 x 36 Countersunk Head Capscrew -	$0.73	3
20	AD438310115	Kit Assembly, Floor Carpet, LHD	AD438310115 Kit Assembly, Floor Carpet, LHD -	$5,224.39	1
21	AD43605B28AC	Scuff Plate, Tunnel, RH	AD43605B28AC Scuff Plate, Tunnel, RH -	$94.14	1
22	AD43605B29AC	Scuff Plate, Tunnel, LH	AD43605B29AC Scuff Plate, Tunnel, LH -	$94.14	1
23	4G432705AA	リベット、プラスチック	4G432705AA リベット、プラスチック -	$1.23	4
24	AD43666A41AB	INISHER, CARPET, LH	AD43666A41AB INISHER, CARPET, LH -	$71.16	2
25	AD43666A40AB	FINISHER, CARPET, RH	AD43666A40AB FINISHER, CARPET, RH -	$71.16	2
27	6G3368D11AA	Screw, M5 x 20 Cap Head	6G3368D11AA Screw, M5 x 20 Cap Head -	$1.07	4
28	NSS	ウォッシャー	NSS ウォッシャー -	-	8	Enquire
29	AD43132A12AAW	Scuff Plate, Front Door Sill, RH	AD43132A12AAW Scuff Plate, Front Door Sill, RH -	$201.82	1
30	AD43132A13AAW	Scuff Plate, Front Door Sill, LH	AD43132A13AAW Scuff Plate, Front Door Sill, LH -	$201.82	1
31	AD438010004	Name Plate, Standard	AD438010004 Name Plate, Standard -	$246.50	2
32	6G33-SS106209-AB-PK	Bolt, M6x20, Socket Head	6G33-SS106209-AB-PK Bolt, M6x20, Socket Head Silver, Pack of 2	-	4	Enquire
33	AD43-17F790-AA	ブラケット、スカッフプレート	AD43-17F790-AA ブラケット、スカッフプレート -	-	8	Enquire
34	AD43-132A48-AAW	Scuff Plate, Rear Door, RHS	AD43-132A48-AAW Scuff Plate, Rear Door, RHS -	-	1	Enquire
35	AD43-132A49-AAW	スカッフプレート、リアドア、左側	AD43-132A49-AAW スカッフプレート、リアドア、左側 -	-	1	Enquire
36	4G4318449BC	Scuff Plate, Accelerator, LHD	4G4318449BC Scuff Plate, Accelerator, LHD -	$84.88	1
37	4G433L657AA	Screw M5x20 Csk Skt SS Blk	4G433L657AA Screw M5x20 Csk Skt SS Blk -	$0.37	1
38	701554	SCREW, M5, PAN HD TORX	701554 SCREW, M5, PAN HD TORX -	-	3	Enquire
39	GD43-13034-AA	Spacer, Carpet RH	GD43-13034-AA Spacer, Carpet RH 16MY	-	1	Enquire
40	GD43-13035-AA	Spacer, Carpet LH	GD43-13035-AA Spacer, Carpet LH 16MY	-	1	Enquire
