Interior Trim & Ornamentation - Front Door Trim Panel of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

Aston Martin GT RAPIDE (2010-2019) - Interior Trim & Ornamentation - Front Door Trim Panel

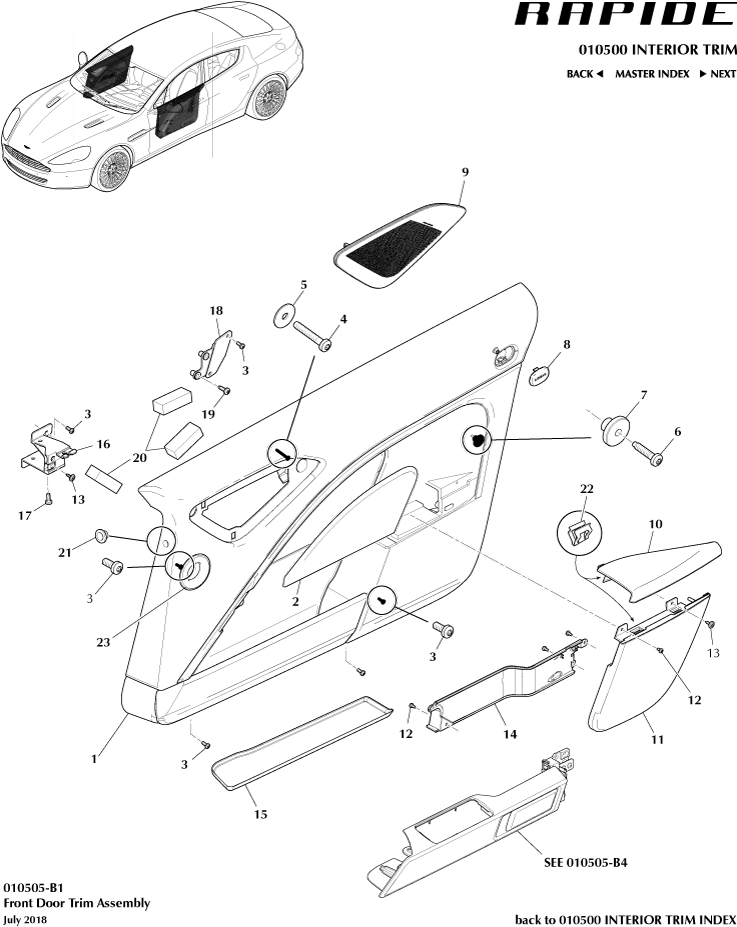

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	AD4323943AFW	Panel Assembly, Front Door Trim, LH	AD4323943AFW Panel Assembly, Front Door Trim, LH Up To 15MY, With Leather Insert	$2,933.53	1
-	FD4323942ACW	Panel Assembly, Front Door Trim, RH	FD4323942ACW Panel Assembly, Front Door Trim, RH From 15MY, With Leather Insert	$3,277.29	1
-	FD4323943ACW	Panel Assembly, Front Door Trim, LH	FD4323943ACW Panel Assembly, Front Door Trim, LH From 15MY, With Leather Insert	$3,020.67	1
-	AD4323942BBW	Panel Assembly, Front Door Trim, RH	AD4323942BBW Panel Assembly, Front Door Trim, RH Up To 15MY, Less Wood Upper Insert	$5,037.21	1
-	AD4323943BBW	Panel Assembly, Front Door Trim, LH	AD4323943BBW Panel Assembly, Front Door Trim, LH Up To 15MY, Less Wood Upper Insert	$5,037.21	1
-	FD4323942BCW	Panel Assembly, Front Door Trim, RH	FD4323942BCW Panel Assembly, Front Door Trim, RH From 15MY, Less Wood Upper Insert	$3,568.48	1
-	FD4323943BCW	Panel Assembly, Front Door Trim, LH	FD4323943BCW Panel Assembly, Front Door Trim, LH From 15MY, Less Wood Upper Insert	$4,473.29	1
-	KD4323942AAW	Panel Assembly, Front Door Trim, RH	KD4323942AAW Panel Assembly, Front Door Trim, RH From 19MY, AMR	$14,069.72	1
-	KD4323943AAW	Panel Assembly, Front Door Trim, LH	KD4323943AAW Panel Assembly, Front Door Trim, LH From 19MY, AMR	$14,069.72	1
-	AD438710077	Kit, Upper Insert, 2 pieces	AD438710077 Kit, Upper Insert, 2 pieces Piano Black Veneer	$693.03	1
-	AD438710079	Kit, Upper Insert, 2 pieces	AD438710079 Kit, Upper Insert, 2 pieces Mahogany Veneer	$693.03	1
-	AD438710081	Kit, Upper Insert, 2 pieces	AD438710081 Kit, Upper Insert, 2 pieces Tamo Ash Veneer	$749.60	1
-	AD438710083	Kit, Upper Insert, 2 pieces	AD438710083 Kit, Upper Insert, 2 pieces Bamboo Veneer	$693.03	1
-	FD438710152	Kit, Upper Insert, 2 pieces	FD438710152 Kit, Upper Insert, 2 pieces From 15MY, Carbon Twill	$1,444.46	1
-	FD43-87-10154	Kit, Upper Insert, 2 pieces	FD43-87-10154 Kit, Upper Insert, 2 pieces From 15MY, Ice Mocha	-	1	Enquire
-	GD438710168	Kit, Upper Insert, 2 pieces	GD438710168 Kit, Upper Insert, 2 pieces From 15MY, Carbon Cuprum	$3,177.05	1
-	AD4323885AAW	Upper Insert, LH	AD4323885AAW Upper Insert, LH Leather Trimmed	$218.32	1
-	AD4323884AAW	Upper Insert, RH	AD4323884AAW Upper Insert, RH Leather Trimmed	$218.32	1
-	AD4318979AB	GRILLE, SPEAKER, LH	AD4318979AB GRILLE, SPEAKER, LH Bang and Olufsen, Iridium	$830.83	1
-	CD3318978AA	GRILLE, SPEAKER, RH	CD3318978AA GRILLE, SPEAKER, RH Bang and Olufsen, Black	$896.85	1
-	CD3318979AA	GRILLE, SPEAKER, LH	CD3318979AA GRILLE, SPEAKER, LH Bang and Olufsen, Black	$896.85	1
-	GD43-18978-CA	Speaker Grill, Front Door RH	GD43-18978-CA Speaker Grill, Front Door RH From 16MY, ASK, Silver	-	1	Enquire
-	GD43-18979-CA	Speaker Grill, Front Door LH	GD43-18979-CA Speaker Grill, Front Door LH From 16MY, ASK, Silver	-	1	Enquire
-	KD43-24002-ABW	Pad, Arm Rest, RH	KD43-24002-ABW Pad, Arm Rest, RH 19MY, AMR	-	1	Enquire
-	AD4324003AAW	Pad, Arm Rest, LH	AD4324003AAW Pad, Arm Rest, LH -	$84.16	1
-	KD43-24003-AAW	Pad, Arm Rest, LH	KD43-24003-AAW Pad, Arm Rest, LH 19MY, AMR	-	1	Enquire
-	KD43-24000-AAW	Pad, Inner, RH	KD43-24000-AAW Pad, Inner, RH 19MY, AMR	-	1	Enquire
-	AD43-24001-ABW	Pad, Inner, LH	AD43-24001-ABW Pad, Inner, LH -	-	1	Enquire
-	KD43-24001-AAW	Pad, Inner, LH	KD43-24001-AAW Pad, Inner, LH 19MY, AMR	-	1	Enquire
-	AD4324243AA	Insert, Front Door Grab LH	AD4324243AA Insert, Front Door Grab LH -	$105.54	1
-	AD43101397AA	Mat, Front Door Pocket LH	AD43101397AA Mat, Front Door Pocket LH -	$117.38	1
-	AD43-14C925-AC	Bracket, Mounting, Frt Door Grab Handle LH	AD43-14C925-AC Bracket, Mounting, Frt Door Grab Handle LH -	-	1	Enquire
-	AD4312A955AA	Bracket, Mounting, Frt Door Grab Handle Rear LH	AD4312A955AA Bracket, Mounting, Frt Door Grab Handle Rear LH -	$19.19	1
-	HY53C237898AA	Bezel, Demist Pipe	HY53C237898AA Bezel, Demist Pipe Black, AMR	$878.81	2
-	610261357	FOAM, 10x10x7.5M	610261357 FOAM, 10x10x7.5M 7.5M Roll	$17.14	1
1	AD4323942AFW	Panel Assembly, Front Door Trim, RH	AD4323942AFW Panel Assembly, Front Door Trim, RH Up To 15MY, With Leather Insert	$3,277.29	1
2	AD438710075	Kit, Upper Insert, 2 pieces	AD438710075 Kit, Upper Insert, 2 pieces Walnut Veneer	$817.79	1
3	702084	Screw M5x12 Pan	702084 Screw M5x12 Pan -	$0.11	8
4	703177	SCREW, M5x30, PAN HEAD TX	703177 SCREW, M5x30, PAN HEAD TX per panel assembly	$1.53	1
5	700384	Washer M5 Steel Black	700384 Washer M5 Steel Black per panel assembly	-	1	Enquire
6	704328	Screw M5x20 Pan Hd	704328 Screw M5x20 Pan Hd per panel assembly	$0.11	1
7	AD43-11B390-AA	ボビン、フロントドア取り付け	AD43-11B390-AA ボビン、フロントドア取り付け per panel assembly	-	1	Enquire
8	AD4323747AAW	SRS Insert Assembly	AD4323747AAW SRS Insert Assembly per panel assembly	$218.48	1
9	AD4318978AB	GRILLE, SPEAKER, RH	AD4318978AB GRILLE, SPEAKER, RH Bang and Olufsen, Iridium	$847.95	1
10	AD4324002ABW	Pad, Arm Rest, RH	AD4324002ABW Pad, Arm Rest, RH -	$270.39	1
11	AD43-24000-ABW	Pad, Inner, RH	AD43-24000-ABW Pad, Inner, RH -	-	1	Enquire
12	703178	Screw M4 x 8 Pan Head Torx	703178 Screw M4 x 8 Pan Head Torx per side	$0.38	4
13	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 per side IN STOCK	$3.07	1
14	AD4324242AA	Insert, Front Door Grab RH	AD4324242AA Insert, Front Door Grab RH -	$112.01	1
15	AD43101396AA	Mat, Front Door Pocket RH	AD43101396AA Mat, Front Door Pocket RH -	$117.38	1
16	AD43-14C924-AC	Bracket, Mounting, Frt Door Grab Handle RH	AD43-14C924-AC Bracket, Mounting, Frt Door Grab Handle RH -	-	1	Enquire
17	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket - IN STOCK	$0.31	2
18	AD43-12A954-AA	Bracket, Mounting, Frt Door Grab Handle Rear RH	AD43-12A954-AA Bracket, Mounting, Frt Door Grab Handle Rear RH -	-	1	Enquire
19	702294	Screw, M6x16 Pan Hd 6 lobe IN STOCK	702294 Screw, M6x16 Pan Hd 6 lobe - IN STOCK	$0.27	2
20	FG43M4D4515AA	フォームストリップ	FG43M4D4515AA フォームストリップ -	$0.38	6
21	6G33N804263AA	PLUG, 22mm	6G33N804263AA PLUG, 22mm Up to VIN F04504	$2.05	2
22	706114	Clip - Door Trim Pads	706114 Clip - Door Trim Pads -	$11.41	A/R
23	9G43-C237898-AA	Bezel, Demist Pipe	9G43-C237898-AA Bezel, Demist Pipe Iridium Silver, except AMR	-	2	Enquire
