Instrument and Console Panels - Rear Console, 'AMR' of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

Aston Martin GT RAPIDE (2010-2019) - Instrument and Console Panels - Rear Console, 'AMR'

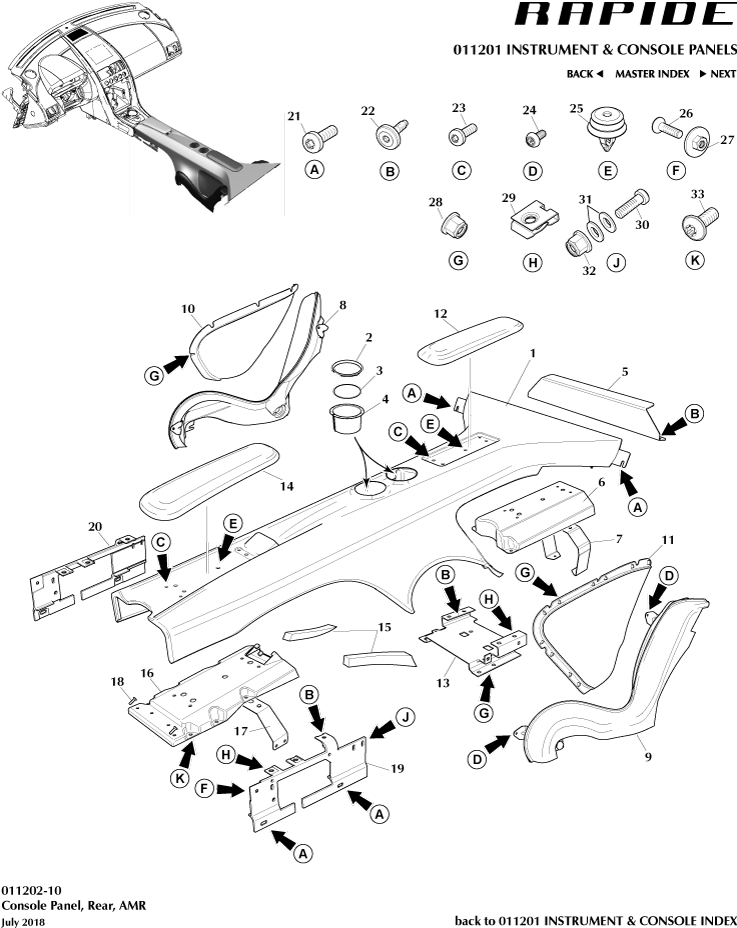

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	KD43-045B58-BAW	Moulding, Tunnel Panel RH	KD43-045B58-BAW Moulding, Tunnel Panel RH Leather	-	1	Enquire
-	KD43-045B59-BAW	Moulding, Tunnel Panel LH	KD43-045B59-BAW Moulding, Tunnel Panel LH Leather	-	1	Enquire
1	KD4367446AD	パネルASSY、リアコンソール	KD4367446AD パネルASSY、リアコンソール -	$8,834.20	1
2	KD4329745AA	Bezel, Cup Holder	KD4329745AA Bezel, Cup Holder -	$216.75	2
3	AD43040K60AA	Base Insert, Cup Holder	AD43040K60AA Base Insert, Cup Holder -	$41.69	2
4	KD43-045N50-AA	Insert, Cup Holder	KD43-045N50-AA Insert, Cup Holder -	-	2	Enquire
5	KD43-V513K01-AA	Support, Console Rear	KD43-V513K01-AA Support, Console Rear -	-	1	Enquire
6	KD43-045B30-AB	Reinforcement Panel, Rear	KD43-045B30-AB Reinforcement Panel, Rear -	-	1	Enquire
7	KD43-044D58-AA	Reinforcement Bracket, Rear	KD43-044D58-AA Reinforcement Bracket, Rear -	-	1	Enquire
8	KD43-047K64-ABW	Console Lower Side Assembly, RH	KD43-047K64-ABW Console Lower Side Assembly, RH -	-	1	Enquire
9	KD43-047K63-ABW	Console Lower Side Assembly, LH	KD43-047K63-ABW Console Lower Side Assembly, LH -	-	1	Enquire
10	KD43-045B58-AAW	Moulding, Tunnel Panel RH	KD43-045B58-AAW Moulding, Tunnel Panel RH Alcantara	-	1	Enquire
11	KD43-045B59-AWA	Moulding, Tunnel Panel LH	KD43-045B59-AWA Moulding, Tunnel Panel LH Alcantara	-	1	Enquire
12	KD4367442ABW	Armrest Assembly, Rear Console	KD4367442ABW Armrest Assembly, Rear Console -	$2,078.37	1
13	AD43-044G67-AD	Support Bracket, Console Underside Centre	AD43-044G67-AD Support Bracket, Console Underside Centre -	-	1	Enquire
14	KD43-C045C76-ABW	Armrest Assembly, Front	KD43-C045C76-ABW Armrest Assembly, Front -	-	1	Enquire
15	CG43403D62AA	Seal, Upper Panel Ven Air IN STOCK	CG43403D62AA Seal, Upper Panel Ven Air - IN STOCK	$4.02	2
16	KD43-042B60-AB	Reinforcement Panel, Front	KD43-042B60-AB Reinforcement Panel, Front -	-	1	Enquire
17	KD43-043B92-AA	Reinforcement Bracket, Front	KD43-043B92-AA Reinforcement Bracket, Front -	-	1	Enquire
18	4G43103081BA	Screw, M4x16, Countersunk, Stainless Black IN STOCK	4G43103081BA Screw, M4x16, Countersunk, Stainless Black - IN STOCK	$1.24	2
19	KD43046A57AA	Bracket Assembly, Front LH	KD43046A57AA Bracket Assembly, Front LH -	$329.35	1
20	KD43046A56AA	Bracket Assembly, Front RH	KD43046A56AA Bracket Assembly, Front RH -	$329.35	1
21	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D -	$0.22	2
22	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	10
23	700242	Screw, M5 x 16 csk hd int torx	700242 Screw, M5 x 16 csk hd int torx -	$0.90	8
25	702587	TRIM CLIP, 8.0mm x 1.5	702587 TRIM CLIP, 8.0mm x 1.5 -	$1.31	8
26	700242	Screw, M5 x 16 csk hd int torx	700242 Screw, M5 x 16 csk hd int torx -	$0.90	2
27	707262	Nut and Washer M5	707262 Nut and Washer M5 -	$13.42	2
28	703165	Nut, M05 IN STOCK	703165 Nut, M05 - IN STOCK	$0.34	12
29	702945	J Nut, M6	702945 J Nut, M6 -	$1.85	12
30	6G33SS106209AB	HEADBOLT, M6x2.0, SKT IN STOCK	6G33SS106209AB HEADBOLT, M6x2.0, SKT - IN STOCK	$1.01	4
31	699733	WASHER, M6, STEEL	699733 WASHER, M6, STEEL -	$0.07	8
32	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic -	$0.79	4
33	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK -	$0.50	4
