Aston Martin GT DB12 (2024- - フロントエンド

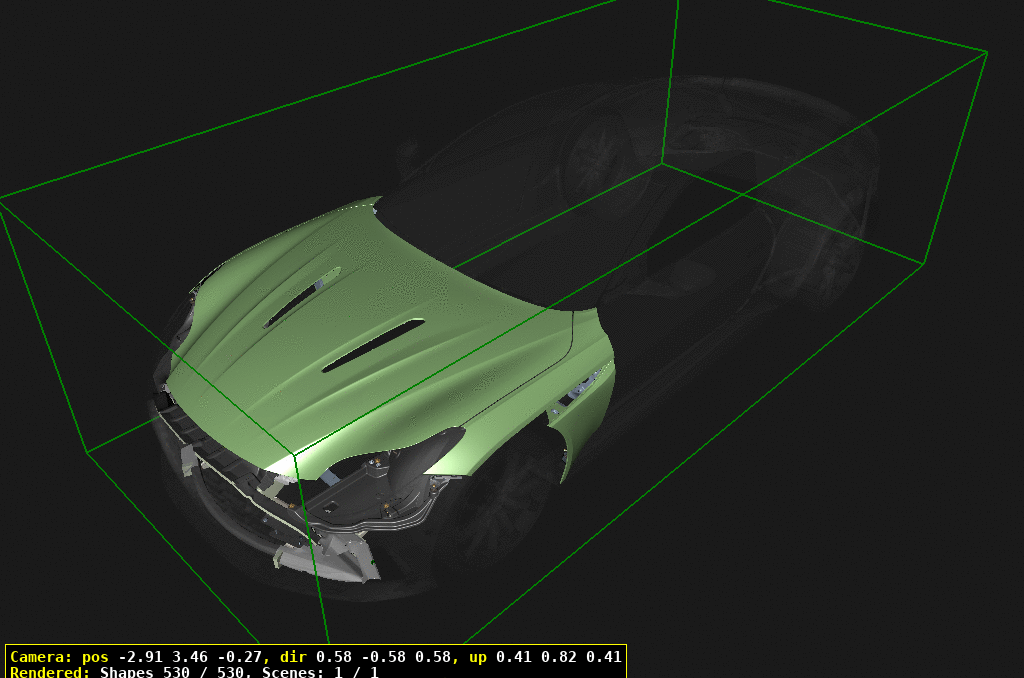

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	RY53403C52AB	PANEL, AIR VENT, CENTRE	RY53403C52AB PANEL, AIR VENT, CENTRE	$206.23	1
30	702839PK	Screw and Washer M6x20 Hex	702839PK Screw and Washer M6x20 Hex	$6.81	4
40	RY538211AC	PANEL, RADIATOR GRILLE,CENTRE	RY538211AC PANEL, RADIATOR GRILLE,CENTRE	$308.30	1
50	702839PK	Screw and Washer M6x20 Hex	702839PK Screw and Washer M6x20 Hex	$6.81	4
60	RY538B411AA	SIDE PANEL, UPPER, LH	RY538B411AA SIDE PANEL, UPPER, LH	$148.96	1
70	RY538B410AA	SIDE PANEL, UPPER, RH	RY538B410AA SIDE PANEL, UPPER, RH Includes item 80	$148.96	1
80	DD3343394AA	GROMMET, OD 17.5 ID 9.5	DD3343394AA GROMMET, OD 17.5 ID 9.5	$1.77	1
90	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	6
100	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20	$10.70	4
110	RY538C465AA	DUCT, AUXILIARY RADIATOR,LH	RY538C465AA DUCT, AUXILIARY RADIATOR,LH	$187.02	1
120	RY538C464AA	DUCT, AUXILIARY RADIATOR,RH	RY538C464AA DUCT, AUXILIARY RADIATOR,RH	$187.02	1
130	4G4317F773ABPK	Retainer, Bumper Grille	4G4317F773ABPK Retainer, Bumper Grille Pack of 10	$4.89	4
140	RY53F01991AA	パネル、エアベント、左側	RY53F01991AA パネル、エアベント、左側	$140.01	1
150	RY53F01990AA	パネル、通気口、右側	RY53F01990AA パネル、通気口、右側	$140.01	1
160	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 ARRIVING SOON	$12.41	6
170	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20	$10.70	4
180	RY53108K43BB	BEAM, FRONT SPLITTER	RY53108K43BB BEAM, FRONT SPLITTER	$616.40	1
190	KY638662AA	SEAL, LOWER RADIATOR	KY638662AA SEAL, LOWER RADIATOR	$78.13	2
200	RY5311465AA	SUPPORT BAR, UNDERTRAY	RY5311465AA SUPPORT BAR, UNDERTRAY	$149.57	1
210	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	2
220	KY638052AB	SUPPORT, RADIATOR, LOWER	KY638052AB SUPPORT, RADIATOR, LOWER Cat A	$397.87	1
230	703752	Bolt and washer, M6x14	703752 Bolt and washer, M6x14	$1.41	4
240	KY638B237AB	BRACKET, RADIATORSUPPORT, LH	KY638B237AB BRACKET, RADIATORSUPPORT, LH	$83.92	1
250	KY638B236AB	BRACKET, RADIATORSUPPORT, RH	KY638B236AB BRACKET, RADIATORSUPPORT, RH	$83.92	1
260	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	6
270	RY538243AB	PANEL, RADIATOR GRILLE,LH	RY538243AB PANEL, RADIATOR GRILLE,LH	$285.81	1
280	RY538242AB	PANEL, RADIATOR GRILLE,RH	RY538242AB PANEL, RADIATOR GRILLE,RH	$285.81	1
290	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	8
300	RY5316C172AB	SUPPORT, LOWER FRONTSPLITTER	RY5316C172AB SUPPORT, LOWER FRONTSPLITTER	$55.07	2
310	702839PK	Screw and Washer M6x20 Hex	702839PK Screw and Washer M6x20 Hex	$6.81	2
320	RY5316389AA	BRACKET, FRONT SPLITTER,LH	RY5316389AA BRACKET, FRONT SPLITTER,LH	$63.86	1
330	RY5316388AA	BRACKET, FRONT SPLITTER,RH	RY5316388AA BRACKET, FRONT SPLITTER,RH	$63.86	1
340	702839PK	Screw and Washer M6x20 Hex	702839PK Screw and Washer M6x20 Hex	$6.81	2
350	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	4
360	RY5317F019AA	MOUNTING BRACKET,SPLITTER, LH	RY5317F019AA MOUNTING BRACKET,SPLITTER, LH	$24.44	1
370	RY5317F018AA	MOUNTING BRACKET,SPLITTER, RH	RY5317F018AA MOUNTING BRACKET,SPLITTER, RH	$24.44	1
380	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	4
390	RY538B413AA	PANEL, LOWER, LH	RY538B413AA PANEL, LOWER, LH	$76.95	1
400	RY538B412AA	PANEL, LOWER, RH	RY538B412AA PANEL, LOWER, RH	$76.95	1
410	RY538662AB	フォームブロック	RY538662AB フォームブロック	$13.44	2
500	RY5316A177CB	WING ASSEMBLY, UPPER, LH	RY5316A177CB WING ASSEMBLY, UPPER, LH	$2,931.83	1
510	RY5316A176CB	WING ASSEMBLY, UPPER, RH	RY5316A176CB WING ASSEMBLY, UPPER, RH	$2,931.83	1
520	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	10
530	703161	Nut, M8, Hex Head	703161 Nut, M8, Hex Head	$1.68	2
540	KY6315A303BA	STUD, M6x20/M8x20	KY6315A303BA STUD, M6x20/M8x20	$28.33	1
550	AG4332692BA	WASHER, M8x25, BLACK	AG4332692BA WASHER, M8x25, BLACK	$1.44	2
560	7G43143002AA	Nut, Grommet	7G43143002AA Nut, Grommet	$0.78	2
570	RY5316A304AB	MOUNTING to SHOTGUN	RY5316A304AB MOUNTING to SHOTGUN	$42.38	2
580	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	2
590	RY5316N341AB	MOUNTING, WING, REAR, LH	RY5316N341AB MOUNTING, WING, REAR, LH	$39.78	1
600	RY5316N340AB	MOUNTING, WING, REAR, RH	RY5316N340AB MOUNTING, WING, REAR, RH	$39.78	1
610	RY5313069CE	CARRIER, LH	RY5313069CE CARRIER, LH Cat A	$2,632.86	1
620	RY5313068CE	CARRIER, RH	RY5313068CE CARRIER, RH Cat A	$2,632.86	1
630	703198	BOLT, M6x40, HEX	703198 BOLT, M6x40, HEX	$0.78	6
640	706890	BOLT/WASHER, M6x24	706890 BOLT/WASHER, M6x24	$1.34	8
650	KY63E830821AA	WASHER, 25mm x 1.5	KY63E830821AA WASHER, 25mm x 1.5	$1.25	6
660	MY8314108AA	ウィジーナット	MY8314108AA ウィジーナット	$12.32	6
670	RY5316N451AA	ブラケット、フロント	RY5316N451AA ブラケット、フロント	$35.85	4
680	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	12
690	RY5316F124AA	BRACKET, OUTER	RY5316F124AA BRACKET, OUTER	$22.39	2
700	RY5316006AB	PANEL ASSEMBLY, FRONTWING, LH	RY5316006AB PANEL ASSEMBLY, FRONTWING, LH	$1,182.21	1
710	RY5316005AB	PANEL ASSEMBLY, FRONTWING, RH	RY5316005AB PANEL ASSEMBLY, FRONTWING, RH	$1,182.21	1
720	RY5316A005AA	BRACKET, WING to PILLARMOUNTING	RY5316A005AA BRACKET, WING to PILLARMOUNTING	$35.50	4
730	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	4
740	FD43E830667AB	WASHER, 25mm O/D x 6.4mmI/Dx 1.5	FD43E830667AB WASHER, 25mm O/D x 6.4mmI/Dx 1.5	$0.71	6
750	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭	$0.59	8
770	8G435144AA	SPACER, C-DUCT FINISHER,LH/RH	8G435144AA SPACER, C-DUCT FINISHER,LH/RH	$3.30	2
780	703163	Nut, M06, hex flange head	703163 Nut, M06, hex flange head	$0.23	2
790	6G33-VTL645-AA	SCREW, M8x45, PAN HEAD,TORX, GRADE 10.9	6G33-VTL645-AA SCREW, M8x45, PAN HEAD,TORX, GRADE 10.9	-	4	Enquire
800	AG4332692AA	ワッシャ、プレーン	AG4332692AA ワッシャ、プレーン	$1.14	4
810	RY5316A306AA	トランスファープレート	RY5316A306AA トランスファープレート	$30.47	4
820	CD3325955AA	SCREW, M5x12	CD3325955AA SCREW, M5x12	$16.92	8
830	703741	SCREW, M6x35, PAN TX	703741 SCREW, M6x35, PAN TX	$2.28	2
840	697517	Washer, M6 x 19 x 1.5	697517 Washer, M6 x 19 x 1.5	-	2	Enquire
850	HY5319G465BA	BRACKET, WASHER BOTTLERETENTION	HY5319G465BA BRACKET, WASHER BOTTLERETENTION	$54.91	1
860	703149	ねじ M6X16 六角穴付き	703149 ねじ M6X16 六角穴付き	$1.27	1
870	RY5316A014AA	SEAL, BONNET MARGIN	RY5316A014AA SEAL, BONNET MARGIN	$19.08	2
900	RY5316612AC	ボンネットアッセンブリー	RY5316612AC ボンネットアッセンブリー	$9,451.92	1
910	RY6316801AC	HINGE ASSEMBLY, LH	RY6316801AC HINGE ASSEMBLY, LH	$215.66	1
920	RY6316800AC	HINGE ASSEMBLY, RH	RY6316800AC HINGE ASSEMBLY, RH	$215.66	1
930	RY5316C826AB	ガススプリング	RY5316C826AB ガススプリング	$48.48	2
940	4G4316K808AB	Support Assembly	4G4316K808AB Support Assembly	$5.17	2
950	702944	Nut, M6 flg	702944 Nut, M6 flg	$1.82	2
960	RY6318179AA	BRACKET, GAS STRUT, LH	RY6318179AA BRACKET, GAS STRUT, LH	$35.85	1
970	RY6318178AA	BRACKET, GAS STRUT, RH	RY6318178AA BRACKET, GAS STRUT, RH	$35.85	1
980	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭	$0.59	4
990	703120	Screw, flg, M8 x 25	703120 Screw, flg, M8 x 25	$21.91	6
1000	AG4332692BA	WASHER, M8x25, BLACK	AG4332692BA WASHER, M8x25, BLACK	$1.44	6
1010	RY5316B874AA	ヒンジサポート	RY5316B874AA ヒンジサポート	$84.53	2
1020	703201	Screw, M8 x 30 Hex Head Flange	703201 Screw, M8 x 30 Hex Head Flange	$1.27	2
1030	91AB16C618AA	BUMPSTOP ASSEMBLY	91AB16C618AA BUMPSTOP ASSEMBLY	$1.89	2
1040	MY63J611V46AA	BRACKET, BUMPSTOP	MY63J611V46AA BRACKET, BUMPSTOP	$10.75	2
1050	707643	SCREW, M5x20, TX HEAD	707643 SCREW, M5x20, TX HEAD	$1.78	4
