Glass and Regulators - Coupe of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

Aston Martin GT DB12 (2024- - Glass and Regulators - Coupe

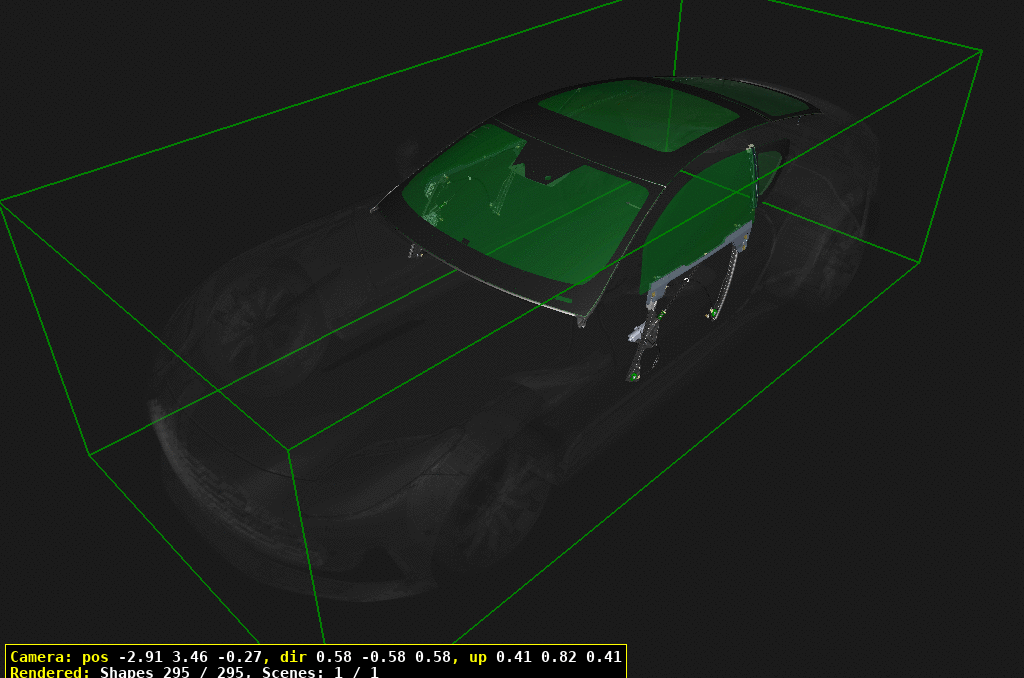

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量
20	RY53F03804AA	WINDSCREEN, FRONT	RY53F03804AA WINDSCREEN, FRONT Less Weatherstrips	$2,740.29	1
30	HY53030A44AB	WEATHERSTRIP, WINDSCREENLOWER	HY53030A44AB WEATHERSTRIP, WINDSCREENLOWER	$33.05	1
40	4G4303836ABPK	BUMPON, 20mm x5.25x5.5mm IN STOCK	4G4303836ABPK BUMPON, 20mm x5.25x5.5mm Pack of 10 IN STOCK	$20.80	6
41	CD3303836AAPK	バンプン、高さ3MM	CD3303836AAPK バンプン、高さ3MM Pack of 10	$3.83	6
50	HY5303296AB	FINISHER, WINDSCREEN	HY5303296AB FINISHER, WINDSCREEN Does not include item 60.Order separately	$251.33	1
60	6G33C03102AP1A04	FOAM, 10x10 IN STOCK	6G33C03102AP1A04 FOAM, 10x10 IN STOCK	$10.80	1
70	RY533710224	HEATER PAD SERVICE KIT	RY533710224 HEATER PAD SERVICE KIT Refer to Service BulletinSB-01-1902	$64.74	1
100	RY5342004AA	REAR WINDOW, HEATED	RY5342004AA REAR WINDOW, HEATED	$1,440.10	1
101	RY5342004BA	REAR WINDOW, HEATED	RY5342004BA REAR WINDOW, HEATED Privacy Glass	$1,485.73	1
110	HY537710041	FINISHER, REAR GLASS, TOP& SIDES	HY537710041 FINISHER, REAR GLASS, TOP& SIDES	$220.40	1
111	HY537710042	FINISHER, REAR GLASS,LOWER	HY537710042 FINISHER, REAR GLASS,LOWER	$62.66	1
130	4G4303836ABPK	BUMPON, 20mm x5.25x5.5mm IN STOCK	4G4303836ABPK BUMPON, 20mm x5.25x5.5mm Pack of 10 IN STOCK	$20.80	4
131	CD3303836AAPK	バンプン、高さ3MM	CD3303836AAPK バンプン、高さ3MM Pack of 10	$3.83	4
200	HY53F21411AB	GLASS ASSEMBLY, DOOR, LH	HY53F21411AB GLASS ASSEMBLY, DOOR, LH	$1,465.89	1
210	HY53F21410AB	GLASS ASSEMBLY, DOOR, RH	HY53F21410AB GLASS ASSEMBLY, DOOR, RH	$1,465.89	1
300	HY53N29751BA	GLASS ASSEMBLY, QUARTERWINDOW FIXED, LH	HY53N29751BA GLASS ASSEMBLY, QUARTERWINDOW FIXED, LH	$841.88	1
301	LY53N29751AA	GLASS ASSEMBLY, QUARTERWINDOW FIXED, LH	LY53N29751AA GLASS ASSEMBLY, QUARTERWINDOW FIXED, LH Privacy Glass	$893.65	1
310	HY53N29750BA	GLASS ASSEMBLY, QUARTERWINDOW FIXED, RH	HY53N29750BA GLASS ASSEMBLY, QUARTERWINDOW FIXED, RH	$821.33	1
311	LY53N29750AA	GLASS ASSEMBLY, QUARTERWINDOW FIXED, RH	LY53N29750AA GLASS ASSEMBLY, QUARTERWINDOW FIXED, RH Privacy Glass	$893.65	1
320	6G3346058AA	SCREW, M5x10, FLG TORX	6G3346058AA SCREW, M5x10, FLG TORX	$1.87	2
330	HY5380A225AA	GASKET, FOAM, B-PILLAR,UPPER	HY5380A225AA GASKET, FOAM, B-PILLAR,UPPER	$3.05	2
340	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 IN STOCK	$0.59	2
350	4G4303836ABPK	BUMPON, 20mm x5.25x5.5mm IN STOCK	4G4303836ABPK BUMPON, 20mm x5.25x5.5mm Pack of 10 IN STOCK	$20.80	2
360	HY53512A0AA	FINISHER, WEATHERSTRIP	HY53512A0AA FINISHER, WEATHERSTRIP	$25.15	2
400	RY53F50054AB	GLASS ROOF ASSEMBLY	RY53F50054AB GLASS ROOF ASSEMBLY	$5,470.22	1
410	4G4303836ABPK	BUMPON, 20mm x5.25x5.5mm IN STOCK	4G4303836ABPK BUMPON, 20mm x5.25x5.5mm Pack of 10 IN STOCK	$20.80	8
500	MY53F23201AB	REGULATOR ASSEMBLY, LH	MY53F23201AB REGULATOR ASSEMBLY, LH	$369.02	1
510	MY53F23200AB	REGULATOR ASSEMBLY, RH	MY53F23200AB REGULATOR ASSEMBLY, RH	$369.02	1
520	703216PK	Nut, M08 IN STOCK	703216PK Nut, M08 Pack of 10 IN STOCK	$23.10	10
