Sealing - Coupe of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

Aston Martin GT DB12 (2024- - Sealing - Coupe

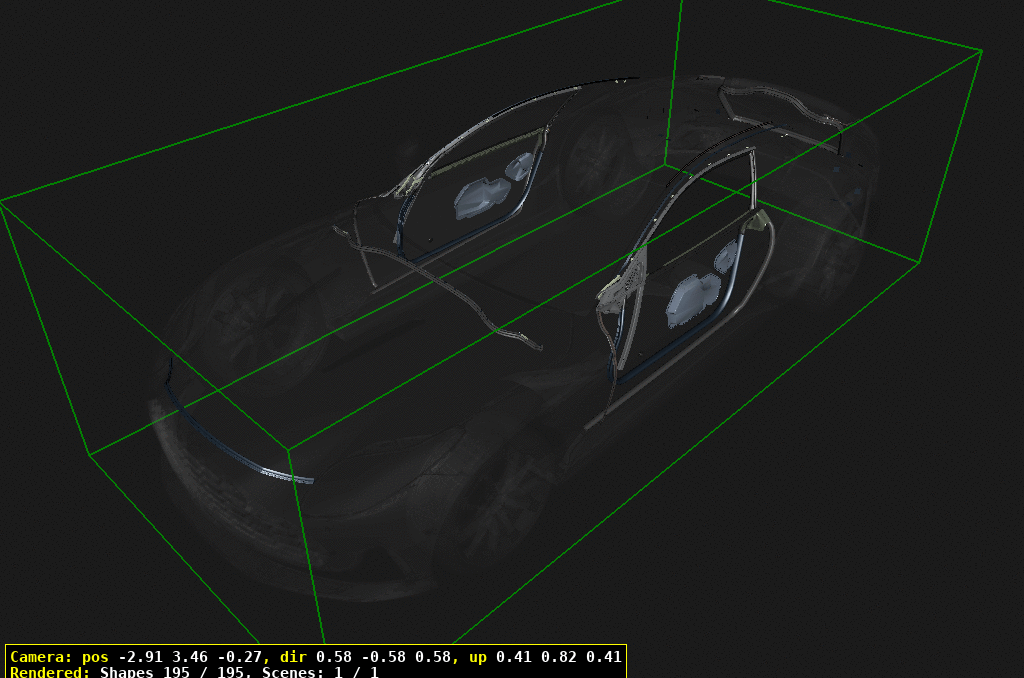

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量
20	HY53C20708AC	PRIMARY SEAL, DOOR,UPPER, RH	HY53C20708AC PRIMARY SEAL, DOOR,UPPER, RH	$437.38	1
30	HY53C25324AC	WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, RH	HY53C25324AC WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, RH	$218.65	1
40	HY53C20556AB	WEATHERSTRIP, MARGIN,DOOR	HY53C20556AB WEATHERSTRIP, MARGIN,DOOR	$38.15	2
50	HY53C25325AC	WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, LH	HY53C25325AC WEATHERSTRIP ASSEMBLY,MARGIN, LOWER, LH	$218.65	1
60	4G43L25324BA	CLIP, WEATHERSTRIPRETENTION	4G43L25324BA CLIP, WEATHERSTRIPRETENTION	$3.17	2
70	HY53C215K45AA	WEATHERSTRIP ASSEMBLY,DOOR WINDOW, LH	HY53C215K45AA WEATHERSTRIP ASSEMBLY,DOOR WINDOW, LH	$258.52	1
80	HY53C20708BE	PRIMARY SEAL, DOOR, LOWER	HY53C20708BE PRIMARY SEAL, DOOR, LOWER	$85.22	2
90	HY53C215K44AA	WEATHERSTRIP ASSEMBLY,DOOR WINDOW, RH	HY53C215K44AA WEATHERSTRIP ASSEMBLY,DOOR WINDOW, RH	$258.52	1
100	HY53C20709AC	PRIMARY SEAL, DOOR,UPPER, LH	HY53C20709AC PRIMARY SEAL, DOOR,UPPER, LH	$437.38	1
110	HY5316770AA	WEATHERSTRIP ASSEMBLY,ROOF DITCH	HY5316770AA WEATHERSTRIP ASSEMBLY,ROOF DITCH	$29.28	2
120	HY53C20570AC	WEATHERSTRIP, DOOR INNERWAIST, RH	HY53C20570AC WEATHERSTRIP, DOOR INNERWAIST, RH	$309.83	1
130	HY53C20571AC	WEATHERSTRIP, DOOR INNERWAIST, LH	HY53C20571AC WEATHERSTRIP, DOOR INNERWAIST, LH	$309.83	1
140	HY53C20563BC	WEATHERSTRIP, DOOR OUTER,WAIST, LH	HY53C20563BC WEATHERSTRIP, DOOR OUTER,WAIST, LH	$154.08	1
150	HY53C20562BC	WEATHERSTRIP, DOOR OUTER,WAIST, RH	HY53C20562BC WEATHERSTRIP, DOOR OUTER,WAIST, RH	$154.08	1
160	6G33451B04AA	PLUG, 26mm	6G33451B04AA PLUG, 26mm	$0.57	2
170	HY5316770BA	WEATHERSTRIP, ROOF DITCH,CHMSL	HY5316770BA WEATHERSTRIP, ROOF DITCH,CHMSL	$10.11	2
180	703149	ねじ M6X16 六角穴付き	703149 ねじ M6X16 六角穴付き	$1.27	2
190	HY53C20290BB	MOULDING ASSEMBLY, FRONTTRIM, RH	HY53C20290BB MOULDING ASSEMBLY, FRONTTRIM, RH	$186.70	1
200	HY53C20291BB	MOULDING ASSEMBLY, FRONTTRIM, LH	HY53C20291BB MOULDING ASSEMBLY, FRONTTRIM, LH	$182.16	1
210	4G432273AA	GROMMET, 25mm	4G432273AA GROMMET, 25mm	$2.10	2
220	4G434210021	Plug, Trans Conv Drn Acc	4G434210021 Plug, Trans Conv Drn Acc	$6.67	1
230	HY53C237A04AC	WATER SHEDDER,DOOR, RH(LARGE)	HY53C237A04AC WATER SHEDDER,DOOR, RH(LARGE)	$40.74	1
240	HY53C237A05BC	WATER SHEDDER,DOOR, LH(SMALL)	HY53C237A05BC WATER SHEDDER,DOOR, LH(SMALL)	$27.15	1
250	HY53C237A05AC	WATER SHEDDER,DOOR, LH(LARGE)	HY53C237A05AC WATER SHEDDER,DOOR, LH(LARGE)	$40.74	1
260	HY53C237A04BC	WATER SHEDDER,DOOR, RH(SMALL)	HY53C237A04BC WATER SHEDDER,DOOR, RH(SMALL)	$27.15	1
270	HY53C43720AF	WEATHERSTRIP, LUGGAGECOMPARTMENT	HY53C43720AF WEATHERSTRIP, LUGGAGECOMPARTMENT	$447.93	1
280	HY5303828AD	WEATHERSTRIP ASSEMBLY,DECKLID, RH	HY5303828AD WEATHERSTRIP ASSEMBLY,DECKLID, RH Includes item 380	$253.42	1
290	HY5303829AD	WEATHERSTRIP ASSEMBLY,DECKLID, LH	HY5303829AD WEATHERSTRIP ASSEMBLY,DECKLID, LH Includes item 380	$254.45	1
300	RY5316K816AB	WEATHERSTRIP, BONNET,REAR	RY5316K816AB WEATHERSTRIP, BONNET,REAR	$88.82	1
310	RY5316C824AB	WEATHERSTRIP, BONNET	RY5316C824AB WEATHERSTRIP, BONNET	$50.33	-
320	HY5323712AA	FINISHER PANEL, DOORAPERATURE, B-PILLAR, RH	HY5323712AA FINISHER PANEL, DOORAPERATURE, B-PILLAR, RH	$26.01	1
330	HY5323713AA	FINISHER PANEL, DOORAPERATURE, B-PILLAR, LH	HY5323713AA FINISHER PANEL, DOORAPERATURE, B-PILLAR, LH	$26.01	1
340	6G43F78410AA	Sealing Pad, Al Butyl 35 x 35	6G43F78410AA Sealing Pad, Al Butyl 35 x 35	$2.91	A/R
350	HY53C47775AA	FOAM STRIP, A-PILLAR	HY53C47775AA FOAM STRIP, A-PILLAR	$3.71	4
360	HY5323020AA	SEAL, CANTRAIL	HY5323020AA SEAL, CANTRAIL	$9.79	2
370	HY5321899AA	FOAM WASHER, A-PILLAR	HY5321899AA FOAM WASHER, A-PILLAR	$3.32	22
380	6G33L02564BA	FIRTREE FIXING,4.0x0.76-5.94	6G33L02564BA FIRTREE FIXING,4.0x0.76-5.94	$0.87	6
