Instrument Panel of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

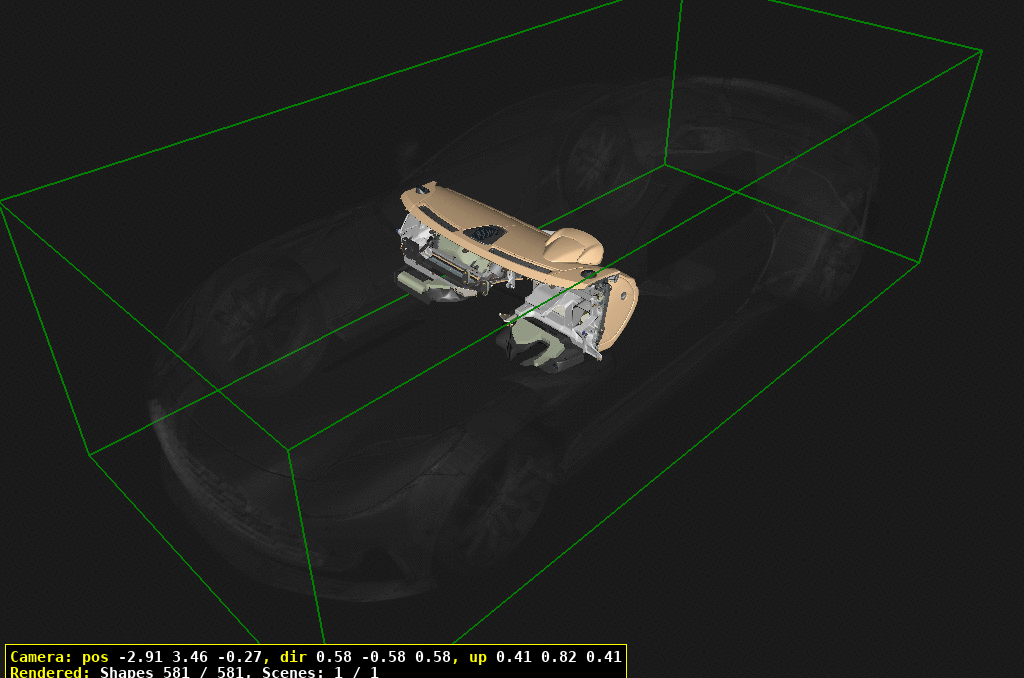

Aston Martin GT DB12 (2024- - インストルメントパネル

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	RY53-044B51-DA	CROSS-CAR BEAM ASSEMBLY	RY53-044B51-DA CROSS-CAR BEAM ASSEMBLY LHD	-	1	Enquire
21	RY63-044B51-CA	CROSS-CAR BEAM ASSEMBLY	RY63-044B51-CA CROSS-CAR BEAM ASSEMBLY RHD	-	1	Enquire
30	HY5318K587BB	BRACE, CCB PLENUM	HY5318K587BB BRACE, CCB PLENUM LHD	$62.21	1
31	HY5318K587AB	BRACE, CCB PLENUM	HY5318K587AB BRACE, CCB PLENUM RHD	$62.21	1
40	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	2
50	RY53-043D45-AA	BRACKET, HVAC UNITSUPPORT	RY53-043D45-AA BRACKET, HVAC UNITSUPPORT	-	1	Enquire
60	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	2
70	HY53044J04AB	BRACKET, DRIVER KNEEENERGY ABSORPTION	HY53044J04AB BRACKET, DRIVER KNEEENERGY ABSORPTION	$69.75	2
80	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	4
90	HY536542BB	BRACKET, DRIVER END PANEL	HY536542BB BRACKET, DRIVER END PANEL LHD	$103.22	1
91	HY536542AB	BRACKET, DRIVER END PANEL	HY536542AB BRACKET, DRIVER END PANEL RHD	$103.22	1
100	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	2
110	RY5321336AA	ブラケット	RY5321336AA ブラケット	$31.13	1
120	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	2
130	6G33E826A80DA	FLEXITOL ADJUSTER NUT, M8	6G33E826A80DA FLEXITOL ADJUSTER NUT, M8	$4.38	2
140	HY53N606544AA	BOLT, M8x55, BLACK	HY53N606544AA BOLT, M8x55, BLACK	$1.37	2
150	707126	BOLT, M8x50, HEX FLG	707126 BOLT, M8x50, HEX FLG	$0.90	4
160	703187	ボルト、M8 X 25、六角フランジヘッド	703187 ボルト、M8 X 25、六角フランジヘッド	$0.74	4
170	703195	SCREW, M6x40, HEX HEAD IN STOCK	703195 SCREW, M6x40, HEX HEAD IN STOCK	$1.08	2
180	HY53042K50BA	BRACKET, TUNNEL MOUNT,LHS	HY53042K50BA BRACKET, TUNNEL MOUNT,LHS LHD, includes item 190	$257.73	1
181	HY53042K50AA	BRACKET, TUNNEL MOUNT,RHS	HY53042K50AA BRACKET, TUNNEL MOUNT,RHS RHD, includes item 190	$277.09	1
190	6G33E826A80DA	FLEXITOL ADJUSTER NUT, M8	6G33E826A80DA FLEXITOL ADJUSTER NUT, M8	$4.38	1
200	HY53042K51BB	BRACKET, TUNNEL MOUNT,RHS	HY53042K51BB BRACKET, TUNNEL MOUNT,RHS LHD, includes item 210	$253.94	1
201	HY53042K51AB	BRACKET, TUNNEL MOUNT,LHS	HY53042K51AB BRACKET, TUNNEL MOUNT,LHS RHD, includes item 210	$277.09	1
210	6G33E826A80DA	FLEXITOL ADJUSTER NUT, M8	6G33E826A80DA FLEXITOL ADJUSTER NUT, M8	$4.38	1
220	703187	ボルト、M8 X 25、六角フランジヘッド	703187 ボルト、M8 X 25、六角フランジヘッド	$0.74	5
230	HY5318K529AB	MOUNTING PIN, HVAC toBULKHEAD	HY5318K529AB MOUNTING PIN, HVAC toBULKHEAD	$11.93	1
240	HY53C8A254AA	BLANKING PLATE, GASKET	HY53C8A254AA BLANKING PLATE, GASKET	$26.50	1
250	HY533114AB	GASKET, HVAC PIN	HY533114AB GASKET, HVAC PIN	$3.22	2
260	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	4
270	HY533F659AA	SUPPORT ADAPTOR, STEERINGCOLUMN	HY533F659AA SUPPORT ADAPTOR, STEERINGCOLUMN	$449.24	1
280	703187	ボルト、M8 X 25、六角フランジヘッド	703187 ボルト、M8 X 25、六角フランジヘッド	$0.74	3
290	HY53E826A80AA	FLEXITOL, M8	HY53E826A80AA FLEXITOL, M8	$23.84	2
300	HY5318659BA	CUP LOCATOR, PLENUM IP	HY5318659BA CUP LOCATOR, PLENUM IP	$4.90	3
400	RY5304790ACW	IP UPPER MAIN ASSEMBLY	RY5304790ACW IP UPPER MAIN ASSEMBLY LHD, Haircell	$3,671.77	1
401	RY5304790ECW	IP UPPER MAIN ASSEMBLY	RY5304790ECW IP UPPER MAIN ASSEMBLY LHD, Semi Aniline	$4,176.09	1
402	RY5304791ACW	IP UPPER MAIN ASSEMBLY	RY5304791ACW IP UPPER MAIN ASSEMBLY RHD, Haircell	$3,712.73	1
403	RY5304791ECW	IP UPPER MAIN ASSEMBLY	RY5304791ECW IP UPPER MAIN ASSEMBLY RHD, Semi Aniline	$4,219.41	1
410	HY5318C490AA	GRILLE, WINDSCREENDEFROST	HY5318C490AA GRILLE, WINDSCREENDEFROST	$104.07	2
420	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	6
430	RY534073ABA	SUPPORT, PASSENGER AIRBAG	RY534073ABA SUPPORT, PASSENGER AIRBAG LHD	$50.64	1
431	RY534073AAA	SUPPORT, PASSENGER AIRBAG	RY534073AAA SUPPORT, PASSENGER AIRBAG RHD	$50.64	1
440	7784981	フォームストリップ、ガタ防止	7784981 フォームストリップ、ガタ防止	-	3	Enquire
450	RY53-044M26-BA	SUPPORT BRACKET, UPPER,CENTRE	RY53-044M26-BA SUPPORT BRACKET, UPPER,CENTRE	-	1	Enquire
460	HY5340412AA	SCREW, 4.5x12, TORX HD	HY5340412AA SCREW, 4.5x12, TORX HD	$0.45	2
470	4G432K175AA	CLIP, EXHAUST HEATSHIELD	4G432K175AA CLIP, EXHAUST HEATSHIELD	-	4	Enquire
480	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	11
490	702514	Screw, flg, M6 x 16 torx IN STOCK	702514 Screw, flg, M6 x 16 torx IN STOCK	$2.87	2
500	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	23
530	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	2
540	HY5351PJ5BA	SCREW, M5x14, TX PAN	HY5351PJ5BA SCREW, M5x14, TX PAN	$1.38	4
600	RY5318C863AB	SPEAKER GRILLE, TWEETER,LH	RY5318C863AB SPEAKER GRILLE, TWEETER,LH Base Audio	$57.04	1
610	RY5318C862AA	SPEAKER GRILLE, TWEETER,RH	RY5318C862AA SPEAKER GRILLE, TWEETER,RH Base Audio	$57.04	1
620	RY53601B50AA	スピーカーグリル、センター	RY53601B50AA スピーカーグリル、センター Base Audio	$326.49	1
621	RY53-601B50-BA	スピーカーグリル、センター	RY53-601B50-BA スピーカーグリル、センター Premium Audio, Black	-	1	Enquire
630	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 Included with SpeakerGrille IN STOCK	$4.49	3
700	RY53-E06011-AAW	GLOVEBOX ASSEMBLY	RY53-E06011-AAW GLOVEBOX ASSEMBLY LHD, Haircell with AirbagLogo	-	1	Enquire
701	RY53E06011EAW	GLOVEBOX ASSEMBLY	RY53E06011EAW GLOVEBOX ASSEMBLY LHD, Semi Aniline withAirbag Logo	$1,838.29	1
702	RY53-E06013-AAW	GLOVEBOX ASSEMBLY	RY53-E06013-AAW GLOVEBOX ASSEMBLY LHD, Haircell withoutAirbag Logo	-	1	Enquire
703	RY53E06013EAW	GLOVEBOX ASSEMBLY	RY53E06013EAW GLOVEBOX ASSEMBLY LHD, Semi Aniline withoutAirbag Logo	$1,941.22	1
704	RY53-E06012-AAW	GLOVEBOX ASSEMBLY	RY53-E06012-AAW GLOVEBOX ASSEMBLY RHD, Haircell withoutAirbag Logo	-	1	Enquire
705	RY53E06012EAW	GLOVEBOX ASSEMBLY	RY53E06012EAW GLOVEBOX ASSEMBLY RHD, Semi Aniline withoutAirbag Logo	$1,884.26	1
706	NOTE:	See Section 19-1000, item870 for Self-PresentingHandle ECU	NOTE: See Section 19-1000, item870 for Self-PresentingHandle ECU	-	-	Enquire
710	RY5360K52BA	サポートブラケット	RY5360K52BA サポートブラケット LHD	$79.60	1
711	RY5360K52AA	サポートブラケット	RY5360K52AA サポートブラケット RHD	$79.60	1
720	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	6
730	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	1
740	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	4
750	RY53016C46BA	CLOSURE PANEL, DRIVERS	RY53016C46BA CLOSURE PANEL, DRIVERS LHD	$281.60	1
751	RY53016C46AA	CLOSURE PANEL, DRIVERS	RY53016C46AA CLOSURE PANEL, DRIVERS RHD	$281.60	1
760	RY53016C47BA	CLOSURE PANEL, PASSENGER	RY53016C47BA CLOSURE PANEL, PASSENGER LHD	$281.60	1
761	RY53016C47AA	CLOSURE PANEL, PASSENGER	RY53016C47AA CLOSURE PANEL, PASSENGER RHD	$281.60	1
762	RY53016C47CA	CLOSURE PANEL, PASSENGER	RY53016C47CA CLOSURE PANEL, PASSENGER Federal	$281.60	1
770	1R12642790AAPK	SCRIVET, 8mm DIA, PANEL,3-10mm IN STOCK	1R12642790AAPK SCRIVET, 8mm DIA, PANEL,3-10mm Pack of 5. -> VIN M15454 IN STOCK	$8.30	6
771	RY53642790AA	スクリベット	RY53642790AA スクリベット VIN M15454->	$1.10	6
780	697564	Push-on Fix	697564 Push-on Fix	$0.11	3
790	RY5360K51BA	PLATE, KNEE PROTECTOR	RY5360K51BA PLATE, KNEE PROTECTOR LHD	$110.59	1
791	RY5360K51AA	PLATE, KNEE PROTECTOR	RY5360K51AA PLATE, KNEE PROTECTOR RHD	$110.59	1
800	RY53044G70ABW	TRIM PANEL, DRIVERS SIDE,LOWER	RY53044G70ABW TRIM PANEL, DRIVERS SIDE,LOWER LHD, Haircell	$757.66	1
801	RY53044G70EBW	TRIM PANEL, DRIVERS SIDE,LOWER	RY53044G70EBW TRIM PANEL, DRIVERS SIDE,LOWER LHD, Semi Aniline	$723.70	1
802	RY53044G71ABW	TRIM PANEL, DRIVERS SIDE,LOWER	RY53044G71ABW TRIM PANEL, DRIVERS SIDE,LOWER RHD, Haircell	$757.66	1
803	RY53044G71EBW	TRIM PANEL, DRIVERS SIDE,LOWER	RY53044G71EBW TRIM PANEL, DRIVERS SIDE,LOWER RHD, Semi Aniline	$830.08	1
810	RY53-044E37-ABW	TUNNEL SIDE PANEL,PASSENGER, LOWER	RY53-044E37-ABW TUNNEL SIDE PANEL,PASSENGER, LOWER LHD, Haircell	-	1	Enquire
811	RY53044E37EBW	TUNNEL SIDE PANEL,PASSENGER, LOWER	RY53044E37EBW TUNNEL SIDE PANEL,PASSENGER, LOWER LHD, Semi Aniline	$481.34	1
812	RY53-044E39-ABW	TUNNEL SIDE PANEL,PASSENGER, LOWER	RY53-044E39-ABW TUNNEL SIDE PANEL,PASSENGER, LOWER RHD, Haircell	-	1	Enquire
813	RY53-044E39-EBW	TUNNEL SIDE PANEL,PASSENGER, LOWER	RY53-044E39-EBW TUNNEL SIDE PANEL,PASSENGER, LOWER RHD, Semi Aniline	-	1	Enquire
820	RY53-044E36-AAW	TUNNEL SIDE PANEL,DRIVER, LOWER	RY53-044E36-AAW TUNNEL SIDE PANEL,DRIVER, LOWER LHD, Haircell	-	1	Enquire
821	RY53044E36EAW	TUNNEL SIDE PANEL,DRIVER, LOWER	RY53044E36EAW TUNNEL SIDE PANEL,DRIVER, LOWER LHD, Semi Aniline	$493.40	1
822	RY53-044E38-AAW	TUNNEL SIDE PANEL,DRIVER, LOWER	RY53-044E38-AAW TUNNEL SIDE PANEL,DRIVER, LOWER RHD, Haircell	-	1	Enquire
823	RY53-044E38-EAW	TUNNEL SIDE PANEL,DRIVER, LOWER	RY53-044E38-EAW TUNNEL SIDE PANEL,DRIVER, LOWER RHD, Semi Aniline	-	1	Enquire
830	RY53-04317-AAW	END PANEL ASSEMBLY, LH	RY53-04317-AAW END PANEL ASSEMBLY, LH Haircell	-	1	Enquire
831	RY5304317EAW	END PANEL ASSEMBLY, LH	RY5304317EAW END PANEL ASSEMBLY, LH Semi Aniline	$422.10	1
832	RY53-04317-PAW	END PANEL ASSEMBLY, LH	RY53-04317-PAW END PANEL ASSEMBLY, LH PVC	-	1	Enquire
840	RY53-04316-AAW	END PANEL ASSEMBLY, RH	RY53-04316-AAW END PANEL ASSEMBLY, RH Haircell	-	1	Enquire
841	RY5304316EAW	END PANEL ASSEMBLY, RH	RY5304316EAW END PANEL ASSEMBLY, RH Semi Aniline	$422.10	1
842	RY53-04316-PAW	END PANEL ASSEMBLY, RH	RY53-04316-PAW END PANEL ASSEMBLY, RH PVC	-	1	Enquire
850	RY53-C043K93-AAW	TRIM PANEL, PASSENGERSIDE, OUTER	RY53-C043K93-AAW TRIM PANEL, PASSENGERSIDE, OUTER LHD, Haircell	-	1	Enquire
851	RY53-C043K93-EAW	TRIM PANEL, PASSENGERSIDE, OUTER	RY53-C043K93-EAW TRIM PANEL, PASSENGERSIDE, OUTER LHD, Semi Aniline	-	1	Enquire
852	RY53-C043K94-AAW	TRIM PANEL, PASSENGERSIDE, OUTER	RY53-C043K94-AAW TRIM PANEL, PASSENGERSIDE, OUTER RHD, Haircell	-	1	Enquire
853	RY53-C043K94-EAW	TRIM PANEL, PASSENGERSIDE, OUTER	RY53-C043K94-EAW TRIM PANEL, PASSENGERSIDE, OUTER RHD, Semi Aniline	-	1	Enquire
860	704619	Screw, M5 x10	704619 Screw, M5 x10	$0.84	4
870	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	6
880	702293	BOLT, M6x12, TX HD IN STOCK	702293 BOLT, M6x12, TX HD IN STOCK	$0.45	2
890	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	4
900	RY53-87-10232	VENEER, IP, Matched Set	RY53-87-10232 VENEER, IP, Matched Set LHD, Light Ash Burl	-	1	Enquire
901	RY53-87-10228	VENEER, IP, Matched Set	RY53-87-10228 VENEER, IP, Matched Set LHD, Dark Walnut	-	1	Enquire
902	RY53-87-10233	VENEER, IP, Matched Set	RY53-87-10233 VENEER, IP, Matched Set RHD, Light Ash Burl	-	1	Enquire
903	RY538710229	VENEER, IP, Matched Set	RY538710229 VENEER, IP, Matched Set RHD, Dark Walnut	$1,944.17	1
1000	RY53045J12AB	VENEER, PASSENGER SIDE	RY53045J12AB VENEER, PASSENGER SIDE LHD, Brushed Aluminium	$1,032.57	1
1001	RY53045J12BB	VENEER, PASSENGER SIDE	RY53045J12BB VENEER, PASSENGER SIDE LHD, Dark BrushedAluminium	$1,002.42	1
1002	RY53045J12CB	VENEER, PASSENGER SIDE	RY53045J12CB VENEER, PASSENGER SIDE LHD, Carbon 2x2 Twill	$2,891.10	1
1003	RY53045B12BA	フィニッシャー、助手席側	RY53045B12BA フィニッシャー、助手席側 LHD, Gloss Black	$520.58	1
1004	RY5324414ABW	TRIM PANEL, PASSENGERSIDE	RY5324414ABW TRIM PANEL, PASSENGERSIDE LHD, Haircell	$352.88	1
1005	RY5324414EBW	TRIM PANEL, PASSENGERSIDE	RY5324414EBW TRIM PANEL, PASSENGERSIDE LHD, Semi Aniline	$383.96	1
1006	RY53045J22AB	VENEER, PASSENGER SIDE	RY53045J22AB VENEER, PASSENGER SIDE RHD, Brushed Aluminium	$1,032.57	1
1007	RY53045J22BB	VENEER, PASSENGER SIDE	RY53045J22BB VENEER, PASSENGER SIDE RHD, Dark BrushedAluminium	$640.92	1
1008	RY53045J22CB	VENEER, PASSENGER SIDE	RY53045J22CB VENEER, PASSENGER SIDE RHD, Carbon 2x2 Twill	$2,891.10	1
1009	RY53045B22AA	フィニッシャー、助手席側	RY53045B22AA フィニッシャー、助手席側 RHD, Gloss Black	$180.52	1
1010	RY5324415ABW	TRIM PANEL, PASSENGERSIDE	RY5324415ABW TRIM PANEL, PASSENGERSIDE RHD, Haircell	$362.73	1
1011	RY5324415EBW	TRIM PANEL, PASSENGERSIDE	RY5324415EBW TRIM PANEL, PASSENGERSIDE RHD, Semi Aniline	$393.82	1
1020	RY53045J13AB	VENEER, DRIVERS, INNER	RY53045J13AB VENEER, DRIVERS, INNER LHD, Brushed Aluminium	$511.54	1
1021	RY53045J13BB	VENEER, DRIVERS, INNER	RY53045J13BB VENEER, DRIVERS, INNER LHD, Dark BrushedAluminium	$640.92	1
1022	RY53045J13CB	VENEER, DRIVERS, INNER	RY53045J13CB VENEER, DRIVERS, INNER LHD, Carbon 2x2 Twill	$1,169.87	1
1023	RY53045B13BA	FINISHER, DRIVERS, INNER	RY53045B13BA FINISHER, DRIVERS, INNER LHD, Gloss Black	$284.57	1
1024	RY5324416ABW	TRIM PANEL, DRIVERS,INNER	RY5324416ABW TRIM PANEL, DRIVERS,INNER LHD, Haircell	$246.88	1
1025	RY5324416EBW	TRIM PANEL, DRIVERS,INNER	RY5324416EBW TRIM PANEL, DRIVERS,INNER LHD, Semi Aniline	$267.66	1
1026	RY53045J23AB	VENEER, DRIVERS, INNER	RY53045J23AB VENEER, DRIVERS, INNER RHD, Brushed Aluminium	$640.92	1
1027	RY53045J23BB	VENEER, DRIVERS, INNER	RY53045J23BB VENEER, DRIVERS, INNER RHD, Dark BrushedAluminium	$709.72	1
1028	RY53045J23CB	VENEER, DRIVERS, INNER	RY53045J23CB VENEER, DRIVERS, INNER RHD, Carbon 2x2 Twill	$1,170.35	1
1029	RY53045B23AA	FINISHER, DRIVERS, INNER	RY53045B23AA FINISHER, DRIVERS, INNER RHD, Gloss Black	$170.23	1
1030	RY5324419ABW	TRIM PANEL, DRIVERS,INNER	RY5324419ABW TRIM PANEL, DRIVERS,INNER RHD, Haircell	$252.38	1
1031	RY5324419EBW	TRIM PANEL, DRIVERS,INNER	RY5324419EBW TRIM PANEL, DRIVERS,INNER RHD, Semi Aniline	$273.11	1
1050	RY53045J14AA	VENEER, DRIVERS, OUTER	RY53045J14AA VENEER, DRIVERS, OUTER LHD, Brushed Aluminium	$222.25	1
1051	RY53045J14BA	VENEER, DRIVERS, OUTER	RY53045J14BA VENEER, DRIVERS, OUTER LHD, Dark BrushedAluminium	$412.72	1
1052	RY53045J14CA	VENEER, DRIVERS, OUTER	RY53045J14CA VENEER, DRIVERS, OUTER LHD, Carbon 2x2 Twill	$642.17	1
1053	RY53-045B14-BA	FINISHER, DRIVERS, OUTER	RY53-045B14-BA FINISHER, DRIVERS, OUTER LHD, Gloss Black	-	1	Enquire
1054	RY5324418AAW	TRIM PANEL, DRIVERS,OUTER	RY5324418AAW TRIM PANEL, DRIVERS,OUTER LHD, Haircell	$176.51	1
1055	RY5324418EAW	TRIM PANEL, DRIVERS,OUTER	RY5324418EAW TRIM PANEL, DRIVERS,OUTER LHD, Semi Aniline	$186.93	1
1056	RY53045J24AA	VENEER, DRIVERS, OUTER	RY53045J24AA VENEER, DRIVERS, OUTER RHD, Brushed Aluminium	$507.46	1
1057	RY53045J24BA	VENEER, DRIVERS, OUTER	RY53045J24BA VENEER, DRIVERS, OUTER RHD, Dark BrushedAluminium	$507.46	1
1058	RY53045J24CA	VENEER, DRIVERS, OUTER	RY53045J24CA VENEER, DRIVERS, OUTER RHD, Carbon 2x2 Twill	$604.11	1
1059	RY53-045B24-BA	FINISHER, DRIVERS, OUTER	RY53-045B24-BA FINISHER, DRIVERS, OUTER RHD, Gloss Black	-	1	Enquire
1060	RY5324417AAW	TRIM PANEL, DRIVERS,OUTER	RY5324417AAW TRIM PANEL, DRIVERS,OUTER RHD, Haircell	$180.72	1
1061	RY5324417EAW	TRIM PANEL, DRIVERS,OUTER	RY5324417EAW TRIM PANEL, DRIVERS,OUTER RHD, Semi Aniline	$191.15	1
1100	MY83045L95AA	ダンパー、グローブボックス	MY83045L95AA ダンパー、グローブボックス	$28.49	1
1110	MY8319C770AA	PIN, GLOVEBOX DAMPER	MY8319C770AA PIN, GLOVEBOX DAMPER	$3.22	1
1120	MY838C813BA	バンプストップ	MY838C813BA バンプストップ	$4.92	2
1130	MY838C813AA	CUSHION, GLOVEBOX	MY838C813AA CUSHION, GLOVEBOX	$12.00	2
1140	MY83060B66AA	LATCH ASSEMBLY	MY83060B66AA LATCH ASSEMBLY	$105.83	1
1150	701171	SCREW, M4x16	701171 SCREW, M4x16	$0.14	3
1230	RY5324406AAW	TRIM PANEL, CENTRE STACK,UPPER, DRIVERS	RY5324406AAW TRIM PANEL, CENTRE STACK,UPPER, DRIVERS LHD, Haircell	$268.99	1
1231	RY5324406EAW	TRIM PANEL, CENTRE STACK,UPPER, DRIVERS	RY5324406EAW TRIM PANEL, CENTRE STACK,UPPER, DRIVERS LHD, Semi Aniline	$277.06	1
1232	RY5324409AAW	TRIM PANEL, CENTRE STACK,UPPER, DRIVERS	RY5324409AAW TRIM PANEL, CENTRE STACK,UPPER, DRIVERS RHD, Haircell	$232.87	1
1233	RY5324409EAW	TRIM PANEL, CENTRE STACK,UPPER, DRIVERS	RY5324409EAW TRIM PANEL, CENTRE STACK,UPPER, DRIVERS RHD, Semi Aniline	$209.33	1
1240	RY53C04634AAW	TRIM PANEL, CENTRE STACK,LOWER, DRIVERS	RY53C04634AAW TRIM PANEL, CENTRE STACK,LOWER, DRIVERS LHD, Haircell	$441.19	1
1241	RY53C04634EAW	TRIM PANEL, CENTRE STACK,LOWER, DRIVERS	RY53C04634EAW TRIM PANEL, CENTRE STACK,LOWER, DRIVERS LHD, Semi Aniline	$454.42	1
1242	RY53C04635AAW	TRIM PANEL, CENTRE STACK,LOWER, DRIVERS	RY53C04635AAW TRIM PANEL, CENTRE STACK,LOWER, DRIVERS RHD, Haircell	$252.38	1
1243	RY53C04635EAW	TRIM PANEL, CENTRE STACK,LOWER, DRIVERS	RY53C04635EAW TRIM PANEL, CENTRE STACK,LOWER, DRIVERS RHD, Semi Aniline	$273.11	1
1250	RY5324404AAW	TRIM PANEL, CENTRE STACK,UPPER, PASSENGER	RY5324404AAW TRIM PANEL, CENTRE STACK,UPPER, PASSENGER LHD, Haircell	$515.26	1
1251	RY5324404EAW	TRIM PANEL, CENTRE STACK,UPPER, PASSENGER	RY5324404EAW TRIM PANEL, CENTRE STACK,UPPER, PASSENGER LHD, Semi Aniline	$530.73	1
1252	RY5324405AAW	TRIM PANEL, CENTRE STACK,UPPER, PASSENGER	RY5324405AAW TRIM PANEL, CENTRE STACK,UPPER, PASSENGER RHD, Haircell	$274.83	1
1253	RY5324405EAW	TRIM PANEL, CENTRE STACK,UPPER, PASSENGER	RY5324405EAW TRIM PANEL, CENTRE STACK,UPPER, PASSENGER RHD, Semi Aniline	$298.97	1
1260	RY53C04636ABW	TRIM PANEL, CENTRE STACK,LOWER, PASSENGER	RY53C04636ABW TRIM PANEL, CENTRE STACK,LOWER, PASSENGER LHD, Haircell	$495.66	1
1261	RY53C04636EBW	TRIM PANEL, CENTRE STACK,LOWER, PASSENGER	RY53C04636EBW TRIM PANEL, CENTRE STACK,LOWER, PASSENGER LHD, Semi Aniline	$386.57	1
1262	RY53C04637ABW	TRIM PANEL, CENTRE STACK,LOWER, PASSENGER	RY53C04637ABW TRIM PANEL, CENTRE STACK,LOWER, PASSENGER RHD, Haircell	$362.73	1
1263	RY53C04637EBW	TRIM PANEL, CENTRE STACK,LOWER, PASSENGER	RY53C04637EBW TRIM PANEL, CENTRE STACK,LOWER, PASSENGER RHD, Semi Aniline	$396.43	1
1270	RY5324408AAW	TRIM PANEL, DRIVERS SIDE,UPPER	RY5324408AAW TRIM PANEL, DRIVERS SIDE,UPPER LHD, Haircell	$155.05	1
1271	RY5324408EAW	TRIM PANEL, DRIVERS SIDE,UPPER	RY5324408EAW TRIM PANEL, DRIVERS SIDE,UPPER LHD, Semi Aniline	$159.68	1
1272	RY5324407AAW	TRIM PANEL, DRIVERS SIDE,UPPER	RY5324407AAW TRIM PANEL, DRIVERS SIDE,UPPER RHD, Haircell	$141.72	1
1273	RY5324407EAW	TRIM PANEL, DRIVERS SIDE,UPPER	RY5324407EAW TRIM PANEL, DRIVERS SIDE,UPPER LHD, Semi Aniline	$155.62	1
1280	RY53C04632ABW	TRIM PANEL, DRIVERS SIDE,LOWER	RY53C04632ABW TRIM PANEL, DRIVERS SIDE,LOWER LHD, Haircell	$176.51	1
1281	RY53C04632EBW	TRIM PANEL, DRIVERS SIDE,LOWER	RY53C04632EBW TRIM PANEL, DRIVERS SIDE,LOWER LHD, Semi Aniline	$186.86	1
1282	RY53C04633ABW	TRIM PANEL, DRIVERS SIDE,LOWER	RY53C04633ABW TRIM PANEL, DRIVERS SIDE,LOWER RHD, Haircell	$180.72	1
1283	RY53C04633EBW	TRIM PANEL, DRIVERS SIDE,LOWER	RY53C04633EBW TRIM PANEL, DRIVERS SIDE,LOWER RHD, Semi Aniline	$191.08	1
1290	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	16
1300	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	2
1310	JY5362552BA	サポートブラケット	JY5362552BA サポートブラケット LHD	$70.69	1
1311	JY5362552AA	サポートブラケット	JY5362552AA サポートブラケット RHD	$70.69	1
1320	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
1330	RY5319E711AA	GASKET, SIDE WINDOWDE-MIST, LH	RY5319E711AA GASKET, SIDE WINDOWDE-MIST, LH	$35.75	1
1340	RY5319E710AA	GASKET, SIDE WINDOWDE-MIST, RH	RY5319E710AA GASKET, SIDE WINDOWDE-MIST, RH	$35.75	1
1350	RY53C046A26AB	スピーカーグリル、センター	RY53C046A26AB スピーカーグリル、センター Halo Audio	$3,993.01	1
1360	RY53C046A33AA	SPEAKER GRILLE, TWEETER,LH	RY53C046A33AA SPEAKER GRILLE, TWEETER,LH Halo Audio	$166.45	1
1370	RY53C046A32AA	SPEAKER GRILLE, TWEETER,RH	RY53C046A32AA SPEAKER GRILLE, TWEETER,RH Halo Audio	$166.45	1
1400	RY535602AB	AIR REGISTER, DRIVERS	RY535602AB AIR REGISTER, DRIVERS LHD, Satin Chrome,includes item 1460	$495.75	1
1401	RY535602BB	AIR REGISTER, DRIVERS	RY535602BB AIR REGISTER, DRIVERS LHD, Dark Chrome,includes item 1461	$637.92	1
1402	RY535603AB	AIR REGISTER, DRIVERS	RY535603AB AIR REGISTER, DRIVERS RHD, Satin Chrome,includes item 1462	$495.75	1
1403	RY535603BB	AIR REGISTER, DRIVERS	RY535603BB AIR REGISTER, DRIVERS RHD, Dark Chrome,includes item 1463	$622.36	1
1410	RY5311786AB	AIR REGISTER ASSEMBLY	RY5311786AB AIR REGISTER ASSEMBLY LHD, Satin Chrome,includes items 1420,1440, 1450 & 1470	$1,531.68	1
1411	RY5311786BB	AIR REGISTER ASSEMBLY	RY5311786BB AIR REGISTER ASSEMBLY LHD, Dark Chrome,includes items 1420,1441, 1451 & 1471	$1,726.82	1
1412	RY5311787AB	AIR REGISTER ASSEMBLY	RY5311787AB AIR REGISTER ASSEMBLY RHD, Satin Chrome,includes items 1420,1440, 1450 & 1472	$1,531.68	1
1413	RY5311787BB	AIR REGISTER ASSEMBLY	RY5311787BB AIR REGISTER ASSEMBLY RHD, Dark Chrome,includes items 1420,1441, 1451 & 1473	$1,726.82	1
1420	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 IN STOCK	$4.49	4
1430	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	10
1440	RY53046B32AA	AIR REGISTER, CENTRE, RH	RY53046B32AA AIR REGISTER, CENTRE, RH Satin Chrome	$383.69	1
1441	RY53046B32BA	AIR REGISTER, CENTRE, RH	RY53046B32BA AIR REGISTER, CENTRE, RH Dark Chrome	$506.71	1
1450	RY53046B33AA	AIR REGISTER, CENTRE, LH	RY53046B33AA AIR REGISTER, CENTRE, LH Satin Chrome	$383.69	1
1451	RY53046B33BA	AIR REGISTER, CENTRE, LH	RY53046B33BA AIR REGISTER, CENTRE, LH Dark Chrome	$494.35	1
1460	RY53046B31AA	AIR REGISTER, DRIVERS	RY53046B31AA AIR REGISTER, DRIVERS LHD, Satin Chrome	$370.60	1
1461	RY53046B31BA	AIR REGISTER, DRIVERS	RY53046B31BA AIR REGISTER, DRIVERS LHD, Dark Chrome	$502.56	1
1462	RY53046B34AA	AIR REGISTER, DRIVERS	RY53046B34AA AIR REGISTER, DRIVERS RHD, Satin Chrome	$379.85	1
1463	RY53046B34BA	AIR REGISTER, DRIVERS	RY53046B34BA AIR REGISTER, DRIVERS RHD, Dark Chrome	$502.76	1
1470	RY53046B30AA	AIR REGISTER, PASSENGER	RY53046B30AA AIR REGISTER, PASSENGER LHD, Satin Chrome	$370.60	1
1471	RY53046B30BA	AIR REGISTER, PASSENGER	RY53046B30BA AIR REGISTER, PASSENGER LHD, Dark Chrome	$502.56	1
1472	RY53046B35AA	AIR REGISTER, PASSENGER	RY53046B35AA AIR REGISTER, PASSENGER RHD, Satin Chrome	$379.85	1
1473	RY53046B35BA	AIR REGISTER, PASSENGER	RY53046B35BA AIR REGISTER, PASSENGER RHD, Dark Chrome	$502.76	1
1500	RY53C04606BA	OUTER HOUSING ASSEMBLY	RY53C04606BA OUTER HOUSING ASSEMBLY	$378.18	1
1510	RY53-C04506-AAW	BEZEL ASSEMBLY, LOWER	RY53-C04506-AAW BEZEL ASSEMBLY, LOWER Haircell	-	1	Enquire
1511	RY53-C04506-EAW	BEZEL ASSEMBLY, LOWER	RY53-C04506-EAW BEZEL ASSEMBLY, LOWER Semi Aniline	-	1	Enquire
1520	RY53-045A02-AAW	INSTRUMENT CLUSTER HOOD,UPPER	RY53-045A02-AAW INSTRUMENT CLUSTER HOOD,UPPER Haircell	-	1	Enquire
1521	RY53045A02EAW	INSTRUMENT CLUSTER HOOD,UPPER	RY53045A02EAW INSTRUMENT CLUSTER HOOD,UPPER Semi Aniline	$940.52	1
1530	RY53-045A03-AAW	INSTRUMENT CLUSTER HOOD,LOWER	RY53-045A03-AAW INSTRUMENT CLUSTER HOOD,LOWER Haircell	-	1	Enquire
1531	RY53045A03EAW	INSTRUMENT CLUSTER HOOD,LOWER	RY53045A03EAW INSTRUMENT CLUSTER HOOD,LOWER Semi Aniline	$940.52	1
1540	RY53C04605AA	BEZEL ASSEMBLY, UPPER	RY53C04605AA BEZEL ASSEMBLY, UPPER	$88.83	1
1550	701445	SCREW, 4x8, PAN HD	701445 SCREW, 4x8, PAN HD	$0.25	2
1560	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	12
1570	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	4
