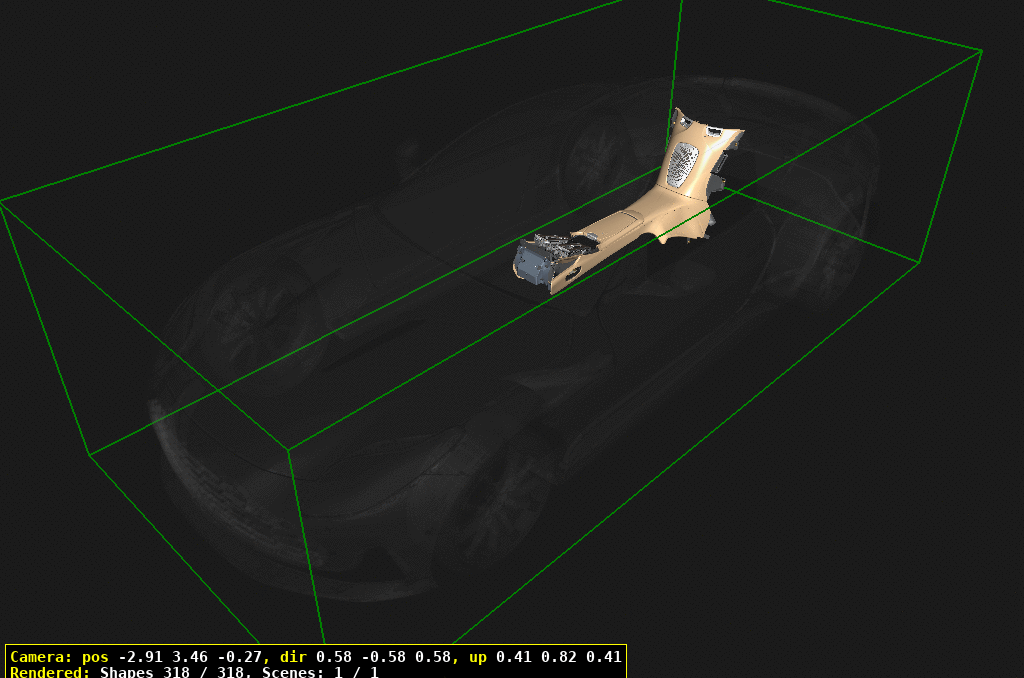

Aston Martin GT DB12 (2024- - センター・コンソール

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	RY53045C31AAW	SIDE PANEL ASSEMBLY,CONSOLE, LH	RY53045C31AAW SIDE PANEL ASSEMBLY,CONSOLE, LH Haircell	$392.30	1
21	RY53045C31EAW	SIDE PANEL ASSEMBLY,CONSOLE, LH	RY53045C31EAW SIDE PANEL ASSEMBLY,CONSOLE, LH Semi Aniline	$679.25	1
30	RY53045C30AAW	SIDE PANEL ASSEMBLY,CONSOLE, RH	RY53045C30AAW SIDE PANEL ASSEMBLY,CONSOLE, RH Haircell	$402.10	1
31	RY53045C30EAW	SIDE PANEL ASSEMBLY,CONSOLE, RH	RY53045C30EAW SIDE PANEL ASSEMBLY,CONSOLE, RH Semi Aniline	$679.25	1
40	RY53-044L81-ABW	TRIM PANEL ASSEMBLY, LH	RY53-044L81-ABW TRIM PANEL ASSEMBLY, LH Haircell. Includes item410	-	1	Enquire
41	RY53044L81EBW	TRIM PANEL ASSEMBLY, LH	RY53044L81EBW TRIM PANEL ASSEMBLY, LH Semi Aniline. Includesitem 410	$257.82	1
50	RY53044L80ABW	TRIM PANEL ASSEMBLY, RH	RY53044L80ABW TRIM PANEL ASSEMBLY, RH Haircell. Includes item410	$360.82	1
51	RY53044L80EBW	TRIM PANEL ASSEMBLY, RH	RY53044L80EBW TRIM PANEL ASSEMBLY, RH Semi Aniline. Includesitem 410	$257.82	1
60	RY53045E24AAW	INSERT ASSEMBLY, REARCONSOLE	RY53045E24AAW INSERT ASSEMBLY, REARCONSOLE Haircell	$153.90	1
61	RY53045E24EAW	INSERT ASSEMBLY, REARCONSOLE	RY53045E24EAW INSERT ASSEMBLY, REARCONSOLE Semi Aniline	$153.90	1
70	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	6
80	RY53045M880AA	MAT, STOWAGE COMPARTMENT	RY53045M880AA MAT, STOWAGE COMPARTMENT	$57.50	1
90	RY5313560AC	CONSOLE CUP HOLDERASSEMBLY	RY5313560AC CONSOLE CUP HOLDERASSEMBLY Satin Chrome	$469.56	1
91	RY5313560BC	CONSOLE CUP HOLDERASSEMBLY	RY5313560BC CONSOLE CUP HOLDERASSEMBLY Dark Chrome	$482.15	1
100	RY53045C74ADW	CONSOLE STOWAGE ASSEMBLY	RY53045C74ADW CONSOLE STOWAGE ASSEMBLY Haircell, Satin Chrome	$1,178.58	1
101	RY53-045C74-BDW	CONSOLE STOWAGE ASSEMBLY	RY53-045C74-BDW CONSOLE STOWAGE ASSEMBLY Haircell, Dark Chrome	-	1	Enquire
102	RY53045C74EDW	CONSOLE STOWAGE ASSEMBLY	RY53045C74EDW CONSOLE STOWAGE ASSEMBLY Semi Aniline, SatinChrome	$1,555.52	1
103	RY53045C74FDW	CONSOLE STOWAGE ASSEMBLY	RY53045C74FDW CONSOLE STOWAGE ASSEMBLY Semi Aniline, Dark Chrome	$1,555.46	1
110	PY83SE040K60AA	カップホルダー	PY83SE040K60AA カップホルダー	$271.18	1
120	PY83SE040K60BA	MAT, CUP HOLDER	PY83SE040K60BA MAT, CUP HOLDER	$84.79	1
130	RY53044K14AC	FINISHER, CUP HOLDER	RY53044K14AC FINISHER, CUP HOLDER Gloss Black	$104.66	1
140	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	6
150	RY5304558AA	サポートブラケット	RY5304558AA サポートブラケット	$88.87	1
170	RY53045R19AAW	FINISHER ASSEMBLY, FRONT,TRIMMED	RY53045R19AAW FINISHER ASSEMBLY, FRONT,TRIMMED Haircell	$178.56	1
171	RY53045R19EAW	FINISHER ASSEMBLY, FRONT,TRIMMED	RY53045R19EAW FINISHER ASSEMBLY, FRONT,TRIMMED Semi Aniline	$194.98	1
172	RY53045R19PAW	FINISHER ASSEMBLY, FRONT,TRIMMED	RY53045R19PAW FINISHER ASSEMBLY, FRONT,TRIMMED PVC	$119.05	1
180	RY5306306AA	MAT, WMI	RY5306306AA MAT, WMI	$16.24	1
190	RY53-042A05-AAW	SUPPORT ASSEMBLY, CENTRESTACK	RY53-042A05-AAW SUPPORT ASSEMBLY, CENTRESTACK Haircell	-	1	Enquire
191	RY53-042A05-EAW	SUPPORT ASSEMBLY, CENTRESTACK	RY53-042A05-EAW SUPPORT ASSEMBLY, CENTRESTACK Semi Aniline	-	1	Enquire
192	RY53-042A05-PAW	SUPPORT ASSEMBLY, CENTRESTACK	RY53-042A05-PAW SUPPORT ASSEMBLY, CENTRESTACK PVC	-	1	Enquire
200	RY5304493AA	SWITCH SURROUND, LH	RY5304493AA SWITCH SURROUND, LH	$53.80	1
210	RY5304492BA	SWITCH SURROUND, RH	RY5304492BA SWITCH SURROUND, RH	$237.77	1
220	RY53045J42AAW	COVER ASSEMBLY, LOWER	RY53045J42AAW COVER ASSEMBLY, LOWER Haircell	$297.82	1
221	RY53045J42EAW	COVER ASSEMBLY, LOWER	RY53045J42EAW COVER ASSEMBLY, LOWER Semi Aniline	$338.78	1
222	RY53045J42PAW	COVER ASSEMBLY, LOWER	RY53045J42PAW COVER ASSEMBLY, LOWER PVC	$142.45	1
230	RY5304490AA	SWITCH SUPPORT MOULDING	RY5304490AA SWITCH SUPPORT MOULDING	$68.86	1
240	6G33104101BA	SCREW, M4x9, THREADFORMING IN STOCK	6G33104101BA SCREW, M4x9, THREADFORMING IN STOCK	$0.86	4
250	708131	BOLT, M6x45, PAN HD	708131 BOLT, M6x45, PAN HD	$4.62	2
260	707623	SCREW/WASHER, M6x16 IN STOCK	707623 SCREW/WASHER, M6x16 IN STOCK	$1.04	2
270	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	6
280	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 IN STOCK	$4.49	8
290	HY53E865224AA	TRIM FASTERNER, 15x5.4	HY53E865224AA TRIM FASTERNER, 15x5.4	$1.37	4
300	701445	SCREW, 4x8, PAN HD	701445 SCREW, 4x8, PAN HD	$0.25	16
310	RY538710230	VENEER, Matched Pair	RY538710230 VENEER, Matched Pair Dark Walnut	$864.46	1
311	RY538710234	VENEER, Matched Pair	RY538710234 VENEER, Matched Pair Light Ash Burl	$888.48	1
320	RY53045J11AA	VENEER, LH	RY53045J11AA VENEER, LH Brushed Aluminium	$487.51	1
321	RY53045J11BA	VENEER, LH	RY53045J11BA VENEER, LH Dark Brushed Aluminium	$487.54	1
322	RY53045J11CA	VENEER, LH	RY53045J11CA VENEER, LH Carbon 2x2 Twill	$840.30	1
323	RY53045B11AA	フィニッシャー、左サイド	RY53045B11AA フィニッシャー、左サイド Gloss Black	$110.12	1
330	RY53045J10AA	VENEER, RH	RY53045J10AA VENEER, RH Brushed Aluminium	$487.51	1
331	RY53045J10BA	VENEER, RH	RY53045J10BA VENEER, RH Dark Brushed Aluminium	$487.54	1
332	RY53045J10CA	VENEER, RH	RY53045J10CA VENEER, RH Carbon 2x2 Twill	$840.30	1
333	RY53045B10AA	フィニッシャー、右側	RY53045B10AA フィニッシャー、右側 Gloss Black	$104.30	1
340	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK	$0.50	6
350	703144	BOLT, M6x45, PAN IN STOCK	703144 BOLT, M6x45, PAN IN STOCK	$3.13	4
360	RY5313523AA	ブラケット、取り付け	RY5313523AA ブラケット、取り付け	$51.09	1
370	RY5313522AA	BRACKET, STOWAGE MOUNT	RY5313522AA BRACKET, STOWAGE MOUNT	$170.87	1
380	7784981	フォームストリップ、ガタ防止	7784981 フォームストリップ、ガタ防止	-	2	Enquire
390	707165	TRIM FASTENER, 8.6x8x16	707165 TRIM FASTENER, 8.6x8x16	$2.51	4
400	RY5311N653AA	BLANKING PANEL	RY5311N653AA BLANKING PANEL	$101.19	1
410	RY53FTB159AA	FIRTREE, DOUBLE-ENDED,4.0x7.8	RY53FTB159AA FIRTREE, DOUBLE-ENDED,4.0x7.8	$4.54	2
600	RY53045A12AAW	CONSOLE ASSEMBLY, REAR,LOWER	RY53045A12AAW CONSOLE ASSEMBLY, REAR,LOWER Haircell	$461.21	1
601	RY53045A12EBW	CONSOLE ASSEMBLY, REAR,LOWER	RY53045A12EBW CONSOLE ASSEMBLY, REAR,LOWER Semi Aniline	$3,331.39	1
610	AD43C519A40AA	MACHINE SCREW, M5x13, PAN IN STOCK	AD43C519A40AA MACHINE SCREW, M5x13, PAN IN STOCK	$0.79	2
620	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	6
630	RY53600E87AAW	CONSOLE ASSEMBLY, REAR,UPPER	RY53600E87AAW CONSOLE ASSEMBLY, REAR,UPPER Coupe, Haircell, HaloAudio	$2,305.58	1
631	RY53-674A32-AAW	CONSOLE ASSEMBLY, REAR,UPPER	RY53-674A32-AAW CONSOLE ASSEMBLY, REAR,UPPER Coupe, Haircell, BaseAudio	-	1	Enquire
632	RY53-600E87-EAW	CONSOLE ASSEMBLY, REAR,UPPER	RY53-600E87-EAW CONSOLE ASSEMBLY, REAR,UPPER Coupe, Semi Aniline, HaloAudio	-	1	Enquire
633	RY53674A32EAW	CONSOLE ASSEMBLY, REAR,UPPER	RY53674A32EAW CONSOLE ASSEMBLY, REAR,UPPER Coupe, Semi Aniline, BaseAudio	$855.01	1
640	RY53-L600E87-AAW	CONSOLE ASSEMBLY, REAR,UPPER	RY53-L600E87-AAW CONSOLE ASSEMBLY, REAR,UPPER Volante, Haircell, HaloAudio	-	1	Enquire
641	RY53-L674A32-AAW	CONSOLE ASSEMBLY, REAR,UPPER	RY53-L674A32-AAW CONSOLE ASSEMBLY, REAR,UPPER Volante, Haircell, BaseAudio	-	1	Enquire
642	RY53-L600E87-EAW	CONSOLE ASSEMBLY, REAR,UPPER	RY53-L600E87-EAW CONSOLE ASSEMBLY, REAR,UPPER Volante, Semi Aniline,Halo Audio	-	1	Enquire
643	RY53-L674A32-EAW	CONSOLE ASSEMBLY, REAR,UPPER	RY53-L674A32-EAW CONSOLE ASSEMBLY, REAR,UPPER Volante, Semi Aniline,Base Audio	-	1	Enquire
650	RY5367480AAW	SPEAKER GRILLE, Non-Audio	RY5367480AAW SPEAKER GRILLE, Non-Audio Chrome	$937.47	1
651	RY53-67480-BAW	SPEAKER GRILLE, Non-Audio	RY53-67480-BAW SPEAKER GRILLE, Non-Audio Gloss Black	-	1	Enquire
660	RY5318C857AA	SPEAKER GRILL, SUBWOOFER	RY5318C857AA SPEAKER GRILL, SUBWOOFER Silver	$230.21	1
661	RY5318C857BA	SPEAKER GRILL, SUBWOOFER	RY5318C857BA SPEAKER GRILL, SUBWOOFER Dark Chrome	$883.04	1
670	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar IN STOCK	$0.56	4
680	HY53611B90FA	BEZEL, SEATBELT, REAR	HY53611B90FA BEZEL, SEATBELT, REAR Satin Silver	$144.92	2
681	HY53611B90GA	BEZEL, SEATBELT, REAR	HY53611B90GA BEZEL, SEATBELT, REAR Dark Chrome	$228.61	2
690	703076	Screw, M4 x 20 csk skt	703076 Screw, M4 x 20 csk skt	$0.20	4
700	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	4
