Occupant Restraining Device - Coupe of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

Aston Martin GT DB12 (2024- - Occupant Restraining Device - Coupe

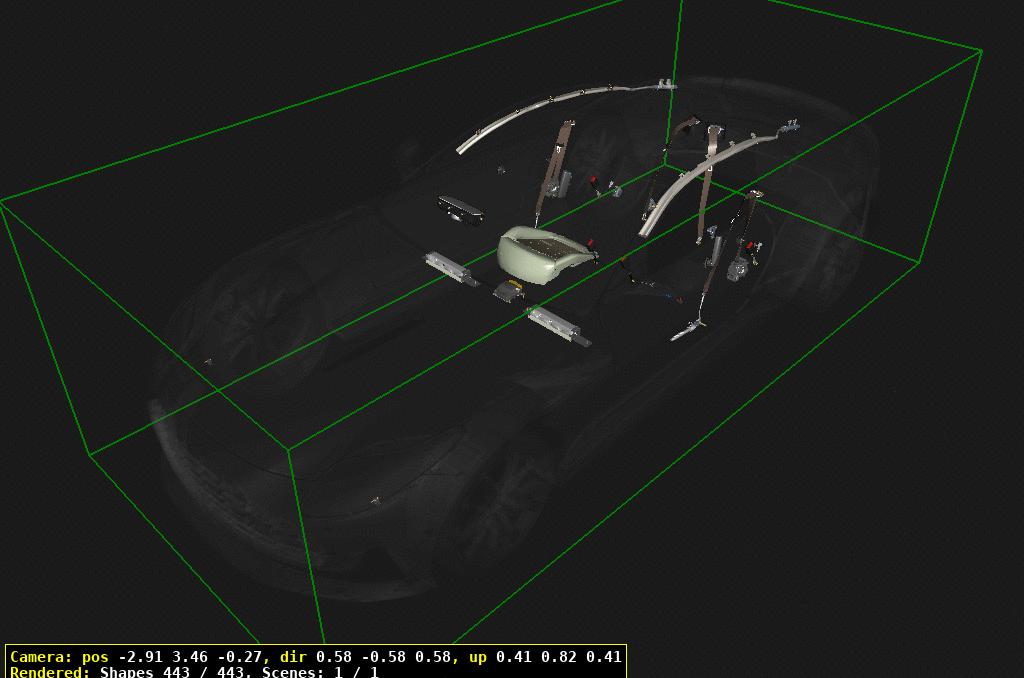

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	HY53611B70AFW	SEATBELT, DRIVERS, LHD	HY53611B70AFW SEATBELT, DRIVERS, LHD Black	$1,103.07	1
21	HY53611B70CFW	SEATBELT, DRIVERS, LHD	HY53611B70CFW SEATBELT, DRIVERS, LHD Ivory	$1,102.07	1
22	HY53611B70DFW	SEATBELT, DRIVERS, LHD	HY53611B70DFW SEATBELT, DRIVERS, LHD Red	$1,102.70	1
23	HY53611B70EEW	SEATBELT, DRIVERS, LHD	HY53611B70EEW SEATBELT, DRIVERS, LHD Mocha	$1,102.43	1
24	HY53611B70FFW	SEATBELT, DRIVERS, LHD	HY53611B70FFW SEATBELT, DRIVERS, LHD Graphite	$1,102.98	1
25	HY53611B70GFW	SEATBELT, DRIVERS, LHD	HY53611B70GFW SEATBELT, DRIVERS, LHD Tan	$545.05	1
26	HY53611B69AFW	SEATBELT, PASSENGER, RHD	HY53611B69AFW SEATBELT, PASSENGER, RHD Black	$1,102.07	1
27	HY53611B69CDW	SEATBELT, PASSENGER, RHD	HY53611B69CDW SEATBELT, PASSENGER, RHD Ivory	$1,101.95	1
28	HY53611B69DDW	SEATBELT, PASSENGER, RHD	HY53611B69DDW SEATBELT, PASSENGER, RHD Red	$1,101.95	1
29	HY53611B69EDW	SEATBELT, PASSENGER, RHD	HY53611B69EDW SEATBELT, PASSENGER, RHD Mocha	$1,101.95	1
30	HY53611B69FDW	SEATBELT, PASSENGER, RHD	HY53611B69FDW SEATBELT, PASSENGER, RHD Graphite	$1,075.06	1
31	HY53-611B69-GFW	SEATBELT, PASSENGER, RHD	HY53-611B69-GFW SEATBELT, PASSENGER, RHD Tan	-	1	Enquire
40	HY53611B68AFW	SEATBELT, PASSENGER, LHD	HY53611B68AFW SEATBELT, PASSENGER, LHD Black	$1,101.95	1
41	HY53611B68CDW	SEATBELT, PASSENGER, LHD	HY53611B68CDW SEATBELT, PASSENGER, LHD Ivory	$1,101.95	1
42	HY53611B68DFW	SEATBELT, PASSENGER, LHD	HY53611B68DFW SEATBELT, PASSENGER, LHD Red	$1,102.70	1
43	HY53611B68EEW	SEATBELT, PASSENGER, LHD	HY53611B68EEW SEATBELT, PASSENGER, LHD Mocha	$1,102.45	1
44	HY53611B68FEW	SEATBELT, PASSENGER, LHD	HY53611B68FEW SEATBELT, PASSENGER, LHD Graphite	$1,101.97	1
45	HY53611B68GFW	SEATBELT, PASSENGER, LHD	HY53611B68GFW SEATBELT, PASSENGER, LHD Tan	$959.89	1
46	HY53611B71AFW	SEATBELT, DRIVERS, RHD	HY53611B71AFW SEATBELT, DRIVERS, RHD Black	$1,101.97	1
47	HY53611B71CDW	SEATBELT, DRIVERS, RHD	HY53611B71CDW SEATBELT, DRIVERS, RHD Ivory	$1,101.95	1
48	HY53611B71DFW	SEATBELT, DRIVERS, RHD	HY53611B71DFW SEATBELT, DRIVERS, RHD Red	$759.42	1
49	HY53611B71EEW	SEATBELT, DRIVERS, RHD	HY53611B71EEW SEATBELT, DRIVERS, RHD Mocha	$1,101.95	1
50	HY53611B71FDW	SEATBELT, DRIVERS, RHD	HY53611B71FDW SEATBELT, DRIVERS, RHD Graphite	$1,101.95	1
51	HY53-611B71-GFW	SEATBELT, DRIVERS, RHD	HY53-611B71-GFW SEATBELT, DRIVERS, RHD Tan	-	1	Enquire
60	HY53610E54AF	BUCKLE, SEATBELT	HY53610E54AF BUCKLE, SEATBELT	$102.91	2
70	HY5324858AA	D LOOP ASSEMBLY, SEATBELT	HY5324858AA D LOOP ASSEMBLY, SEATBELT	$45.84	2
80	703121	SCREW, M8x2,0 HEX FLG	703121 SCREW, M8x2,0 HEX FLG	$0.48	4
90	HY53100179AA	BOLT, 7/16" x 22mm x 13AF	HY53100179AA BOLT, 7/16" x 22mm x 13AF	$5.99	2
100	HY53100179BB	BOLT, 7/16" x 58mm x 13AF	HY53100179BB BOLT, 7/16" x 58mm x 13AF	$11.11	2
110	HY53373230AA	SPACER, SILL PRETENSIONER	HY53373230AA SPACER, SILL PRETENSIONER	$5.72	2
150	HY53611B74ACW	SEATBELT, REAR	HY53611B74ACW SEATBELT, REAR Black	$160.55	2
151	HY53611B74CCW	SEATBELT, REAR	HY53611B74CCW SEATBELT, REAR Ivory	$1,101.97	2
152	HY53611B74DCW	SEATBELT, REAR	HY53611B74DCW SEATBELT, REAR Red	$1,101.97	2
153	HY53611B74EBW	SEATBELT, REAR	HY53611B74EBW SEATBELT, REAR Mocha	$1,101.95	2
154	HY53611B74FBW	SEATBELT, REAR	HY53611B74FBW SEATBELT, REAR Graphite	$1,101.95	2
155	HY53611B74GCW	SEATBELT, REAR	HY53611B74GCW SEATBELT, REAR Tan	$944.75	2
160	NY53613K21AB	BUCKLE, SEATBELT	NY53613K21AB BUCKLE, SEATBELT With Seatbelt Reminder	$87.09	2
180	HY53100179AA	BOLT, 7/16" x 22mm x 13AF	HY53100179AA BOLT, 7/16" x 22mm x 13AF	$5.99	6
190	HY537090AA	NVH, REAR SEATBELT	HY537090AA NVH, REAR SEATBELT	$20.57	2
200	HY53044H31AF	AIRBAG ASSEMBLY,PASSENGER	HY53044H31AF AIRBAG ASSEMBLY,PASSENGER	$832.68	1
220	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic	$0.78	4
230	FD33611D10AE	エアバッグ、サイド、左側	FD33611D10AE エアバッグ、サイド、左側	$348.71	1
231	HY538990BD	CHUTE, AIRBAG, LH	HY538990BD CHUTE, AIRBAG, LH Not Illustrated	$17.78	1
240	HY53611D11AB	エアバッグ、サイド、右側	HY53611D11AB エアバッグ、サイド、右側	$377.28	1
241	HY538990AD	CHUTE, AIRBAG, LH	HY538990AD CHUTE, AIRBAG, LH Not Illustrated	$17.78	1
250	HY53A14K159AD	MODULE ASSEMBLY, SIDECURTAIN, LH	HY53A14K159AD MODULE ASSEMBLY, SIDECURTAIN, LH	$782.30	1
260	HY53A14K158AD	MODULE ASSEMBLY, SIDECURTAIN, RH	HY53A14K158AD MODULE ASSEMBLY, SIDECURTAIN, RH	$782.30	1
270	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic	$0.78	4
280	702839PK	Screw and Washer M6x20 Hex	702839PK Screw and Washer M6x20 Hex Pack of 10	$6.81	10
290	HY535147AJ	INFLATABLE KNEE BOLSTER	HY535147AJ INFLATABLE KNEE BOLSTER LH, LHD, RoW	$571.61	1
291	HY535147AJ	INFLATABLE KNEE BOLSTER	HY535147AJ INFLATABLE KNEE BOLSTER LH and RH, LHD, Federal	$571.61	2
300	HY535148AJ	INFLATABLE KNEE BOLSTER	HY535148AJ INFLATABLE KNEE BOLSTER RH, RHD	$580.12	1
310	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	4
400	MY83SE14B342AA	SENSOR, SIDE IMPACTPRESSURE	MY83SE14B342AA SENSOR, SIDE IMPACTPRESSURE	$268.22	2
410	702847	ねじ M6X20 六角 FLG HD	702847 ねじ M6X20 六角 FLG HD	$2.50	4
420	702840	Nut & Washer M6 Hex Flg	702840 Nut & Washer M6 Hex Flg	$0.36	2
430	702839PK	Screw and Washer M6x20 Hex	702839PK Screw and Washer M6x20 Hex Pack of 10	$6.81	1
440	RY53SE14C246AA	CONTROLLER, OCCUPANTRESTRAINTS	RY53SE14C246AA CONTROLLER, OCCUPANTRESTRAINTS	$1,689.29	1
450	HY53SE14B006AA	SENSOR, ACCELEROMETER	HY53SE14B006AA SENSOR, ACCELEROMETER	$42.06	4
500	RY53-74-10185	OCS SERVICE ASSEMBLY	RY53-74-10185 OCS SERVICE ASSEMBLY No Ventilation	-	1	Enquire
501	RY537410186	OCS SERVICE ASSEMBLY	RY537410186 OCS SERVICE ASSEMBLY With Ventilation	$504.84	1
502	RY537410187	OCS SERVICE ASSEMBLY	RY537410187 OCS SERVICE ASSEMBLY No Ventilation, Sports+Seat	$610.60	1
503	RY53-74-10188	OCS SERVICE ASSEMBLY	RY53-74-10188 OCS SERVICE ASSEMBLY With Ventilation, Sports+Seat	-	1	Enquire
510	NOTE:	See Section 19-1000, item870 for Self-PresentingHandle ECU	NOTE: See Section 19-1000, item870 for Self-PresentingHandle ECU For Performance CarbonSeat OCS, refer toSection 01-1003-10	-	-	Enquire
700	HY53F601B87AA	ANCHOR BRACKET, ISOFIX,LOWER, OUTER	HY53F601B87AA ANCHOR BRACKET, ISOFIX,LOWER, OUTER	$35.80	2
710	HY53F601B86AD	ANCHOR BRACKET, ISOFIX,LOWER, INNER	HY53F601B86AD ANCHOR BRACKET, ISOFIX,LOWER, INNER	$60.08	2
720	703121	SCREW, M8x2,0 HEX FLG	703121 SCREW, M8x2,0 HEX FLG	$0.48	8
