Aston Martin GT DB12 (2024- - Interior Trim - Rear Cabin - Volante

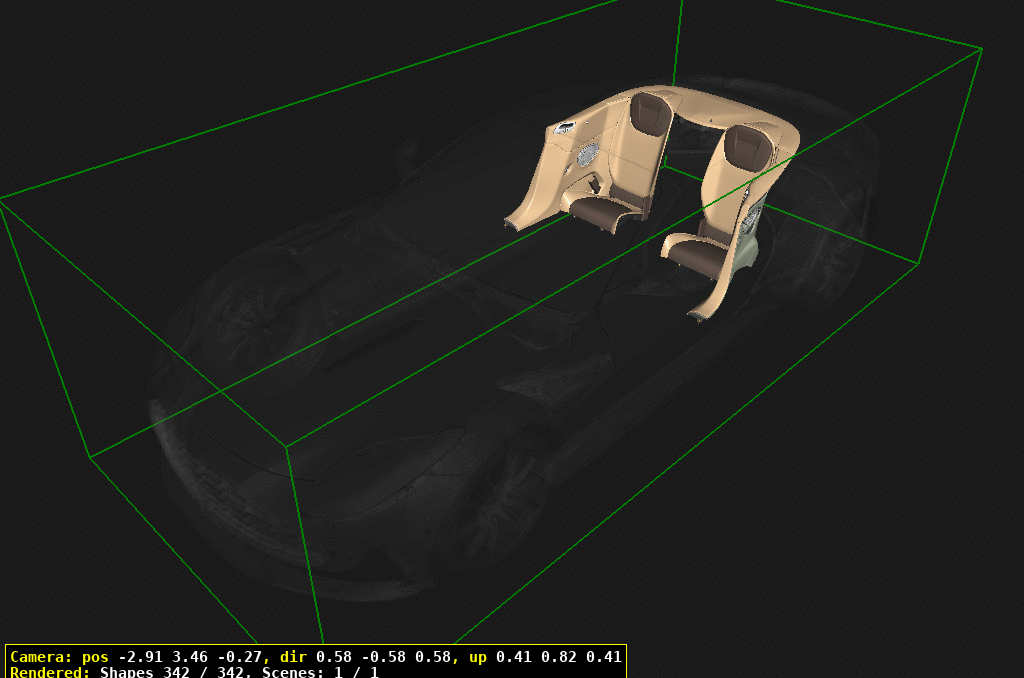

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	RY53L31013ACW	TRIM PANEL, BODY SIDE, LH	RY53L31013ACW TRIM PANEL, BODY SIDE, LH Haircell, Includes items40-80	$2,803.58	1
21	RY53-L31013-ECW	TRIM PANEL, BODY SIDE, LH	RY53-L31013-ECW TRIM PANEL, BODY SIDE, LH Semi Aniline, Includesitems 40-80	-	1	Enquire
30	RY53L31012ACW	TRIM PANEL, BODY SIDE, RH	RY53L31012ACW TRIM PANEL, BODY SIDE, RH Haircell, Includes items40-80	$2,803.58	1
31	RY53-L31012-ECW	TRIM PANEL, BODY SIDE, RH	RY53-L31012-ECW TRIM PANEL, BODY SIDE, RH Semi Aniline, Includesitems 40-80	-	1	Enquire
40	RY5340A580AB	GRILLE, SPEAKER	RY5340A580AB GRILLE, SPEAKER Base Audio, Silver	$213.66	2
41	RY5340A580BB	GRILLE, SPEAKER	RY5340A580BB GRILLE, SPEAKER Base Audio, Dark Chrome	$213.66	2
42	RY5318978AA	GRILLE, SPEAKER	RY5318978AA GRILLE, SPEAKER Halo Audio, Silver	$143.96	2
43	RY5318978BA	GRILLE, SPEAKER	RY5318978BA GRILLE, SPEAKER Halo Audio, Dark Chrome	$638.46	2
50	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 Included with SpeakerGrille IN STOCK	$4.49	6
60	8D3313B716AB	LENS & BEZEL ASSEMBLY	8D3313B716AB LENS & BEZEL ASSEMBLY	$32.25	2
70	701445	SCREW, 4x8, PAN HD	701445 SCREW, 4x8, PAN HD	$0.25	4
80	FG43M4D4515AA	フォームストリップ	FG43M4D4515AA フォームストリップ	$0.38	2
90	NY53-L31113-ABW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH	NY53-L31113-ABW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH Haircell Leather withBase Audio	-	1	Enquire
91	NY53L31113EBW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH	NY53L31113EBW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, LH Semi Aniline with BaseAudio	$282.14	1
92	NY53-L312A33-AAW	TRIM PANEL, BODY SIDE, LH	NY53-L312A33-AAW TRIM PANEL, BODY SIDE, LH Haircell Leather with B&OAudio	-	1	Enquire
93	NY53-L312A33-EAW	TRIM PANEL, BODY SIDE, LH	NY53-L312A33-EAW TRIM PANEL, BODY SIDE, LH Semi Aniline with B&OAudio	-	1	Enquire
100	NY53-L31112-ABW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH	NY53-L31112-ABW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH Haircell Leather withBase Audio	-	1	Enquire
101	NY53L31112EBW	TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH	NY53L31112EBW TRIM PANEL ASSEMBLY,QUARTER TRIM, UPPER, RH Semi Aniline with BaseAudio	$282.14	1
102	NY53-L312A32-AAW	TRIM PANEL, BODY SIDE, RH	NY53-L312A32-AAW TRIM PANEL, BODY SIDE, RH Haircell Leather with B&OAudio	-	1	Enquire
103	NY53-L312A32-EAW	TRIM PANEL, BODY SIDE, RH	NY53-L312A32-EAW TRIM PANEL, BODY SIDE, RH Semi Aniline with B&OAudio	-	1	Enquire
110	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	4
120	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 IN STOCK	$4.49	2
130	KY53D1161AB	NVH, REAR QUARTER, LH	KY53D1161AB NVH, REAR QUARTER, LH	$57.93	1
140	KY53D1160AB	NVH, REAR QUARTER, RH	KY53D1160AB NVH, REAR QUARTER, RH	$57.93	1
150	703152PK	Screw and Washer M6x20 Hex IN STOCK	703152PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.95	6
180	KY5319G268AB	TOP HAT	KY5319G268AB TOP HAT Satin Silver	$143.33	2
181	KY5319G268BB	TOP HAT	KY5319G268BB TOP HAT Dark Chrome	$312.55	2
190	HY53611B93AA	BEZEL, SEATBELT, LH	HY53611B93AA BEZEL, SEATBELT, LH Satin Silver	$230.78	1
191	HY53611B93BA	BEZEL, SEATBELT, LH	HY53611B93BA BEZEL, SEATBELT, LH Dark Chrome	$522.82	1
200	HY53611B92CA	BEZEL, SEATBELT, RH	HY53611B92CA BEZEL, SEATBELT, RH Satin Silver	$338.35	1
201	HY53611B92FA	BEZEL, SEATBELT, RH	HY53611B92FA BEZEL, SEATBELT, RH Dark Chrome	$259.70	1
210	703076	Screw, M4 x 20 csk skt	703076 Screw, M4 x 20 csk skt	$0.20	4
300	NY5360081AAW	CUSHION ASSEMBLY, REAR,LH	NY5360081AAW CUSHION ASSEMBLY, REAR,LH Haircell	$4,533.67	1
301	NY53-60081-DAW	CUSHION ASSEMBLY, REAR,LH	NY53-60081-DAW CUSHION ASSEMBLY, REAR,LH Alcantara	-	1	Enquire
302	NY5360081EAW	CUSHION ASSEMBLY, REAR,LH	NY5360081EAW CUSHION ASSEMBLY, REAR,LH Semi Aniline	$4,533.67	1
310	NY5360080ABW	CUSHION ASSEMBLY, REAR,RH	NY5360080ABW CUSHION ASSEMBLY, REAR,RH Haircell	$4,533.67	1
311	NY53-60080-DBW	CUSHION ASSEMBLY, REAR,RH	NY53-60080-DBW CUSHION ASSEMBLY, REAR,RH Alcantara	-	1	Enquire
312	NY5360080EBW	CUSHION ASSEMBLY, REAR,RH	NY5360080EBW CUSHION ASSEMBLY, REAR,RH Semi Aniline	$4,533.67	1
320	NY53L63847ABW	LUMBAR ASSEMBLY, REAR, LH	NY53L63847ABW LUMBAR ASSEMBLY, REAR, LH Haircell	$438.05	1
321	NY53-L63847-DBW	LUMBAR ASSEMBLY, REAR, LH	NY53-L63847-DBW LUMBAR ASSEMBLY, REAR, LH Alcantara	-	1	Enquire
322	NY53-L63847-EBW	LUMBAR ASSEMBLY, REAR, LH	NY53-L63847-EBW LUMBAR ASSEMBLY, REAR, LH Semi Aniline	-	1	Enquire
323	RY53-L63847-FAW	LUMBAR ASSEMBLY, REAR, LH	RY53-L63847-FAW LUMBAR ASSEMBLY, REAR, LH Semi Aniline & Alcantara	-	1	Enquire
330	NY53L63846ABW	LUMBAR ASSEMBLY, REAR, RH	NY53L63846ABW LUMBAR ASSEMBLY, REAR, RH Haircell	$438.05	1
331	NY53-L63846-DBW	LUMBAR ASSEMBLY, REAR, RH	NY53-L63846-DBW LUMBAR ASSEMBLY, REAR, RH Alcantara	-	1	Enquire
332	NY53-L63846-EBW	LUMBAR ASSEMBLY, REAR, RH	NY53-L63846-EBW LUMBAR ASSEMBLY, REAR, RH Semi Aniline	-	1	Enquire
333	RY53-L63846-FAW	LUMBAR ASSEMBLY, REAR, RH	RY53-L63846-FAW LUMBAR ASSEMBLY, REAR, RH Semi Aniline & Alcantara	-	1	Enquire
340	HY5345904AA	PIPE CLIP, SINGLE, 6mm	HY5345904AA PIPE CLIP, SINGLE, 6mm	$1.76	4
350	KY53-C31181-AA	NVH, REAR QUARTER, LH	KY53-C31181-AA NVH, REAR QUARTER, LH	-	1	Enquire
360	KY53-C31180-AA	NVH, REAR QUARTER, RH	KY53-C31180-AA NVH, REAR QUARTER, RH	-	1	Enquire
370	NY53-613C74-AAW	SLEEVE, SEATBELT BUCKLE	NY53-613C74-AAW SLEEVE, SEATBELT BUCKLE Haircell	-	2	Enquire
371	NY53-613C74-EAW	SLEEVE, SEATBELT BUCKLE	NY53-613C74-EAW SLEEVE, SEATBELT BUCKLE Semi Aniline	-	2	Enquire
380	NY53-611D84-AAW	SLEEVE, SEATBELT ANCHOR	NY53-611D84-AAW SLEEVE, SEATBELT ANCHOR Haircell	-	2	Enquire
381	NY53-611D84-EAW	SLEEVE, SEATBELT, ANCHOR	NY53-611D84-EAW SLEEVE, SEATBELT, ANCHOR Semi Aniline	-	2	Enquire
390	NY53L63844ABW	PAD ASSEMBLY, ISOFIXSQUAB, LOWER	NY53L63844ABW PAD ASSEMBLY, ISOFIXSQUAB, LOWER Haircell	$355.74	2
391	NY53-L63844-EBW	PAD ASSEMBLY, ISOFIXSQUAB, LOWER	NY53-L63844-EBW PAD ASSEMBLY, ISOFIXSQUAB, LOWER Semi Aniline	-	2	Enquire
400	NY53465T10AAW	PANEL ASSEMBLY, HEADREST	NY53465T10AAW PANEL ASSEMBLY, HEADREST Haircell	$680.13	2
401	NY53-465T10-EAW	PANEL ASSEMBLY, HEADREST	NY53-465T10-EAW PANEL ASSEMBLY, HEADREST Semi Aniline	-	2	Enquire
410	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7	$1.02	4
420	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	4
430	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	4
440	KY5317B072AB	EMERGENCY TOOL, ROOF	KY5317B072AB EMERGENCY TOOL, ROOF Manual Wnder Tool	$15.20	1
450	703025	Bolt, flg M6 x 25 IN STOCK	703025 Bolt, flg M6 x 25 IN STOCK	$0.34	1
460	703177	SCREW, M5x30, PAN HEAD TX	703177 SCREW, M5x30, PAN HEAD TX	$1.53	2
470	697564	Push-on Fix	697564 Push-on Fix	$0.11	2
500	NY53-L1900-ABW	TONNEAU TRIM ASSEMBLY	NY53-L1900-ABW TONNEAU TRIM ASSEMBLY Haircell	-	1	Enquire
501	NY53L1900EBW	TONNEAU TRIM ASSEMBLY	NY53L1900EBW TONNEAU TRIM ASSEMBLY Semi Aniline	$4,363.76	1
502	NY53-L1900-PB	TONNEAU TRIM ASSEMBLY	NY53-L1900-PB TONNEAU TRIM ASSEMBLY Nappa PVC	-	1	Enquire
510	702295	Nut M5 Hex flng pc8 IN STOCK	702295 Nut M5 Hex flng pc8 IN STOCK	$0.18	6
520	KY53L40408AA	MOULDING, BACK PANEL TRIM	KY53L40408AA MOULDING, BACK PANEL TRIM	$245.51	1
530	701581PK	Firtree Flat HD	701581PK Firtree Flat HD Pack of 20	$11.69	6
540	NY53-539A41-AAW	TRIM PANEL, B-FLAP, LH	NY53-539A41-AAW TRIM PANEL, B-FLAP, LH Haircell. Includes item600	-	1	Enquire
541	NY53-539A41-EAW	TRIM PANEL, B-FLAP, LH	NY53-539A41-EAW TRIM PANEL, B-FLAP, LH Semi Aniline. Includesitem 600	-	1	Enquire
542	NY53-539A41-PA	TRIM PANEL, B-FLAP, LH	NY53-539A41-PA TRIM PANEL, B-FLAP, LH Nappa PVC. Includes item600	-	1	Enquire
550	NY53-539A40-AAW	TRIM PANEL, B-FLAP, RH	NY53-539A40-AAW TRIM PANEL, B-FLAP, RH Haircell. Includes item600	-	1	Enquire
551	NY53-539A40-EAW	TRIM PANEL, B-FLAP, RH	NY53-539A40-EAW TRIM PANEL, B-FLAP, RH Semi Aniline. Includesitem 600	-	1	Enquire
552	NY53-539A40-PA	TRIM PANEL, B-FLAP, RH	NY53-539A40-PA TRIM PANEL, B-FLAP, RH Nappa PVC. Includes item600	-	1	Enquire
560	6G430516BBA	Screw, M6 IN STOCK	6G430516BBA Screw, M6 IN STOCK	$5.77	4
570	KY53539A45AC	CARRIER, B-FLAP, LH	KY53539A45AC CARRIER, B-FLAP, LH	$73.89	1
580	KY53539A44AC	CARRIER, B-FLAP, RH	KY53539A44AC CARRIER, B-FLAP, RH	$76.10	1
590	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 IN STOCK	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 IN STOCK	$12.50	4
600	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 2 per Cover Assembly IN STOCK	$4.49	4
