Seating - Lightweight of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

Aston Martin GT DB12 (2024- - Seating - Lightweight

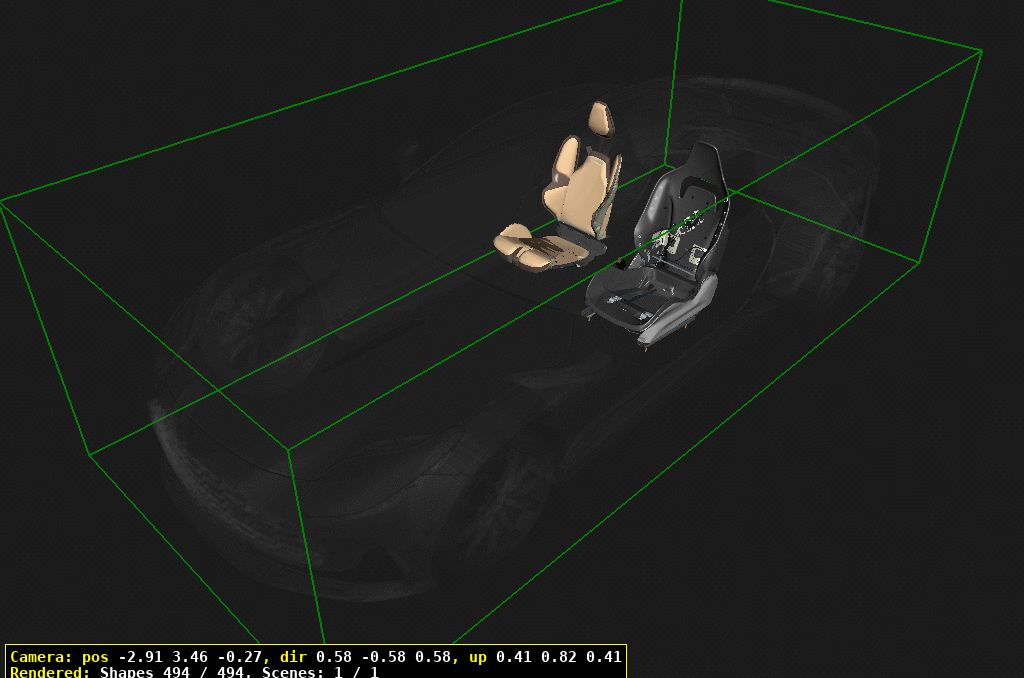

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~~O~~	RH Illustrated	~~O~~ RH Illustrated	-	-	Enquire
2	~~0~~	LH Illustrated	~~0~~ LH Illustrated	-	-	Enquire
3	RY5360008BAW	FRONT SEAT ASSEMBLY, RH	RY5360008BAW FRONT SEAT ASSEMBLY, RH	$36,042.13	1
4	RY5360009BAW	FRONT SEAT ASSEMBLY, LH	RY5360009BAW FRONT SEAT ASSEMBLY, LH	$36,042.13	1
20	RY53-14B718-AAW	ヘッドレストアセンブリ	RY53-14B718-AAW ヘッドレストアセンブリ	-	1	Enquire
30	RY53-631B03-AAW	CUSHION BOLSTER ASSEMBLY,LH	RY53-631B03-AAW CUSHION BOLSTER ASSEMBLY,LH	-	1	Enquire
40	RY53-631B02-AAW	CUSHION BOLSTER ASSEMBLY,RH	RY53-631B02-AAW CUSHION BOLSTER ASSEMBLY,RH	-	1	Enquire
50	RY53-61672-AAW	SQUAB INSERT ASSEMBLY	RY53-61672-AAW SQUAB INSERT ASSEMBLY Includes item 60	-	1	Enquire
60	MY8314D696AB	HEATER PAD, SEAT SQUAB	MY8314D696AB HEATER PAD, SEAT SQUAB	$54.41	1
70	RY53-61527-AAW	SQUAB BOLSTER ASSEMBLY,LH	RY53-61527-AAW SQUAB BOLSTER ASSEMBLY,LH	-	1	Enquire
80	RY53-61526-AAW	SQUAB BOLSTER ASSEMBLY,RH	RY53-61526-AAW SQUAB BOLSTER ASSEMBLY,RH	-	1	Enquire
90	RY5361678ABW	CUSHION INSERT ASSEMBLY	RY5361678ABW CUSHION INSERT ASSEMBLY Includes item 100	$3,673.14	1
100	MY8314D698AC	HEATER PAD, SEAT CUSHION	MY8314D698AC HEATER PAD, SEAT CUSHION	$54.20	1
110	LY7Y63258AC	FOAM BEZEL, CUSHION	LY7Y63258AC FOAM BEZEL, CUSHION	$154.83	1
120	PY63621A64AAW	STRAP, BACKREST RELEASE	PY63621A64AAW STRAP, BACKREST RELEASE	$217.98	1
130	PY63605W01AAW	STRAP, CUSHION RELEASE	PY63605W01AAW STRAP, CUSHION RELEASE with Webbing	$414.63	1
131	PY63605W01BAW	STRAP, CUSHION RELEASE	PY63605W01BAW STRAP, CUSHION RELEASE without Webbing	$167.64	1
140	LY7Y631C00BA	RETAINER, TRIM CAP	LY7Y631C00BA RETAINER, TRIM CAP	$9.47	1
150	LY7Y600C76AA	TRIM CAP	LY7Y600C76AA TRIM CAP	$41.51	1
160	MY6YN604144AA	SCREW, M5x16, CSK HD	MY6YN604144AA SCREW, M5x16, CSK HD	$3.67	1
170	LY7Y602B48AA	GUIDE, SEATBELT, FRONT,RH SEAT	LY7Y602B48AA GUIDE, SEATBELT, FRONT,RH SEAT	$70.12	1
171	LY7Y602B47AA	GUIDE, SEATBELT, FRONT,LH SEAT	LY7Y602B47AA GUIDE, SEATBELT, FRONT,LH SEAT	$70.12	1
180	LY7Y666B82AB	GUIDE, SEATBELT, REAR, RHSEAT	LY7Y666B82AB GUIDE, SEATBELT, REAR, RHSEAT	$91.41	1
181	LY7Y666B83AB	GUIDE, SEATBELT, REAR, LHSEAT	LY7Y666B83AB GUIDE, SEATBELT, REAR, LHSEAT	$91.41	1
190	MY6YE603125AA	SCREW, M4x10, CSK	MY6YE603125AA SCREW, M4x10, CSK	$4.44	1
200	LY7Y600C76AA	TRIM CAP	LY7Y600C76AA TRIM CAP	$41.51	1
210	LY7Y631C00BA	RETAINER, TRIM CAP	LY7Y631C00BA RETAINER, TRIM CAP	$9.47	1
220	MY6YN604144AA	SCREW, M5x16, CSK HD	MY6YN604144AA SCREW, M5x16, CSK HD	$3.67	1
230	PY63644K79AA	GAP HIDER ASSEMBLY	PY63644K79AA GAP HIDER ASSEMBLY Includes item 240	$129.08	2
240	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20	$10.70	2
250	RY53-74-10189	OCS SERVICE ASSEMBLY	RY53-74-10189 OCS SERVICE ASSEMBLY Includes items 260	-	1	Enquire
260	PY63-9515-AA	FOAM ASSEMBLY, CUSHION	PY63-9515-AA FOAM ASSEMBLY, CUSHION	-	1	Enquire
400	RY53600C15AD	SEAT FRAME, DRIVER	RY53600C15AD SEAT FRAME, DRIVER LHD, Satin	$13,995.54	1
401	RY53600C15DD	SEAT FRAME, DRIVER	RY53600C15DD SEAT FRAME, DRIVER LHD, Gloss	$13,963.71	1
402	RY53600C14BD	SEAT FRAME, PASSENGER	RY53600C14BD SEAT FRAME, PASSENGER LHD, Satin	$13,990.30	1
403	RY53600C14ED	SEAT FRAME, PASSENGER	RY53600C14ED SEAT FRAME, PASSENGER LHD, Gloss	$13,959.10	1
404	RY53600C14FD	SEAT FRAME, PASSENGER	RY53600C14FD SEAT FRAME, PASSENGER LHD, Federal, Gloss	$13,623.13	1
405	RY53600C14AD	SEAT FRAME, DRIVER	RY53600C14AD SEAT FRAME, DRIVER RHD, Satin	$13,748.06	1
406	RY53600C14DD	SEAT FRAME, DRIVER	RY53600C14DD SEAT FRAME, DRIVER RHD, Gloss	$13,963.71	1
407	RY53600C15BD	SEAT FRAME, PASSENGER	RY53600C15BD SEAT FRAME, PASSENGER RHD, Satin	$14,227.40	1
408	RY53600C15ED	SEAT FRAME, PASSENGER	RY53600C15ED SEAT FRAME, PASSENGER RHD, Gloss	$13,959.02	1
410	MY83610E54AC	BUCKLE, SEATBELT	MY83610E54AC BUCKLE, SEATBELT	$127.62	2
420	LY7YXC471045BC	BRACKET, ECU	LY7YXC471045BC BRACKET, ECU	$116.48	2
430	RY53SE14C249AB	ECU, DRIVERS SEAT	RY53SE14C249AB ECU, DRIVERS SEAT	$937.09	1
431	RY53SE14C249BB	ECU, PASSENGERS SEAT	RY53SE14C249BB ECU, PASSENGERS SEAT	$909.79	1
440	LY7Y617C84AA	SPACER ASSEMBLY, RH	LY7Y617C84AA SPACER ASSEMBLY, RH	$279.18	1
450	LY7Y617C85AA	SPACER ASSEMBLY, LH	LY7Y617C85AA SPACER ASSEMBLY, LH	$279.18	1
460	RY5311026BAA	BOLT, M10x1.5x45, T50	RY5311026BAA BOLT, M10x1.5x45, T50	$12.36	4
470	LY7Y484451AA	SCREW, M10x1.5x16	LY7Y484451AA SCREW, M10x1.5x16	$1.21	4
480	LY7Y-F667K04-AA	MOULDING, ANTI-ROTATION	LY7Y-F667K04-AA MOULDING, ANTI-ROTATION	-	1	Enquire
490	LY7Y7L565AB	CABLE, SEAT RECLINER	LY7Y7L565AB CABLE, SEAT RECLINER	$145.52	1
500	LY7Y600D44AA	リリースメカニズム	LY7Y600D44AA リリースメカニズム	$473.09	1
510	LY7Y14B683BB	HARNESS, LH	LY7Y14B683BB HARNESS, LH	$844.11	1
511	LY7Y14B684BB	HARNESS, RH	LY7Y14B684BB HARNESS, RH	$946.27	1
520	PY63-666B60-BA	BEZEL, RELEASE STRAP	PY63-666B60-BA BEZEL, RELEASE STRAP	-	1	Enquire
530	LY7Y10C850AB	KILL SWITCH ASSEMBLY	LY7Y10C850AB KILL SWITCH ASSEMBLY	$100.47	2
