Sealing - Volante of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

Aston Martin GT DB12 (2024- - Sealing - Volante

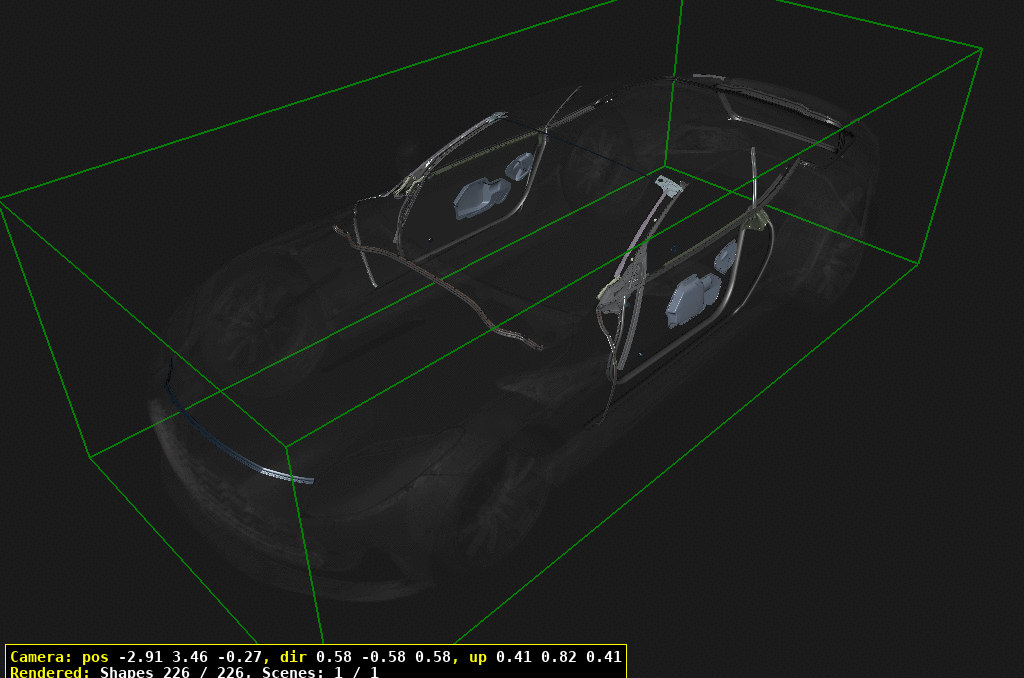

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量
20	RY5316C824AB	WEATHERSTRIP, BONNET	RY5316C824AB WEATHERSTRIP, BONNET	$50.33	1
30	RY5316K816AB	WEATHERSTRIP, BONNET,REAR	RY5316K816AB WEATHERSTRIP, BONNET,REAR	$88.82	1
60	HY53C20556AB	WEATHERSTRIP, MARGIN,DOOR	HY53C20556AB WEATHERSTRIP, MARGIN,DOOR	$38.15	2
70	HY53C20291BB	MOULDING ASSEMBLY, FRONTTRIM, LH	HY53C20291BB MOULDING ASSEMBLY, FRONTTRIM, LH	$182.16	1
80	HY53C20290BB	MOULDING ASSEMBLY, FRONTTRIM, RH	HY53C20290BB MOULDING ASSEMBLY, FRONTTRIM, RH	$186.70	1
90	KY53L20709AE	WEATHERSTRIP, A-PILLAR,LH	KY53L20709AE WEATHERSTRIP, A-PILLAR,LH	$453.26	1
100	KY53L20708AE	WEATHERSTRIP, A-PILLAR,RH	KY53L20708AE WEATHERSTRIP, A-PILLAR,RH	$456.42	1
110	HY53C47775AA	FOAM STRIP, A-PILLAR	HY53C47775AA FOAM STRIP, A-PILLAR	$3.71	2
120	HY5321899AA	FOAM WASHER, A-PILLAR	HY5321899AA FOAM WASHER, A-PILLAR	$3.32	10
130	KY539A469AC	GASKET, HEADER toA-PILLAR, LH	KY539A469AC GASKET, HEADER toA-PILLAR, LH	$45.41	1
140	KY539A468AC	GASKET, HEADER toA-PILLAR, RH	KY539A468AC GASKET, HEADER toA-PILLAR, RH	$45.41	1
150	KY5318D459AB	SEAL, HEADER FINISHER	KY5318D459AB SEAL, HEADER FINISHER	$5.22	1
160	KY53L25325AA	DOOR MARGIN ASSEMBLY,LOWER, LH	KY53L25325AA DOOR MARGIN ASSEMBLY,LOWER, LH	$148.44	1
170	KY53L25324AA	DOOR MARGIN ASSEMBLY,LOWER, RH	KY53L25324AA DOOR MARGIN ASSEMBLY,LOWER, RH	$148.44	1
180	KY53L20758AC	PRIMARY SEAL, DOOR,LOWER, LH/RH	KY53L20758AC PRIMARY SEAL, DOOR,LOWER, LH/RH	$90.71	2
190	4G432273AA	GROMMET, 25mm	4G432273AA GROMMET, 25mm	$2.10	2
200	HY53C20571AC	WEATHERSTRIP, DOOR INNERWAIST, LH	HY53C20571AC WEATHERSTRIP, DOOR INNERWAIST, LH	$309.83	1
210	HY53C20570AC	WEATHERSTRIP, DOOR INNERWAIST, RH	HY53C20570AC WEATHERSTRIP, DOOR INNERWAIST, RH	$309.83	1
220	HY53C237A05AC	WATER SHEDDER,DOOR, LH(LARGE)	HY53C237A05AC WATER SHEDDER,DOOR, LH(LARGE)	$40.74	1
230	HY53C237A04AC	WATER SHEDDER,DOOR, RH(LARGE)	HY53C237A04AC WATER SHEDDER,DOOR, RH(LARGE)	$40.74	1
240	HY53C237A05BC	WATER SHEDDER,DOOR, LH(SMALL)	HY53C237A05BC WATER SHEDDER,DOOR, LH(SMALL)	$27.15	1
250	HY53C237A04BC	WATER SHEDDER,DOOR, RH(SMALL)	HY53C237A04BC WATER SHEDDER,DOOR, RH(SMALL)	$27.15	1
260	KY53L20563AD	WEATHERSTRIP, DOOR OUTERWAIST, LH	KY53L20563AD WEATHERSTRIP, DOOR OUTERWAIST, LH	$134.82	1
270	KY53L20562AD	WEATHERSTRIP, DOOR OUTERWAIST, RH	KY53L20562AD WEATHERSTRIP, DOOR OUTERWAIST, RH	$131.52	1
280	KY53L30131AC	WEATHERSTRIP, REARQUARTER GLASS, LH	KY53L30131AC WEATHERSTRIP, REARQUARTER GLASS, LH	$200.57	1
290	KY53L30130AC	WEATHERSTRIP, REARQUARTER GLASS, RH	KY53L30130AC WEATHERSTRIP, REARQUARTER GLASS, RH	$197.83	1
300	KY53L29733AD	WEATHERSTRIP, WAIST, REARQUARTER GLASS, LH	KY53L29733AD WEATHERSTRIP, WAIST, REARQUARTER GLASS, LH	$309.71	1
310	KY53L29732AD	WEATHERSTRIP, WAIST, REARQUARTER GLASS, RH	KY53L29732AD WEATHERSTRIP, WAIST, REARQUARTER GLASS, RH	$302.15	1
330	KY53L51452AD	WEATHERSTRIP, TONNEAUCOVER	KY53L51452AD WEATHERSTRIP, TONNEAUCOVER Includes item 340	$575.61	1
340	6G33L02564BA	FIRTREE FIXING,4.0x0.76-5.94	6G33L02564BA FIRTREE FIXING,4.0x0.76-5.94	$0.87	2
350	8G438979BA	WASHER, M5x20x1.5THK,ST/STEEL	8G438979BA WASHER, M5x20x1.5THK,ST/STEEL	$0.45	4
360	707613	SCREW, M4.2x13, BLACK	707613 SCREW, M4.2x13, BLACK	$0.96	4
370	7G43143002AA	Nut, Grommet	7G43143002AA Nut, Grommet	$0.78	4
380	KY5321749AA	INFILL MOULDING, LH	KY5321749AA INFILL MOULDING, LH	$63.49	1
390	KY5321748AA	INFILL MOULDING, RH	KY5321748AA INFILL MOULDING, RH	$63.49	1
400	KY53L03829AA	WEATHERSTRIP, MARGIN,DECKLID, LH	KY53L03829AA WEATHERSTRIP, MARGIN,DECKLID, LH	$215.71	1
410	KY53L03828AA	WEATHERSTRIP, MARGIN,DECKLID, RH	KY53L03828AA WEATHERSTRIP, MARGIN,DECKLID, RH	$263.37	1
420	KY53L43720AC	WEATHERSTRIP, DECKLID	KY53L43720AC WEATHERSTRIP, DECKLID	$223.13	1
430	KY5323020AA	FOAM SEAL, A-PILLAR	KY5323020AA FOAM SEAL, A-PILLAR	$6.63	2
440	KY5317A095AA	GAP SEAL, REAR BUMPER, LH	KY5317A095AA GAP SEAL, REAR BUMPER, LH	$70.01	1
450	KY5317A094AA	GAP SEAL, REAR BUMPER, RH	KY5317A094AA GAP SEAL, REAR BUMPER, RH	$70.01	1
