Aston Martin GT DB12 (2024- - Interior Trim - Doors

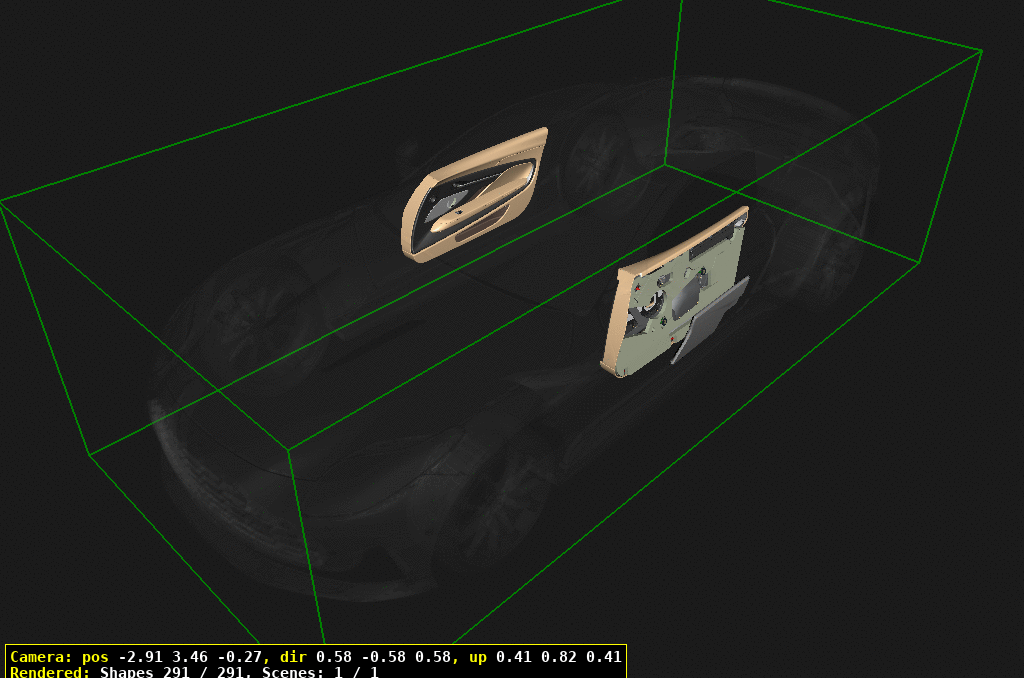

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	RY5323943AEW	PANEL ASSEMBLY, DOORTRIM, LH	RY5323943AEW PANEL ASSEMBLY, DOORTRIM, LH Coupe, LHD, Plain, Base	$4,702.38	1
21	RY5323943HEW	PANEL ASSEMBLY, DOORTRIM, LH	RY5323943HEW PANEL ASSEMBLY, DOORTRIM, LH Coupe, LHD, Quilted, SemiAniline	$11,825.53	1
22	RY5323943EEW	PANEL ASSEMBLY, DOORTRIM, LH	RY5323943EEW PANEL ASSEMBLY, DOORTRIM, LH Coupe, LHD, PlainHaircell	$4,084.75	1
23	RY5323943BEW	PANEL ASSEMBLY, DOORTRIM, LH	RY5323943BEW PANEL ASSEMBLY, DOORTRIM, LH Coupe, RHD, Plain, Base	$11,823.71	1
24	RY5323943KEW	PANEL ASSEMBLY, DOORTRIM, LH	RY5323943KEW PANEL ASSEMBLY, DOORTRIM, LH Coupe, RHD, Quilted, SemiAniline	$7,648.46	1
25	RY5323943FEW	PANEL ASSEMBLY, DOORTRIM, LH	RY5323943FEW PANEL ASSEMBLY, DOORTRIM, LH Coupe, RHD, PlainHaircell	$7,586.61	1
30	RY53-23943-CEW	PANEL ASSEMBLY, DOORTRIM, LH	RY53-23943-CEW PANEL ASSEMBLY, DOORTRIM, LH Volante, LHD, Plain, Base	-	1	Enquire
31	RY5323943LEW	PANEL ASSEMBLY, DOORTRIM, LH	RY5323943LEW PANEL ASSEMBLY, DOORTRIM, LH Volante, LHD, Quilted,Semi Aniline	$12,629.67	1
32	RY53-23943-GEW	PANEL ASSEMBLY, DOORTRIM, LH	RY53-23943-GEW PANEL ASSEMBLY, DOORTRIM, LH Volante, LHD, PlainHaircell	-	1	Enquire
33	RY53-23943-DEW	PANEL ASSEMBLY, DOORTRIM, LH	RY53-23943-DEW PANEL ASSEMBLY, DOORTRIM, LH Volante, RHD, Plain, Base	-	1	Enquire
34	RY53-23943-MEW	PANEL ASSEMBLY, DOORTRIM, LH	RY53-23943-MEW PANEL ASSEMBLY, DOORTRIM, LH Volante, RHD, Quilted,Semi Aniline	-	1	Enquire
35	RY53-23943-PEW	PANEL ASSEMBLY, DOORTRIM, LH	RY53-23943-PEW PANEL ASSEMBLY, DOORTRIM, LH Volante, RHD, PlainHaircell	-	1	Enquire
40	RY5323942AEW	PANEL ASSEMBLY, DOORTRIM, RH	RY5323942AEW PANEL ASSEMBLY, DOORTRIM, RH Coupe, LHD, Plain, Base	$4,587.69	1
41	RY5323942HEW	PANEL ASSEMBLY, DOORTRIM, RH	RY5323942HEW PANEL ASSEMBLY, DOORTRIM, RH Coupe, LHD, Quilted, SemiAniline	$11,537.12	1
42	RY5323942EEW	PANEL ASSEMBLY, DOORTRIM, RH	RY5323942EEW PANEL ASSEMBLY, DOORTRIM, RH Coupe, LHD, PlainHaircell	$4,084.75	1
43	RY5323942BEW	PANEL ASSEMBLY, DOORTRIM, RH	RY5323942BEW PANEL ASSEMBLY, DOORTRIM, RH Coupe, RHD, Plain, Base	$11,535.35	1
44	RY5323942KEW	PANEL ASSEMBLY, DOORTRIM, RH	RY5323942KEW PANEL ASSEMBLY, DOORTRIM, RH Coupe, RHD, Quilted, SemiAniline	$7,648.46	1
45	RY5323942FEW	PANEL ASSEMBLY, DOORTRIM, RH	RY5323942FEW PANEL ASSEMBLY, DOORTRIM, RH Coupe, RHD, PlainHaircell	$7,586.61	1
50	RY53-23942-CEW	PANEL ASSEMBLY, DOORTRIM, RH	RY53-23942-CEW PANEL ASSEMBLY, DOORTRIM, RH Volante, LHD, Plain, Base	-	1	Enquire
51	RY5323942LEW	PANEL ASSEMBLY, DOORTRIM, RH	RY5323942LEW PANEL ASSEMBLY, DOORTRIM, RH Volante, LHD, Quilted,Semi Aniline	$12,629.67	1
52	RY53-23942-GEW	PANEL ASSEMBLY, DOORTRIM, RH	RY53-23942-GEW PANEL ASSEMBLY, DOORTRIM, RH Volante, LHD, PlainHaircell	-	1	Enquire
53	RY53-23942-DEW	PANEL ASSEMBLY, DOORTRIM, RH	RY53-23942-DEW PANEL ASSEMBLY, DOORTRIM, RH Volante, RHD, Plain	-	1	Enquire
54	RY53-23942-MEW	PANEL ASSEMBLY, DOORTRIM, RH	RY53-23942-MEW PANEL ASSEMBLY, DOORTRIM, RH Volante, RHD, Quilted,Semi Aniline	-	1	Enquire
55	RY53-23942-PEW	PANEL ASSEMBLY, DOORTRIM, RH	RY53-23942-PEW PANEL ASSEMBLY, DOORTRIM, RH Volante, RHD, PlainHaircell	-	1	Enquire
60	HY53-237B70-AB	BLOCK, SIDE IMPACT	HY53-237B70-AB BLOCK, SIDE IMPACT	-	1	Enquire
70	HY53-237B60-AB	BLOCK, SIDE IMPACT, RH	HY53-237B60-AB BLOCK, SIDE IMPACT, RH	-	1	Enquire
80	707142	SCREW, M5x12, CHEESE HEAD	707142 SCREW, M5x12, CHEESE HEAD	$0.41	2
90	HY53208A30AA	RETAINER, DOOR TRIM	HY53208A30AA RETAINER, DOOR TRIM	$3.99	3
100	HY53202W08AB	SEAL, FIXING	HY53202W08AB SEAL, FIXING	$6.01	3
110	Not AvailableSeparately	HEATSHIELD, MUFFLER	Not AvailableSeparately HEATSHIELD, MUFFLER	-	N/A	Enquire
120	RY5321210BBW	END CAP, DOOR TRIM, RH	RY5321210BBW END CAP, DOOR TRIM, RH Haircell	$110.91	1
121	RY5321210EBW	END CAP, DOOR TRIM, RH	RY5321210EBW END CAP, DOOR TRIM, RH Semi Aniline	$110.91	1
130	RY5321211BBW	END CAP, DOOR TRIM, LH	RY5321211BBW END CAP, DOOR TRIM, LH Haircell	$110.91	1
131	RY5321211EBW	END CAP, DOOR TRIM, LH	RY5321211EBW END CAP, DOOR TRIM, LH Semi Aniline	$107.69	1
140	RY5324002ACW	アームレストアセンブリ	RY5324002ACW アームレストアセンブリ RH/LHD, Plain	$865.34	1
141	RY5324002BCW	アームレストアセンブリ	RY5324002BCW アームレストアセンブリ RH/RHD, Plain	$866.38	1
142	RY5324002HCW	アームレストアセンブリ	RY5324002HCW アームレストアセンブリ RH/LHD, Quilt	$866.41	1
143	RY5324002KCW	アームレストアセンブリ	RY5324002KCW アームレストアセンブリ RH/RHD, Quilt	$865.75	1
144	RY5324003ACW	アームレストアセンブリ	RY5324003ACW アームレストアセンブリ LH/LHD, Plain	$865.34	1
145	RY5324003BCW	アームレストアセンブリ	RY5324003BCW アームレストアセンブリ LH/RHD, Plain	$816.63	1
146	RY5324003HCW	アームレストアセンブリ	RY5324003HCW アームレストアセンブリ LH/LHD, Quilt	$866.41	1
147	RY5324003KCW	アームレストアセンブリ	RY5324003KCW アームレストアセンブリ LH/RHD, Quilt	$865.75	1
150	RY53237A22AC	フィニッシャー、右側	RY53237A22AC フィニッシャー、右側 Bright	$135.02	1
151	RY53237A23AC	フィニッシャー、左サイド	RY53237A23AC フィニッシャー、左サイド Bright	$135.02	1
160	RY53226A38AB	CAP, RELEASE LEVER, RH	RY53226A38AB CAP, RELEASE LEVER, RH	$23.75	1
161	RY53226A39AB	CAP, RELEASE LEVER, LH	RY53226A39AB CAP, RELEASE LEVER, LH	$23.75	1
170	RY53266B70AC	GRILLE, SPEAKER, RH	RY53266B70AC GRILLE, SPEAKER, RH AML, Bright	$230.87	1
171	RY53266B70BC	GRILLE, SPEAKER, RH	RY53266B70BC GRILLE, SPEAKER, RH AML, Dark	$253.28	1
172	RY53266B72AC	GRILLE, SPEAKER, RH	RY53266B72AC GRILLE, SPEAKER, RH Halo, Bright	$202.39	1
173	RY53266B72BC	GRILLE, SPEAKER, RH	RY53266B72BC GRILLE, SPEAKER, RH Halo, Dark	$989.77	1
174	RY53266B71AC	GRILLE, SPEAKER, LH	RY53266B71AC GRILLE, SPEAKER, LH AML, Bright	$230.87	1
175	RY53266B71BC	GRILLE, SPEAKER, LH	RY53266B71BC GRILLE, SPEAKER, LH AML, Dark	$253.28	1
176	RY53266B73AC	GRILLE, SPEAKER, LH	RY53266B73AC GRILLE, SPEAKER, LH Halo, Bright	$202.39	1
177	RY53266B73BC	GRILLE, SPEAKER, LH	RY53266B73BC GRILLE, SPEAKER, LH Halo, Dark	$989.77	1
180	RY53226A10AC	SUBSTRATE, RELEASE LEVER,RH	RY53226A10AC SUBSTRATE, RELEASE LEVER,RH	$57.12	1
181	RY53226A11AC	SUBSTRATE, RELEASE LEVER,LH	RY53226A11AC SUBSTRATE, RELEASE LEVER,LH	$57.12	1
190	RY53238A40AB	BRACKET, LED MODULE, RH	RY53238A40AB BRACKET, LED MODULE, RH	$28.60	1
191	RY53238A41AB	BRACKET, LED MODULE, LH	RY53238A41AB BRACKET, LED MODULE, LH	$28.60	1
200	KY632685AB	CLIP, DOOR TRIM PANEL	KY632685AB CLIP, DOOR TRIM PANEL	$2.78	4
210	HY53C237898AA	Bezel, Demist Pipe	HY53C237898AA Bezel, Demist Pipe	$872.21	1
220	4G43AN103011AA	STAR WASHER, 5mm	4G43AN103011AA STAR WASHER, 5mm	$0.20	3
230	HY53237A02AA	CLIP, DOOR TRIM PANEL	HY53237A02AA CLIP, DOOR TRIM PANEL	$2.03	3
240	9G4320272AA	SEAL, DOOR PANEL	9G4320272AA SEAL, DOOR PANEL	$7.08	1
250	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head	$0.68	56
260	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX	$0.25	4
270	RY53203A41AC	DOOR PAD ABSORBER, LH	RY53203A41AC DOOR PAD ABSORBER, LH	$32.36	1
280	RY53203A40AC	DOOR PAD ABSORBER, RH	RY53203A40AC DOOR PAD ABSORBER, RH	$32.36	1
290	RY53-01B43-AC	NVH, DOOR TRIM, LH	RY53-01B43-AC NVH, DOOR TRIM, LH	-	1	Enquire
300	RY53-01B42-AC	NVH, DOOR TRIM, RH	RY53-01B42-AC NVH, DOOR TRIM, RH	-	1	Enquire
310	HY53202A14AE	AIR DUCT, RH	HY53202A14AE AIR DUCT, RH	$555.46	1
311	HY53202A15AE	AIR DUCT, LH	HY53202A15AE AIR DUCT, LH	$526.13	1
320	RY5320454CA	VENEER, DOOR, RH	RY5320454CA VENEER, DOOR, RH Gloss Black	$765.36	1
321	RY5320455CA	VENEER, DOOR, LH	RY5320455CA VENEER, DOOR, LH Gloss Black	$784.51	1
330	RY53202D12AB	DOOR VENEER, RH	RY53202D12AB DOOR VENEER, RH Light Aluminium	$2,231.85	1
331	RY53202D13AB	DOOR VENEER, LH	RY53202D13AB DOOR VENEER, LH Light Aluminium	$2,231.85	1
340	RY53202D12BB	DOOR VENEER, RH	RY53202D12BB DOOR VENEER, RH Dark Brushed Aluminium	$2,591.73	1
341	RY53202D13BB	DOOR VENEER, LH	RY53202D13BB DOOR VENEER, LH Dark Brushed Aluminium	$2,591.73	1
350	RY53202D12CB	DOOR VENEER, RH	RY53202D12CB DOOR VENEER, RH Carbon 2x2 Twill	$3,463.28	1
351	RY53202D13CB	DOOR VENEER, LH	RY53202D13CB DOOR VENEER, LH Carbon 2x2 Twill	$3,463.28	1
360	RY53-87-10231	VENEER, DOOR, MatchedPair	RY53-87-10231 VENEER, DOOR, MatchedPair Light Ash Burl	-	1	Enquire
370	RY538710227	VENEER, DOOR, MatchedPair	RY538710227 VENEER, DOOR, MatchedPair Dark Walnut	$3,657.75	1
400	RY53238A37AA	補強ブラケット	RY53238A37AA 補強ブラケット	$28.40	1
410	RY53-238A36-AA	REINFORCEMENT BLOCK	RY53-238A36-AA REINFORCEMENT BLOCK	-	1	Enquire
420	RY53238A34AA	REINFORCEMENT BRACKET, RH	RY53238A34AA REINFORCEMENT BRACKET, RH	$36.64	1
421	RY53238A35AA	REINFORCEMENT BRACKET, LH	RY53238A35AA REINFORCEMENT BRACKET, LH	$36.64	1
430	RY53-24006-AA	REINFORCEMENT BLOCK	RY53-24006-AA REINFORCEMENT BLOCK	-	1	Enquire
440	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head	$0.68	1
450	702211	Screw, M5 x 8, Pan Hd	702211 Screw, M5 x 8, Pan Hd	$0.18	3
