Aston Martin GT DB12 (2024- - バンパー

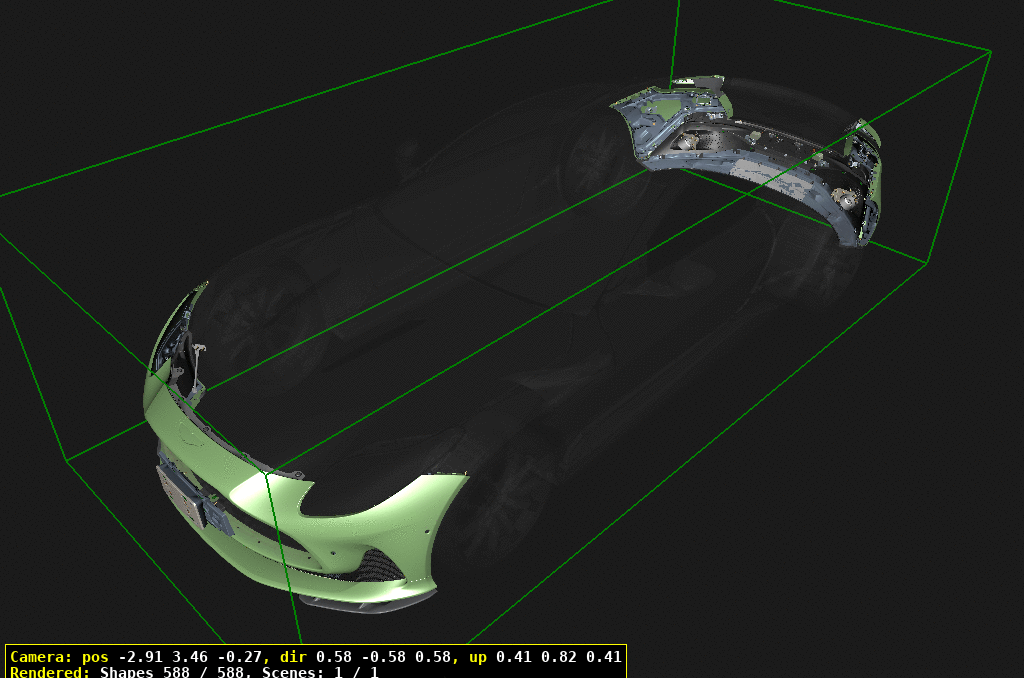

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	RY5317D957AD	フロントバンパーアッセンブリー	RY5317D957AD フロントバンパーアッセンブリー RoW	$2,104.59	1
21	RY5317D957BD	フロントバンパーアッセンブリー	RY5317D957BD フロントバンパーアッセンブリー Federal	$2,104.59	1
30	RY5317626AC	フロントスプリッター	RY5317626AC フロントスプリッター	$941.95	1
31	RY5317626BB	フロントスプリッター	RY5317626BB フロントスプリッター When Cladding (items200-211) is fitted	$1,110.40	1
40	RY53500B84AA	COVER, RADAR	RY53500B84AA COVER, RADAR	$19.67	1
50	RY53278G14AA	BRACKET, RADAR, FRONT	RY53278G14AA BRACKET, RADAR, FRONT	$83.88	1
55	HY53N800888AA	WASHER, 6ID x 18OD x1.5	HY53N800888AA WASHER, 6ID x 18OD x1.5	$0.18	2
60	701573	Screw and Washer assy, M4x16 Pan hd	701573 Screw and Washer assy, M4x16 Pan hd	$0.41	4
70	RY53MA046AAA	BEZEL, CAMERA, FRONT	RY53MA046AAA BEZEL, CAMERA, FRONT	$84.95	1
80	RY6319J219AA	BRACKET, CAMERA, FRONT	RY6319J219AA BRACKET, CAMERA, FRONT	$79.80	1
90	708101	SCREW/WASHER, M4x16	708101 SCREW/WASHER, M4x16	$3.76	1
100	RY538156AC	MESH, FRONT BUMPER	RY538156AC MESH, FRONT BUMPER	$591.88	1
110	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	5
120	FD43E830667AB	WASHER, 25mm O/D x 6.4mmI/Dx 1.5	FD43E830667AB WASHER, 25mm O/D x 6.4mmI/Dx 1.5	$0.71	5
130	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.90	5
140	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 ARRIVING SOON	$12.41	2
150	703026	Screw M5x16 Hex flg hd	703026 Screw M5x16 Hex flg hd	$0.34	2
160	703165	Nut, M05	703165 Nut, M05	$0.34	2
170	RY538N337AD	AUXILIARY RADIATOR DUCT,LH	RY538N337AD AUXILIARY RADIATOR DUCT,LH	$157.61	1
180	RY538N336AD	AUXILIARY RADIATOR DUCT,RH	RY538N336AD AUXILIARY RADIATOR DUCT,RH	$157.61	1
190	HY53N623361AA	U CLIP, DECKLID, LOWER	HY53N623361AA U CLIP, DECKLID, LOWER	$1.75	7
200	RY53218B47AA	SPLITTER CLADDING, LH	RY53218B47AA SPLITTER CLADDING, LH Gloss Black	$729.17	1
201	RY53218B47BA	SPLITTER CLADDING, LH	RY53218B47BA SPLITTER CLADDING, LH Carbon	$3,294.26	1
210	RY53218B46AA	SPLITTER CLADDING, RH	RY53218B46AA SPLITTER CLADDING, RH Gloss Black	$729.17	1
211	RY53218B46BA	SPLITTER CLADDING, RH	RY53218B46BA SPLITTER CLADDING, RH Carbon	$3,294.26	1
220	707790	SCREW, M5x30, PAN TORX	707790 SCREW, M5x30, PAN TORX	$16.40	10
230	AD43106046AA	WASHER, M6, PLAIN	AD43106046AA WASHER, M6, PLAIN	$0.73	10
240	707626	エッジクリップ	707626 エッジクリップ	$2.96	10
260	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	5
270	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 ARRIVING SOON	$12.41	2
280	RY53E800336AA	SCREW/WASHER, M6x21.5	RY53E800336AA SCREW/WASHER, M6x21.5	$0.73	12
290	RY5317F773AA	リテーナークリップ	RY5317F773AA リテーナークリップ	$0.98	10
300	RY5310140AB	FOAM, BUMPER MESH	RY5310140AB FOAM, BUMPER MESH	$6.06	2
310	RY538C297AA	SUPPORT, CORNER, LH	RY538C297AA SUPPORT, CORNER, LH	$173.39	1
320	RY538C296AA	SUPPORT, CORNER, RH	RY538C296AA SUPPORT, CORNER, RH	$173.39	1
330	HY5390781AA	BOLT, M6x21.5, HEX HEAD	HY5390781AA BOLT, M6x21.5, HEX HEAD	$9.32	4
340	RY5317F787AA	REINFORCEMENT, GRILLEMESH, LH	RY5317F787AA REINFORCEMENT, GRILLEMESH, LH	$148.73	1
350	RY5317F786AA	REINFORCEMENT, GRILLEMESH, RH	RY5317F786AA REINFORCEMENT, GRILLEMESH, RH	$148.73	1
360	707790	SCREW, M5x30, PAN TORX	707790 SCREW, M5x30, PAN TORX	$16.40	2
370	8G438979AA	WASHER, M5x20x1.5THK,BLACK	8G438979AA WASHER, M5x20x1.5THK,BLACK	$0.75	2
380	707790	SCREW, M5x30, PAN TORX	707790 SCREW, M5x30, PAN TORX	$16.40	4
390	8G438979AA	WASHER, M5x20x1.5THK,BLACK	8G438979AA WASHER, M5x20x1.5THK,BLACK	$0.75	4
500	RY5315A282AD	COVER, REAR CORNER, LH	RY5315A282AD COVER, REAR CORNER, LH RoW, -> VIN L14216	$1,041.97	1
501	RY5315A282AE	COVER, REAR CORNER, LH	RY5315A282AE COVER, REAR CORNER, LH RoW, VIN L14217->	$1,013.66	1
502	RY5315A282BD	COVER, REAR CORNER, LH	RY5315A282BD COVER, REAR CORNER, LH Federal, -> VIN L14278	$1,041.97	1
503	RY5315A282BE	COVER, REAR CORNER, LH	RY5315A282BE COVER, REAR CORNER, LH Federal, VIN L14279->	$810.52	1
510	RY5315A281AD	COVER, REAR CORNER, RH	RY5315A281AD COVER, REAR CORNER, RH RoW, -> VIN L14993	$1,041.97	1
511	RY5315A281AF	COVER, REAR CORNER, RH	RY5315A281AF COVER, REAR CORNER, RH RoW, VIN L14994->	$1,013.66	1
512	RY5315A281BD	COVER, REAR CORNER, RH	RY5315A281BD COVER, REAR CORNER, RH Federal, -> VIN M14933	$1,016.55	1
513	RY5315A281BF	COVER, REAR CORNER, RH	RY5315A281BF COVER, REAR CORNER, RH Federal, VIN M14934->	$810.52	1
520	HY5301949AB	MESH, REAR BUMPER, LH	HY5301949AB MESH, REAR BUMPER, LH	$599.99	1
530	HY5301948AB	MESH, REAR BUMPER, RH	HY5301948AB MESH, REAR BUMPER, RH	$545.12	1
540	HY5313A539BA	INSERT, REAR LAMP, LH	HY5313A539BA INSERT, REAR LAMP, LH Coupe	$170.23	1
541	KY5313A539AA	INSERT, REAR LAMP, LH	KY5313A539AA INSERT, REAR LAMP, LH Volante	$367.33	1
550	HY5313A538BA	INSERT, REAR LAMP, RH	HY5313A538BA INSERT, REAR LAMP, RH Coupe	$153.90	1
551	KY5313A538AA	INSERT, REAR LAMP, RH	KY5313A538AA INSERT, REAR LAMP, RH Volante	$367.33	1
560	HY5313A537CA	INFILL STRUCTUREASSEMBLY, LH	HY5313A537CA INFILL STRUCTUREASSEMBLY, LH Adjustable	$57.14	1
570	HY5313A536BB	INFILL STRUCTUREASSEMBLY, RH	HY5313A536BB INFILL STRUCTUREASSEMBLY, RH Adjustable	$71.64	1
580	RY535K239AA	FINISHER, TAILPIPE, LH	RY535K239AA FINISHER, TAILPIPE, LH Bright	$244.01	1
581	RY535K239CA	FINISHER, TAILPIPE, LH	RY535K239CA FINISHER, TAILPIPE, LH Gloss Black	$253.22	1
582	RY535K239EA	FINISHER, TAILPIPE, LH	RY535K239EA FINISHER, TAILPIPE, LH Matt Black	$237.91	1
590	RY535K238AA	FINISHER, TAILPIPE, RH	RY535K238AA FINISHER, TAILPIPE, RH Bright	$244.01	1
591	RY535K238CA	FINISHER, TAILPIPE, RH	RY535K238CA FINISHER, TAILPIPE, RH Gloss Black	$253.22	1
592	RY535K238EA	FINISHER, TAILPIPE, RH	RY535K238EA FINISHER, TAILPIPE, RH Matt Black	$237.91	1
600	704327	ナットおよびワッシャ	704327 ナットおよびワッシャ	$5.38	6
610	HY535B282AA	WASHER, EXHAUSTINSULATION	HY535B282AA WASHER, EXHAUSTINSULATION	$0.29	12
620	702514	Screw, flg, M6 x 16 torx	702514 Screw, flg, M6 x 16 torx	$2.85	10
630	HY5319G759AB	BRACKET, TAILPIPE, LH	HY5319G759AB BRACKET, TAILPIPE, LH	$19.36	1
640	HY5319G758AB	BRACKET, TAILPIPE, RH	HY5319G758AB BRACKET, TAILPIPE, RH	$19.36	1
650	RY5317E955AB	INSERT ASSEMBLY, REARBUMPER	RY5317E955AB INSERT ASSEMBLY, REARBUMPER Black, RoW	$2,270.70	1
651	RY5317E955BB	INSERT ASSEMBLY, REARBUMPER	RY5317E955BB INSERT ASSEMBLY, REARBUMPER Black, Federal	$2,960.36	1
652	RY5317E955EC	INSERT ASSEMBLY, REARBUMPER	RY5317E955EC INSERT ASSEMBLY, REARBUMPER Carbon, RoW	$10,757.49	1
653	RY5317E955FC	INSERT ASSEMBLY, REARBUMPER	RY5317E955FC INSERT ASSEMBLY, REARBUMPER Carbon, Federal	$10,756.66	1
654	RY5317E955JA	INSERT ASSEMBLY, REARBUMPER	RY5317E955JA INSERT ASSEMBLY, REARBUMPER Carbon, China	$10,442.85	1
655	RY5317E955GC	INSERT ASSEMBLY, REARBUMPER	RY5317E955GC INSERT ASSEMBLY, REARBUMPER Black, China	$2,957.56	1
660	HY53F17B681AA	BRACKET, CENTRE, REARBUMPER	HY53F17B681AA BRACKET, CENTRE, REARBUMPER	$262.33	1
670	HY539927AA	Sクリップ	HY539927AA Sクリップ	$2.78	8
680	HY5313A465BA	FINISHER, TLS to REARLAMP, LH	HY5313A465BA FINISHER, TLS to REARLAMP, LH Coupe	$58.18	1
681	KY5313A465BA	FINISHER, TLS to REARLAMP, LH	KY5313A465BA FINISHER, TLS to REARLAMP, LH Volante	$54.04	1
690	HY5313A466AB	FINISHER, TLS to REARLAMP, RH	HY5313A466AB FINISHER, TLS to REARLAMP, RH Coupe	$66.56	1
691	KY5313A466BA	FINISHER, TLS to REARLAMP, RH	KY5313A466BA FINISHER, TLS to REARLAMP, RH Volante	$40.49	1
700	HY5317G953AA	BRACKET, REAR BUMPER, LH	HY5317G953AA BRACKET, REAR BUMPER, LH	$44.09	1
710	HY5317G952AA	BRACKET, REAR BUMPER, RH	HY5317G952AA BRACKET, REAR BUMPER, RH	$44.09	1
720	703085	Bolt, M6 x 12, VOLANTE	703085 Bolt, M6 x 12, VOLANTE	$1.44	8
730	697517	Washer, M6 x 19 x 1.5	697517 Washer, M6 x 19 x 1.5	-	2	Enquire
740	HY5310140AA	フォームブロック	HY5310140AA フォームブロック RoW only	$23.55	2
750	RY53278G14AA	BRACKET, RADAR, FRONT	RY53278G14AA BRACKET, RADAR, FRONT	$83.88	2
760	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	18
770	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 Pack of 10 ARRIVING SOON	$12.41	24
780	703749	Nut, M5 Hex flg hd	703749 Nut, M5 Hex flg hd	$1.27	2
790	4G4317F773AB	リテーナー、バンパー	4G4317F773AB リテーナー、バンパー	-	6	Enquire
800	6G3351756AA	Screw, M5 x 13 Pan Head	6G3351756AA Screw, M5 x 13 Pan Head	-	4	Enquire
820	707157	SCREW/WASHER, M6x30 HEXPLAIN	707157 SCREW/WASHER, M6x30 HEXPLAIN	$1.28	2
830	707629	SCREW, SELF TAP, 4.8x19	707629 SCREW, SELF TAP, 4.8x19	$0.29	2
840	703025	Bolt, flg M6 x 25	703025 Bolt, flg M6 x 25	$0.34	4
850	FD43E830667AB	WASHER, 25mm O/D x 6.4mmI/Dx 1.5	FD43E830667AB WASHER, 25mm O/D x 6.4mmI/Dx 1.5	$0.71	2
860	703198	BOLT, M6x40, HEX	703198 BOLT, M6x40, HEX	$0.78	2
870	4G4313520AB	FIXING SEAL, ADJUSTER	4G4313520AB FIXING SEAL, ADJUSTER	$4.30	6
880	697517	Washer, M6 x 19 x 1.5	697517 Washer, M6 x 19 x 1.5	-	8	Enquire
890	701573	Screw and Washer assy, M4x16 Pan hd	701573 Screw and Washer assy, M4x16 Pan hd	$0.41	8
900	703731	Bolt, M8 flange head, dip stick tube	703731 Bolt, M8 flange head, dip stick tube	$0.71	4
910	RY63E826A81AA	M6 WITOL ADJUSTER 401.402	RY63E826A81AA M6 WITOL ADJUSTER 401.402	$21.41	4
920	HY5317C911AA	COVER, OVERRIDER, LH	HY5317C911AA COVER, OVERRIDER, LH Federal, Black	$62.40	1
921	HY5317C911BA	COVER, OVERRIDER, LH	HY5317C911BA COVER, OVERRIDER, LH Federal, Graphite	$60.19	1
930	HY5317C910AA	COVER, OVERRIDER, RH	HY5317C910AA COVER, OVERRIDER, RH Federal, Black	$62.40	1
931	HY5317C910BA	COVER, OVERRIDER, RH	HY5317C910BA COVER, OVERRIDER, RH Federal, Graphite	$60.19	1
940	6G437210059	Clip, Over-Rider	6G437210059 Clip, Over-Rider Federal	$1.16	2
950	HY53E603123AA	SCREW, 4x12, TORX HD	HY53E603123AA SCREW, 4x12, TORX HD	$0.75	4
1000	RY5317A835BB	PLINTH, LICENCE PLATE	RY5317A835BB PLINTH, LICENCE PLATE RoW	$160.64	1
1010	707163	SCREW, 4.8x25, TORX XS/C	707163 SCREW, 4.8x25, TORX XS/C	$0.80	2
1020	702511PK	J Nut	702511PK J Nut Pack of 10	$8.52	2
1030	KY7317A835BA	PLINTH, LICENCE PLATE	KY7317A835BA PLINTH, LICENCE PLATE Federal	$232.67	1
1040	6G430516BBA	Screw, M6	6G430516BBA Screw, M6	$5.72	6
1050	702511PK	J Nut	702511PK J Nut Pack of 10	$8.52	4
1060	RY5317A835CA	PLINTH, LICENCE PLATE	RY5317A835CA PLINTH, LICENCE PLATE GCC, Swiss	$197.33	1
1070	707163	SCREW, 4.8x25, TORX XS/C	707163 SCREW, 4.8x25, TORX XS/C	$0.80	2
1080	702511PK	J Nut	702511PK J Nut Pack of 10	$8.52	2
1090	RY5317A835DA	PLINTH, LICENCE PLATE	RY5317A835DA PLINTH, LICENCE PLATE China	$197.33	1
1100	707163	SCREW, 4.8x25, TORX XS/C	707163 SCREW, 4.8x25, TORX XS/C	$0.80	2
1110	RY5317A835EA	PLINTH, LICENCE PLATE	RY5317A835EA PLINTH, LICENCE PLATE Japan	$197.33	1
1120	707163	SCREW, 4.8x25, TORX XS/C	707163 SCREW, 4.8x25, TORX XS/C	$0.80	2
1130	702511PK	J Nut	702511PK J Nut Pack of 10	$8.52	2
2000	6G3317B389AE	BRACKET, LICENCE PLATE	6G3317B389AE BRACKET, LICENCE PLATE Federal, Swiss	$50.94	1
2010	702511PK	J Nut	702511PK J Nut Pack of 10	$8.52	4
2020	707629	SCREW, SELF TAP, 4.8x19	707629 SCREW, SELF TAP, 4.8x19	$0.29	2
2060	CD3317B389DD	BRACKET, LICENCE PLATE	CD3317B389DD BRACKET, LICENCE PLATE China	$60.08	1
2070	707629	SCREW, SELF TAP, 4.8x19	707629 SCREW, SELF TAP, 4.8x19	$0.29	2
2080	702511PK	J Nut	702511PK J Nut Pack of 10	$8.52	2
2090	AD4313418BA	Bracket assy, licence plate	AD4313418BA Bracket assy, licence plate	$94.49	2
2100	702943	Rivet, 3.2x6.5, Blind Aluminium	702943 Rivet, 3.2x6.5, Blind Aluminium	$0.07	4
