Aston Martin GT DB12 (2024- - Seating - Sports Plus

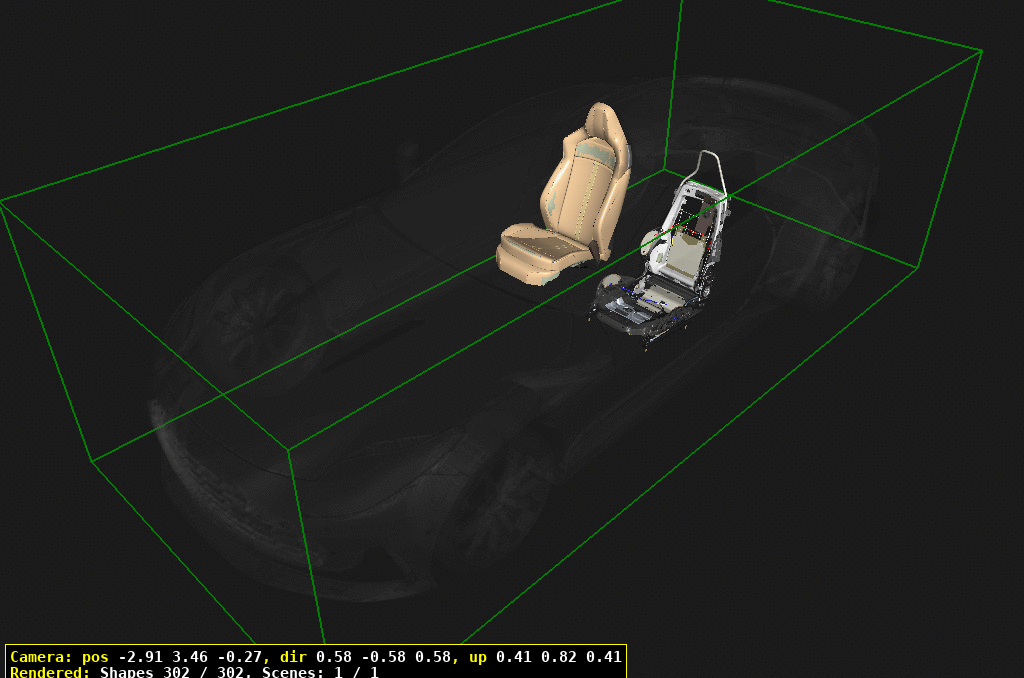

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~~0~~	LH Illustrated	~~0~~ LH Illustrated	-	-	Enquire
-	~~O~~	RH Illustrated	~~O~~ RH Illustrated	-	-	Enquire
10	RY5360008AAW	FRONT SEAT ASSEMBLY, RH	RY5360008AAW FRONT SEAT ASSEMBLY, RH Order with VIN	$36,107.82	1
11	RY5360009AAW	FRONT SEAT ASSEMBLY, LH	RY5360009AAW FRONT SEAT ASSEMBLY, LH Order with VIN	$36,107.82	1
20	KY634D9513BC	FOAM ASSEMBLY, SQUAB	KY634D9513BC FOAM ASSEMBLY, SQUAB	$258.99	2
30	KY639515BC	FOAM ASSEMBLY, CUSHION	KY639515BC FOAM ASSEMBLY, CUSHION	$188.78	2
31	~oOo~	BATTERY, CR2032	~oOo~ BATTERY, CR2032 For OCS Service Kit,refer to Section 01-20	-	-	Enquire
40	HY5362152BCW	SHOULDER PAD ASSEMBLY	HY5362152BCW SHOULDER PAD ASSEMBLY LH, RH Seat	$393.88	1
41	HY5362153BCW	SHOULDER PAD ASSEMBLY	HY5362153BCW SHOULDER PAD ASSEMBLY RH, LH Seat	$393.88	1
50	HY5362152ACW	SHOULDER PAD ASSEMBLY	HY5362152ACW SHOULDER PAD ASSEMBLY RH, RH Seat	$393.88	1
51	HY5362153ACW	SHOULDER PAD ASSEMBLY	HY5362153ACW SHOULDER PAD ASSEMBLY LH, LH Seat	$393.88	1
60	HY5366914ACW	SEAT BACK SHELL, UPPER	HY5366914ACW SEAT BACK SHELL, UPPER Leather Trimmed	$899.69	1
61	KY53600E88PA	SEAT BACK SHELL, UPPER	KY53600E88PA SEAT BACK SHELL, UPPER Painted Piano Black	$682.00	2
62	KY53600E88NC	SEAT BACK SHELL, UPPER	KY53600E88NC SEAT BACK SHELL, UPPER Chopped Carbon Satin	$4,638.20	2
63	KY53-600E89-FD	SEAT BACK SHELL, UPPER	KY53-600E89-FD SEAT BACK SHELL, UPPER LH, Carbon 2x2 Twill	-	2	Enquire
64	KY53600E88FC	SEAT BACK SHELL, UPPER	KY53600E88FC SEAT BACK SHELL, UPPER RH, Carbon 2x2 Twill	$5,094.46	2
65	KY53044J50BB	VENEER, SEAT BACK SHELL,Matched Pair	KY53044J50BB VENEER, SEAT BACK SHELL,Matched Pair Tamo Ash	$6,441.13	1
66	RY53044J50EA	VENEER, SEAT BACK SHELL,Matched Pair	RY53044J50EA VENEER, SEAT BACK SHELL,Matched Pair Dark Walnut	$3,620.83	1
67	KY53044J50LB	VENEER, SEAT BACK SHELL,Matched Pair	KY53044J50LB VENEER, SEAT BACK SHELL,Matched Pair Light Ash Burl	$4,207.50	1
70	KY6366915AEW	SEAT BACK SHELL, LOWER	KY6366915AEW SEAT BACK SHELL, LOWER	$3,159.39	2
80	RY5362954BAW	CUSHION COVER ASSEMBLY	RY5362954BAW CUSHION COVER ASSEMBLY RH, 'Accelerate'	$5,555.40	1
81	RY5362954DAW	CUSHION COVER ASSEMBLY	RY5362954DAW CUSHION COVER ASSEMBLY RH, 'Inspire Sport'	$6,788.18	1
82	RY5362955BAW	CUSHION COVER ASSEMBLY	RY5362955BAW CUSHION COVER ASSEMBLY LH, 'Accelerate'	$5,694.28	1
83	RY5362955DAW	CUSHION COVER ASSEMBLY	RY5362955DAW CUSHION COVER ASSEMBLY LH, 'Inspire Sport'	$6,429.72	1
90	RY53-62766-BAW	スクアブカバーASSY	RY53-62766-BAW スクアブカバーASSY RH, 'Accelerate'	-	1	Enquire
91	RY5362766DAW	スクアブカバーASSY	RY5362766DAW スクアブカバーASSY RH, 'Inspire Sport'	$5,815.99	1
92	RY53-62767-BAW	スクアブカバーASSY	RY53-62767-BAW スクアブカバーASSY LH, 'Accelerate'	-	1	Enquire
93	RY5362767DAW	スクアブカバーASSY	RY5362767DAW スクアブカバーASSY LH, 'Inspire Sport'	$5,674.13	1
100	KY63-64864-AB	FRONT PANEL ASSEMBLY,UPPER	KY63-64864-AB FRONT PANEL ASSEMBLY,UPPER	-	2	Enquire
110	HY5317C988AAW	VALANCE, INNER, RH	HY5317C988AAW VALANCE, INNER, RH RH Seat	$151.38	1
111	HY5317C989AAW	VALANCE, INNER, LH	HY5317C989AAW VALANCE, INNER, LH LH Seat	$151.38	1
120	HY53600C64AAW	VALANCE ASSEMBLY, CUSHION	HY53600C64AAW VALANCE ASSEMBLY, CUSHION RH, RH Seat	$1,624.50	1
121	HY53600C65AAW	VALANCE ASSEMBLY, CUSHION	HY53600C65AAW VALANCE ASSEMBLY, CUSHION LH, LH Seat	$1,624.50	1
130	HY5364344ACW	REAR BEZEL ASSEMBLY	HY5364344ACW REAR BEZEL ASSEMBLY	$271.13	2
140	RY53621A64AAW	HANDLE, SEAT BACK RELEASE	RY53621A64AAW HANDLE, SEAT BACK RELEASE Haircell	$159.23	2
141	RY53621A64EAW	HANDLE, SEAT BACK RELEASE	RY53621A64EAW HANDLE, SEAT BACK RELEASE Semi Aniline	$159.23	2
150	HY53627A25AB	GUIDE, SEAT BACK RELEASE	HY53627A25AB GUIDE, SEAT BACK RELEASE RH	$25.71	1
160	HY53627A24AB	GUIDE, SEAT BACK RELEASE	HY53627A24AB GUIDE, SEAT BACK RELEASE LH	$25.71	1
170	KY6314D696AA	HEATER PAD, SEAT SQUAB	KY6314D696AA HEATER PAD, SEAT SQUAB	$176.21	2
180	HY5314D698AB	HEATER PAD, SEAT CUSHION	HY5314D698AB HEATER PAD, SEAT CUSHION	$215.94	2
190	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head per seat	$0.68	6
200	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	2
210	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type per seat IN STOCK	$2.17	2
220	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7 per seat	$1.02	5
230	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	3
240	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type per seat IN STOCK	$2.17	2
250	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX per seat	$0.25	2
260	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	2
270	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	3
280	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7 per seat	$1.02	8
290	HY53644K79ACW	COVER, SQUAB to CUSHION	HY53644K79ACW COVER, SQUAB to CUSHION	$154.90	1
300	~O~	バッテリー	~O~ バッテリー See Section 010501-10	-	1	Enquire
310	KY6363861AA	SUPPORT, SEAT WING, LH	KY6363861AA SUPPORT, SEAT WING, LH Sports Seat+	$62.39	1
320	KY6363860AA	SUPPORT, SEAT WING, RH	KY6363860AA SUPPORT, SEAT WING, RH Sports Seat+	$62.39	1
330	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head	$0.68	4
340	707618	SCREW, M6x20, HEX HD,THREAD FORMING	707618 SCREW, M6x20, HEX HD,THREAD FORMING	$0.86	2
350	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head	$0.68	6
360	HY53600B68AB	SEAT CLIMATE ASSEMBLY,CUSHION	HY53600B68AB SEAT CLIMATE ASSEMBLY,CUSHION Climate	$106.51	1
361	HY5363222AB	PAD, SEAT CUSHION	HY5363222AB PAD, SEAT CUSHION Heated	$57.07	1
370	KY63600B70AA	SEAT CLIMATE ASSEMBLY,SQUAB	KY63600B70AA SEAT CLIMATE ASSEMBLY,SQUAB Climate	$82.98	1
371	KY6364868AA	PAD, SEAT SQUAB	KY6364868AA PAD, SEAT SQUAB Heated	$54.63	1
400	707132	BOLT, M10x40, HEX FLG	707132 BOLT, M10x40, HEX FLG	$2.68	8
410	RY53608A15AB	SEAT FRAME, DRIVER	RY53608A15AB SEAT FRAME, DRIVER LH, LHD, Standard	$5,629.41	1
411	RY53608A15CB	SEAT FRAME, PASSENGER	RY53608A15CB SEAT FRAME, PASSENGER LH, RHD, Standard	$5,613.55	1
412	RY53608A15EB	SEAT FRAME, DRIVER	RY53608A15EB SEAT FRAME, DRIVER LH, LHD, AdjustableBolster	$5,909.96	1
413	RY53608A15GB	SEAT FRAME, PASSENGER	RY53608A15GB SEAT FRAME, PASSENGER LH, RHD, AdjustableBolster	$5,600.24	1
420	RY53608A14AB	SEAT FRAME, DRIVER	RY53608A14AB SEAT FRAME, DRIVER RH, RHD, Standard	$5,629.41	1
421	HY53608A14CB	SEAT FRAME, PASSENGER	HY53608A14CB SEAT FRAME, PASSENGER RH, LHD, Standard	$5,787.60	1
422	RY53608A14EB	SEAT FRAME, DRIVER	RY53608A14EB SEAT FRAME, DRIVER RH, RHD, AdjustableBolster	$5,909.96	1
423	RY53608A14GB	SEAT FRAME, PASSENGER	RY53608A14GB SEAT FRAME, PASSENGER RH, LHD, AdjustableBolster	$5,463.66	1
460	MY8314B684AA	WIRING HARNESS ASSEMBLY,RH	MY8314B684AA WIRING HARNESS ASSEMBLY,RH	$706.59	1
461	MY8314B683AA	WIRING HARNESS ASSEMBLY,LH	MY8314B683AA WIRING HARNESS ASSEMBLY,LH	$689.37	1
470	HY53629B01AA	END CAP, SEAT TRACK,FRONT	HY53629B01AA END CAP, SEAT TRACK,FRONT	$17.39	3
480	HY53629B03AA	END CAP, SEAT TRACK, REAR	HY53629B03AA END CAP, SEAT TRACK, REAR	$8.25	1
490	HY53XC471045AA	BRACKET, ECU	HY53XC471045AA BRACKET, ECU	$90.39	2
500	RY53SE14C249AB	ECU, DRIVERS SEAT	RY53SE14C249AB ECU, DRIVERS SEAT	$944.18	1
501	RY53SE14C249BB	ECU, PASSENGERS SEAT	RY53SE14C249BB ECU, PASSENGERS SEAT	$916.68	1
510	HY5363550AA	LUMBAR SUPPORT, withBOLSTERS	HY5363550AA LUMBAR SUPPORT, withBOLSTERS	$3,771.38	1
511	HY53603B16AA	LUMBAR SUPPORT, lessBOLSTERS	HY53603B16AA LUMBAR SUPPORT, lessBOLSTERS	$319.90	1
540	HY53631B86AB	FAN ASSEMBLY, SEAT SQUAB	HY53631B86AB FAN ASSEMBLY, SEAT SQUAB Climate	$282.45	1
541	HY538632AB	FAN ASSEMBLY, SEATCUSHION	HY538632AB FAN ASSEMBLY, SEATCUSHION Climate	$292.00	1
550	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.98	1
