Seating - Comfort of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

Aston Martin GT DB12 (2024- - Seating - Comfort

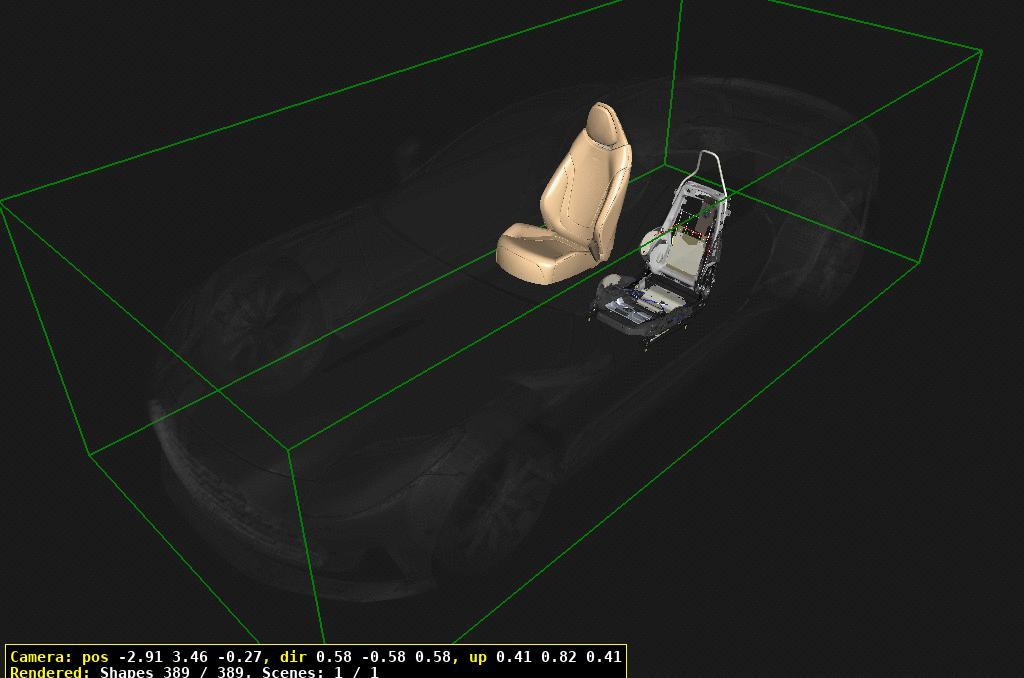

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~~O~~	RH Illustrated	~~O~~ RH Illustrated	-	-	Enquire
2	~~0~~	LH Illustrated	~~0~~ LH Illustrated	-	-	Enquire
3	RY5360008AAW	FRONT SEAT ASSEMBLY, RH	RY5360008AAW FRONT SEAT ASSEMBLY, RH Order with VIN	$36,107.82	1
4	RY5360009AAW	FRONT SEAT ASSEMBLY, LH	RY5360009AAW FRONT SEAT ASSEMBLY, LH Order with VIN	$36,107.82	1
20	HY534D9513AC	FOAM ASSEMBLY, SQUAB	HY534D9513AC FOAM ASSEMBLY, SQUAB	$250.99	2
30	HY539515AB	FOAM ASSEMBLY, CUSHION	HY539515AB FOAM ASSEMBLY, CUSHION	$178.13	2
40	~oOo~	BATTERY, CR2032	~oOo~ BATTERY, CR2032 For OCS Service Kit,please refer to Section01-20	-	-	Enquire
50	HY5362152BCW	SHOULDER PAD ASSEMBLY	HY5362152BCW SHOULDER PAD ASSEMBLY LH, RH Seat	$393.88	1
51	HY5362153BCW	SHOULDER PAD ASSEMBLY	HY5362153BCW SHOULDER PAD ASSEMBLY RH, LH Seat	$393.88	1
60	HY5362152ACW	SHOULDER PAD ASSEMBLY	HY5362152ACW SHOULDER PAD ASSEMBLY RH, RH Seat	$393.88	1
61	HY5362153ACW	SHOULDER PAD ASSEMBLY	HY5362153ACW SHOULDER PAD ASSEMBLY LH, LH Seat	$393.88	1
70	HY5366914ACW	SEAT BACK SHELL, UPPER	HY5366914ACW SEAT BACK SHELL, UPPER Leather Trimmed	$899.69	2
71	KY53600E88PA	SEAT BACK SHELL, UPPER	KY53600E88PA SEAT BACK SHELL, UPPER Painted Piano Black	$682.00	2
72	KY53-600E89-FD	SEAT BACK SHELL, UPPER	KY53-600E89-FD SEAT BACK SHELL, UPPER LH, Carbon 2x2 Twill	-	1	Enquire
73	KY53600E88FC	SEAT BACK SHELL, UPPER	KY53600E88FC SEAT BACK SHELL, UPPER RH, Carbon 2x2 Twill	$5,094.46	1
74	RY53044J50EA	VENEER, SEAT BACK SHELL,Matched Pair	RY53044J50EA VENEER, SEAT BACK SHELL,Matched Pair Dark Walnut	$3,620.83	1
75	KY53044J50LB	VENEER, SEAT BACK SHELL,Matched Pair	KY53044J50LB VENEER, SEAT BACK SHELL,Matched Pair Light Ash Burl	$4,207.50	1
90	HY5366915AFW	SEAT BACK SHELL, LOWER	HY5366915AFW SEAT BACK SHELL, LOWER	$3,159.39	2
100	RY5362901AAW	CUSHION COVER ASSEMBLY	RY5362901AAW CUSHION COVER ASSEMBLY LH, 'Create'	$2,259.05	1
101	RY5362901CAW	CUSHION COVER ASSEMBLY	RY5362901CAW CUSHION COVER ASSEMBLY LH, 'Inspire'	$4,488.83	1
102	RY5362900AAW	CUSHION COVER ASSEMBLY	RY5362900AAW CUSHION COVER ASSEMBLY RH, 'Create'	$2,259.05	1
103	RY5362900CAW	CUSHION COVER ASSEMBLY	RY5362900CAW CUSHION COVER ASSEMBLY RH, 'Inspire'	$4,739.07	1
110	RY5364573AAW	スクアブカバーASSY	RY5364573AAW スクアブカバーASSY LH, 'Create'	$1,453.53	1
111	RY53-64573-CAW	スクアブカバーASSY	RY53-64573-CAW スクアブカバーASSY LH, 'Inspire'	-	1	Enquire
112	RY5364572AAW	スクアブカバーASSY	RY5364572AAW スクアブカバーASSY RH, 'Create'	$1,453.53	1
114	RY53-64572-CAW	スクアブカバーASSY	RY53-64572-CAW スクアブカバーASSY RH, 'Inspire'	-	1	Enquire
120	HY53612A94AAW	HEADREST SUPPORT ASSEMBLY	HY53612A94AAW HEADREST SUPPORT ASSEMBLY	$1,677.19	2
130	NY73-60528-AAW	FINISHER ASSEMBLY, SEATBACK	NY73-60528-AAW FINISHER ASSEMBLY, SEATBACK	-	2	Enquire
140	HY53-045H52-ABW	SUBSTRATE ASSEMBLY,HEADREST	HY53-045H52-ABW SUBSTRATE ASSEMBLY,HEADREST	-	2	Enquire
150	HY5317C988AAW	VALANCE, INNER, RH	HY5317C988AAW VALANCE, INNER, RH RH Seat	$151.38	1
151	HY5317C989AAW	VALANCE, INNER, LH	HY5317C989AAW VALANCE, INNER, LH LH Seat	$151.38	1
160	HY53600C64AAW	VALANCE ASSEMBLY, CUSHION	HY53600C64AAW VALANCE ASSEMBLY, CUSHION RH, RH Seat	$1,624.50	1
161	HY53600C65AAW	VALANCE ASSEMBLY, CUSHION	HY53600C65AAW VALANCE ASSEMBLY, CUSHION LH, LH Seat	$1,624.50	1
170	HY5364344ACW	REAR BEZEL ASSEMBLY	HY5364344ACW REAR BEZEL ASSEMBLY	$271.13	2
180	HY5361186ACW	FRONT PANEL ASSEMBLY,UPPER	HY5361186ACW FRONT PANEL ASSEMBLY,UPPER	$641.26	2
190	RY53621A64AAW	HANDLE, SEAT BACK RELEASE	RY53621A64AAW HANDLE, SEAT BACK RELEASE Haircell	$159.23	2
191	RY53621A64EAW	HANDLE, SEAT BACK RELEASE	RY53621A64EAW HANDLE, SEAT BACK RELEASE Semi Aniline	$159.23	2
200	HY53627A24AB	GUIDE, SEAT BACK RELEASE	HY53627A24AB GUIDE, SEAT BACK RELEASE LH	$25.71	1
201	HY53627A25AB	GUIDE, SEAT BACK RELEASE	HY53627A25AB GUIDE, SEAT BACK RELEASE RH	$25.71	1
220	HY5314D696AB	HEATER PAD, SEAT SQUAB	HY5314D696AB HEATER PAD, SEAT SQUAB	$83.01	2
230	HY5314D698AB	HEATER PAD, SEAT CUSHION	HY5314D698AB HEATER PAD, SEAT CUSHION	$215.94	2
240	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head per seat	$0.68	6
250	703175	Screw, M4 x 10, Torx Pan Head IN STOCK	703175 Screw, M4 x 10, Torx Pan Head per seat IN STOCK	$0.34	2
260	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type per seat IN STOCK	$2.17	2
270	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7 per seat	$1.02	5
280	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	3
290	701448	Nut, U-Type IN STOCK	701448 Nut, U-Type per seat IN STOCK	$2.17	2
300	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX per seat	$0.25	2
310	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	2
320	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head per seat	$0.68	2
330	707146	SCREW, M5x16	707146 SCREW, M5x16 per seat	$0.81	4
340	707145	Screw, M5x24, Pan Head	707145 Screw, M5x24, Pan Head per seat	$0.68	11
350	707135	SCREW, ST4.2x13, PC R TAP IN STOCK	707135 SCREW, ST4.2x13, PC R TAP per seat IN STOCK	$0.18	3
360	707618	SCREW, M6x20, HEX HD,THREAD FORMING	707618 SCREW, M6x20, HEX HD,THREAD FORMING per seat	$0.86	2
370	DD33487032AA	Clip, Push In, 8.0 x 16 x 1.7	DD33487032AA Clip, Push In, 8.0 x 16 x 1.7 per seat	$1.02	8
380	HY53-61622-ABW	PIPING INSERT ASSEMBLY	HY53-61622-ABW PIPING INSERT ASSEMBLY	-	2	Enquire
390	HY53644K79ACW	COVER, SQUAB to CUSHION	HY53644K79ACW COVER, SQUAB to CUSHION	$154.90	1
400	~O~	バッテリー	~O~ バッテリー See Section 010501-10	-	1	Enquire
410	HY53600B68AB	SEAT CLIMATE ASSEMBLY,CUSHION	HY53600B68AB SEAT CLIMATE ASSEMBLY,CUSHION Climate	$106.51	1
411	HY5363222AB	PAD, SEAT CUSHION	HY5363222AB PAD, SEAT CUSHION Heated	$57.07	1
420	HY53600B70AB	SEAT CLIMATE ASSEMBLY,SQUAB	HY53600B70AB SEAT CLIMATE ASSEMBLY,SQUAB Climate	$125.23	1
422	HY5364868AB	PAD, SEAT SQUAB	HY5364868AB PAD, SEAT SQUAB Heated	$59.96	1
500	707132	BOLT, M10x40, HEX FLG	707132 BOLT, M10x40, HEX FLG	$2.68	8
510	RY53608A15AB	SEAT FRAME, DRIVER	RY53608A15AB SEAT FRAME, DRIVER LH, LHD, Standard	$5,629.41	1
511	RY53608A15CB	SEAT FRAME, PASSENGER	RY53608A15CB SEAT FRAME, PASSENGER LH, RHD, Standard	$5,613.55	1
512	RY53608A15EB	SEAT FRAME, DRIVER	RY53608A15EB SEAT FRAME, DRIVER LH, LHD, AdjustableBolster	$5,909.96	1
513	RY53608A15GB	SEAT FRAME, PASSENGER	RY53608A15GB SEAT FRAME, PASSENGER LH, RHD, AdjustableBolster	$5,600.24	-
520	RY53608A14AB	SEAT FRAME, DRIVER	RY53608A14AB SEAT FRAME, DRIVER RH, RHD, Standard	$5,629.41	1
521	RY53608A14CB	SEAT FRAME, PASSENGER	RY53608A14CB SEAT FRAME, PASSENGER RH, LHD, Standard	$5,613.46	1
522	RY53608A14EB	SEAT FRAME, DRIVER	RY53608A14EB SEAT FRAME, DRIVER RH, RHD, AdjustableBolster	$5,909.96	1
523	RY53608A14GB	SEAT FRAME, PASSENGER	RY53608A14GB SEAT FRAME, PASSENGER RH, LHD, AdjustableBolster	$5,463.66	1
540	MY8314B684AA	WIRING HARNESS ASSEMBLY,RH	MY8314B684AA WIRING HARNESS ASSEMBLY,RH	$706.59	1
541	MY8314B683AA	WIRING HARNESS ASSEMBLY,LH	MY8314B683AA WIRING HARNESS ASSEMBLY,LH	$689.37	1
550	HY53629B01AA	END CAP, SEAT TRACK,FRONT	HY53629B01AA END CAP, SEAT TRACK,FRONT	$17.39	3
560	HY53629B03AA	END CAP, SEAT TRACK, REAR	HY53629B03AA END CAP, SEAT TRACK, REAR	$8.25	1
570	HY53XC471045AA	BRACKET, ECU	HY53XC471045AA BRACKET, ECU	$90.39	2
580	RY53SE14C249AB	ECU, DRIVERS SEAT	RY53SE14C249AB ECU, DRIVERS SEAT	$944.18	1
581	RY53SE14C249BB	ECU, PASSENGERS SEAT	RY53SE14C249BB ECU, PASSENGERS SEAT	$916.68	1
590	HY5363550AA	LUMBAR SUPPORT, withBOLSTERS	HY5363550AA LUMBAR SUPPORT, withBOLSTERS	$3,771.38	1
591	HY53603B16AA	LUMBAR SUPPORT, lessBOLSTERS	HY53603B16AA LUMBAR SUPPORT, lessBOLSTERS	$319.90	1
600	HY53631B86AB	FAN ASSEMBLY, SEAT SQUAB	HY53631B86AB FAN ASSEMBLY, SEAT SQUAB Climate	$282.45	1
610	HY538632AB	FAN ASSEMBLY, SEATCUSHION	HY538632AB FAN ASSEMBLY, SEATCUSHION Climate	$292.00	1
620	HY5314B426AA	SENSOR, SEAT TRACKPOSITION	HY5314B426AA SENSOR, SEAT TRACKPOSITION	$53.41	1
