Aston Martin GT DB12 (2024- - Interior Trim - Front Cabin

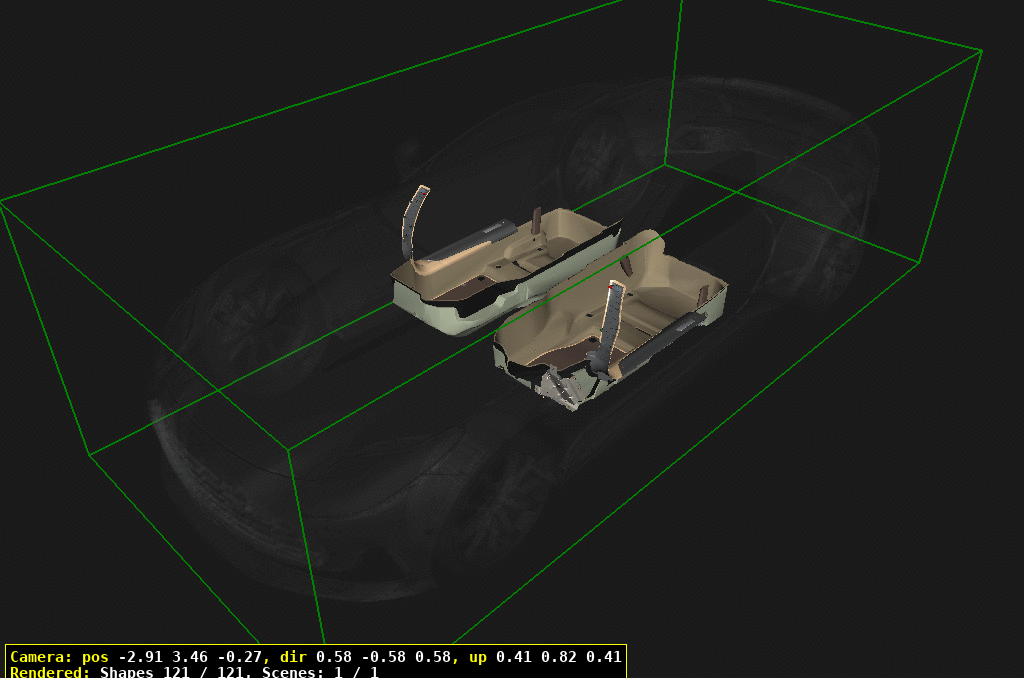

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭 7 for RHD	$0.59	9
30	HY53115A47AD	PANEL, HEEL SUPPORT	HY53115A47AD PANEL, HEEL SUPPORT LHD	$69.75	1
31	HY53115A46AB	PANEL, HEEL SUPPORT	HY53115A46AB PANEL, HEEL SUPPORT RHD	$56.82	1
40	697564	Push-on Fix	697564 Push-on Fix	$0.11	1
50	HY533N328AD	BRACKET, DRIVERS FOOTREST	HY533N328AD BRACKET, DRIVERS FOOTREST LHD	$106.19	1
51	HY533N234AB	BRACKET, DRIVERS FOOTREST	HY533N234AB BRACKET, DRIVERS FOOTREST RHD	$88.40	1
59	NOTE:	See Section 19-1000, item870 for Self-PresentingHandle ECU	NOTE: See Section 19-1000, item870 for Self-PresentingHandle ECU	-	-	Enquire
60	RY53130A09AA	CARPET ASSEMBLY, LH	RY53130A09AA CARPET ASSEMBLY, LH LHD, Black – 600gsm	$1,536.35	1
61	RY53130A09BBW	CARPET ASSEMBLY, LH	RY53130A09BBW CARPET ASSEMBLY, LH LHD, Colour – 720gsm	$1,826.16	1
62	RY53-130A10-AB	CARPET ASSEMBLY, LH	RY53-130A10-AB CARPET ASSEMBLY, LH RHD, Black – 600gsm	-	1	Enquire
63	RY53130A10BBW	CARPET ASSEMBLY, LH	RY53130A10BBW CARPET ASSEMBLY, LH RHD, Colour – 720gsm	$1,913.55	1
70	RY53130A08AB	CARPET ASSEMBLY, RH	RY53130A08AB CARPET ASSEMBLY, RH LHD, Black – 600gsm	$1,579.98	1
71	RY53130A08BBW	CARPET ASSEMBLY, RH	RY53130A08BBW CARPET ASSEMBLY, RH LHD, Colour – 720gsm	$1,994.18	1
72	HY53-130A12-AG	CARPET ASSEMBLY, RH	HY53-130A12-AG CARPET ASSEMBLY, RH RHD, Black – 600gsm	-	1	Enquire
73	HY53130A12BGW	CARPET ASSEMBLY, RH	HY53130A12BGW CARPET ASSEMBLY, RH RHD, Colour – 720gsm	$1,926.25	1
80	HY53044J09AA	PAD ASSEMBLY, DRIVERSFOOTREST	HY53044J09AA PAD ASSEMBLY, DRIVERSFOOTREST LHD	$13.32	1
81	HY53044J08AA	PAD ASSEMBLY, DRIVERSFOOTREST	HY53044J08AA PAD ASSEMBLY, DRIVERSFOOTREST RHD	$13.07	1
90	6G33E801202AA	Screw, M5 x 36 Countersunk Head Capscrew	6G33E801202AA Screw, M5 x 36 Countersunk Head Capscrew	$0.73	3
100	HY5312020AD	COVER PLATE, DRIVERSFOOTREST	HY5312020AD COVER PLATE, DRIVERSFOOTREST LHD	$44.88	1
101	HY5312021AD	COVER PLATE, DRIVERSFOOTREST	HY5312021AD COVER PLATE, DRIVERSFOOTREST RHD	$33.55	1
110	NY5318323AA	FLOOR MAT SET, Nubuk,600gsm, Primary Blackonly	NY5318323AA FLOOR MAT SET, Nubuk,600gsm, Primary Blackonly LHD (FMTK)	$969.02	1
111	NY5318323CAW	FLOOR MAT SET, Nubuk,720gsm, Coloured	NY5318323CAW FLOOR MAT SET, Nubuk,720gsm, Coloured LHD (FMTL)	$1,163.55	1
112	NY5318323EAW	FLOOR MAT SET, Nubuk,2000gsm, Coloured	NY5318323EAW FLOOR MAT SET, Nubuk,2000gsm, Coloured LHD (FMTM)	$1,150.71	1
113	NY5318323BA	FLOOR MAT SET, Nubuk,600gsm, Primary Blackonly	NY5318323BA FLOOR MAT SET, Nubuk,600gsm, Primary Blackonly RHD (FMTK)	$969.02	1
114	NY5318323DAW	FLOOR MAT SET, Nubuk,720gsm, Coloured	NY5318323DAW FLOOR MAT SET, Nubuk,720gsm, Coloured RHD (FMTL)	$1,192.63	1
115	NY5318323FAW	FLOOR MAT SET, Nubuk,2000gsm, Coloured	NY5318323FAW FLOOR MAT SET, Nubuk,2000gsm, Coloured RHD (FMTM)	$1,150.71	1
120	HY53132A13AD	PLATE, SCUFF SILL, LH	HY53132A13AD PLATE, SCUFF SILL, LH Silver	$651.59	1
121	HY53132A13BD	PLATE, SCUFF SILL, LH	HY53132A13BD PLATE, SCUFF SILL, LH Black	$651.59	1
130	HY53132A12AD	PLATE, SCUFF SILL, RH	HY53132A12AD PLATE, SCUFF SILL, RH Silver	$651.59	1
131	HY53132A12BD	PLATE, SCUFF SILL, RH	HY53132A12BD PLATE, SCUFF SILL, RH Black	$681.15	1
140	8D3368D11AA	SCREW, M6x20, LOW HD	8D3368D11AA SCREW, M6x20, LOW HD Black	$0.78	4
141	6G33SS106209AB	HEADBOLT, M6x2.0, SKT	6G33SS106209AB HEADBOLT, M6x2.0, SKT Silver	$1.00	4
150	RY538010235	ネームプレート、フロントシル	RY538010235 ネームプレート、フロントシル Standard (Each) "HandBuilt in Great Britain"	$302.24	2
151	RY538010212	ネームプレート、フロントシル	RY538010212 ネームプレート、フロントシル Personalised (Pair)	$553.64	1
152	RY538010236	ネームプレート、フロントシル	RY538010236 ネームプレート、フロントシル Personalised/Signature(Pair)	$582.40	1
153	RY53132A51BC	ネームプレート、フロントシル	RY53132A51BC ネームプレート、フロントシル Black Anodised	$316.50	2
160	NY53020C31AAW	TRIM ASSEMBLY, A-PILLAR,LOWER, LH	NY53020C31AAW TRIM ASSEMBLY, A-PILLAR,LOWER, LH LHD, Haircell	$711.84	1
161	NY53403F73AAW	TRIM ASSEMBLY, A-PILLAR,LOWER, LH	NY53403F73AAW TRIM ASSEMBLY, A-PILLAR,LOWER, LH RHD, Haircell	$433.24	1
162	NY53020C31EAW	TRIM ASSEMBLY, A-PILLAR,LOWER, LH	NY53020C31EAW TRIM ASSEMBLY, A-PILLAR,LOWER, LH LHD, Semi Aniline	$669.53	1
163	NY53403F73EAW	TRIM ASSEMBLY, A-PILLAR,LOWER, LH	NY53403F73EAW TRIM ASSEMBLY, A-PILLAR,LOWER, LH RHD, Semi Aniline	$706.86	1
170	NY53020C30AAW	TRIM ASSEMBLY, A-PILLAR,LOWER, RH	NY53020C30AAW TRIM ASSEMBLY, A-PILLAR,LOWER, RH LHD, Haircell	$669.53	1
171	NY53403F72AAW	TRIM ASSEMBLY, A-PILLAR,LOWER, RH	NY53403F72AAW TRIM ASSEMBLY, A-PILLAR,LOWER, RH RHD, Haircell	$433.24	1
172	NY53020C30EAW	TRIM ASSEMBLY, A-PILLAR,LOWER, RH	NY53020C30EAW TRIM ASSEMBLY, A-PILLAR,LOWER, RH LHD, Semi Aniline	$711.84	1
173	NY53403F72EAW	TRIM ASSEMBLY, A-PILLAR,LOWER, RH	NY53403F72EAW TRIM ASSEMBLY, A-PILLAR,LOWER, RH RHD, Semi Aniline	$706.86	1
200	HY53130B14BA	BRACKET, CABIN CARPET	HY53130B14BA BRACKET, CABIN CARPET RHD only	$30.86	1
220	NY53612C97DAW	SLEEVE, LAP PRETENSIONER,LH	NY53612C97DAW SLEEVE, LAP PRETENSIONER,LH	$163.12	1
230	NY53612C96DAW	SLEEVE, LAP PRETENSIONER,RH	NY53612C96DAW SLEEVE, LAP PRETENSIONER,RH	$168.00	1
240	NY53-611A54-AAW	SLEEVE, SEATBELT BUCKLE	NY53-611A54-AAW SLEEVE, SEATBELT BUCKLE Haircell	-	2	Enquire
241	NY53611A54EAW	SLEEVE, SEATBELT BUCKLE	NY53611A54EAW SLEEVE, SEATBELT BUCKLE Semi Aniline	$396.66	2
250	HY53612D65AD	BRACKET, LAP PRETENSIONER, LH	HY53612D65AD BRACKET, LAP PRETENSIONER, LH LH	$15.80	1
260	HY53612D64AD	BRACKET, LAP PRETENSIONER, RH	HY53612D64AD BRACKET, LAP PRETENSIONER, RH RH	$15.80	1
270	702213	PIN, 4.7x16.0, PUSH-IN	702213 PIN, 4.7x16.0, PUSH-IN	$0.34	4
280	NY5302349AAW	TRIM ASSEMBLY, A-PILLAR,LOWER, LH	NY5302349AAW TRIM ASSEMBLY, A-PILLAR,LOWER, LH Haircell, Includes items310 & 320	$394.45	1
291	NY5302349EAW	TRIM ASSEMBLY, A-PILLAR,LOWER, RH	NY5302349EAW TRIM ASSEMBLY, A-PILLAR,LOWER, RH Semi Aniline, Includesitems 310 & 310	$394.48	1
300	NY5302348AAW	TRIM ASSEMBLY, A-PILLAR,LOWER, RH	NY5302348AAW TRIM ASSEMBLY, A-PILLAR,LOWER, RH Haircell, Includes items310 & 320	$382.95	1
301	NY5302348EAW	TRIM ASSEMBLY, A-PILLAR,LOWER, LH	NY5302348EAW TRIM ASSEMBLY, A-PILLAR,LOWER, LH Semi Aniline, Includesitems 310 & 320	$382.98	1
310	HY53238A91BA	PIN and GROMMET	HY53238A91BA PIN and GROMMET	$10.11	2
320	707491	TRIM CLIP, PUSH ON,8.5x16.0x1.7, BLACK	707491 TRIM CLIP, PUSH ON,8.5x16.0x1.7, BLACK	$5.24	2
330	703742	Fastener, 6.5 x 6, Push In	703742 Fastener, 6.5 x 6, Push In	$0.41	2
