Interior Trim - Rear Cabin - Coupe of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

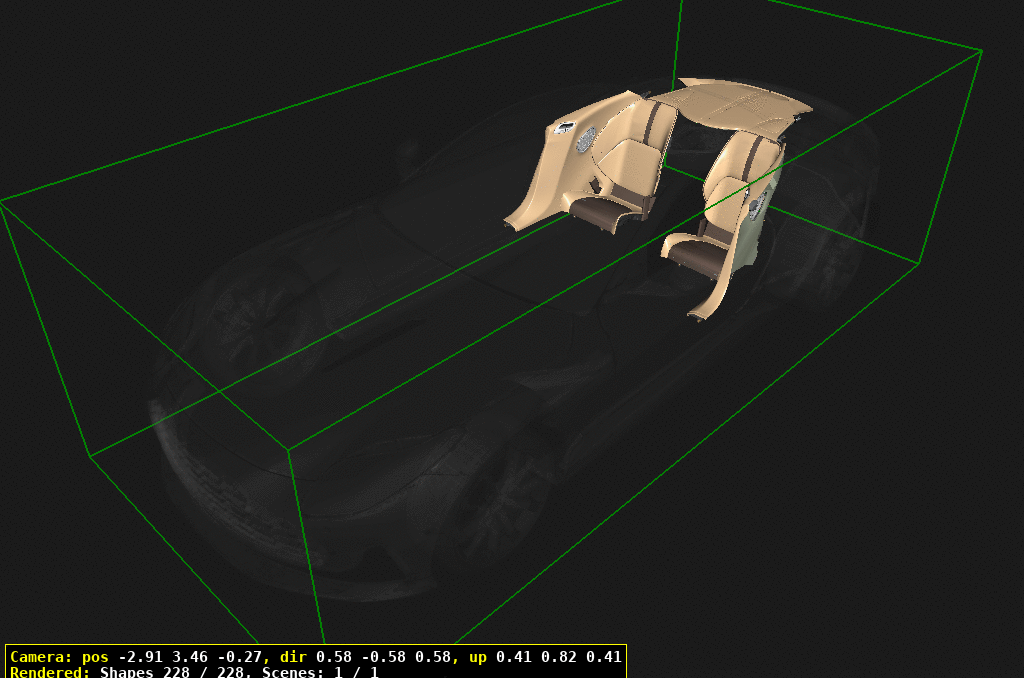

Aston Martin GT DB12 (2024- - Interior Trim - Rear Cabin - Coupe

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	RY5331013ADW	TRIM PANEL, BODY SIDE, LH	RY5331013ADW TRIM PANEL, BODY SIDE, LH Haircell with Base Audio,includes item 40/41	$2,499.95	1
21	RY5331013EDW	TRIM PANEL, BODY SIDE, LH	RY5331013EDW TRIM PANEL, BODY SIDE, LH Semi Aniline with BaseAudio, includes item40/41	$2,596.08	1
22	RY53-312A33-ABW	TRIM PANEL, BODY SIDE, LH	RY53-312A33-ABW TRIM PANEL, BODY SIDE, LH Haircell with B&O Audio,includes item 40/41	-	1	Enquire
23	RY53312A33EBW	TRIM PANEL, BODY SIDE, LH	RY53312A33EBW TRIM PANEL, BODY SIDE, LH Semi Aniline with B&OAudio, includes item40/41	$1,609.48	1
30	RY5331012ADW	TRIM PANEL, BODY SIDE, RH	RY5331012ADW TRIM PANEL, BODY SIDE, RH Haircell with Base Audio,includes item 40/41	$2,499.95	1
31	RY5331012EDW	TRIM PANEL, BODY SIDE, RH	RY5331012EDW TRIM PANEL, BODY SIDE, RH Semi Aniline with BaseAudio, includes item40/41	$2,596.08	1
32	RY53-312A32-ABW	TRIM PANEL, BODY SIDE, RH	RY53-312A32-ABW TRIM PANEL, BODY SIDE, RH Haircell with B&O Audio,includes item 40/41	-	1	Enquire
33	RY53312A32EBW	TRIM PANEL, BODY SIDE, RH	RY53312A32EBW TRIM PANEL, BODY SIDE, RH Semi Aniline with B&OAudio, includes item40/41	$1,699.21	1
40	RY5340A580AB	GRILLE, SPEAKER	RY5340A580AB GRILLE, SPEAKER Base Audio, Silver	$213.66	2
41	RY5340A580BB	GRILLE, SPEAKER	RY5340A580BB GRILLE, SPEAKER Base Audio, Dark Chrome	$213.66	2
42	RY5318978AA	GRILLE, SPEAKER	RY5318978AA GRILLE, SPEAKER Halo Audio, Silver	$143.96	2
43	RY5318978BA	GRILLE, SPEAKER	RY5318978BA GRILLE, SPEAKER Halo Audio, Dark Chrome	$638.46	2
50	DD3368172AA	SPRING CLIP, JET PRESS,PF268 IN STOCK	DD3368172AA SPRING CLIP, JET PRESS,PF268 Included with SpeakerGrille IN STOCK	$4.49	6
60	703752	Bolt and washer, M6x14	703752 Bolt and washer, M6x14	$1.42	8
70	703076	Screw, M4 x 20 csk skt	703076 Screw, M4 x 20 csk skt	$0.20	4
80	HY53611B93AA	BEZEL, SEATBELT, LH	HY53611B93AA BEZEL, SEATBELT, LH Satin Silver	$230.78	1
81	HY53611B93BA	BEZEL, SEATBELT, LH	HY53611B93BA BEZEL, SEATBELT, LH Dark Chrome	$522.82	1
90	HY53611B92CA	BEZEL, SEATBELT, RH	HY53611B92CA BEZEL, SEATBELT, RH Satin Silver	$338.35	1
91	HY53611B92FA	BEZEL, SEATBELT, RH	HY53611B92FA BEZEL, SEATBELT, RH Dark Chrome	$259.70	1
100	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	2
101	4G43015371AA	NUT, CAPTIVE U, M4,LOCKING	4G43015371AA NUT, CAPTIVE U, M4,LOCKING	$3.93	4
200	NY5360594AAW	SQUAB, REAR SEAT, RH	NY5360594AAW SQUAB, REAR SEAT, RH Haircell	$3,070.43	1
201	NY53-60594-DAW	SQUAB, REAR SEAT, RH	NY53-60594-DAW SQUAB, REAR SEAT, RH Alcantara	-	1	Enquire
202	RY53-60594-EBW	SQUAB, REAR SEAT, RH	RY53-60594-EBW SQUAB, REAR SEAT, RH Semi Aniline	-	1	Enquire
203	RY53-60594-FBW	SQUAB, REAR SEAT, RH	RY53-60594-FBW SQUAB, REAR SEAT, RH Semi Aniline & Alcantara	-	1	Enquire
210	NY5360032ABW	SEAT BACK ASSEMBLY, REAR,RH	NY5360032ABW SEAT BACK ASSEMBLY, REAR,RH Haircell	$451.29	1
211	NY53-60032-DBW	SEAT BACK ASSEMBLY, REAR,RH	NY53-60032-DBW SEAT BACK ASSEMBLY, REAR,RH Alcantara	-	1	Enquire
212	RY5360032EAW	SEAT BACK ASSEMBLY, REAR,RH	RY5360032EAW SEAT BACK ASSEMBLY, REAR,RH Semi Aniline	$2,507.75	1
213	RY5360032FAW	SEAT BACK ASSEMBLY, REAR,RH	RY5360032FAW SEAT BACK ASSEMBLY, REAR,RH Semi Aniline & Alcantara	$684.01	1
220	NY5360033AAW	SEAT BACK ASSEMBLY, REAR,LH	NY5360033AAW SEAT BACK ASSEMBLY, REAR,LH Haircell	$2,647.54	1
221	NY53-60033-DBW	SEAT BACK ASSEMBLY, REAR,LH	NY53-60033-DBW SEAT BACK ASSEMBLY, REAR,LH Alcantara	-	1	Enquire
222	RY5360033EAW	SEAT BACK ASSEMBLY, REAR,LH	RY5360033EAW SEAT BACK ASSEMBLY, REAR,LH Semi Aniline	$2,647.54	1
223	RY5360033FAW	SEAT BACK ASSEMBLY, REAR,LH	RY5360033FAW SEAT BACK ASSEMBLY, REAR,LH Semi Aniline & Alcantara	$256.51	1
230	NY5360595AAW	SQUAB, REAR SEAT, LH	NY5360595AAW SQUAB, REAR SEAT, LH Haircell	$3,070.43	1
231	NY53-60595-DBW	SQUAB, REAR SEAT, LH	NY53-60595-DBW SQUAB, REAR SEAT, LH Alcantara	-	1	Enquire
232	RY53-60595-EBW	SQUAB, REAR SEAT, LH	RY53-60595-EBW SQUAB, REAR SEAT, LH Semi Aniline	-	1	Enquire
233	RY53-60595-FBW	SQUAB, REAR SEAT, LH	RY53-60595-FBW SQUAB, REAR SEAT, LH Semi Aniline & Alcantara	-	1	Enquire
240	NY5360081AAW	CUSHION ASSEMBLY, REAR,LH	NY5360081AAW CUSHION ASSEMBLY, REAR,LH Haircell	$4,533.67	1
241	NY53-60081-DAW	CUSHION ASSEMBLY, REAR,LH	NY53-60081-DAW CUSHION ASSEMBLY, REAR,LH Alcantara	-	1	Enquire
242	NY5360081EAW	CUSHION ASSEMBLY, REAR,LH	NY5360081EAW CUSHION ASSEMBLY, REAR,LH Semi Aniline	$4,533.67	1
243	RY5360081FAW	CUSHION ASSEMBLY, REAR,LH	RY5360081FAW CUSHION ASSEMBLY, REAR,LH Semi Aniline & Alcantara	$1,406.32	1
250	NY5360080ABW	CUSHION ASSEMBLY, REAR,RH	NY5360080ABW CUSHION ASSEMBLY, REAR,RH Haircell	$4,533.67	1
251	NY53-60080-DBW	CUSHION ASSEMBLY, REAR,RH	NY53-60080-DBW CUSHION ASSEMBLY, REAR,RH Alcantara	-	1	Enquire
252	NY5360080EBW	CUSHION ASSEMBLY, REAR,RH	NY5360080EBW CUSHION ASSEMBLY, REAR,RH Semi Aniline	$4,533.67	1
253	RY5360080FAW	CUSHION ASSEMBLY, REAR,RH	RY5360080FAW CUSHION ASSEMBLY, REAR,RH Semi Aniline & Alcantara	$1,406.32	1
260	NY53-613C74-AAW	SLEEVE, SEATBELT BUCKLE	NY53-613C74-AAW SLEEVE, SEATBELT BUCKLE Haircell	-	2	Enquire
261	NY53-613C74-EAW	SLEEVE, SEATBELT BUCKLE	NY53-613C74-EAW SLEEVE, SEATBELT BUCKLE Semi Aniline	-	2	Enquire
270	NY53-611D84-AAW	SLEEVE, SEATBELT ANCHOR	NY53-611D84-AAW SLEEVE, SEATBELT ANCHOR Haircell	-	2	Enquire
271	NY53-611D84-EAW	SLEEVE, SEATBELT, ANCHOR	NY53-611D84-EAW SLEEVE, SEATBELT, ANCHOR Semi Aniline	-	2	Enquire
280	NY5363846AAW	LUMBAR ASSEMBLY, REARSEAT, RH	NY5363846AAW LUMBAR ASSEMBLY, REARSEAT, RH Haircell	$1,100.47	1
281	RY53-63846-DAW	LUMBAR ASSEMBLY, REARSEAT, RH	RY53-63846-DAW LUMBAR ASSEMBLY, REARSEAT, RH Alcantara	-	1	Enquire
282	NY5363846EAW	LUMBAR ASSEMBLY, REARSEAT, RH	NY5363846EAW LUMBAR ASSEMBLY, REARSEAT, RH Semi Aniline	$1,103.69	1
290	NY5363847AAW	LUMBAR ASSEMBLY, REARSEAT, LH	NY5363847AAW LUMBAR ASSEMBLY, REARSEAT, LH Haircell	$1,100.47	1
291	RY53-63847-DAW	LUMBAR ASSEMBLY, REARSEAT, LH	RY53-63847-DAW LUMBAR ASSEMBLY, REARSEAT, LH Alcantara	-	1	Enquire
292	NY5363847EAW	LUMBAR ASSEMBLY, REARSEAT, LH	NY5363847EAW LUMBAR ASSEMBLY, REARSEAT, LH Semi Aniline	$1,254.21	1
300	NY53600E68AAW	INSERT ASSEMBLY, SEATBACK	NY53600E68AAW INSERT ASSEMBLY, SEATBACK Haircell	$261.43	2
301	NY53600E68EAW	INSERT ASSEMBLY, SEATBACK	NY53600E68EAW INSERT ASSEMBLY, SEATBACK Semi Aniline	$260.98	2
310	700606	SCREW, M6x12, HEX HD IN STOCK	700606 SCREW, M6x12, HEX HD IN STOCK	$0.34	8
330	NY5363844AAW	PAD ASSEMBLY, ISOFIX,SQUAB, LOWER	NY5363844AAW PAD ASSEMBLY, ISOFIX,SQUAB, LOWER Haircell	$881.72	2
331	NY5363844EAW	PAD ASSEMBLY, ISOFIX,SQUAB, LOWER	NY5363844EAW PAD ASSEMBLY, ISOFIX,SQUAB, LOWER Semi Aniline	$930.89	2
340	703085	Bolt, M6 x 12, VOLANTE IN STOCK	703085 Bolt, M6 x 12, VOLANTE IN STOCK	$1.46	4
350	HY53C31181AA	NVH, INTERIOR REARQUARTER, LH	HY53C31181AA NVH, INTERIOR REARQUARTER, LH	$18.02	1
360	HY53C31180AA	NVH, INTERIOR REARQUARTER, RH	HY53C31180AA NVH, INTERIOR REARQUARTER, RH	$18.02	1
370	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	8
400	NY53-46668-AAW	PACKAGE TRAY ASSEMBLY	NY53-46668-AAW PACKAGE TRAY ASSEMBLY Haircell	-	1	Enquire
401	NY5346668EAW	PACKAGE TRAY ASSEMBLY	NY5346668EAW PACKAGE TRAY ASSEMBLY Semi Aniline	$2,858.28	1
402	NY53-46668-PA	PACKAGE TRAY ASSEMBLY	NY53-46668-PA PACKAGE TRAY ASSEMBLY Nappa PVC	-	1	Enquire
410	7G43-25954-AC	SCREW/WASHER ASSEMBLY,M5x16	7G43-25954-AC SCREW/WASHER ASSEMBLY,M5x16	-	2	Enquire
420	NY53-666B22-AAW	TETHER COVER ASSEMBLY	NY53-666B22-AAW TETHER COVER ASSEMBLY Haircell	-	2	Enquire
421	NY53666B22EAW	TETHER COVER ASSEMBLY	NY53666B22EAW TETHER COVER ASSEMBLY Semi Aniline	$685.86	2
422	NY53-666B22-PA	TETHER COVER ASSEMBLY	NY53-666B22-PA TETHER COVER ASSEMBLY Nappa PVC	-	2	Enquire
430	703752	Bolt and washer, M6x14	703752 Bolt and washer, M6x14	$1.42	2
450	HY5346813ABW	PACKAGE TRAY, REAR, LH	HY5346813ABW PACKAGE TRAY, REAR, LH	$1,224.98	1
460	HY5346812ABW	PACKAGE TRAY, REAR, RH	HY5346812ABW PACKAGE TRAY, REAR, RH	$1,224.98	1
470	7G43C2437AAW	Tape, Anti squeak	7G43C2437AAW Tape, Anti squeak Cut from Roll	$145.29	4
480	AG4346660BA	FOAM BLOCK, 27x20x20mm	AG4346660BA FOAM BLOCK, 27x20x20mm	$0.45	2
