Occupant Restraining Device - Volante of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

Aston Martin GT DB12 (2024- - Occupant Restraining Device - Volante

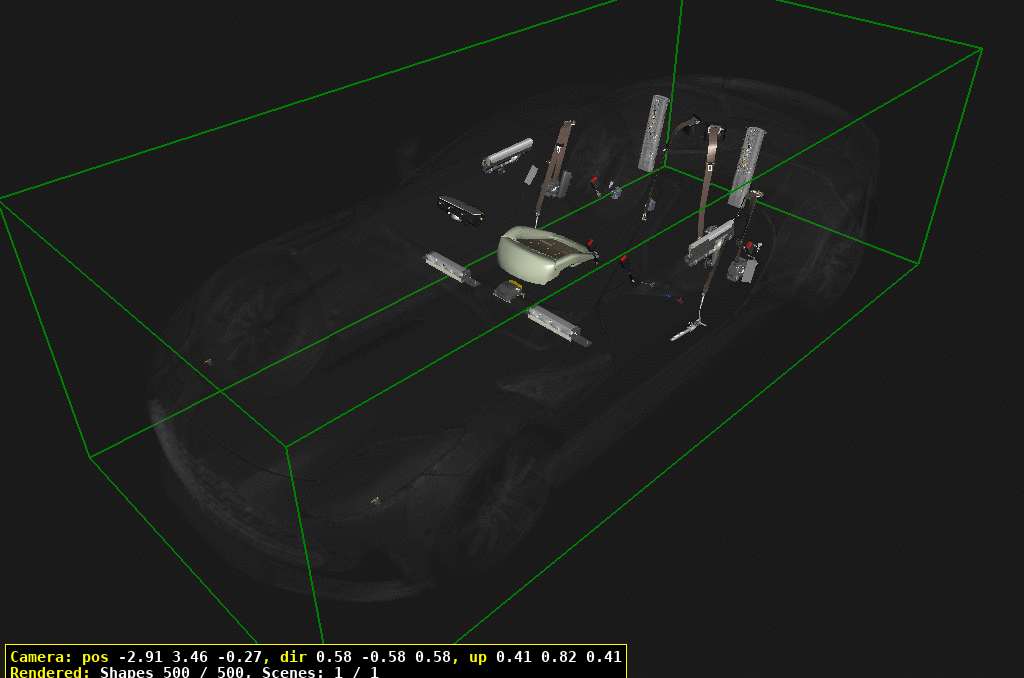

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	HY53611B70AFW	SEATBELT, DRIVERS, LHD	HY53611B70AFW SEATBELT, DRIVERS, LHD Black	$1,111.43	1
21	HY53611B70CFW	SEATBELT, DRIVERS, LHD	HY53611B70CFW SEATBELT, DRIVERS, LHD Ivory	$1,110.42	1
22	HY53611B70DFW	SEATBELT, DRIVERS, LHD	HY53611B70DFW SEATBELT, DRIVERS, LHD Red	$1,111.05	1
23	HY53611B70EEW	SEATBELT, DRIVERS, LHD	HY53611B70EEW SEATBELT, DRIVERS, LHD Mocha	$1,110.78	1
24	HY53611B70FFW	SEATBELT, DRIVERS, LHD	HY53611B70FFW SEATBELT, DRIVERS, LHD Graphite	$1,111.34	1
25	HY53611B70GFW	SEATBELT, DRIVERS, LHD	HY53611B70GFW SEATBELT, DRIVERS, LHD Tan	$549.18	1
26	HY53611B69AFW	SEATBELT, PASSENGER, RHD	HY53611B69AFW SEATBELT, PASSENGER, RHD Black	$1,110.42	1
27	HY53611B69CDW	SEATBELT, PASSENGER, RHD	HY53611B69CDW SEATBELT, PASSENGER, RHD Ivory	$1,110.30	1
28	HY53611B69DDW	SEATBELT, PASSENGER, RHD	HY53611B69DDW SEATBELT, PASSENGER, RHD Red	$1,110.30	1
29	HY53611B69EDW	SEATBELT, PASSENGER, RHD	HY53611B69EDW SEATBELT, PASSENGER, RHD Mocha	$1,110.30	1
30	HY53611B69FDW	SEATBELT, PASSENGER, RHD	HY53611B69FDW SEATBELT, PASSENGER, RHD Graphite	$1,083.21	1
31	HY53-611B69-GFW	SEATBELT, PASSENGER, RHD	HY53-611B69-GFW SEATBELT, PASSENGER, RHD Tan	-	1	Enquire
40	HY53611B68AFW	SEATBELT, PASSENGER, LHD	HY53611B68AFW SEATBELT, PASSENGER, LHD Black	$1,110.30	1
41	HY53611B68CDW	SEATBELT, PASSENGER, LHD	HY53611B68CDW SEATBELT, PASSENGER, LHD Ivory	$1,110.30	1
42	HY53611B68DFW	SEATBELT, PASSENGER, LHD	HY53611B68DFW SEATBELT, PASSENGER, LHD Red	$1,111.05	1
43	HY53611B68EEW	SEATBELT, PASSENGER, LHD	HY53611B68EEW SEATBELT, PASSENGER, LHD Mocha	$1,110.80	1
44	HY53611B68FEW	SEATBELT, PASSENGER, LHD	HY53611B68FEW SEATBELT, PASSENGER, LHD Graphite	$1,110.32	1
45	HY53611B68GFW	SEATBELT, PASSENGER, LHD	HY53611B68GFW SEATBELT, PASSENGER, LHD Tan	$967.16	1
46	HY53611B71AFW	SEATBELT, DRIVERS, RHD	HY53611B71AFW SEATBELT, DRIVERS, RHD Black	$1,110.32	1
47	HY53611B71CDW	SEATBELT, DRIVERS, RHD	HY53611B71CDW SEATBELT, DRIVERS, RHD Ivory	$1,110.30	1
48	HY53611B71DFW	SEATBELT, DRIVERS, RHD	HY53611B71DFW SEATBELT, DRIVERS, RHD Red	$765.17	1
49	HY53611B71EEW	SEATBELT, DRIVERS, RHD	HY53611B71EEW SEATBELT, DRIVERS, RHD Mocha	$1,110.30	1
50	HY53611B71FDW	SEATBELT, DRIVERS, RHD	HY53611B71FDW SEATBELT, DRIVERS, RHD Graphite	$1,110.30	1
51	HY53-611B71-GFW	SEATBELT, DRIVERS, RHD	HY53-611B71-GFW SEATBELT, DRIVERS, RHD Tan	-	1	Enquire
60	HY53610E54AF	BUCKLE, SEATBELT	HY53610E54AF BUCKLE, SEATBELT	$103.69	2
70	HY5324858AA	D LOOP ASSEMBLY, SEATBELT	HY5324858AA D LOOP ASSEMBLY, SEATBELT	$46.19	2
80	703121	SCREW, M8x2,0 HEX FLG IN STOCK	703121 SCREW, M8x2,0 HEX FLG IN STOCK	$0.49	4
90	HY53100179AA	BOLT, 7/16" x 22mm x 13AF	HY53100179AA BOLT, 7/16" x 22mm x 13AF	$6.04	2
100	HY53100179BB	BOLT, 7/16" x 58mm x 13AF	HY53100179BB BOLT, 7/16" x 58mm x 13AF	$11.19	2
110	HY53373230AA	SPACER, SILL PRETENSIONER	HY53373230AA SPACER, SILL PRETENSIONER	$5.77	2
150	HY53611B74ACW	SEATBELT, REAR	HY53611B74ACW SEATBELT, REAR Warm Charcoal	$161.77	2
151	HY53611B74CCW	SEATBELT, REAR	HY53611B74CCW SEATBELT, REAR Champagne	$1,110.32	2
152	HY53611B74DCW	SEATBELT, REAR	HY53611B74DCW SEATBELT, REAR Spice Red	$1,110.32	2
153	HY53611B74EBW	SEATBELT, REAR	HY53611B74EBW SEATBELT, REAR Mocha	$1,110.30	2
154	HY53611B74FBW	SEATBELT, REAR	HY53611B74FBW SEATBELT, REAR Graphite	$1,110.30	2
155	HY53611B74GCW	SEATBELT, REAR	HY53611B74GCW SEATBELT, REAR Tan	$951.91	2
160	HY537090AA	NVH, REAR SEATBELT	HY537090AA NVH, REAR SEATBELT	$20.73	2
170	NY53613K21AB	BUCKLE, SEATBELT	NY53613K21AB BUCKLE, SEATBELT With Seatbelt Reminder	$87.75	2
180	HY53100179AA	BOLT, 7/16" x 22mm x 13AF	HY53100179AA BOLT, 7/16" x 22mm x 13AF	$6.04	6
200	HY53044H31AF	AIRBAG ASSEMBLY,PASSENGER	HY53044H31AF AIRBAG ASSEMBLY,PASSENGER	$838.99	1
220	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic	$0.79	4
230	FD33611D10AE	エアバッグ、サイド、左側	FD33611D10AE エアバッグ、サイド、左側	$351.36	1
240	HY53611D11AB	エアバッグ、サイド、右側	HY53611D11AB エアバッグ、サイド、右側	$380.13	1
250	KY53B14K158AD	AIRBAG, DOOR MOUNTED, LH	KY53B14K158AD AIRBAG, DOOR MOUNTED, LH	$907.34	1
260	KY53B14K159AD	AIRBAG, DOOR MOUNTED, RH	KY53B14K159AD AIRBAG, DOOR MOUNTED, RH	$907.34	1
280	8G438979BA	WASHER, M5x20x1.5THK,ST/STEEL	8G438979BA WASHER, M5x20x1.5THK,ST/STEEL	$0.45	4
290	HY535147AJ	INFLATABLE KNEE BOLSTER	HY535147AJ INFLATABLE KNEE BOLSTER LH, LHD, RoW	$575.94	1
291	HY535147AJ	INFLATABLE KNEE BOLSTER	HY535147AJ INFLATABLE KNEE BOLSTER LH and RH, LHD, Federal	$575.94	1
300	HY535148AJ	INFLATABLE KNEE BOLSTER	HY535148AJ INFLATABLE KNEE BOLSTER RH, RHD	$584.51	1
310	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	4
400	MY83SE14B342AA	SENSOR, SIDE IMPACTPRESSURE	MY83SE14B342AA SENSOR, SIDE IMPACTPRESSURE	$270.25	2
410	702847	ねじ M6X20 六角 FLG HD IN STOCK	702847 ねじ M6X20 六角 FLG HD IN STOCK	$2.51	2
420	702840	Nut & Washer M6 Hex Flg	702840 Nut & Washer M6 Hex Flg	$0.36	2
430	702839PK	Screw and Washer M6x20 Hex IN STOCK	702839PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.86	1
440	RY53SE14C246AA	CONTROLLER, OCCUPANTRESTRAINTS	RY53SE14C246AA CONTROLLER, OCCUPANTRESTRAINTS	$1,702.08	1
450	HY53SE14B006AA	SENSOR, ACCELEROMETER	HY53SE14B006AA SENSOR, ACCELEROMETER	$42.38	4
460	703199	Bolt M6x30 hex flg hd IN STOCK	703199 Bolt M6x30 hex flg hd IN STOCK	$0.79	2
500	RY53-74-10185	OCS SERVICE ASSEMBLY	RY53-74-10185 OCS SERVICE ASSEMBLY No Ventilation	-	1	Enquire
501	RY537410186	OCS SERVICE ASSEMBLY	RY537410186 OCS SERVICE ASSEMBLY With Ventilation	$508.67	1
502	RY537410187	OCS SERVICE ASSEMBLY	RY537410187 OCS SERVICE ASSEMBLY No Ventilation, Sports+Seat	$615.23	1
503	RY53-74-10188	OCS SERVICE ASSEMBLY	RY53-74-10188 OCS SERVICE ASSEMBLY With Ventilation, Sports+Seat	-	1	Enquire
630	NOTE:	See Section 19-1000, item870 for Self-PresentingHandle ECU	NOTE: See Section 19-1000, item870 for Self-PresentingHandle ECU	-	-	Enquire
700	KY53F601B87AC	ANCHOR, BRACKET, ISOFIXLOWER, OUTER	KY53F601B87AC ANCHOR, BRACKET, ISOFIXLOWER, OUTER	$49.89	2
710	KY53F601B86AD	ISOFIX LOWER, ISOFIXLOWER, INNER	KY53F601B86AD ISOFIX LOWER, ISOFIXLOWER, INNER	$62.08	2
720	703121	SCREW, M8x2,0 HEX FLG IN STOCK	703121 SCREW, M8x2,0 HEX FLG IN STOCK	$0.49	8
800	KY53SE518C42CA	ROLLOVER PROTECTIONSYSTEM	KY53SE518C42CA ROLLOVER PROTECTIONSYSTEM	$1,259.88	2
810	705355	SCREW, M10x25, HF ADH10 IN STOCK	705355 SCREW, M10x25, HF ADH10 IN STOCK	$1.08	6
820	RY53L915A01AA	LABEL, ROPS	RY53L915A01AA LABEL, ROPS	$36.13	2
