Body Structure - Body Dash & Cowl, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

Aston Martin GT DB9 (2004-2017) - Body Structure - Body Dash & Cowl, Volante

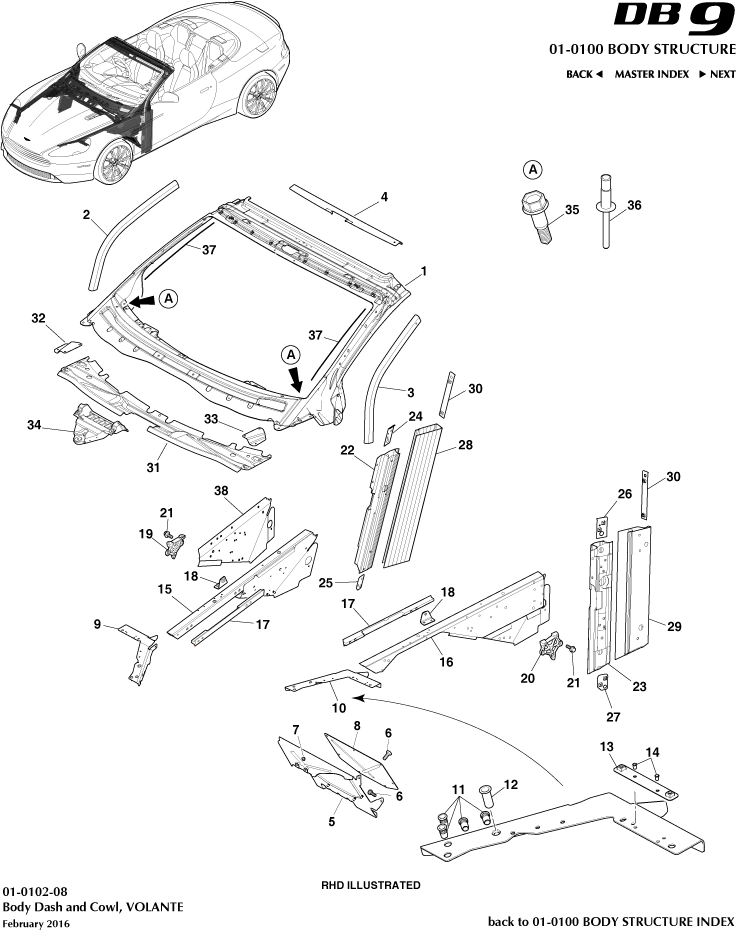

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	EG43L03014AC	フレームASSY、フロントガラス	EG43L03014AC フレームASSY、フロントガラス From 14 MY. Structural. Cat A Only	-	1	Enquire
-	9G43111C60GD	Panel, dummy floor front	9G43111C60GD Panel, dummy floor front Structural. Cat A Only	$357.54	1
-	HD33-16154-AA	Panel, Shotgun Inner, RH	HD33-16154-AA Panel, Shotgun Inner, RH Structural. Cat A Only	-	1	Enquire
1	DG43L03014AD	フレームASSY、フロントガラス	DG43L03014AD フレームASSY、フロントガラス Up to 14MY. Structural. Cat A Only	-	1	Enquire
2	GOAG33F02526AA	強化フロントボディピラー、右側	GOAG33F02526AA 強化フロントボディピラー、右側 Structural. Cat A Only	-	1	Enquire
3	GOAG33F02527AA	強化フロントボディピラー左側	GOAG33F02527AA 強化フロントボディピラー左側 Structural. Cat A Only	$92.15	1
4	4G43L03444AB	Reinforced windshield header	4G43L03444AB Reinforced windshield header Structural. Cat A Only	$65.17	1
6	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket - IN STOCK	$0.31	12
7	703169	M6, NUT, HEX FLG IN STOCK	703169 M6, NUT, HEX FLG - IN STOCK	$1.04	2
9	DG4316430AA	REINFORCEMENT, BONNETSTRIKER PLATE, RH	DG4316430AA REINFORCEMENT, BONNETSTRIKER PLATE, RH Structural. Cat A Only	$60.04	1
10	DG4316431AA	REINFORCEMENT, BONNETSTRIKER PLATE, LH	DG4316431AA REINFORCEMENT, BONNETSTRIKER PLATE, LH Structural. Cat A Only	$48.81	1
13	8G43199901AA	Nut plate, M6 hood striker plate	8G43199901AA Nut plate, M6 hood striker plate Structural. Cat A Only	$5.96	2
14	703074	Screw, M6 x 20 hex flange head	703074 Screw, M6 x 20 hex flange head 2 per Nutplate	-	4	Enquire
15	DD4316185AC	REINFORCEMENT ASSEMBLY,UPPER, LH	DD4316185AC REINFORCEMENT ASSEMBLY,UPPER, LH Structural. Cat A Only	$316.63	1
16	DD4316184AC	EINFORCEMENT ASSEMBLY,UPPER, RH	DD4316184AC EINFORCEMENT ASSEMBLY,UPPER, RH Structural. Cat A Only	$301.60	1
17	GODG4317F790BA	Nutplate M10	GODG4317F790BA Nutplate M10 Structural. Cat A Only	$49.42	2
18	DG4318178BA	ブラケット、ガスダンパー取り付け	DG4318178BA ブラケット、ガスダンパー取り付け Structural. Cat A Only	$34.26	2
21	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 - IN STOCK	$0.34	6
22	GODG43F02660AB	PILLAR, FRONT, LOWER, RH	GODG43F02660AB PILLAR, FRONT, LOWER, RH Structural. Cat A Only	$260.94	1
23	GODG43F02661AB	PILLAR, FRONT, LOWER, LH	GODG43F02661AB PILLAR, FRONT, LOWER, LH Structural. Cat A Only	$260.94	1
24	6G3371490AA	Nutplate M8, â??Aâ?? post hinge, upper, RH	6G3371490AA Nutplate M8, â??Aâ?? post hinge, upper, RH Structural. Cat A Only	$9.50	1
25	6G3315110AB	Nutplate M8, â??Aâ?? post hinge, lower, RH	6G3315110AB Nutplate M8, â??Aâ?? post hinge, lower, RH Structural. Cat A Only	$13.10	1
26	6G3394545AA	Nutplate M8, â??Aâ?? post hinge, upper, LH	6G3394545AA Nutplate M8, â??Aâ?? post hinge, upper, LH Structural. Cat A Only	$9.34	1
27	6G33-15111-AB	Nutplate M8, â??Aâ?? post hinge, lower, LH	6G33-15111-AB Nutplate M8, â??Aâ?? post hinge, lower, LH Structural. Cat A Only	-	1	Enquire
28	GODG43F02662AC	EXTRUSION, A-PILLAR,LOWER, RH	GODG43F02662AC EXTRUSION, A-PILLAR,LOWER, RH Structural. Cat A Only	$146.77	1
29	GODG43F02663AC	EXTRUSION, A-PILLAR,LOWER, LH	GODG43F02663AC EXTRUSION, A-PILLAR,LOWER, LH Structural. Cat A Only	$163.08	1
31	GODG43F292650AC	プレナム、下部	GODG43F292650AC プレナム、下部 Structural. Cat A Only	$309.86	1
32	GODG4319414AA	Adaptor Plenum Lower RH	GODG4319414AA Adaptor Plenum Lower RH Structural. Cat A Only	$22.81	1
33	GODG4319415AA	Adaptor Plenum Lower LH	GODG4319415AA Adaptor Plenum Lower LH Structural. Cat A Only	$22.81	1
34	GODD4371023AE	CASTING, COWLREINFORCEMENT	GODD4371023AE CASTING, COWLREINFORCEMENT Structural. Cat A Only	-	1	Enquire
35	6G33375732AB	Screw 5.5 x 19	6G33375732AB Screw 5.5 x 19 -	$0.38	2
36	6G3368676AC	STRUCTURAL RIVET,6.5x14.0, BLIND	6G3368676AC STRUCTURAL RIVET,6.5x14.0, BLIND -	$1.22	A/R
38	ED33-16155-AA	REINFORCEMENT, UPPER,REAR, LH	ED33-16155-AA REINFORCEMENT, UPPER,REAR, LH Structural. Cat A Only	-	1	Enquire
