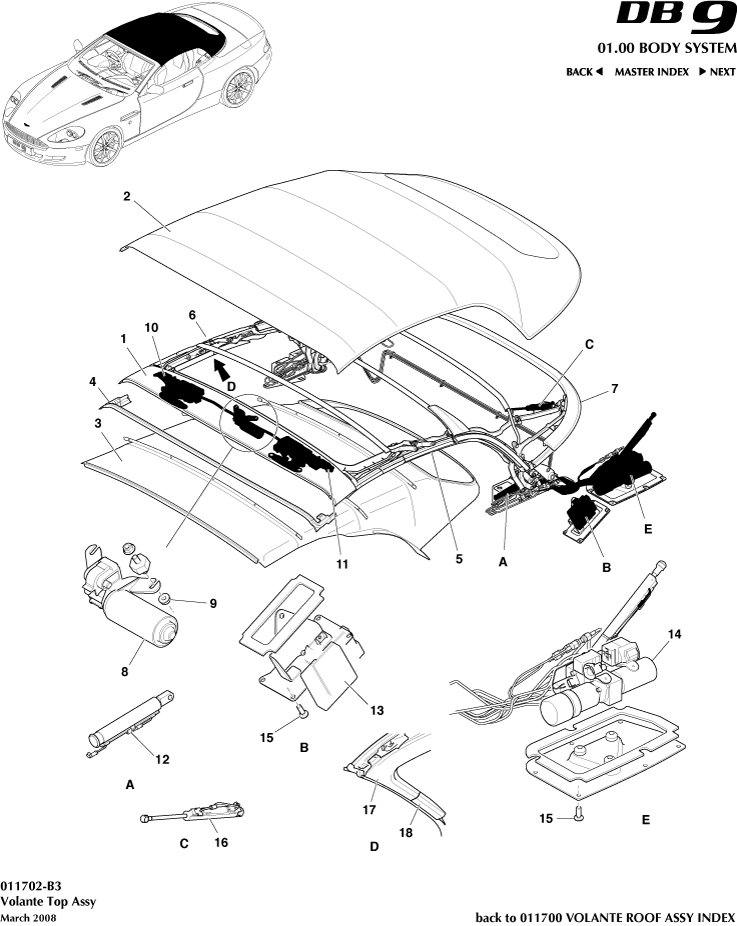

Aston Martin GT DB9 (2004-2017) - Volante Roof - Volante Roof Assembly

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	4G4376501B00AG	トップアセンブリー折りたたみ、完成品	4G4376501B00AG トップアセンブリー折りたたみ、完成品 07MY	-	1	Enquire
-	8G43-76501B00-AA	トップアセンブリー折りたたみ、完成品	8G43-76501B00-AA トップアセンブリー折りたたみ、完成品 08MY	-	1	Enquire
-	ED3376501B00CA	CONVERTIBLE ROOF ASSEMBLY	ED3376501B00CA CONVERTIBLE ROOF ASSEMBLY -	$28,662.36	1
-	9G43-70355-AA	フレーム、折りたたみトップ	9G43-70355-AA フレーム、折りたたみトップ 09MY	-	1	Enquire
-	4G4370351BA	Kit, canopy cover	4G4370351BA Kit, canopy cover Atlantic Blue	$2,713.13	1
-	4G4370351CA	Kit, canopy cover	4G4370351CA Kit, canopy cover Java/ Sandstone	-	1	Enquire
-	4G4370351DA	Kit, canopy cover	4G4370351DA Kit, canopy cover Westminster Green	-	1	Enquire
-	4G4370351EA	Kit, canopy cover	4G4370351EA Kit, canopy cover Titan Grey	$5,146.25	1
-	4G4370351FA	Kit, canopy cover	4G4370351FA Kit, canopy cover Burgundy	-	1	Enquire
-	9G4370351GA	KIT, OUTER CANOPY	9G4370351GA KIT, OUTER CANOPY Singed Brown / Bitter Chocolate	$14,667.48	1
-	9G4370351HA	Canopy Cover Kit, Grenadine Red	9G4370351HA Canopy Cover Kit, Grenadine Red Grenadine Red	$13,695.19	1
-	4G4374480AA	リベット、ブラインド	4G4374480AA リベット、ブラインド Per canopy cover kit	$2.32	8
-	4G431005038AA	クリップ、スプリング	4G431005038AA クリップ、スプリング Per canopy cover kit	-	4	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile Per canopy cover kit	-	2	Enquire
-	9G4370352AB	KIT, INNER LINING	9G4370352AB KIT, INNER LINING Obsidian Black, 09MY	$2,720.85	1
-	4G4370352BA	インナーライニング	4G4370352BA インナーライニング Ivory	$2,154.47	1
-	9G4370352BB	KIT, INNER LINING	9G4370352BB KIT, INNER LINING Ivory, 09MY	$2,720.85	1
-	4G4370352CA	インナーライニング	4G4370352CA インナーライニング Moonshadow	$2,154.47	1
-	9G4370352CB	KIT, INNER LINING	9G4370352CB KIT, INNER LINING Moonshadow, 09	$2,720.85	1
-	4G4370352DA	インナーライニング	4G4370352DA インナーライニング Tailors Grey	$2,154.47	1
-	9G4370352DB	KIT, INNER LINING	9G4370352DB KIT, INNER LINING Tailors Grey, 09MY	$2,720.85	1
-	9G4370352EB	KIT, INNER LINING	9G4370352EB KIT, INNER LINING Tan 09MY	$2,720.85	1
-	4G43L51338AA	Weatherstrip assy, front top	4G43L51338AA Weatherstrip assy, front top per kit	-	1	Enquire
-	4G4378380AA	Screw, self cutting FH	4G4378380AA Screw, self cutting FH per kit	$1.19	2
-	4G431004355AA	ネジ、セルフカット	4G431004355AA ネジ、セルフカット per kit	$1.42	8
-	4G431001991AA	ナット、六角	4G431001991AA ナット、六角 per kit	$1.44	4
-	4G4375999AA	シムワッシャー	4G4375999AA シムワッシャー per kit	$40.74	6
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile Part of 4G43-L51210-AA	-	2	Enquire
-	4G43L51339BA	Weatherstrip assy, LH	4G43L51339BA Weatherstrip assy, LH per kit	-	1	Enquire
-	4G4375999AA	シムワッシャー	4G4375999AA シムワッシャー per kit	$40.74	6
-	4G431001991AA	ナット、六角	4G431001991AA ナット、六角 per kit	$1.44	4
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	4G43L51338BA	Weatherstrip assy, RH	4G43L51338BA Weatherstrip assy, RH per kit	-	1	Enquire
-	4G4375999AA	シムワッシャー	4G4375999AA シムワッシャー per kit	$40.74	6
-	4G431001991AA	ナット、六角	4G431001991AA ナット、六角 per kit	$1.44	4
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	4G43-L51338-CC	Wstrip assy, tonneau to body	4G43-L51338-CC Wstrip assy, tonneau to body Tension Bow	-	1	Enquire
-	4G4374480AA	リベット、ブラインド	4G4374480AA リベット、ブラインド Part of 4G43-L51230-AA	$2.32	8
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	23	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	2	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	2	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile per kit	-	1	Enquire
-	4G4350639AC	HYDRAULIC CYLINDER, MAIN,LH IN STOCK	4G4350639AC HYDRAULIC CYLINDER, MAIN,LH Main Actuator IN STOCK	$680.83	2
-	9G4353390AB	Hydraulic Hose, Main Cylinder, RH	9G4353390AB Hydraulic Hose, Main Cylinder, RH NSS part of 4G43-9G803-AD	-	1	Enquire
-	9G4353391AB	Hydraulic cylinder, tonneau, LH	9G4353391AB Hydraulic cylinder, tonneau, LH NSS part of 4G43-9G803-AD	-	1	Enquire
-	4G43539A79AA	HYDRAULIC CYLINDER,TENSION BOW, LH	4G43539A79AA HYDRAULIC CYLINDER,TENSION BOW, LH Main Tensbow	$1,519.95	1
-	4G4303508BA	Cover, trim front	4G4303508BA Cover, trim front Ivory	-	1	Enquire
-	4G4303508CA	Cover, trim front	4G4303508CA Cover, trim front Moonshadow	-	1	Enquire
-	4G4303508DA	Cover, trim front	4G4303508DA Cover, trim front Tailor Grey	-	1	Enquire
-	4G4303515AA	Cover, trim cantrail 2 LH	4G4303515AA Cover, trim cantrail 2 LH Black	$1,390.09	1
-	4G4303514BA	Cover, trim cantrail 2 RH	4G4303514BA Cover, trim cantrail 2 RH Ivory	$1,390.09	1
-	4G4303515BA	Cover, trim cantrail 2 LH	4G4303515BA Cover, trim cantrail 2 LH Ivory	$1,390.09	1
-	4G4303514CA	Cover, trim cantrail 2 RH	4G4303514CA Cover, trim cantrail 2 RH Moonshadow	$1,390.09	1
-	4G4303515CA	Cover, trim cantrail 2 LH	4G4303515CA Cover, trim cantrail 2 LH Moonshadow	$1,390.09	1
-	4G4303514DA	Cover, trim cantrail 2 RH	4G4303514DA Cover, trim cantrail 2 RH Tailor Grey	$1,390.09	1
-	4G4303515DA	Cover, trim cantrail 2 LH	4G4303515DA Cover, trim cantrail 2 LH Tailor Grey	$1,390.09	1
-	4G431003889AA	ネジ、トリムカバーブラケット	4G431003889AA ネジ、トリムカバーブラケット -	$1.42	16
-	4G43515A50AA	Cover, bracket trim	4G43515A50AA Cover, bracket trim -	$1.98	8
-	4G4368326AA	Screw, M5 trim cover	4G4368326AA Screw, M5 trim cover -	$1.42	4
-	4G43F502D41AA	ベルト、テンションCG左側、コントロールストラップ付き	4G43F502D41AA ベルト、テンションCG左側、コントロールストラップ付き -	$56.42	1
-	9G43F502D41AA	Belt, Tension, LH	9G43F502D41AA Belt, Tension, LH 09MY	-	1	Enquire
-	4G43F502D42AA	ベルト、テンションCG RH、コントロールストラップ付き	4G43F502D42AA ベルト、テンションCG RH、コントロールストラップ付き -	$56.42	1
-	9G43F502D42AA	Belt, Tension, RH	9G43F502D42AA Belt, Tension, RH 09MY	-	1	Enquire
-	4G43A502D41AA	Cable, Tension	4G43A502D41AA Cable, Tension -	$42.77	2
-	4G4310D916AA	Strap, Control	4G4310D916AA Strap, Control -	$30.07	2
-	4G431012525AA	FLEXIBLE SHAFT, LH	4G431012525AA FLEXIBLE SHAFT, LH -	$95.69	1
-	4G431012524AA	FLEXIBLE SHAFT, RH	4G431012524AA FLEXIBLE SHAFT, RH -	$95.69	1
-	4G4369832AA	ナット、六角	4G4369832AA ナット、六角 -	$1.42	6
-	4G431004048AA	Screw, M6 Pan Hd	4G431004048AA Screw, M6 Pan Hd -	$1.51	2
-	4G431013271AA	SCREW. PIVOT HOOK	4G431013271AA SCREW. PIVOT HOOK -	-	1	Enquire
-	4G4350641AA	Over Centre Pin	4G4350641AA Over Centre Pin -	$7.94	1
-	4G431013272AA	Clips, White	4G431013272AA Clips, White -	$4.49	6
-	4G431016033AA	ネジ、セルフカット	4G431016033AA ネジ、セルフカット -	$1.28	8
-	4G431003920AA	Screw, Pan Hd	4G431003920AA Screw, Pan Hd -	$1.28	2
-	4G431005038AA	クリップ、スプリング	4G431005038AA クリップ、スプリング -	-	4	Enquire
-	4G43765010AD	Striker, Header Latching RH	4G43765010AD Striker, Header Latching RH -	-	1	Enquire
-	4G43765011AC	Striker, header, LH	4G43765011AC Striker, header, LH -	-	1	Enquire
-	4G43765013AD	Sensor, Latching Striker assy (RH only)	4G43765013AD Sensor, Latching Striker assy (RH only) -	-	1	Enquire
-	4G439310614	TRIM COVER SET	4G439310614 TRIM COVER SET Ivory	$1,580.49	1
-	4G439310615	TRIM COVER SET	4G439310615 TRIM COVER SET Moonshadow	$1,580.49	1
-	4G439310616	TRIM COVER SET	4G439310616 TRIM COVER SET Grey	$1,580.49	1
-	4G439310617	TRIM COVER SET	4G439310617 TRIM COVER SET Black	$1,580.49	1
-	4G433710685	HARNESS, HYDRAULIC ROOF,LH	4G433710685 HARNESS, HYDRAULIC ROOF,LH -	$170.80	1
-	4G433710686	HARNESS, HYDRAULIC ROOF,RH	4G433710686 HARNESS, HYDRAULIC ROOF,RH -	$199.04	1
-	4G439310506	ARAL VITAMOL ZH-M HOODFLUID, 1ltr	4G439310506 ARAL VITAMOL ZH-M HOODFLUID, 1ltr -	$61.80	-
1	4G43-70355-AA	フレーム、折りたたみトップ	4G43-70355-AA フレーム、折りたたみトップ -	-	1	Enquire
2	9G4370351AA	KIT, OUTER CANOPY	9G4370351AA KIT, OUTER CANOPY Black	$8,694.65	1
3	4G4370352AA	インナーライニング	4G4370352AA インナーライニング Obsidian Black	$3,994.21	1
4	4G43L51210AA	Kit assy, Seal Front	4G43L51210AA Kit assy, Seal Front -	-	1	Enquire
5	4G43L51220AA	KIT, MID SEAL, LH	4G43L51220AA KIT, MID SEAL, LH -	$635.58	1
6	4G43L51221AA	KIT, MID SEAL, RH	4G43L51221AA KIT, MID SEAL, RH per kit	$635.58	1
7	4G43L51230AA	Kit assy, Seal Rear	4G43L51230AA Kit assy, Seal Rear	-	1	Enquire
8	4G43L51240AA	LATCH MOTOR ASSEMBLY KIT	4G43L51240AA LATCH MOTOR ASSEMBLY KIT -	$368.17	1
9	4G4369832AA	ナット、六角	4G4369832AA ナット、六角 per kit	$1.42	8
10	4G43L51270AA	KIT, AUTOMATIC LATCHING,RH	4G43L51270AA KIT, AUTOMATIC LATCHING,RH -	$836.72	1
11	4G43L51260AA	KIT, AUTOMATIC LATCHING,LH	4G43L51260AA KIT, AUTOMATIC LATCHING,LH per kit	$827.20	1
12	4G4350638AB	HYDRAULIC CYLINDER, MAIN,RH IN STOCK	4G4350638AB HYDRAULIC CYLINDER, MAIN,RH Main Actuator IN STOCK	$1,333.01	2
13	9G43L53085AD	ECU assy, Folding Roof	9G43L53085AD ECU assy, Folding Roof -	-	1	Enquire
14	4G439G803AD	Pump Assy, Hydraulic	4G439G803AD Pump Assy, Hydraulic -	$3,968.36	1
15	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D -	$0.22	9
16	4G43539A78AA	HYDRAULIC CYLINDER,TENSION BOW, RH	4G43539A78AA HYDRAULIC CYLINDER,TENSION BOW, RH Main Tensbow	$1,519.95	1
17	4G4303508AA	Cover, trim front	4G4303508AA Cover, trim front Black	-	1	Enquire
18	4G4303514AA	Cover, trim cantrail 2 RH	4G4303514AA Cover, trim cantrail 2 RH Black	$1,390.09	1
