Exterior Rear View Mirrors of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

Aston Martin GT DB9 (2004-2017) - Exterior Rear View Mirrors

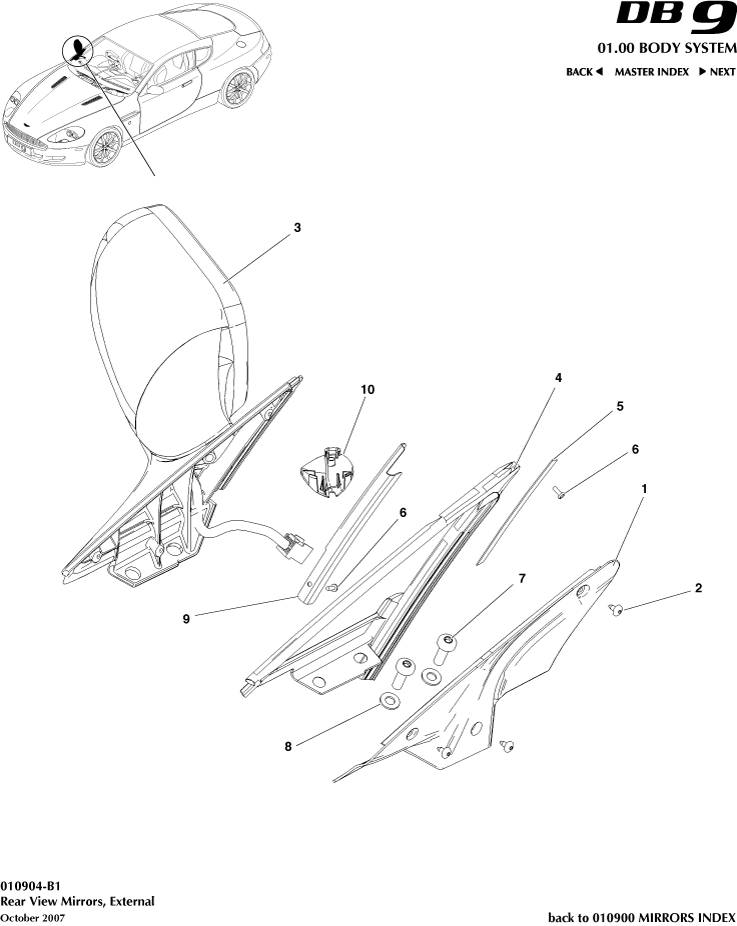

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	9G43830912AAW	Cover, Interior, Door Mirror RH	9G43830912AAW Cover, Interior, Door Mirror RH From (V) B05152	-	1	Enquire
-	9G43830913AAW	Cover, Interior, Door Mirror LH	9G43830913AAW Cover, Interior, Door Mirror LH -	-	1	Enquire
-	4G4317683BE	Mirror Assy, Rear view, Powered, LH	4G4317683BE Mirror Assy, Rear view, Powered, LH Refer to Bulletin - I.PSB.2009.71	$790.48	1
-	4G4317682AC	Mirror Assy, Door, RH	4G4317682AC Mirror Assy, Door, RH Up to (V) B05151. Refer to Bulletin - I.PSB.2009.71	$829.52	1
-	4G4317682AD	Mirror Assy, Door, RH	4G4317682AD Mirror Assy, Door, RH From (V) B05152. Refer to Bulletin - I.PSB.2009.71	$790.48	1
-	4G4317683AD	Mirror Assy, Door, LH	4G4317683AD Mirror Assy, Door, LH Refer to Bulletin - I.PSB.2009.71	$790.48	1
-	3785512	Glass, Mirror, Convex, RH, SAS	3785512 Glass, Mirror, Convex, RH, SAS GCC spec	$143.83	1
-	3785513	Glass, Mirror, Convex, LH, SAS	3785513 Glass, Mirror, Convex, LH, SAS GCC spec	$143.83	1
-	3785516	Glass, Mirror, Convex, Passenger Side	3785516 Glass, Mirror, Convex, Passenger Side Federal	$143.83	1
-	3785514	Glass, Mirror, Flat, Driver Side	3785514 Glass, Mirror, Flat, Driver Side Federal	$143.83	1
-	3785515	Glass, Mirror, Convex, LH and RH	3785515 Glass, Mirror, Convex, LH and RH RoW	$143.83	2
-	3785543	Mirror Cap, Door, RH	3785543 Mirror Cap, Door, RH -	$92.66	1
-	3785544	Mirror Cap, Door, LH	3785544 Mirror Cap, Door, LH -	$84.19	1
-	4G43F21510BA	Weatherstrip, Front Door Glass, RH	4G43F21510BA Weatherstrip, Front Door Glass, RH From (V) B05152	$384.66	1
-	4G43F21511AD	Weatherstrip, Front Door Glass, LH	4G43F21511AD Weatherstrip, Front Door Glass, LH Up to (V) B05151	$93.87	1
-	4G43F21511BA	Weatherstrip, Front Door Glass, LH	4G43F21511BA Weatherstrip, Front Door Glass, LH From (V) B05152	$349.50	1
-	4G43F21512BD	ガラスランチャンネルガイド右側	4G43F21512BD ガラスランチャンネルガイド右側 From (V) A05513	$100.55	1
-	4G43F21513BB	チャンネル、フロントドアガラス、左側	4G43F21513BB チャンネル、フロントドアガラス、左側 Up to (V) A05512	$26.28	1
-	4G43F21513BD	ガラスランチャンネルガイド左側	4G43F21513BD ガラスランチャンネルガイド左側 From (V) A05513	$100.55	1
-	4G433710904	Motor, door mirror, memory	4G433710904 Motor, door mirror, memory -	$155.38	2
1	4G43830912AEW	Cover, Interior Door Mirror, RH, Dark Grey	4G43830912AEW Cover, Interior Door Mirror, RH, Dark Grey Up to (V) B05151	-	1	Enquire
2	6G33104101BA	SCREW, M4x9, THREADFORMING	6G33104101BA SCREW, M4x9, THREADFORMING 07MY	$0.86	6
3	4G4317682BE	Mirror Assy, Rear view, Powered, RH	4G4317682BE Mirror Assy, Rear view, Powered, RH Refer to Bulletin - I.PSB.2009.71	$790.48	1
4	4G43F21510AD	Weatherstrip, Front Door Glass, RH	4G43F21510AD Weatherstrip, Front Door Glass, RH Up to (V) B05151	$103.32	1
5	4G43C47775AA	Adhesive Foam Strip, Mirror Base	4G43C47775AA Adhesive Foam Strip, Mirror Base -	$2.12	2
6	700611	Pop Rivet 3.2	700611 Pop Rivet 3.2 -	-	4	Enquire
7	703172PK	Screw M8 x 25 Pan Head	703172PK Screw M8 x 25 Pan Head Pack of 10	$7.11	4
8	703131	Washer, 8.5 Flat	703131 Washer, 8.5 Flat -	$0.07	4
9	4G43F21512BB	チャンネル、フロントドアガラス、右側	4G43F21512BB チャンネル、フロントドアガラス、右側 Up to (V) A05512	-	1	Enquire
10	3786361	Motor, Door Mirror, Non Memory	3786361 Motor, Door Mirror, Non Memory -	$239.82	2
