Interior Trim - Rear End Trim, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

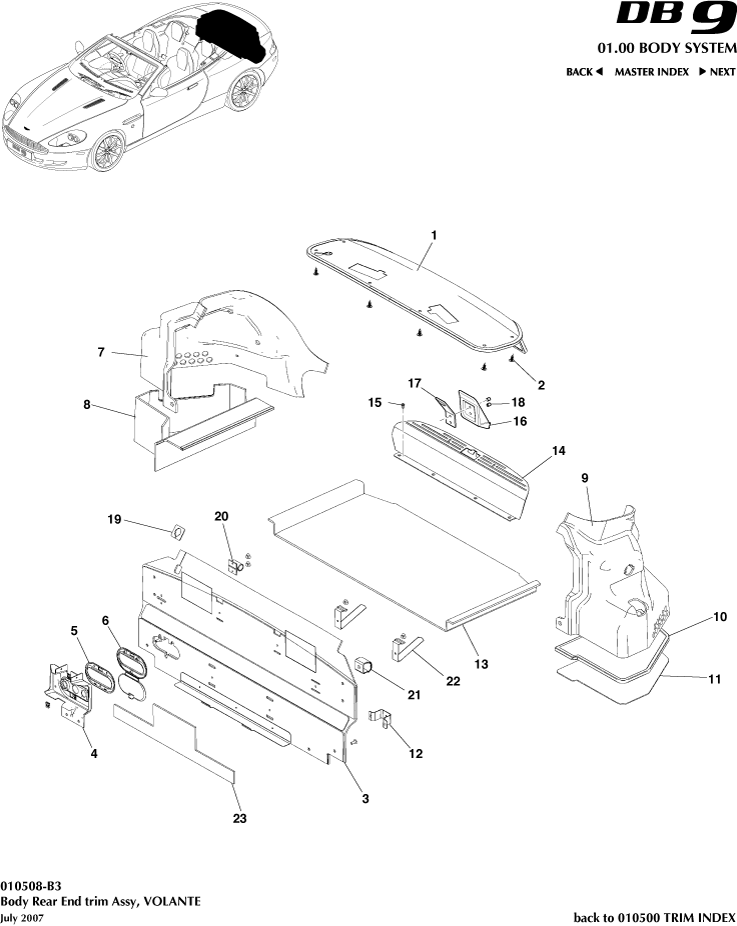

Aston Martin GT DB9 (2004-2017) - Interior Trim - Rear End Trim, Volante

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量
-	9G43L45445BCW	Backboard assy, luggage compartment front	9G43L45445BCW Backboard assy, luggage compartment front Federal	$2,987.78	1
-	4G43L43660AC	Switch plate assy, luggage compartment	4G43L43660AC Switch plate assy, luggage compartment Without Battery Conditioner Socket	$70.62	1
-	4G43P2100014BAA	Rivet, R-Lok 6.3x4-10	4G43P2100014BAA Rivet, R-Lok 6.3x4-10 -	$0.63	2
1	4G43L580374AC	Trim Assy, deck lid	4G43L580374AC Trim Assy, deck lid -	$1,879.17	1
2	4G43MXC1800AAPK	FIRTREE, 6.4x2.3-14.2,BUTTON IN STOCK	4G43MXC1800AAPK FIRTREE, 6.4x2.3-14.2,BUTTON Pack of 20 IN STOCK	$10.78	6
3	9G43L45445ACW	Backboard assy, luggage compartment front	9G43L45445ACW Backboard assy, luggage compartment front -	$1,139.09	1
4	4G43L43660AB	Switch plate assy, luggage compartment	4G43L43660AB Switch plate assy, luggage compartment With Battery Conditioner Socket	$91.53	1
5	4G4343662AA	Bezel Assy, luggage compartment Switch	4G4343662AA Bezel Assy, luggage compartment Switch 07MY	$126.00	1
6	4G4313A752AC	Lid, aux power switch, luggage compartment	4G4313A752AC Lid, aux power switch, luggage compartment -	$17.93	1
7	4G43L45422AD	Carpet, side, RH, luggage compartment	4G43L45422AD Carpet, side, RH, luggage compartment Also order Clip 4G43-N623361-AA x1	$206.59	1
8	4G43L454K65AA	Carpet assy, luggage compartment floor side, RH	4G43L454K65AA Carpet assy, luggage compartment floor side, RH -	$1,217.16	1
9	4G43L45423AA	Carpet, side, LH, luggage compartment	4G43L45423AA Carpet, side, LH, luggage compartment -	$357.75	1
10	4G43L454K64AB	Carpet assy, luggage compartment floor side, RH	4G43L454K64AB Carpet assy, luggage compartment floor side, RH -	$995.92	1
11	4G43L41654AC	Floor substrate, luggage compartment floor side, LH	4G43L41654AC Floor substrate, luggage compartment floor side, LH -	$31.69	1
12	4G43L454A21AA	ブラケット、ラゲッジコンパートメント、フロント	4G43L454A21AA ブラケット、ラゲッジコンパートメント、フロント -	$25.63	1
13	4G4345456CC	カーペットASSY、ラゲッジルームフロアセンター	4G4345456CC カーペットASSY、ラゲッジルームフロアセンター -	$331.70	1
14	4G43L42626AB	Plate Assy, rear luggage compartment, scuff	4G43L42626AB Plate Assy, rear luggage compartment, scuff -	$213.84	1
15	4G433L657AA	Screw M5x20 Csk Skt SS Blk	4G433L657AA Screw M5x20 Csk Skt SS Blk 07MY	$0.38	4
16	4G43L21893AA	Cover assy, striker	4G43L21893AA Cover assy, striker -	$50.53	1
17	4G43434A30AB	Pull assy, luggage compartment, door	4G43434A30AB Pull assy, luggage compartment, door -	$477.57	1
18	4G43012M6TAAA	インサート M6	4G43012M6TAAA インサート M6 -	$1.51	2
19	4G43L40170AA	Cover, reinforced	4G43L40170AA Cover, reinforced -	$12.92	1
20	4G4331426AA	Strap, Umbrella Point	4G4331426AA Strap, Umbrella Point -	$254.35	1
21	4G4331427AA	Strap, Umbrella Handle	4G4331427AA Strap, Umbrella Handle -	$194.57	1
22	4G4319G537AA	Strap, warning triangle	4G4319G537AA Strap, warning triangle -	$9.50	2
23	4G43L45436AA	Foam, Front Board	4G43L45436AA Foam, Front Board -	$13.45	1
24	4G433678AAAA	Fastener, firtree IN STOCK	4G433678AAAA Fastener, firtree - IN STOCK	$0.68	2
