Weatherstrip Seals - Dynamic Weatherstrips, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

Aston Martin GT DB9 (2004-2017) - Weatherstrip Seals - Dynamic Weatherstrips, Coupe

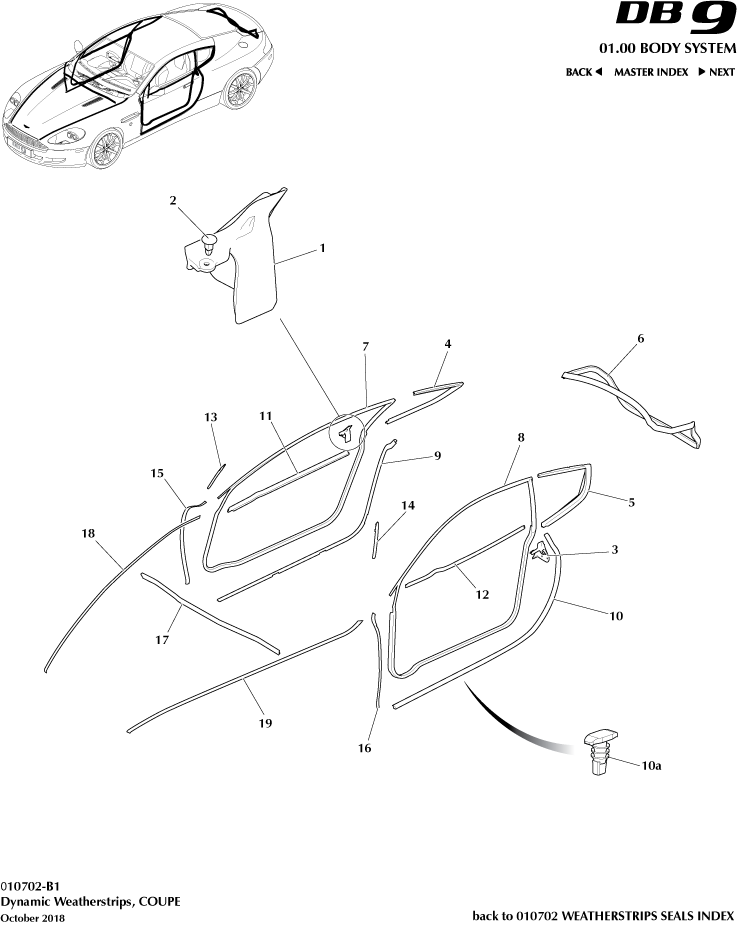

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	4G43F20709AJ	Seal, door aperture, primary, LH	4G43F20709AJ Seal, door aperture, primary, LH 06MY on	$1,277.42	1
-	4G43F20570AE	Weather strip, door waist inner, RH	4G43F20570AE Weather strip, door waist inner, RH 07MY on	$267.25	1
-	4G43F20571AE	Weather strip, door waist inner, LH	4G43F20571AE Weather strip, door waist inner, LH 07MY on	$267.25	1
-	4G43F21510BA	Weatherstrip, Front Door Glass, RH	4G43F21510BA Weatherstrip, Front Door Glass, RH From (V) B05152	$384.66	1
-	4G43F21511BA	Weatherstrip, Front Door Glass, LH	4G43F21511BA Weatherstrip, Front Door Glass, LH From (V) B05152	$349.50	1
-	4G4316A015AF	Weatherstrip, hood side, LH	4G4316A015AF Weatherstrip, hood side, LH 10MY on	$130.47	1
-	4G4320126AA	Felt seal, door upper window	4G4320126AA Felt seal, door upper window -	$10.04	2
-	6G33C47775AA	フォームパッド	6G33C47775AA フォームパッド -	$0.66	2
1	4G43F20920AC	MOULDING ASSEMBLY, REAR,RH	4G43F20920AC MOULDING ASSEMBLY, REAR,RH -	$434.04	1
2	702213	PIN, 4.7x16.0, PUSH-IN	702213 PIN, 4.7x16.0, PUSH-IN -	$0.34	2
3	4G43F20921AC	MOULDING ASSEMBLY, REAR,LH	4G43F20921AC MOULDING ASSEMBLY, REAR,LH -	$434.04	1
4	4G43F29796AD	Moulding, Quarter Window Inner, VOL RH	4G43F29796AD Moulding, Quarter Window Inner, VOL RH -	$265.76	1
5	4G43F29797AD	Moulding, Quarter Window Inner, VOL LH	4G43F29797AD Moulding, Quarter Window Inner, VOL LH -	$265.76	1
6	4G43F43720AH	Weatherstrip, Trunk Lid, COUPE	4G43F43720AH Weatherstrip, Trunk Lid, COUPE -	$364.21	1
7	4G43F20708AJ	Seal, door aperture, primary, RH	4G43F20708AJ Seal, door aperture, primary, RH -	$1,160.61	1
8	4G43F20709AE	Seal, door aperture, primary, LH	4G43F20709AE Seal, door aperture, primary, LH -	-	1	Enquire
9	4G43F25324AD	Seal, front door margin lower, RH	4G43F25324AD Seal, front door margin lower, RH -	$294.93	1
10	4G43F25325AD	Seal, front door margin lower, LH	4G43F25325AD Seal, front door margin lower, LH -	$260.07	1
10a	4G43L25324BA	CLIP, WEATHERSTRIPRETENTION	4G43L25324BA CLIP, WEATHERSTRIPRETENTION -	$3.17	2
11	4G43F20570AC	Weather strip, door waist inner, RH	4G43F20570AC Weather strip, door waist inner, RH -	-	1	Enquire
12	4G43F20571AC	Weather strip, door waist inner, LH	4G43F20571AC Weather strip, door waist inner, LH -	$22.62	1
13	4G43F21510AD	Weatherstrip, Front Door Glass, RH	4G43F21510AD Weatherstrip, Front Door Glass, RH Up to (V) B05151	$103.32	1
14	4G43F21511AD	Weatherstrip, Front Door Glass, LH	4G43F21511AD Weatherstrip, Front Door Glass, LH Up to (V) B05151	$93.87	1
15	4G43F20556AF	シール、マージン、フロントドア、右側	4G43F20556AF シール、マージン、フロントドア、右側 -	$275.58	1
16	4G43F20557AF	Seal, front door margin, LH	4G43F20557AF Seal, front door margin, LH -	$275.58	1
17	4G4316K816AC	Weatherstrip, Bonnet Extrusion Rear	4G4316K816AC Weatherstrip, Bonnet Extrusion Rear -	$42.00	1
18	4G4316A014AF	Weatherstrip, hood side, RH	4G4316A014AF Weatherstrip, hood side, RH -	$130.47	1
19	4G4316A015AC	Seal, bonnet to fender, LH	4G4316A015AC Seal, bonnet to fender, LH Up to 10MY	$31.65	1
