Sound & Heat Control - NVH Pads, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

Aston Martin GT DB9 (2004-2017) - Sound & Heat Control - NVH Pads, Volante

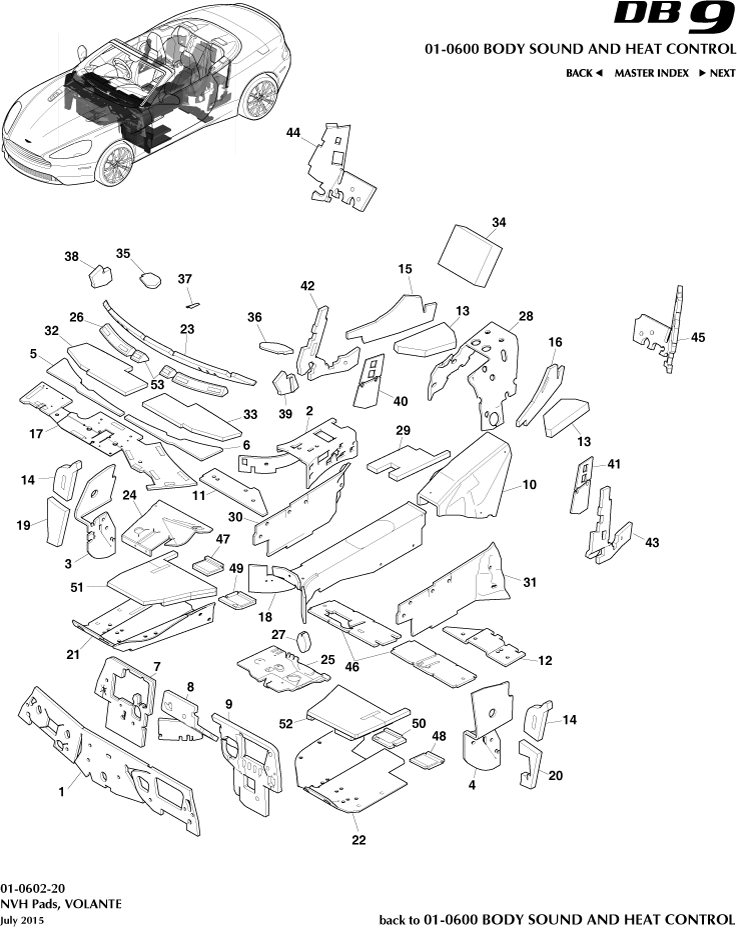

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	6G33102B00AD	Sound Insulation, Engine Housing	6G33102B00AD Sound Insulation, Engine Housing LHD	-	1	Enquire
-	ED2311446AC	遮音材、フロアパンギアシフトカバー	ED2311446AC 遮音材、フロアパンギアシフトカバー 14.5MY	-	1	Enquire
-	DD33002K05AC	NVH, Dash Inner, RH	DD33002K05AC NVH, Dash Inner, RH LHD	$63.72	1
-	8G43021A59AA	Baffle, Body Front Panel Centre, LHD	8G43021A59AA Baffle, Body Front Panel Centre, LHD LHD	$39.14	1
-	DD33015A23AD	BAFFLE, FRONT PANEL, LH	DD33015A23AD BAFFLE, FRONT PANEL, LH LHD	$100.10	1
-	4G4311455BH	Insulation Assy, front floor pan sound, RH, LHD	4G4311455BH Insulation Assy, front floor pan sound, RH, LHD LHD	$68.44	1
-	4G4311455AH	Insulation Assy, front floor pan sound, LH, LHD	4G4311455AH Insulation Assy, front floor pan sound, LH, LHD LHD	$68.75	1
-	4G4311455BH	Insulation Assy, front floor pan sound, RH, LHD	4G4311455BH Insulation Assy, front floor pan sound, RH, LHD -	$68.44	1
-	4G4311455AH	Insulation Assy, front floor pan sound, LH, LHD	4G4311455AH Insulation Assy, front floor pan sound, LH, LHD -	$68.75	1
1	6G33102B00BD	Sound Insulation, Engine Housing	6G33102B00BD Sound Insulation, Engine Housing RHD	-	1	Enquire
2	8G4311446AB	Insulation, sound, floor pan gear shift cover org	8G4311446AB Insulation, sound, floor pan gear shift cover org -	$40.56	1
3	8G43310A58AB	Insulation, Body Side Front, RHS	8G43310A58AB Insulation, Body Side Front, RHS -	$57.34	1
4	8G43310A57AC	Insulation, Body Side Front, LHS	8G43310A57AC Insulation, Body Side Front, LHS -	$57.34	1
5	4G4302292AB	NVH, IP COWL, RH	4G4302292AB NVH, IP COWL, RH -	$14.44	1
6	4G4302293AB	NVH, IP COWL, LH	4G4302293AB NVH, IP COWL, LH -	$14.44	1
7	DD33-002K06-AC	NVH, Dash Inner, RH	DD33-002K06-AC NVH, Dash Inner, RH RHD	-	1	Enquire
8	8G43021A58AB	Baffle, Body Front Panel Centre, RHD	8G43021A58AB Baffle, Body Front Panel Centre, RHD RHD	$59.17	1
9	DD33-015A22-AD	NVH, Dash Inner, LH	DD33-015A22-AD NVH, Dash Inner, LH RHD	-	1	Enquire
10	4G437Z309AC	NVH, EXTERIOR,TRANSMISSION	4G437Z309AC NVH, EXTERIOR,TRANSMISSION -	$82.08	1
11	4G4311204AA	Insulation, rear floor pan sound RH	4G4311204AA Insulation, rear floor pan sound RH -	$12.50	1
12	8G4311205AA	Insulation, rear floor pan sound LH	8G4311205AA Insulation, rear floor pan sound LH -	$21.34	1
13	4G43F310A26AA	NVH, REAR QUARTER, INNER	4G43F310A26AA NVH, REAR QUARTER, INNER -	$17.93	2
14	DG4328112AA	NVH Foam Pad Assembly, Fender Upper	DG4328112AA NVH Foam Pad Assembly, Fender Upper -	$43.78	2
15	AD33L27746AB	断熱材、クォーターパネル前側、右側	AD33L27746AB 断熱材、クォーターパネル前側、右側 -	$14.98	1
16	AD33L27747AB	Insulation, Quarter Panel Front Side, LH	AD33L27747AB Insulation, Quarter Panel Front Side, LH -	$12.22	1
17	DD3300152AA	断熱材、プレナム、エンジンベイ側	DD3300152AA 断熱材、プレナム、エンジンベイ側 -	-	1	Enquire
18	4G43114B26AH	NVH, TUNNEL	4G43114B26AH NVH, TUNNEL -	$108.93	1
19	DG4328110AA	NVHフォームパッド、フェンダー下部、右側	DG4328110AA NVHフォームパッド、フェンダー下部、右側 -	$37.92	1
20	DG4328111AA	NVHフォームパッド、フェンダー下部、左側	DG4328111AA NVHフォームパッド、フェンダー下部、左側 -	$16.56	1
21	4G4354571AF	バッフルフロア右側	4G4354571AF バッフルフロア右側 -	$25.72	1
22	4G4354572AE	Baffle Floor LH	4G4354572AE Baffle Floor LH -	$25.72	1
23	CG43-02139-AA	BAFFLE, TOP COWL	CG43-02139-AA BAFFLE, TOP COWL -	-	1	Enquire
24	4G4311454BH	Insulation Assy, front floor pan sound, RH, RHD	4G4311454BH Insulation Assy, front floor pan sound, RH, RHD RHD	$67.35	1
25	4G4311454AH	Insulation Assy, front floor pan sound, LH, RHD	4G4311454AH Insulation Assy, front floor pan sound, LH, RHD RHD	$67.35	1
26	AD43-68066-AC	NVH, Dash Foam, Under Side Cavity	AD43-68066-AC NVH, Dash Foam, Under Side Cavity 2x Only When Pedestrian Impact System Fitted	-	3	Enquire
27	8G4304564AA	NVH, CLUTCH PEDAL	8G4304564AA NVH, CLUTCH PEDAL -	$0.93	1
28	8G435416AE	NVH, Tunnel Rear Inner Comp. Fleece	8G435416AE NVH, Tunnel Rear Inner Comp. Fleece -	-	1	Enquire
29	6G3313082AA	NVH、トンネルトップアームレスト	6G3313082AA NVH、トンネルトップアームレスト -	$20.44	1
30	8G3324926AB	Pad, Tunnel Side, RH	8G3324926AB Pad, Tunnel Side, RH -	$27.97	1
31	8G3324927AB	Pad, Tunnel Side, LH	8G3324927AB Pad, Tunnel Side, LH -	$27.95	1
32	8G4348182AB	FOAM PAD, IP COWL, RH	8G4348182AB FOAM PAD, IP COWL, RH -	$22.28	1
33	8G4348181AB	FOAM PAD, IP COWL, LH	8G4348181AB FOAM PAD, IP COWL, LH -	$22.28	1
34	TBC	Rivnut, M8, low profile	TBC Rivnut, M8, low profile -	-	1	Enquire
35	9G43046B72AA	Insulation, IP Radio Speaker Opening, RHS	9G43046B72AA Insulation, IP Radio Speaker Opening, RHS Non B&O	$2.28	1
36	9G43046B73AA	Insulation, IP Radio Speaker Opening, LHS	9G43046B73AA Insulation, IP Radio Speaker Opening, LHS Non B&O	$2.28	1
37	9G43-047B22-AA	Insulation, IP Radio Speaker Opening, Centre	9G43-047B22-AA Insulation, IP Radio Speaker Opening, Centre Non B&O	-	1	Enquire
38	CG43-310A60-AA	NVH, BODY SIDE, UPPER, RH	CG43-310A60-AA NVH, BODY SIDE, UPPER, RH -	-	1	Enquire
40	CG43-D1160-AC	NVH, REAR QUARTER TRIM,RH	CG43-D1160-AC NVH, REAR QUARTER TRIM,RH -	-	1	Enquire
41	CG43D1161AC	NVH, REAR QUARTER TRIM,LH	CG43D1161AC NVH, REAR QUARTER TRIM,LH -	$13.19	1
42	AD33L27747AC	Insulation, quarter panel front side, LH	AD33L27747AC Insulation, quarter panel front side, LH -	$14.08	1
45	AD33L31181AB	Insulation, Rear Bulkhead NVH, LH	AD33L31181AB Insulation, Rear Bulkhead NVH, LH -	$13.87	1
46	4G43111C73AE	Kit, Insulation Assy, sound centre floor pan	4G43111C73AE Kit, Insulation Assy, sound centre floor pan -	$24.45	1
47	6G33114B32AB	Foam Insert, Outer, RH	6G33114B32AB Foam Insert, Outer, RH -	$5.89	1
48	6G33114B33AB	Foam Insert, Outer, LH	6G33114B33AB Foam Insert, Outer, LH -	$5.89	1
49	6G33114A42AB	Foam Insert, Inner, RH	6G33114A42AB Foam Insert, Inner, RH -	$5.89	1
50	6G33114A43AB	Foam Insert, Inner, LH	6G33114A43AB Foam Insert, Inner, LH -	$5.89	1
51	4G4311454BH	Insulation Assy, front floor pan sound, RH, RHD	4G4311454BH Insulation Assy, front floor pan sound, RH, RHD -	$67.35	1
52	4G4311454AH	Insulation Assy, front floor pan sound, LH, RHD	4G4311454AH Insulation Assy, front floor pan sound, LH, RHD -	$67.35	1
53	DG43-68066-AA	NVH, Dash Foam, Small, Under Side Cavity	DG43-68066-AA NVH, Dash Foam, Small, Under Side Cavity When Pedestrian Impact System Fitted	-	2	Enquire
