Interior Trim & Ornamentation - Front Door Trim Panel of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

Aston Martin GT DB9 (2004-2017) - Interior Trim & Ornamentation - Front Door Trim Panel

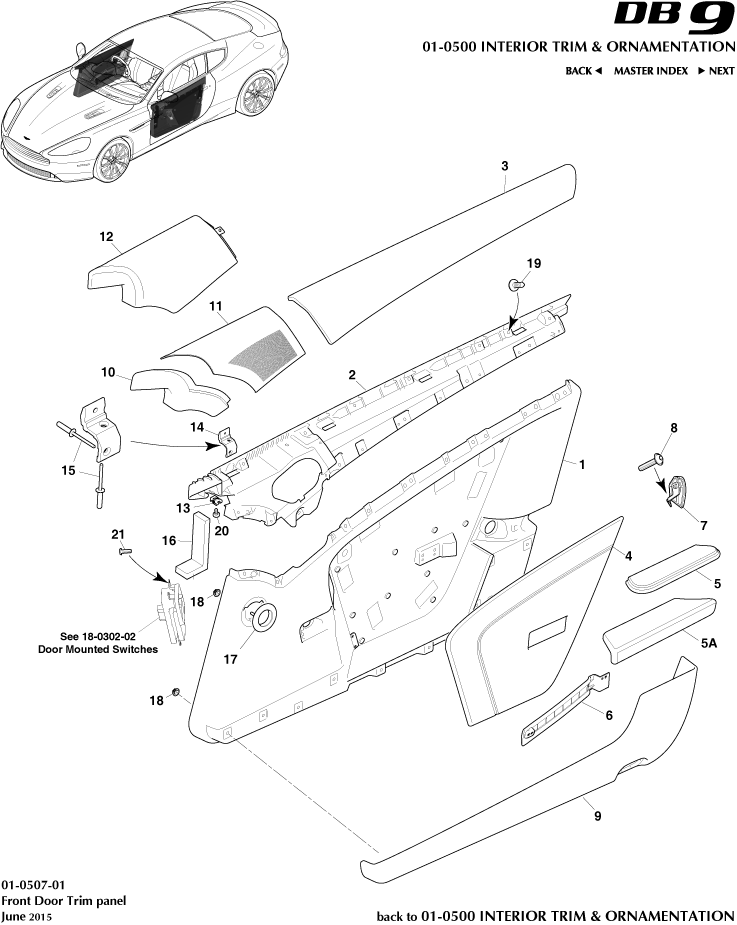

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	CG4323942ADW	Trim, door assy, RH, LHD, With Top Roll, Standard Leather	CG4323942ADW Trim, door assy, RH, LHD, With Top Roll, Standard Leather Up To 16MY, Alpine	$7,285.40	1
-	CG4323942BDW	Trim, door assy, RH, RHD, With Top Roll, Standard Leather	CG4323942BDW Trim, door assy, RH, RHD, With Top Roll, Standard Leather Up To 16MY, Alpine	-	1	Enquire
-	CG4323942CDW	Trim, door assy, RH, LHD, Less Top Roll, Standard Leather	CG4323942CDW Trim, door assy, RH, LHD, Less Top Roll, Standard Leather Up To 16MY, Alpine	-	1	Enquire
-	CG4323942DDW	Trim, door assy, RH, RHD, Less Top Roll, Standard Leather	CG4323942DDW Trim, door assy, RH, RHD, Less Top Roll, Standard Leather Up To 16MY, Alpine	-	1	Enquire
-	CG4323942JDW	Trim, door assy, RH, LHD, With Top Roll, Premium Leather	CG4323942JDW Trim, door assy, RH, LHD, With Top Roll, Premium Leather Up To 16MY, Alpine	-	1	Enquire
-	CG4323942KDW	Trim, door assy, RH, RHD, With Top Roll, Premium Leather	CG4323942KDW Trim, door assy, RH, RHD, With Top Roll, Premium Leather Up To 16MY, Alpine	$3,032.80	1
-	CG4323942LDW	Trim, door assy, RH, LHD, Less Top Roll, Premium Leather	CG4323942LDW Trim, door assy, RH, LHD, Less Top Roll, Premium Leather Up To 16MY, Alpine	$3,032.80	1
-	CG4323942MDW	Trim, door assy, RH, RHD, Less Top Roll, Premium Leather	CG4323942MDW Trim, door assy, RH, RHD, Less Top Roll, Premium Leather Up To 16MY, Alpine	-	1	Enquire
-	CG4323943ADW	Trim, door assy, LH, LHD, With Top Roll, Standard Leather	CG4323943ADW Trim, door assy, LH, LHD, With Top Roll, Standard Leather Up To 16MY, Alpine	$7,285.40	1
-	CG4323943BDW	Trim, door assy, LH, RHD, With Top Roll, Standard Leather	CG4323943BDW Trim, door assy, LH, RHD, With Top Roll, Standard Leather Up To 16MY, Alpine	$4,243.71	1
-	CG4323943CDW	Trim, door assy, LH, LHD, Less Top Roll, Standard Leather	CG4323943CDW Trim, door assy, LH, LHD, Less Top Roll, Standard Leather Up To 16MY, Alpine	-	1	Enquire
-	CG4323943DDW	Trim, door assy, LH, RHD, Less Top Roll, Standard Leather	CG4323943DDW Trim, door assy, LH, RHD, Less Top Roll, Standard Leather Up To 16MY, Alpine	-	1	Enquire
-	CG4323943JDW	Trim, door assy, LH, LHD, With Top Roll, Premium Leather	CG4323943JDW Trim, door assy, LH, LHD, With Top Roll, Premium Leather Up To 16MY, Alpine	$3,277.29	1
-	CG4323943KDW	Trim, door assy, LH, RHD, With Top Roll, Premium Leather	CG4323943KDW Trim, door assy, LH, RHD, With Top Roll, Premium Leather Up To 16MY, Alpine	-	1	Enquire
-	CG4323943LDW	Trim, door assy, LH, LHD, Less Top Roll, Premium Leather	CG4323943LDW Trim, door assy, LH, LHD, Less Top Roll, Premium Leather Up To 16MY, Alpine	$4,970.78	1
-	CG4323943MDW	Trim, door assy, LH, RHD, Less Top Roll, Premium Leather	CG4323943MDW Trim, door assy, LH, RHD, Less Top Roll, Premium Leather Up To 16MY, Alpine	-	1	Enquire
-	GG43-23942-JBW	Trim, door assy, RH, LHD, With Top Roll, Duotone Perforated	GG43-23942-JBW Trim, door assy, RH, LHD, With Top Roll, Duotone Perforated From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23942-WAW	Trim, door assy, RH, LHD, With Top Roll, Fluted	GG43-23942-WAW Trim, door assy, RH, LHD, With Top Roll, Fluted From 16MY, GT, Alpine	-	1	Enquire
-	GG4323942KBW	Trim, door assy, RH, RHD, With Top Roll, Duotone Perforated	GG4323942KBW Trim, door assy, RH, RHD, With Top Roll, Duotone Perforated From 16MY, GT, Alpine	$2,750.26	1
-	GG43-23942-XAW	Trim, door assy, RH, RHD, With Top Roll, Fluted	GG43-23942-XAW Trim, door assy, RH, RHD, With Top Roll, Fluted From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23942-LBW	Trim, door assy, RH, LHD, Less Top Roll, Duotone Perforated	GG43-23942-LBW Trim, door assy, RH, LHD, Less Top Roll, Duotone Perforated From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23942-YAW	Trim, door assy, RH, LHD, Less Top Roll, Fluted	GG43-23942-YAW Trim, door assy, RH, LHD, Less Top Roll, Fluted From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23942-MBW	Trim, door assy, RH, RHD, Less Top Roll, Duotone Perforated	GG43-23942-MBW Trim, door assy, RH, RHD, Less Top Roll, Duotone Perforated From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23942-ZAW	Trim, door assy, RH, RHD, Less Top Roll, Fluted	GG43-23942-ZAW Trim, door assy, RH, RHD, Less Top Roll, Fluted From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23943-JBW	Trim, door assy, LH, LHD, With Top Roll, Duotone Perforated	GG43-23943-JBW Trim, door assy, LH, LHD, With Top Roll, Duotone Perforated From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23943-WAW	Trim, door assy, LH, LHD, With Top Roll, Fluted	GG43-23943-WAW Trim, door assy, LH, LHD, With Top Roll, Fluted From 16MY, GT, Alpine	-	1	Enquire
-	GG4323943KBW	Trim, door assy, LH, RHD, With Top Roll, Duotone Perforated	GG4323943KBW Trim, door assy, LH, RHD, With Top Roll, Duotone Perforated From 16MY, GT, Alpine	$2,750.26	1
-	GG43-23943-XAW	Trim, door assy, LH, RHD, With Top Roll, Fluted	GG43-23943-XAW Trim, door assy, LH, RHD, With Top Roll, Fluted From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23943-LBW	Trim, door assy, LH, LHD, Less Top Roll, Duotone Perforated	GG43-23943-LBW Trim, door assy, LH, LHD, Less Top Roll, Duotone Perforated From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23943-YAW	Trim, door assy, LH, LHD, Less Top Roll, Fluted	GG43-23943-YAW Trim, door assy, LH, LHD, Less Top Roll, Fluted From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23943-MBW	Trim, door assy, LH, RHD, Less Top Roll, Duotone Perforated	GG43-23943-MBW Trim, door assy, LH, RHD, Less Top Roll, Duotone Perforated From 16MY, GT, Alpine	-	1	Enquire
-	GG43-23943-ZAW	Trim, door assy, LH, RHD, Less Top Roll, Fluted	GG43-23943-ZAW Trim, door assy, LH, RHD, Less Top Roll, Fluted From 16MY, GT, Alpine	-	1	Enquire
-	CG4323942ECW	Trim, door assy, RH, LHD, With Top Roll, Standard Leather	CG4323942ECW Trim, door assy, RH, LHD, With Top Roll, Standard Leather Up To 16MY, Bang and Olufsen, Silver Speaker	-	1	Enquire
-	CG4323942FCW	Trim, door assy, RH, RHD, With Top Roll, Standard Leather	CG4323942FCW Trim, door assy, RH, RHD, With Top Roll, Standard Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	CG4323942GCW	Trim, door assy, RH, LHD, Less Top Roll, Standard Leather	CG4323942GCW Trim, door assy, RH, LHD, Less Top Roll, Standard Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	CG4323942HCW	Trim, door assy, RH, RHD, Less Top Roll, Standard Leather	CG4323942HCW Trim, door assy, RH, RHD, Less Top Roll, Standard Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	CG4323942NCW	Trim, door assy, RH, LHD, With Top Roll, Premium Leather	CG4323942NCW Trim, door assy, RH, LHD, With Top Roll, Premium Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	CG4323942PCW	Trim, door assy, RH, RHD, With Top Roll, Premium Leather	CG4323942PCW Trim, door assy, RH, RHD, With Top Roll, Premium Leather Up To 16MY, B&O Silver Speaker	-	1	Enquire
-	CG4323942RCW	Trim, door assy, RH, LHD, Less Top Roll, Premium Leather	CG4323942RCW Trim, door assy, RH, LHD, Less Top Roll, Premium Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	CG4323942SCW	Trim, door assy, RH, RHD, Less Top Roll, Premium Leather	CG4323942SCW Trim, door assy, RH, RHD, Less Top Roll, Premium Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	FG43-23942-AAW	Trim, door assy, RH, LHD, With Top Roll, Premium Leather	FG43-23942-AAW Trim, door assy, RH, LHD, With Top Roll, Premium Leather 15MY, B&O Black Speaker	-	1	Enquire
-	FG43-23942-BAW	Trim, door assy, RH, RHD, With Top Roll, Premium Leather	FG43-23942-BAW Trim, door assy, RH, RHD, With Top Roll, Premium Leather 15MY, B&O Black Speaker	-	1	Enquire
-	GG43-23942-NBW	Trim, door assy, RH, LHD, With Top Roll, Duotone Perforated	GG43-23942-NBW Trim, door assy, RH, LHD, With Top Roll, Duotone Perforated From 16MY, GT, B&O Silver Speaker	-	1	Enquire
-	GG43-23942-QAW	Trim, door assy, RH, LHD, With Top Roll, Fluted	GG43-23942-QAW Trim, door assy, RH, LHD, With Top Roll, Fluted From 16MY, GT, B&O Silver Speaker	-	1	Enquire
-	GG43-23942-PBW	Trim, door assy, RH, RHD, With Top Roll, Duotone Perforated	GG43-23942-PBW Trim, door assy, RH, RHD, With Top Roll, Duotone Perforated From 16MY, GT, B&O Silver Speaker	-	1	Enquire
-	GG43-23942-TAW	Trim, door assy, RH, RHD, With Top Roll, Fluted	GG43-23942-TAW Trim, door assy, RH, RHD, With Top Roll, Fluted From 16MY, GT, B&O Silver Speaker	-	1	Enquire
-	GG43-23942-RBW	Trim, door assy, RH, LHD, With Top Roll, Duotone Perforated	GG43-23942-RBW Trim, door assy, RH, LHD, With Top Roll, Duotone Perforated From 16MY, GT, B&O Black Speaker	-	1	Enquire
-	GG43-23942-UAW	Trim, door assy, RH, LHD, With Top Roll, Fluted Perforated	GG43-23942-UAW Trim, door assy, RH, LHD, With Top Roll, Fluted Perforated From 16MY, GT, B&O Black Speaker	-	1	Enquire
-	GG43-23942-EBW	Trim, door assy, RH, LHD, With Top Roll, Fluted Plain	GG43-23942-EBW Trim, door assy, RH, LHD, With Top Roll, Fluted Plain From 16MY, Bond Edition, B&O Black Speaker	-	1	Enquire
-	GG43-23942-SBW	Trim, door assy, RH, RHD, With Top Roll, Duotone Perforated	GG43-23942-SBW Trim, door assy, RH, RHD, With Top Roll, Duotone Perforated From 16MY, GT, B&O Black Speaker	-	1	Enquire
-	GG43-23942-VAW	Trim, door assy, RH, RHD, With Top Roll, Fluted Perforated	GG43-23942-VAW Trim, door assy, RH, RHD, With Top Roll, Fluted Perforated From 16MY, GT, B&O Black Speaker	-	1	Enquire
-	GG43-23942-FBW	Trim, door assy, RH, RHD, With Top Roll, Fluted Plain	GG43-23942-FBW Trim, door assy, RH, RHD, With Top Roll, Fluted Plain From 16MY, Bond Edition, B&O Black Speaker	-	1	Enquire
-	CG4323943ECW	Trim, door assy, LH, LHD, With Top Roll, Standard Leather	CG4323943ECW Trim, door assy, LH, LHD, With Top Roll, Standard Leather Up To 16MY, B&O, Silver Speaker	$5,207.82	1
-	CG4323943FCW	Trim, door assy, LH, RHD, With Top Roll, Standard Leather	CG4323943FCW Trim, door assy, LH, RHD, With Top Roll, Standard Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	CG4323943GCW	Trim, door assy, LH, LHD, Less Top Roll, Standard Leather	CG4323943GCW Trim, door assy, LH, LHD, Less Top Roll, Standard Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	CG4323943HCW	Trim, door assy, LH, RHD, Less Top Roll, Standard Leather	CG4323943HCW Trim, door assy, LH, RHD, Less Top Roll, Standard Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	CG4323943NCW	Trim, door assy, LH, LHD, With Top Roll, Premium Leather	CG4323943NCW Trim, door assy, LH, LHD, With Top Roll, Premium Leather Up To 16MY, B&O Silver Speaker	-	1	Enquire
-	CG4323943PCW	Trim, door assy, LH, RHD, With Top Roll, Premium Leather	CG4323943PCW Trim, door assy, LH, RHD, With Top Roll, Premium Leather Up To 16MY, B&O Silver Speaker	-	1	Enquire
-	CG4323943RCW	Trim, door assy, LH, LHD, Less Top Roll, Premium Leather	CG4323943RCW Trim, door assy, LH, LHD, Less Top Roll, Premium Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	CG4323943SCW	Trim, door assy, LH, RHD, Less Top Roll, Premium Leather	CG4323943SCW Trim, door assy, LH, RHD, Less Top Roll, Premium Leather Up To 16MY, B&O, Silver Speaker	-	1	Enquire
-	FG43-23943-AAW	Trim, door assy, LH, LHD, With Top Roll, Premium Leather	FG43-23943-AAW Trim, door assy, LH, LHD, With Top Roll, Premium Leather 15MY, B&O Black Speaker	-	1	Enquire
-	FG43-23943-BAW	Trim, door assy, LH, RHD, With Top Roll, Premium Leather	FG43-23943-BAW Trim, door assy, LH, RHD, With Top Roll, Premium Leather 15MY, B&O Black Speaker	-	1	Enquire
-	GG43-23943-NBW	Trim, door assy, LH, LHD, With Top Roll, Duotone Perforated	GG43-23943-NBW Trim, door assy, LH, LHD, With Top Roll, Duotone Perforated From 16MY, GT, B&O Silver Speaker	-	1	Enquire
-	GG43-23943-QAW	Trim, door assy, LH, LHD, With Top Roll, Fluted	GG43-23943-QAW Trim, door assy, LH, LHD, With Top Roll, Fluted From 16MY, GT, B&O Silver Speaker	-	1	Enquire
-	GG43-23943-PBW	Trim, door assy, LH, RHD, With Top Roll, Duotone Perforated	GG43-23943-PBW Trim, door assy, LH, RHD, With Top Roll, Duotone Perforated From 16MY, GT, B&O Silver Speaker	-	1	Enquire
-	GG43-23943-TAW	Trim, door assy, LH, RHD, With Top Roll, Fluted	GG43-23943-TAW Trim, door assy, LH, RHD, With Top Roll, Fluted From 16MY, GT, B&O Silver Speaker	-	1	Enquire
-	GG43-23943-RBW	Trim, door assy, LH, LHD, With Top Roll, Duotone Perforated	GG43-23943-RBW Trim, door assy, LH, LHD, With Top Roll, Duotone Perforated From 16MY, GT, B&O Black Speaker	-	1	Enquire
-	GG43-23943-UAW	Trim, door assy, LH, LHD, With Top Roll, Fluted Perforated	GG43-23943-UAW Trim, door assy, LH, LHD, With Top Roll, Fluted Perforated From 16MY, GT, B&O Black Speaker	-	1	Enquire
-	GG43-23943-EBW	Trim, door assy, LH, LHD, With Top Roll, Fluted Plain	GG43-23943-EBW Trim, door assy, LH, LHD, With Top Roll, Fluted Plain From 16MY, Bond Edition, B&O Black Speaker	-	1	Enquire
-	GG43-23943-SBW	Trim, door assy, LH, RHD, With Top Roll, Duotone Perforated	GG43-23943-SBW Trim, door assy, LH, RHD, With Top Roll, Duotone Perforated From 16MY, GT, B&O Black Speaker	-	1	Enquire
-	GG43-23943-VAW	Trim, door assy, LH, RHD, With Top Roll, Fluted Perforated	GG43-23943-VAW Trim, door assy, LH, RHD, With Top Roll, Fluted Perforated From 16MY, GT, B&O Black Speaker	-	1	Enquire
-	GG43-23943-FBW	Trim, door assy, LH, RHD, With Top Roll, Fluted Plain	GG43-23943-FBW Trim, door assy, LH, RHD, With Top Roll, Fluted Plain From 16MY, Bond Edition, B&O Black Speaker	-	1	Enquire
-	CG4323937ABW	トリム、パネルASSY フロントドアトリム下部、LH、標準レザー	CG4323937ABW トリム、パネルASSY フロントドアトリム下部、LH、標準レザー Up To 16MY	$2,185.35	1
-	CG4323936BBW	トリム、パネルASSY フロントドアトリム下部、右、ヘビーミル	CG4323936BBW トリム、パネルASSY フロントドアトリム下部、右、ヘビーミル Up To 16MY	-	1	Enquire
-	CG4323937BBW	トリム、パネルアセンブリフロントドアトリムロア、LH、ヘビーミル	CG4323937BBW トリム、パネルアセンブリフロントドアトリムロア、LH、ヘビーミル Up To 16MY	-	1	Enquire
-	GG4323936RAW	Trim, Panel Assy Front Door Trim Lower, RH, Fluted Perforated	GG4323936RAW Trim, Panel Assy Front Door Trim Lower, RH, Fluted Perforated From 16MY, GT	$2,394.14	1
-	GG43-23936-ABW	Trim, Panel Assy Front Door Trim Lower, RH, Fluted Plain	GG43-23936-ABW Trim, Panel Assy Front Door Trim Lower, RH, Fluted Plain From 16MY, Bond Edition	-	1	Enquire
-	GG43-23936-FBW	Trim, Panel Assy Front Door Trim Lower, RH, Duotone Perforated	GG43-23936-FBW Trim, Panel Assy Front Door Trim Lower, RH, Duotone Perforated From 16MY, GT	-	1	Enquire
-	GG4323937RAW	Trim, Panel Assy Front Door Trim Lower, LH, Fluted Perforated	GG4323937RAW Trim, Panel Assy Front Door Trim Lower, LH, Fluted Perforated From 16MY, GT	$2,394.14	1
-	GG43-23937-ABW	Trim, Panel Assy Front Door Trim Lower, LH, Fluted Plain	GG43-23937-ABW Trim, Panel Assy Front Door Trim Lower, LH, Fluted Plain From 16MY, Bond Edition	-	1	Enquire
-	GG43-23937-FBW	Trim, Panel Assy Front Door Trim Lower, LH, Duotone Perforated	GG43-23937-FBW Trim, Panel Assy Front Door Trim Lower, LH, Duotone Perforated From 16MY, GT	-	1	Enquire
-	9D33-23901-AA	パネル、フロントドアトリムアッパー、左側	9D33-23901-AA パネル、フロントドアトリムアッパー、左側 -	-	1	Enquire
-	CG4323929ABW	Top Roll, Panel Assy Door, LH, Leather Wrapped	CG4323929ABW Top Roll, Panel Assy Door, LH, Leather Wrapped -	$917.58	1
-	9G438711262	Panel Assy, door trim kit, Walnut	9G438711262 Panel Assy, door trim kit, Walnut Alpine	-	1	Enquire
-	9G438711263	パネルASSY、ドアトリムキット、マホガニー	9G438711263 パネルASSY、ドアトリムキット、マホガニー Alpine	$1,868.59	1
-	9G438711264	パネルASSY、ドアトリムキット、バンボ	9G438711264 パネルASSY、ドアトリムキット、バンボ Alpine	$1,304.52	1
-	9G438711261	パネルASSY、ドアトリムキット、ピアノブラック	9G438711261 パネルASSY、ドアトリムキット、ピアノブラック Alpine	$1,271.88	1
-	9G438711265	パネルASSY、ドアトリムキット、タモアッシュ	9G438711265 パネルASSY、ドアトリムキット、タモアッシュ Alpine	$1,495.55	1
-	GG438711444	Top Roll, Panel Assy, Door Trim Kit, Ashburl	GG438711444 Top Roll, Panel Assy, Door Trim Kit, Ashburl From 16MY, Alpine	$1,864.64	1
-	GG43-23864-RBW	Insert Assy, Door Trim, Fluted Perforated, RH	GG43-23864-RBW Insert Assy, Door Trim, Fluted Perforated, RH From 16MY, GT	-	1	Enquire
-	GG43-23864-ABW	Insert Assy, Door Trim, Fluted Plain, RH	GG43-23864-ABW Insert Assy, Door Trim, Fluted Plain, RH From 16MY, Bond Edition	-	1	Enquire
-	CG4323865ABW	インサートアッシー、ドアトリムパネル、左側	CG4323865ABW インサートアッシー、ドアトリムパネル、左側 Up To 16MY	$379.94	1
-	GG43-23865-RBW	Insert Assy, Door Trim, Fluted Perforated, LH	GG43-23865-RBW Insert Assy, Door Trim, Fluted Perforated, LH From 16MY, GT	-	1	Enquire
-	GG43-23865-ABW	Insert Assy, Door Trim, Fluted Plain, LH	GG43-23865-ABW Insert Assy, Door Trim, Fluted Plain, LH From 16MY, Bond Edition	-	1	Enquire
-	CG4323864BBW	インサートアッシー、ドアトリム、右側およびウェルトシームヘビーミルレザー	CG4323864BBW インサートアッシー、ドアトリム、右側およびウェルトシームヘビーミルレザー Up To 16MY	-	1	Enquire
-	GG43-23864-FBW	Insert Assy, Door Trim, Duotone Perforated, RH	GG43-23864-FBW Insert Assy, Door Trim, Duotone Perforated, RH From 16MY, GT	-	1	Enquire
-	CG4323865BBW	インサートアッセンブリードアトリム、左側とウェルトシームヘビーミルレザー	CG4323865BBW インサートアッセンブリードアトリム、左側とウェルトシームヘビーミルレザー Up To 16MY	$701.60	1
-	GG43-23865-FBW	Insert Assy, Door Trim, Duotone Perforated, LH	GG43-23865-FBW Insert Assy, Door Trim, Duotone Perforated, LH From 16MY, GT	-	1	Enquire
-	CG4324071AAW	パッド ASSY, ドアアームレストアッパー, 左側	CG4324071AAW パッド ASSY, ドアアームレストアッパー, 左側 -	$345.43	1
-	8D3324071AD	パッド ASSY、ドアアームレストアッパー、左側	8D3324071AD パッド ASSY、ドアアームレストアッパー、左側 Carbon Door Pull	$527.56	1
-	4G4324243AFW	Armrest assy, front door trim, LH	4G4324243AFW Armrest assy, front door trim, LH -	$176.42	1
-	8D33237A76ABW	キャップフロント・ドア・トリム右側	8D33237A76ABW キャップフロント・ドア・トリム右側 Carbon Door Pull	$115.76	1
-	4G43237A77AEW	フロントドアトリム左側キャップ	4G43237A77AEW フロントドアトリム左側キャップ -	$121.15	1
-	8D33237A77ABW	フロントドアトリム左側キャップ	8D33237A77ABW フロントドアトリム左側キャップ Carbon Door Pull	$115.76	1
-	4G4323719ABW	ポケットASSY、ドア左側	4G4323719ABW ポケットASSY、ドア左側 -	$727.18	1
-	9G4323941AAW	カバーASSY ドアトリムパネル左側	9G4323941AAW カバーASSY ドアトリムパネル左側 B&O	$281.64	1
-	9D33C18978BA	Grille, speaker, front, RH	9D33C18978BA Grille, speaker, front, RH B&O, Black	$846.75	1
-	FG43-C18978-AA	Speaker Grille, RH	FG43-C18978-AA Speaker Grille, RH B&O, Carbon Black and Carbon White	-	1	Enquire
-	9D33C18979AB	スピーカーASSY、左側サイドドアトップスピーカーグリルシルバー	9D33C18979AB スピーカーASSY、左側サイドドアトップスピーカーグリルシルバー B&O, Silver	$799.09	1
-	9D33C18979BA	Grille, speaker, front, LH	9D33C18979BA Grille, speaker, front, LH B&O, Black	$846.75	1
-	FG43-C18979-AA	Speaker Grille, LH	FG43-C18979-AA Speaker Grille, LH B&O, Carbon Black and Carbon White	-	1	Enquire
-	EG43C18979DA	Speaker Grille, LH	EG43C18979DA Speaker Grille, LH Alpine, Iridium Silver	$260.41	1
-	4G4302276AB	Foam Seal, LH	4G4302276AB Foam Seal, LH -	$5.21	1
1	CG4323936ABW	トリム、パネルASSY フロントドアトリム下部、右、標準レザー	CG4323936ABW トリム、パネルASSY フロントドアトリム下部、右、標準レザー Up To 16MY	-	1	Enquire
2	9D33-23900-AA	パネル、フロントドアトリムアッパー、右側	9D33-23900-AA パネル、フロントドアトリムアッパー、右側 -	-	1	Enquire
3	CG4323928ABW	Top Roll, Panel Assy Door, RH, Leather Wrapped	CG4323928ABW Top Roll, Panel Assy Door, RH, Leather Wrapped -	$917.58	1
4	CG4323864ABW	インサートアッシー、ドアトリムパネル、右側	CG4323864ABW インサートアッシー、ドアトリムパネル、右側 Up To 16MY	$379.94	1
5	CG4324070AAW	パッド ASSY、ドアアームレスト上部（右側	CG4324070AAW パッド ASSY、ドアアームレスト上部（右側 -	$345.43	1
5A	8D3324070AD	パッド ASSY、ドアアームレスト上部、右側	8D3324070AD パッド ASSY、ドアアームレスト上部、右側 Carbon Door Pull	$343.72	1
6	4G4324242AFW	Armrest assy, front door trim, RH	4G4324242AFW Armrest assy, front door trim, RH -	$153.50	1
7	4G43237A76AEW	キャップフロント・ドア・トリム右側	4G43237A76AEW キャップフロント・ドア・トリム右側 -	$121.15	1
8	W705650S424	ねじなべ頭 M4 X 16 ワッシャ付き	W705650S424 ねじなべ頭 M4 X 16 ワッシャ付き -	-	1	Enquire
9	4G4323718ABW	ポケットASSY ドア右側	4G4323718ABW ポケットASSY ドア右側 -	$733.61	1
10	9G4323940AAW	カバーASSY ドアトリムパネル右側	9G4323940AAW カバーASSY ドアトリムパネル右側 B&O	$281.64	1
11	9D33C18978AB	スピーカーASSY、右側サイドドアトップスピーカーグリルシルバー	9D33C18978AB スピーカーASSY、右側サイドドアトップスピーカーグリルシルバー B&O, Silver	$799.09	1
12	EG43C18978DA	Speaker Grille, RH	EG43C18978DA Speaker Grille, RH Alpine, Iridium Silver	$251.01	1
13	W700767S300	ナット、Uタイプ	W700767S300 ナット、Uタイプ -	-	3	Enquire
14	AG4320838BA	RETAINER, UPPER MOULDING	AG4320838BA RETAINER, UPPER MOULDING 4 Per Upper Trim	$16.29	8
15	701655	RIVET, 4.8x6.3-12.7	701655 RIVET, 4.8x6.3-12.7 2 Per Retainer	$3.49	16
16	4G4302275AB	フォームシール	4G4302275AB フォームシール -	$5.21	1
17	9G43C237898BA	ベゼル、ドアトリム	9G43C237898BA ベゼル、ドアトリム -	-	1	Enquire
18	4G4383000BB	Speednut, M5 IN STOCK	4G4383000BB Speednut, M5 - IN STOCK	$0.72	12
19	701441	Screw, M4.2 x 13	701441 Screw, M4.2 x 13 -	-	10	Enquire
20	701157	Screw st4.2x16 Large Washer Hd	701157 Screw st4.2x16 Large Washer Hd -	-	14	Enquire
21	703027	SCREW, M4x10, PAN HD TORX	703027 SCREW, M4x10, PAN HD TORX -	$0.25	4
