Console and Switches - Front Console, Auto, 09MY of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

Aston Martin GT DB9 (2004-2017) - Console and Switches - Front Console, Auto, 09MY

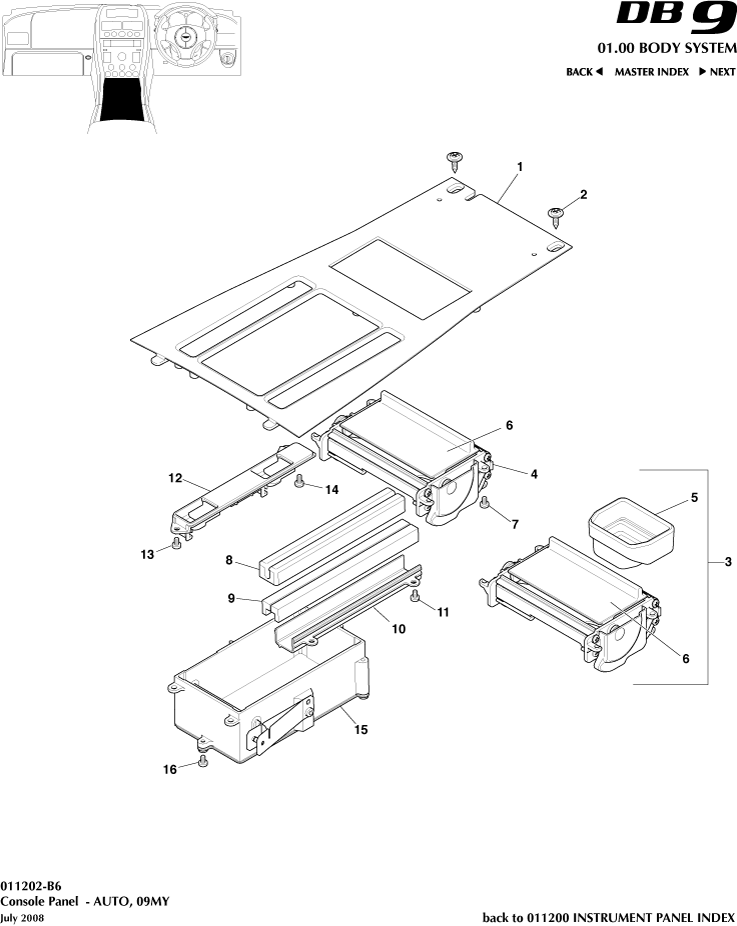

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	6G33045A66JA	Panel, console, low, AUTO (Platinum)	6G33045A66JA Panel, console, low, AUTO (Platinum) cutout for 1 switch	-	1	Enquire
-	6G33045A66CA	Panel, console, low, AUTO (Anthracite)	6G33045A66CA Panel, console, low, AUTO (Anthracite) cutout for 1 switch	$631.61	1
-	6G33045A67JA	Panel, console, low, bluetooth, AUTO (Platinum)	6G33045A67JA Panel, console, low, bluetooth, AUTO (Platinum) cutout for 1 switch	$631.61	1
-	6G33045A67CA	Panel, console, low, bluetooth, AUTO (Anthracite)	6G33045A67CA Panel, console, low, bluetooth, AUTO (Anthracite) cutout for 1 switch	-	1	Enquire
-	6G33045A66HB	Panel, console, mid, AUTO (Platinum)	6G33045A66HB Panel, console, mid, AUTO (Platinum) cutouts for 2 switches	-	1	Enquire
-	6G33045A66BB	Panel, console, mid, AUTO (Anthracite)	6G33045A66BB Panel, console, mid, AUTO (Anthracite) cutouts for 2 switches	$631.61	1
-	6G33045A67HB	Panel, console, mid, bluetooth, AUTO (Platinum)	6G33045A67HB Panel, console, mid, bluetooth, AUTO (Platinum) cutouts for 2 switches	$631.61	1
-	6G33045A67BB	Panel, console, mid, bluetooth, AUTO (Anthracite)	6G33045A67BB Panel, console, mid, bluetooth, AUTO (Anthracite) cutouts for 2 switches	$631.61	1
-	6G33045A66GB	Panel, console, high, AUTO (Platinum)	6G33045A66GB Panel, console, high, AUTO (Platinum) cutouts for 3 switches	$631.61	1
-	6G33045A66AB	Panel, console, high, AUTO (Anthracite)	6G33045A66AB Panel, console, high, AUTO (Anthracite) cutouts for 3 switches	$631.61	1
-	6G33045A67GB	Panel, console, high, bluetooth, AUTO (Platinum)	6G33045A67GB Panel, console, high, bluetooth, AUTO (Platinum) cutouts for 3 switches	$631.61	1
-	6G33045A67AB	Panel, console, high, bluetooth, AUTO (Anthracite)	6G33045A67AB Panel, console, high, bluetooth, AUTO (Anthracite) cutouts for 3 switches	$631.61	1
-	4G43045A66AF	Panel, console, high, AUTO (Platinum)	4G43045A66AF Panel, console, high, AUTO (Platinum) cutouts for 4 switches	$631.61	1
-	4G43045A66HB	Panel, console, high, AUTO (Anthracite)	4G43045A66HB Panel, console, high, AUTO (Anthracite) cutouts for 4 switches	$825.59	1
-	4G43045A67AB	Panel, console, high, bluetooth, AUTO (Platinum)	4G43045A67AB Panel, console, high, bluetooth, AUTO (Platinum) cutouts for 4 switches	$3,827.54	1
-	4G43045A67HB	Panel, console, high, bluetooth, AUTO (Anthracite)	4G43045A67HB Panel, console, high, bluetooth, AUTO (Anthracite) cutouts for 4 switches	$631.61	1
-	4G438010594	Ashtray assy, AUTO (Platinum)	4G438010594 Ashtray assy, AUTO (Platinum) -	-	1	Enquire
-	4G438010596	Ashtray assy, AUTO (Anthracite)	4G438010596 Ashtray assy, AUTO (Anthracite) -	-	1	Enquire
-	4G438010833	Ashtray assy, AUTO (Graphite)	4G438010833 Ashtray assy, AUTO (Graphite) -	-	1	Enquire
-	4G438010598	Utility tray assy, platinum	4G438010598 Utility tray assy, platinum -	$361.97	1
-	4G438010599	Utility tray assy, anthracite	4G438010599 Utility tray assy, anthracite -	$323.06	1
-	4G438010835	Utility tray assy, graphite	4G438010835 Utility tray assy, graphite -	$376.40	1
-	4G43043K78AC	Door, utility tray (Platinum)	4G43043K78AC Door, utility tray (Platinum) -	$222.09	1
-	6G33043K78AA	Door, utility tray (Anthracite)	6G33043K78AA Door, utility tray (Anthracite) -	$244.65	1
-	6G33043K78BA	Door, utility tray (Graphite)	6G33043K78BA Door, utility tray (Graphite) -	$860.45	1
-	8D33043K78BA	Door, utility tray (Light Satin Chrome)	8D33043K78BA Door, utility tray (Light Satin Chrome) -	$143.51	1
-	4G438311058	Coin Holder Assembly	4G438311058 Coin Holder Assembly Items 8,9,10 Combined	$384.30	1
-	6G33044J84ABW	コンテナアセンブリ	6G33044J84ABW コンテナアセンブリ -	-	1	Enquire
1	9G43045A67BA	Panel, centre console, AUTO	9G43045A67BA Panel, centre console, AUTO no cutouts for switches	-	1	Enquire
2	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 - IN STOCK	$3.07	2
3	4G438010993	Ashtray assy, Auto, Iridium Silver	4G438010993 Ashtray assy, Auto, Iridium Silver -	-	1	Enquire
4	4G438010961	Utility tray assy, iridium silver	4G438010961 Utility tray assy, iridium silver -	$391.70	1
5	6G33048A64AA	Box, ash receptacle	6G33048A64AA Box, ash receptacle -	$199.85	1
6	9G43043K78AA	Door, utility tray	9G43043K78AA Door, utility tray -	$221.51	1
7	703176PK	Screw, M4x6, Pan Head Torx	703176PK Screw, M4x6, Pan Head Torx -	$23.51	4
8	4G43-045N20-AA	カバー、コインホルダー	4G43-045N20-AA カバー、コインホルダー -	-	1	Enquire
9	4G438678AA	フォーム、コインホルダ	4G438678AA フォーム、コインホルダ -	$3.16	2
10	4G43045J82AA	ブラケット、コインホルダー	4G43045J82AA ブラケット、コインホルダー -	$13.81	1
11	703176PK	Screw, M4x6, Pan Head Torx	703176PK Screw, M4x6, Pan Head Torx -	$23.51	2
12	4G4313D720AA	Bracket, Switch, Centre Console Panel	4G4313D720AA Bracket, Switch, Centre Console Panel -	$30.72	1
13	703176PK	Screw, M4x6, Pan Head Torx	703176PK Screw, M4x6, Pan Head Torx -	$23.51	2
14	701445	SCREW, 4x8, PAN HD	701445 SCREW, 4x8, PAN HD -	$0.25	2
15	4G43-044J84-AA	コンテナアセンブリ	4G43-044J84-AA コンテナアセンブリ -	-	1	Enquire
16	703176PK	Screw, M4x6, Pan Head Torx	703176PK Screw, M4x6, Pan Head Torx -	$23.51	4
