Aston Martin GT DB9 (2004-2017) - Console and Switches - Instrument Panel Centre Stack

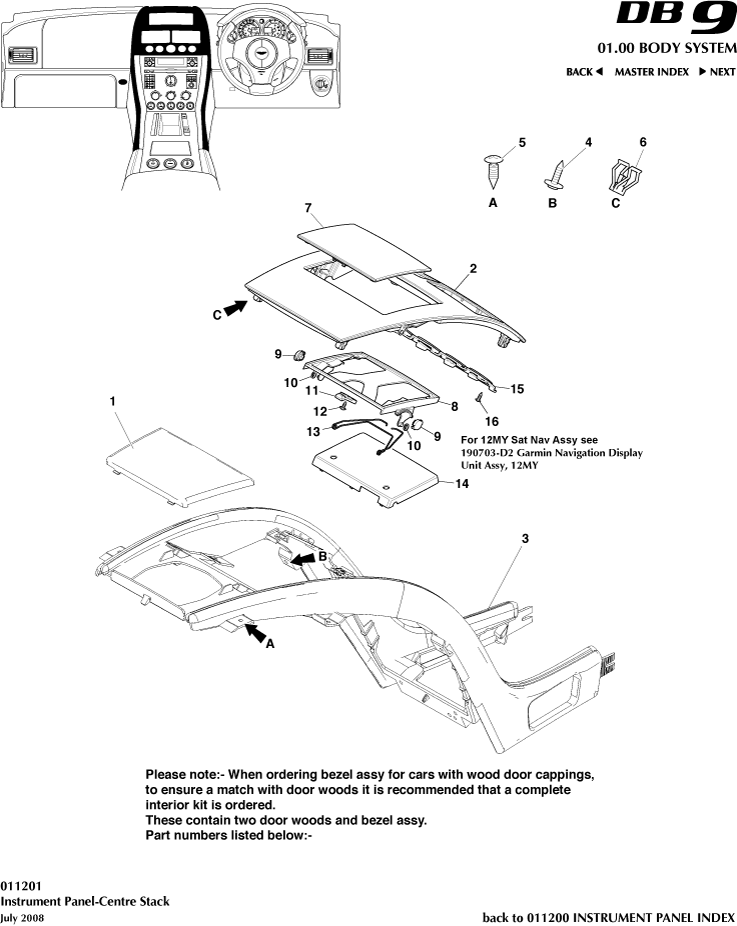

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	4G438710792	Interior Kit, Walnut, AUTO, with Sat Nav	4G438710792 Interior Kit, Walnut, AUTO, with Sat Nav Up to and incl 08MY. Also require item 17	$2,781.23	-
-	4G438710317	Interior Kit, Walnut, MANUAL, with Sat Nav	4G438710317 Interior Kit, Walnut, MANUAL, with Sat Nav Up to and incl 08MY	$1,980.69	-
-	4G438710794	Interior Kit, Walnut, AUTO, non Sat Nav	4G438710794 Interior Kit, Walnut, AUTO, non Sat Nav Up to and incl 08MY. Also require item 17	$2,383.94	-
-	4G438710319	Interior Kit, Walnut, MANUAL, non Sat Nav	4G438710319 Interior Kit, Walnut, MANUAL, non Sat Nav Up to and incl 08MY	$2,091.11	-
-	4G438710796	Interior Kit, Mahogany, AUTO, with Sat Nav	4G438710796 Interior Kit, Mahogany, AUTO, with Sat Nav Up to and incl 08MY. Also require item 17	$2,383.94	-
-	4G438710797	Interior Kit, Mahogany, MANUAL, with Sat Nav	4G438710797 Interior Kit, Mahogany, MANUAL, with Sat Nav Up to and incl 08MY. Also require item 17	$2,383.94	-
-	4G438710798	Interior Kit, Mahogany, AUTO, non Sat Nav	4G438710798 Interior Kit, Mahogany, AUTO, non Sat Nav Up to and incl 08MY. Also require item 17	$2,383.94	-
-	4G438710323	Interior Kit, Mahogany, MANUAL, non Sat Nav	4G438710323 Interior Kit, Mahogany, MANUAL, non Sat Nav Up to and incl 08MY	$2,091.11	-
-	4G438710800	Interior Kit, Bamboo, AUTO, with Sat Nav	4G438710800 Interior Kit, Bamboo, AUTO, with Sat Nav Up to and incl 08MY. Also require item 17	$2,383.94	-
-	4G438710325	Interior Kit, Bamboo, MANUAL, with Sat Nav	4G438710325 Interior Kit, Bamboo, MANUAL, with Sat Nav Up to and incl 08MY	-	-	Enquire
-	4G438710326	Interior Kit, Bamboo, AUTO, non Sat Nav	4G438710326 Interior Kit, Bamboo, AUTO, non Sat Nav Up to and incl 08MY	$2,091.11	-
-	4G438710327	Interior Kit, Bamboo, MANUAL, non Sat Nav	4G438710327 Interior Kit, Bamboo, MANUAL, non Sat Nav Up to and incl 08MY	$2,091.11	-
-	4G438710804	Interior Kit, Piano Black, AUTO, with Sat Nav	4G438710804 Interior Kit, Piano Black, AUTO, with Sat Nav Up to and incl 08MY. Also require item 17	$2,553.79	-
-	4G438710805	Interior Kit, Piano Black, MANUAL, with Sat Nav	4G438710805 Interior Kit, Piano Black, MANUAL, with Sat Nav Up to and incl 08MY. Also require item 17	$2,553.79	-
-	4G438710330	Interior Kit, Piano Black, AUTO, non Sat Nav	4G438710330 Interior Kit, Piano Black, AUTO, non Sat Nav Up to and incl 08MY	$2,292.97	-
-	4G438710331	Interior Kit, Piano Black, MANUAL, non Sat Nav	4G438710331 Interior Kit, Piano Black, MANUAL, non Sat Nav Up to and incl 08MY	$2,292.97	-
-	9D33C046A26AC	Grille assy, Centre Speaker, IP	9D33C046A26AC Grille assy, Centre Speaker, IP 9.5MY	$521.80	1
-	9G43045K18GA	Bezel assy, walnut, AUTO, Standard	9G43045K18GA Bezel assy, walnut, AUTO, Standard From 09MY	-	1	Enquire
-	4G43047A04DBW	Bezel assy, walnut, MANUAL, Standard	4G43047A04DBW Bezel assy, walnut, MANUAL, Standard Up to 08MY	$953.33	1
-	4G43045K18KB	Bezel assy, walnut, MANUAL, Standard	4G43045K18KB Bezel assy, walnut, MANUAL, Standard From 08MY - 09MY. Also require item 17	$1,583.40	1
-	9G43045K18KA	Bezel assy, walnut, MANUAL, Standard	9G43045K18KA Bezel assy, walnut, MANUAL, Standard From 09MY	-	1	Enquire
-	4G43047A04BBW	Bezel assy, mahogany, AUTO, Standard	4G43047A04BBW Bezel assy, mahogany, AUTO, Standard Up to	-	1	Enquire
-	4G43045K18HB	Bezel assy, mahogany, AUTO, Standard	4G43045K18HB Bezel assy, mahogany, AUTO, Standard From	$1,583.40	1
-	9G43045K18HA	Bezel assy, mahogany, AUTO, Standard	9G43045K18HA Bezel assy, mahogany, AUTO, Standard 09MY	-	1	Enquire
-	4G43047A04EBW	Bezel assy, mahogany, MANUAL, Standard	4G43047A04EBW Bezel assy, mahogany, MANUAL, Standard Up to	$953.33	1
-	4G43045K18LB	Bezel assy, mahogany, MANUAL, Standard	4G43045K18LB Bezel assy, mahogany, MANUAL, Standard From	$1,583.40	1
-	9G43045K18LA	Bezel assy, mahogany, MANUAL, Standard	9G43045K18LA Bezel assy, mahogany, MANUAL, Standard 09MY	-	1	Enquire
-	4G43047A04CBW	Bezel assy, bamboo, AUTO, Standard	4G43047A04CBW Bezel assy, bamboo, AUTO, Standard Up to	$953.33	1
-	4G43045K18JB	Bezel assy, bamboo, AUTO, Standard	4G43045K18JB Bezel assy, bamboo, AUTO, Standard From	$1,583.40	1
-	9G43045K18JA	Bezel assy, bamboo, AUTO, Standard	9G43045K18JA Bezel assy, bamboo, AUTO, Standard 09MY	-	1	Enquire
-	4G43047A04FBW	Bezel assy, bamboo, MANUAL, Standard	4G43047A04FBW Bezel assy, bamboo, MANUAL, Standard Up to	$953.33	1
-	4G43045K18MB	Bezel assy, bamboo, MANUAL, Standard	4G43045K18MB Bezel assy, bamboo, MANUAL, Standard From	$1,583.40	1
-	9G43045K18MA	Bezel assy, bamboo, MANUAL, Standard	9G43045K18MA Bezel assy, bamboo, MANUAL, Standard 09MY	-	1	Enquire
-	4G43047A04NAW	Bezel assy, piano black, AUTO, Standard	4G43047A04NAW Bezel assy, piano black, AUTO, Standard Up to	-	1	Enquire
-	4G43045K18QB	Bezel assy, piano black, AUTO, Standard	4G43045K18QB Bezel assy, piano black, AUTO, Standard From	$1,583.40	1
-	9G43045K18RA	Bezel assy, piano black, AUTO, Standard	9G43045K18RA Bezel assy, piano black, AUTO, Standard 09MY	-	1	Enquire
-	4G43047A04OAW	Bezel assy, piano black, MANUAL, Standard	4G43047A04OAW Bezel assy, piano black, MANUAL, Standard Up to	-	1	Enquire
-	4G43045K18RB	Bezel assy, piano black, MANUAL, Standard	4G43045K18RB Bezel assy, piano black, MANUAL, Standard From	$1,583.40	1
-	8D33045K18RA	Instrument panel,centre stack, Manual, Piano Black	8D33045K18RA Instrument panel,centre stack, Manual, Piano Black 09MY	-	1	Enquire
-	6G33047A04ABW	ベゼルASSY、合金、オート、標準	6G33047A04ABW ベゼルASSY、合金、オート、標準 07MY	$1,110.98	1
-	9G43-047A05-CAW	ベゼルASSY、合金、オート、標準	9G43-047A05-CAW ベゼルASSY、合金、オート、標準 09MY	-	1	Enquire
-	6G33047A04BBW	ベゼルASSY、合金、マニュアル、標準	6G33047A04BBW ベゼルASSY、合金、マニュアル、標準 07MY	$1,110.98	1
-	9G43-047A05-DAW	ベゼルASSY、合金、マニュアル、標準	9G43-047A05-DAW ベゼルASSY、合金、マニュアル、標準 09MY	-	1	Enquire
-	9G43045K18VA	Bezel assy, tamo ash, AUTO, Standard	9G43045K18VA Bezel assy, tamo ash, AUTO, Standard 09MY	-	1	Enquire
-	9G43045K18WA	Bezel assy, tamo ash, MANUAL, Standard	9G43045K18WA Bezel assy, tamo ash, MANUAL, Standard 09MY	-	1	Enquire
-	4G43045K18TA	Bezel assy, tetra rouge, AUTO, Standard	4G43045K18TA Bezel assy, tetra rouge, AUTO, Standard LeMans	$1,669.68	1
-	4G43045H43ACW	Bezel assy, walnut, AUTO, plastic Sat Nav	4G43045H43ACW Bezel assy, walnut, AUTO, plastic Sat Nav Up to (V) B08133	-	1	Enquire
-	4G43045K18AB	Bezel assy, walnut, AUTO, metal Sat Nav	4G43045K18AB Bezel assy, walnut, AUTO, metal Sat Nav From (V) B08134	$1,359.71	1
-	9G43045K18AA	Bezel assy, walnut, AUTO, Sat Nav	9G43045K18AA Bezel assy, walnut, AUTO, Sat Nav 09MY	-	1	Enquire
-	4G43045H43DCW	Bezel assy, walnut, MANUAL, plastic Sat Nav	4G43045H43DCW Bezel assy, walnut, MANUAL, plastic Sat Nav Up to	-	1	Enquire
-	4G43045K18DB	Bezel assy, walnut, MANUAL, metal, Sat Nav	4G43045K18DB Bezel assy, walnut, MANUAL, metal, Sat Nav From	$1,359.71	1
-	9G43045K18DA	Bezel assy, walnut, MANUAL, Sat Nav	9G43045K18DA Bezel assy, walnut, MANUAL, Sat Nav 09MY	-	1	Enquire
-	4G43045H43BCW	Bezel assy, mahogany, AUTO, plastic Sat Nav	4G43045H43BCW Bezel assy, mahogany, AUTO, plastic Sat Nav Up to	-	1	Enquire
-	4G43045K18BB	Bezel assy, mahogany, AUTO, metal Sat Nav	4G43045K18BB Bezel assy, mahogany, AUTO, metal Sat Nav From	$1,514.83	1
-	9G43045K18BA	Bezel assy, mahogany, AUTO, Sat Nav	9G43045K18BA Bezel assy, mahogany, AUTO, Sat Nav 09MY	-	1	Enquire
-	4G43045H43ECW	Bezel assy, mahogany, MANUAL, plastic Sat Nav	4G43045H43ECW Bezel assy, mahogany, MANUAL, plastic Sat Nav Up to (V) A08142	-	1	Enquire
-	4G43045K18EB	Bezel assy, mahog, MANUAL, metal Sat Nav	4G43045K18EB Bezel assy, mahog, MANUAL, metal Sat Nav From (V) A08143	$1,359.71	1
-	9G43045K18EA	Bezel assy, mahogany, manual, Sat Nav	9G43045K18EA Bezel assy, mahogany, manual, Sat Nav 09MY	-	1	Enquire
-	4G43045H43CCW	Bezel assy, bamboo, AUTO, plastic Sat Nav	4G43045H43CCW Bezel assy, bamboo, AUTO, plastic Sat Nav Up to	-	1	Enquire
-	4G43045K18CB	Bezel assy, bamboo, AUTO, metal Sat Nav	4G43045K18CB Bezel assy, bamboo, AUTO, metal Sat Nav From	$1,359.71	1
-	9G43045K18CA	Bezel assy, bamboo, AUTO, Sat Nav	9G43045K18CA Bezel assy, bamboo, AUTO, Sat Nav 09MY	-	1	Enquire
-	4G43045H43FCW	Bezel assy, bamboo, MANUAL, plastic Sat Nav	4G43045H43FCW Bezel assy, bamboo, MANUAL, plastic Sat Nav Up to	$1,465.50	1
-	4G43045K18FB	Bezel assy, bamboo, MANUAL, metal Sat Nav	4G43045K18FB Bezel assy, bamboo, MANUAL, metal Sat Nav From	$1,583.40	1
-	9G43045K18FA	Bezel assy, bamboo, MANUAL, Sat Nav	9G43045K18FA Bezel assy, bamboo, MANUAL, Sat Nav 09MY	-	1	Enquire
-	4G43045H43GBW	Bezel assy, piano black, AUTO, plastic Sat Nav	4G43045H43GBW Bezel assy, piano black, AUTO, plastic Sat Nav Up to (V) B08107	-	1	Enquire
-	4G43045K18NB	Bezel assy, piano black, AUTO, metal Sat Nav	4G43045K18NB Bezel assy, piano black, AUTO, metal Sat Nav From (V) B08108	$1,393.68	1
-	9G43045K18NA	Instrument panel,centre stack, Auto, Piano Black	9G43045K18NA Instrument panel,centre stack, Auto, Piano Black 09MY	-	1	Enquire
-	4G43045H43HBW	Bezel assy, piano black, MANUAL, plastic Sat Nav	4G43045H43HBW Bezel assy, piano black, MANUAL, plastic Sat Nav Up to (V) A08054	-	1	Enquire
-	4G43045K18PB	Bezel assy, piano black, MANUAL, metal Sat Nav	4G43045K18PB Bezel assy, piano black, MANUAL, metal Sat Nav From (V) A08055	$1,359.71	1
-	8D33045K18PA	Navigation surround, piano black	8D33045K18PA Navigation surround, piano black 09MY	-	1	Enquire
-	6G33045H43ABW	Bezel assy, alloy, AUTO, plastic Sat Nav	6G33045H43ABW Bezel assy, alloy, AUTO, plastic Sat Nav From DD101141	$1,359.71	1
-	6G33045H43BBW	Bezel assy, alloy, MANUAL, plastic Sat Nav	6G33045H43BBW Bezel assy, alloy, MANUAL, plastic Sat Nav From	$1,359.71	1
-	4G43045K18SA	Bezel assy, tetra rouge, AUTO, Sat nav	4G43045K18SA Bezel assy, tetra rouge, AUTO, Sat nav LeMans	$1,793.66	1
-	9G43045K18SA	Bezel assy, tamo ash, AUTO, Sat Nav	9G43045K18SA Bezel assy, tamo ash, AUTO, Sat Nav 09MY	-	1	Enquire
-	9G43045K18TA	Bezel assy, tamo ash, MANUAL, Sat Nav	9G43045K18TA Bezel assy, tamo ash, MANUAL, Sat Nav 09MY	-	1	Enquire
-	AD43045H43AA	サラウンドASSY オート、ナビ	AD43045H43AA サラウンドASSY オート、ナビ 11MY Nexus Alloy	$1,359.71	1
-	AD43045H43BA	Navigation surround only, Manual	AD43045H43BA Navigation surround only, Manual 11MY Nexus Alloy	$684.55	1
-	AG43045H43CA	Navigation surround only, Auto	AG43045H43CA Navigation surround only, Auto 11MY Double Apex Alloy	$1,316.42	1
-	AG43045H43DA	Navigation surround only, Manual	AG43045H43DA Navigation surround only, Manual 11MY Double Apex Alloy	$1,316.42	1
-	AD43047A04AA	Surround assy , non navigation	AD43047A04AA Surround assy , non navigation 11MY Nexus Alloy	$1,400.81	1
-	AD43047A04BA	Surround assy only - No Nav, Manual	AD43047A04BA Surround assy only - No Nav, Manual 11MY Nexus Alloy	-	1	Enquire
-	AD43-047A04-CA	ナビサラウンド＆ドアASSY、オート	AD43-047A04-CA ナビサラウンド＆ドアASSY、オート 11MY Nexus Alloy	-	1	Enquire
-	AD43-047A04-DA	ナビサラウンド＆ドアASSY、マニュアル	AD43-047A04-DA ナビサラウンド＆ドアASSY、マニュアル 11MY Nexus Alloy	-	1	Enquire
-	AG43047A04AA	Surround assy only - No Nav, Auto	AG43047A04AA Surround assy only - No Nav, Auto 11MY Double Apex Alloy	$1,400.81	1
-	AG43047A04BA	Surround assy only - No Nav, Manual	AG43047A04BA Surround assy only - No Nav, Manual 11MY Double Apex Alloy	$1,400.81	1
-	AG43-047A04-CA	ナビサラウンド＆ドアASSY、オート	AG43-047A04-CA ナビサラウンド＆ドアASSY、オート 11MY Double Apex Alloy	-	1	Enquire
-	AG43-047A04-DA	ナビサラウンド＆ドアASSY、マニュアル	AG43-047A04-DA ナビサラウンド＆ドアASSY、マニュアル 11MY Double Apex Alloy	-	1	Enquire
-	AG43-045J10-AA	ナビサラウンド＆ドアASSY、マニュアル	AG43-045J10-AA ナビサラウンド＆ドアASSY、マニュアル 11MY Olive Ash Burl, 11MY	-	1	Enquire
-	AG43-045J10-BA	ナビサラウンド＆ドアASSY、オート	AG43-045J10-BA ナビサラウンド＆ドアASSY、オート 11MY Olive Ash Burl, 11MY	-	1	Enquire
-	AG43-045J10-CA	サラウンドのみ、マニュアル-ナビなし	AG43-045J10-CA サラウンドのみ、マニュアル-ナビなし 11MY Olive Ash Burl, 11MY	-	1	Enquire
-	AG43-045J10-DA	ナビゲーションサラウンドASSY、オリーブアッシュ	AG43-045J10-DA ナビゲーションサラウンドASSY、オリーブアッシュ 11MY Olive Ash Burl, 11MY	-	1	Enquire
-	4G4310E901AB	Cover, RTI IN STOCK	4G4310E901AB Cover, RTI For use with plastic sub surround IN STOCK	$64.53	1
-	6G3310E901AB	Cover, RTI	6G3310E901AB Cover, RTI For use with metal substrate/metal foil surround	-	1	Enquire
-	4G43C04350BCW	パネル、インストルメント、センター	4G43C04350BCW パネル、インストルメント、センター Sat Nav	-	1	Enquire
-	9G43-55210-ACW	パネル、インストルメント、センター	9G43-55210-ACW パネル、インストルメント、センター 11MY	-	1	Enquire
-	CG43-55210-ACW	パネル、インストルメント、センター	CG43-55210-ACW パネル、インストルメント、センター 12MY	-	1	Enquire
-	AD43045G37AA	Door assy, Sat Nav- Nexus Alloy	AD43045G37AA Door assy, Sat Nav- Nexus Alloy 11MY Nexus Alloy	$929.56	1
-	AG43045G37AA	Door assy, Sat Nav- Double Apex Alloy	AG43045G37AA Door assy, Sat Nav- Double Apex Alloy 11MY Double Apex Alloy	$929.56	1
-	6G3318C917AB	Bracket, NAV Mounting IN STOCK	6G3318C917AB Bracket, NAV Mounting - IN STOCK	$335.48	1
-	4G436910571	Housing, navigation display with spring	4G436910571 Housing, navigation display with spring Includes item 13	$118.83	1
1	4G43C046A26ACW	Grille assy, radio speaker	4G43C046A26ACW Grille assy, radio speaker -	$91.53	1
2	4G43045K18GB	Bezel assy, walnut, AUTO, Standard	4G43045K18GB Bezel assy, walnut, AUTO, Standard Up to 09MY. Also require item 17	$1,583.40	1
3	4G43C04350AFW	パネル、インストルメント、センター	4G43C04350AFW パネル、インストルメント、センター Standard	$1,545.46	1
4	701441	Screw, M4.2 x 13	701441 Screw, M4.2 x 13 -	-	6	Enquire
5	701157	Screw st4.2x16 Large Washer Hd	701157 Screw st4.2x16 Large Washer Hd -	-	14	Enquire
6	702520	Clip, 8.5x16x1.7, Push-in	702520 Clip, 8.5x16x1.7, Push-in -	-	6	Enquire
7	6G33045G37AAW	Door, Sat Nav, alloy Sat Nav	6G33045G37AAW Door, Sat Nav, alloy Sat Nav -	$619.67	1
8	6G3318C917AB	Bracket, NAV Mounting IN STOCK	6G3318C917AB Bracket, NAV Mounting - IN STOCK	$335.48	1
9	6G3338392AA	Damper, Spindle IN STOCK	6G3338392AA Damper, Spindle - IN STOCK	$15.11	2
10	6G338979AA	ウォッシャー IN STOCK	6G338979AA ウォッシャー - IN STOCK	$6.47	2
11	6G3314163AB	Bezel, Stop, Instrument Panel Veneer	6G3314163AB Bezel, Stop, Instrument Panel Veneer -	$59.35	2
12	6G33104101AB	Screw, M4 x10 Black	6G33104101AB Screw, M4 x10 Black -	-	1	Enquire
13	6G3319363AE	スプリング IN STOCK	6G3319363AE スプリング - IN STOCK	$42.65	1
14	6G3310E901AC	Housing, NAV Display	6G3310E901AC Housing, NAV Display Less item 13	-	1	Enquire
15	6G3314A462AA	リテーナー、コントロールスイッチ	6G3314A462AA リテーナー、コントロールスイッチ -	$9.86	1
16	703170	Screw, 4x8, Pan Hd IN STOCK	703170 Screw, 4x8, Pan Hd - IN STOCK	$2.77	6
17	4G436910786	単板フィッティングキット	4G436910786 単板フィッティングキット Up to 09MY. Not Illustrated	$571.54	1
