Body Structure - EV Structure, Coupe of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

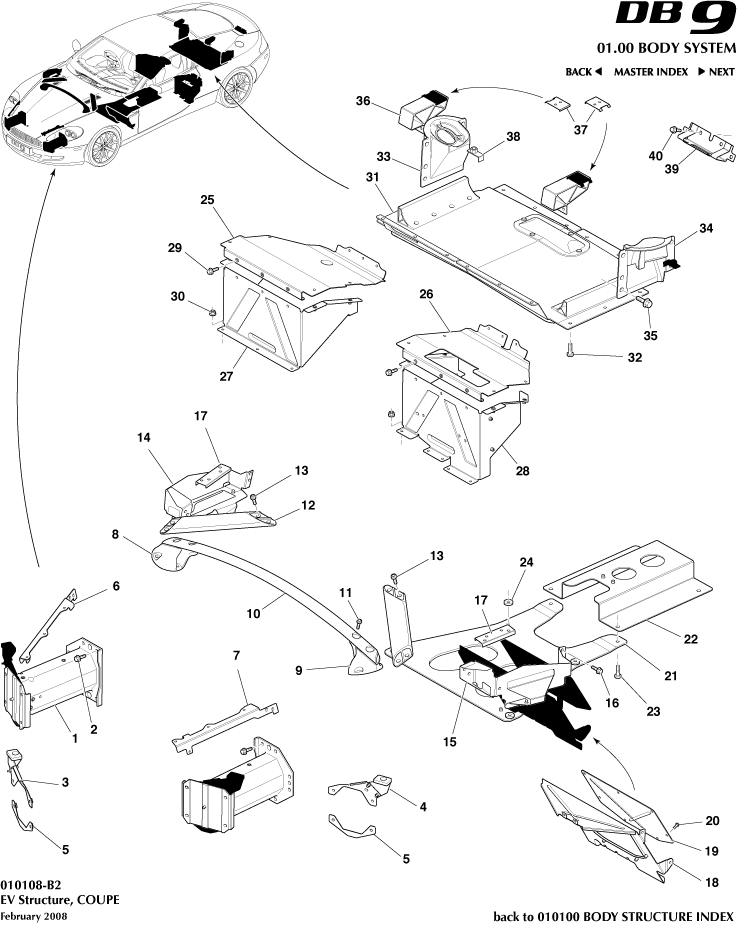

Aston Martin GT DB9 (2004-2017) - Body Structure - EV Structure, Coupe

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	703201	Screw, M8 x 30 Hex Head Flange	703201 Screw, M8 x 30 Hex Head Flange 08MY	$1.27	12
-	703172PK	Screw M8 x 25 Pan Head	703172PK Screw M8 x 25 Pan Head Pack of 10	$7.11	2
-	4G43043B19AB	Tube, passenger airbag initr RH	4G43043B19AB Tube, passenger airbag initr RH USA	-	1	Enquire
-	4G43F00199AD	Crush Bar, Reinforcement Body, Front LH	4G43F00199AD Crush Bar, Reinforcement Body, Front LH Order in pairs	$49.28	2
-	703163	Nut, M06, hex flange head	703163 Nut, M06, hex flange head -	$0.23	4
-	4G435340AJ	Bracket, ECU mounting RH	4G435340AJ Bracket, ECU mounting RH Up to 07MY	$189.54	1
-	4G435341AJ	Bracket, ECU mounting LH	4G435341AJ Bracket, ECU mounting LH Up to 07MY	$189.54	1
-	4G43111C61AD	Panel, Dummy Floor Front, LH	4G43111C61AD Panel, Dummy Floor Front, LH 6.5MY to 12MY. RHD	$354.85	1
-	4G43111C61AE	PANEL, DUMMY FLOOR, LH	4G43111C61AE PANEL, DUMMY FLOOR, LH 12MY onwards. RHD	$435.24	1
-	4G43111C60AC	パネル、ダミーフロアフロント、左ハンドル	4G43111C60AC パネル、ダミーフロアフロント、左ハンドル Up to 06MY. LHD	$435.24	1
-	4G43111C60AD	Panel, dummy floor, front LHD	4G43111C60AD Panel, dummy floor, front LHD 6.5MY onwrds. LHD	$435.24	1
-	4G43111K36AF	トンネルレインフォースメント、フロント	4G43111K36AF トンネルレインフォースメント、フロント From 09/2005	$136.91	1
-	4G43111K37AE	REINFORCEMENT, CENTRETUNNEL	4G43111K37AE REINFORCEMENT, CENTRETUNNEL From 09/2005	$85.31	1
-	7G4310N660AC	カバー、バッテリー	7G4310N660AC カバー、バッテリー From VIN GA07312	$516.23	1
-	4G4367518AE	Panel, Rear Seat Heel Board	4G4367518AE Panel, Rear Seat Heel Board From 09/2005	$218.80	1
-	4G4311262AC	Reinforcement assy, Front Floor	4G4311262AC Reinforcement assy, Front Floor -	$1,116.66	1
-	9G4311262BA	アンダートレイフロント	9G4311262BA アンダートレイフロント 09MY	$723.14	1
1	AD43V17N800AC	Crash Can, Frt Bumper	AD43V17N800AC Crash Can, Frt Bumper Structural Cat. A only	$2,159.58	2
2	703172PK	Screw M8 x 25 Pan Head	703172PK Screw M8 x 25 Pan Head 07MY. Pack of 10	$7.11	12
3	4G4313068AD	Headlamp mounting panel RH	4G4313068AD Headlamp mounting panel RH -	$739.88	1
4	4G4313069AD	Headlamp mounting panel LH	4G4313069AD Headlamp mounting panel LH -	$739.88	1
5	4G436367912AC	Nut Plate Assembly, Crash Can Lower	4G436367912AC Nut Plate Assembly, Crash Can Lower -	-	2	Enquire
6	4G43043B19AC	Tube, passenger airbag initr RH	4G43043B19AC Tube, passenger airbag initr RH RoW	$38.28	1
7	4G43043B20AC	Tube, passenger airbag initr LH	4G43043B20AC Tube, passenger airbag initr LH -	$70.64	1
8	4G43108A86AE	Bracket, front crash brace RH	4G43108A86AE Bracket, front crash brace RH -	$328.19	1
9	4G43108A87AE	Bracket, front crash brace LH	4G43108A87AE Bracket, front crash brace LH -	$328.19	1
10	4G43108A75AA	ブレース、フロントクラッシュ	4G43108A75AA ブレース、フロントクラッシュ -	$135.14	1
11	702209	ネジ、M10 X 25	702209 ネジ、M10 X 25 -	$2.05	4
12	4G43F00198AD	Crush Bar, Reinforcement Body, Front RH	4G43F00198AD Crush Bar, Reinforcement Body, Front RH Order in pairs	$49.28	2
13	702209	ネジ、M10 X 25	702209 ネジ、M10 X 25 -	$2.05	4
14	4G435340AE	Bracket, ECU mounting RH	4G435340AE Bracket, ECU mounting RH Up to 07MY	$228.05	1
15	4G435341AE	Bracket, ECU mounting LH	4G435341AE Bracket, ECU mounting LH Up to 07MY	$216.01	1
16	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20 -	$0.34	12
17	4G4316802AA	Nut plate, hood mounting bracket	4G4316802AA Nut plate, hood mounting bracket -	$13.50	2
18	4G43111C61AC	パネル、ダミーフロアフロント、右ハンドル	4G43111C61AC パネル、ダミーフロアフロント、右ハンドル Up to 06MY. RHD	$354.85	1
19	4G43111B48AB	PANEL, DUMMY FLOOR COVER,FRONT	4G43111B48AB PANEL, DUMMY FLOOR COVER,FRONT -	$47.28	1
20	701553	Screw, M6 x 16 pan hd, hood release handle to bracket	701553 Screw, M6 x 16 pan hd, hood release handle to bracket -	$0.30	8
21	4G43111K36AD	Tunnel, reinforcement, front	4G43111K36AD Tunnel, reinforcement, front Up to 08/2005	$117.30	1
22	4G43111K37AD	Tunnel, reinforcement, centre	4G43111K37AD Tunnel, reinforcement, centre Up to 08/2005	$77.23	1
23	703172PK	Screw M8 x 25 Pan Head	703172PK Screw M8 x 25 Pan Head Pack of 10	$7.11	8
24	4G431660AA	Spacer, frt tunnel reinforce	4G431660AA Spacer, frt tunnel reinforce -	$24.85	4
25	7G4310N660AA	Panel, battery cover RH	7G4310N660AA Panel, battery cover RH Up to VIN GA07311	$79.14	1
26	7G4310N661AA	Panel, battery cover LH	7G4310N661AA Panel, battery cover LH 07MY	$81.09	1
27	4G4367518AD	Panel, rear seat heel board RH	4G4367518AD Panel, rear seat heel board RH Up to 08/2005	$200.82	1
28	4G4367519AE	パネル、リアシートヒールボード左側	4G4367519AE パネル、リアシートヒールボード左側 07MY	$218.80	1
29	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20 -	$0.34	22
30	703163	Nut, M06, hex flange head	703163 Nut, M06, hex flange head -	$0.23	12
31	4G4338580AK	Panel, fuel tank cmpt lower	4G4338580AK Panel, fuel tank cmpt lower -	$701.12	1
32	700121	ネジ、FLG、M8 X 20	700121 ネジ、FLG、M8 X 20 -	$0.07	16
33	4G4318A000AB	メンバー、リアダンパー取り付け右側	4G4318A000AB メンバー、リアダンパー取り付け右側 -	$115.89	1
34	4G4318A001AB	メンバー、リアダンパー取り付け左側	4G4318A001AB メンバー、リアダンパー取り付け左側 -	$104.28	1
35	703185	Screw, M12x25, Hex Flange Head	703185 Screw, M12x25, Hex Flange Head -	$10.77	8
36	4G43C114B10AB	BRACKET, REAR SEAT CHILDSEAT, OUTER	4G43C114B10AB BRACKET, REAR SEAT CHILDSEAT, OUTER -	$44.54	2
37	4G43612C58AA	PLATE, CHILD SEATATTACHMENT	4G43612C58AA PLATE, CHILD SEATATTACHMENT -	$11.98	2
38	4G43501B0AC	Nutplate, rear subframe	4G43501B0AC Nutplate, rear subframe -	$16.24	2
39	4G43433A32AE	Reinforcement, latch	4G43433A32AE Reinforcement, latch -	$28.85	1
40	700121	ネジ、FLG、M8 X 20	700121 ネジ、FLG、M8 X 20 -	$0.07	2
