Weatherstrip Seals - Dynamic Weatherstrips, Volante of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

Aston Martin GT DB9 (2004-2017) - Weatherstrip Seals - Dynamic Weatherstrips, Volante

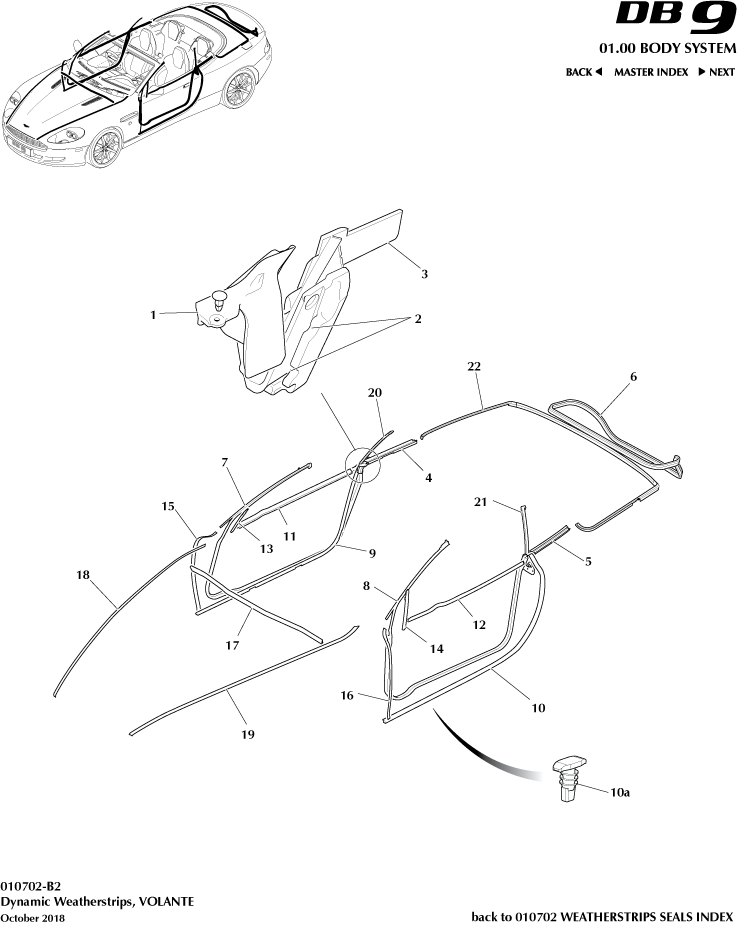

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	4G43F20921AC	MOULDING ASSEMBLY, REAR,LH	4G43F20921AC MOULDING ASSEMBLY, REAR,LH -	$434.04	1
-	4G43L30255AA	Weatherstrip Assy, Quarter Window Upper VOL LH	4G43L30255AA Weatherstrip Assy, Quarter Window Upper VOL LH -	$265.95	1
-	4G43F20709BH	Door primary seal, Volante, LH	4G43F20709BH Door primary seal, Volante, LH 06MY on	$877.18	1
-	4G43F21510BA	Weatherstrip, Front Door Glass, RH	4G43F21510BA Weatherstrip, Front Door Glass, RH From (V) B05152	$384.66	1
-	4G43F21511BA	Weatherstrip, Front Door Glass, LH	4G43F21511BA Weatherstrip, Front Door Glass, LH From (V) B05152	$349.50	1
-	4G4316A015AF	Weatherstrip, hood side, LH	4G4316A015AF Weatherstrip, hood side, LH 10MY on	$130.47	1
-	4G43L51452AD	Weatherstrip assembly, tonneau to body	4G43L51452AD Weatherstrip assembly, tonneau to body 07MY	-	1	Enquire
-	4G43L51452AE	Weatherstrip assembly, tonneau to body	4G43L51452AE Weatherstrip assembly, tonneau to body 08MY	-	1	Enquire
-	9G43L51452AD	Weatherstrip assembly, tonneau to body	9G43L51452AD Weatherstrip assembly, tonneau to body 9.5MY on	$747.89	1
-	4G4320126AA	Felt seal, door upper window	4G4320126AA Felt seal, door upper window -	$10.04	2
-	4G43L25324BA	CLIP, WEATHERSTRIPRETENTION	4G43L25324BA CLIP, WEATHERSTRIPRETENTION -	$3.17	2
-	6G33C47775AA	フォームパッド	6G33C47775AA フォームパッド -	$0.66	2
1	4G43F20920AC	MOULDING ASSEMBLY, REAR,RH	4G43F20920AC MOULDING ASSEMBLY, REAR,RH -	$434.04	1
2	702213	PIN, 4.7x16.0, PUSH-IN	702213 PIN, 4.7x16.0, PUSH-IN -	$0.34	2
3	4G43L30254AA	Weatherstrip Assy, Quarter Window Upper, VOL RH	4G43L30254AA Weatherstrip Assy, Quarter Window Upper, VOL RH -	$265.95	1
4	4G43L29730AD	Moulding, Quarter Window Inner, VOL RH	4G43L29730AD Moulding, Quarter Window Inner, VOL RH -	$193.18	1
5	4G43L29731AD	Moulding, Quarter Window Inner, VOL LH	4G43L29731AD Moulding, Quarter Window Inner, VOL LH -	$193.18	1
6	4G43L43720AE	Weatherstrip, Trunk Lid, VOLANTE	4G43L43720AE Weatherstrip, Trunk Lid, VOLANTE -	$474.25	1
7	4G43F20708BH	Door primary seal, Volante, RH	4G43F20708BH Door primary seal, Volante, RH -	$796.93	1
8	4G43F20709BC	Door primary seal, Volante, LH	4G43F20709BC Door primary seal, Volante, LH -	-	1	Enquire
9	4G43L25324AA	シール、マージン下部リア、右側	4G43L25324AA シール、マージン下部リア、右側 -	$388.40	1
10	4G43L25325AA	シール、マージン下部リア、左側	4G43L25325AA シール、マージン下部リア、左側 -	$388.40	1
10a	4G43L25324BA	CLIP, WEATHERSTRIPRETENTION	4G43L25324BA CLIP, WEATHERSTRIPRETENTION -	$3.17	2
11	4G43F20570AD	Weatherstrip, door waist inner, RH	4G43F20570AD Weatherstrip, door waist inner, RH -	-	1	Enquire
12	4G43F20571AD	Weatherstrip, door waist inner, LH	4G43F20571AD Weatherstrip, door waist inner, LH -	-	1	Enquire
13	4G43F21510AD	Weatherstrip, Front Door Glass, RH	4G43F21510AD Weatherstrip, Front Door Glass, RH Up to (V) B05151	$103.32	1
14	4G43F21511AD	Weatherstrip, Front Door Glass, LH	4G43F21511AD Weatherstrip, Front Door Glass, LH Up to (V) B05151	$93.87	1
15	4G43F20556AF	シール、マージン、フロントドア、右側	4G43F20556AF シール、マージン、フロントドア、右側 -	$275.58	1
16	4G43F20557AF	Seal, front door margin, LH	4G43F20557AF Seal, front door margin, LH -	$275.58	1
17	4G4316K816AC	Weatherstrip, Bonnet Extrusion Rear	4G4316K816AC Weatherstrip, Bonnet Extrusion Rear -	$42.00	1
18	4G4316A014AF	Weatherstrip, hood side, RH	4G4316A014AF Weatherstrip, hood side, RH -	$130.47	1
19	4G4316A015AC	Seal, bonnet to fender, LH	4G4316A015AC Seal, bonnet to fender, LH Up to 10MY	$31.65	1
20	4G43L20708BC	WEATHERSTRIP, B-PILLAR,RH	4G43L20708BC WEATHERSTRIP, B-PILLAR,RH -	$357.99	1
21	4G43L20709BC	WEATHERSTRIP, B-PILLAR,LH	4G43L20709BC WEATHERSTRIP, B-PILLAR,LH -	$357.99	1
22	4G43L51452AB	Weatherstrip assembly, tonneau to body	4G43L51452AB Weatherstrip assembly, tonneau to body -	-	1	Enquire
